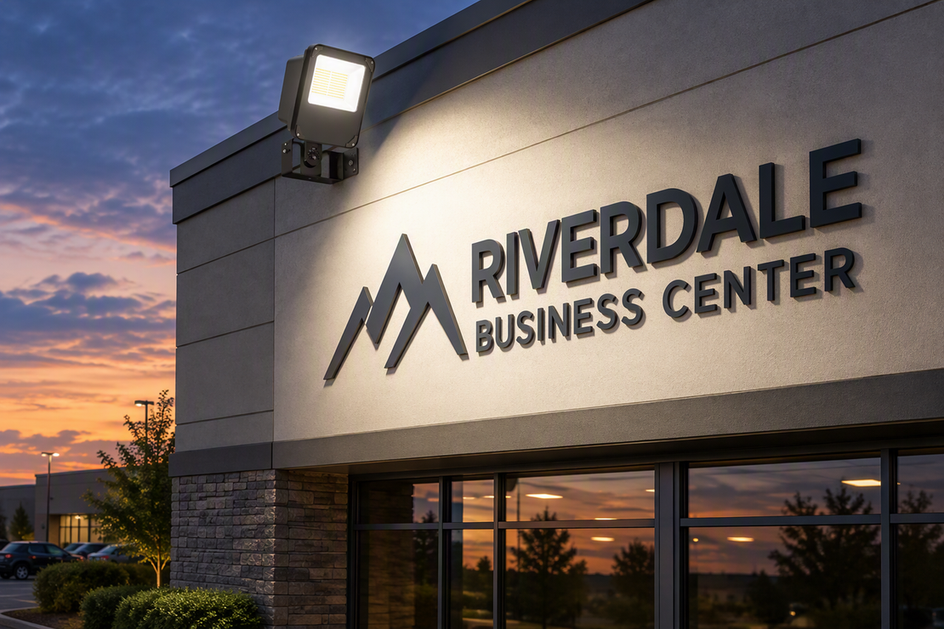

Start with two measurements: the horizontal setback from the fixture to the facade or sign plane, and the vertical difference between the fixture and the point you want the beam centered on. Divide the vertical difference by the horizontal setback, then take the arctangent of that ratio. The result is your starting elevation angle from horizontal, the initial knuckle tilt to dial in before you fine-tune for hot spots and shadows.
That number is a line-of-aim estimate, not a lighting design. It tells you where the beam center will land, not how evenly the light will spread once it gets there.
Start With a Measured Setback and Line-of-Aim Angle
The formula is θ = arctan(H ÷ D), where D is the horizontal setback in feet and H is the vertical difference in feet between the fixture and your chosen aiming point. This gives the initial elevation angle measured up from horizontal.
The Starting Geometry
Measure D as the flat, horizontal distance from the fixture's mounting point to the plane of the facade or sign face. Measure H as the vertical difference between the fixture's mounting height and the height of the point you've chosen to aim at, such as the sign's visual center or the facade's midline. As a labeled example: if D is 25 feet and H is 15 feet, θ = arctan(15 ÷ 25), or roughly 31 degrees above horizontal. If a smaller sign target sits closer, with D at 20 feet and H at 8 feet, θ = arctan(8 ÷ 20), or about 22 degrees. Both are illustrative starting points, not universal settings; your own D and H will produce a different angle.
What the Angle Does Not Tell You
- It does not predict illuminance levels or how uniform the light will look across the surface.
- It does not replace checking the fixture's optic distribution or a photometric file for the specific model.
- It does not establish that the setup avoids glare or meets any local lighting code.
Choose the Aiming Point for a Facade or Sign
Before you calculate anything, define the target plane, its dimensions, and the exact point you're aiming at. That input set determines whether one angle even makes sense for the whole surface.
Measure the Target Plane
- Record the target's height and width, whether it's a facade section or a sign face.
- Record the fixture's mounting height and its horizontal setback (D) from the target.
- Mark the target plane clearly and choose one aiming point, such as a facade's vertical midline or a sign's visual center.
- Note the spacing between fixtures if more than one unit will cover the same surface.
- Record surface texture, reflectance, and sign material, since these change how the same light output looks once it lands.
Facade Wash Versus Sign Illumination
A broad facade generally needs more than one fixture, so the decision shifts toward coverage width, overlap between adjacent units, and keeping the wall's edges from going dark. Compare flood-light and dedicated wall-light options for exterior coverage in our facade and flood-light comparison. A sign is usually smaller and more forgiving of a single fixture, but it puts more weight on even edge coverage, legible brightness, and controlling spill past the sign face. In both cases, keep the aiming point tied to what you actually want a viewer to see, not just the fixture's default centerline.
Adjust the Starting Aim for Hot Spots and Scalloping
Your calculated angle sets a starting point, not a finished result. Once the fixture is up and running at night, watch for specific defects and match each one to a targeted check rather than nudging the fixture at random.
Symptom-to-Check Field Guide
| Symptom | Likely cause | Next safe check | Controlled adjustment |
|---|---|---|---|
| Bright hot spot | Aiming point too concentrated | Re-verify D and H, check optic beam spread | Shift aiming point slightly, not output |
| Scalloped shadows | Fixture spacing or overlap gap | Check spacing versus mounting height and optic angle | Adjust spacing or add overlap before retilting |
| Dark facade or sign edges | Insufficient coverage width | Confirm target width was measured correctly | Reconsider aiming point or add a fixture |
| Glare toward viewers | Viewpoint, shielding, or output | Check from the affected viewpoint at night | Adjust shielding, aiming, or output, not just tilt |
| Upward light spill | Aim angle or missing shielding | Check angle against horizontal and any shield in place | Lower elevation angle or add a shield |
General glare in outdoor lighting is tied to factors such as luminaire intensity, the number and size of fixtures, mounting height, and aiming angle; using only the light needed for the target, aimed at the target, reduces direct glare from the source (DOE discussion of outdoor glare factors). That means a glare complaint is not automatically solved by tilting the fixture down; the cause could be output, shielding, or fixture placement instead.
Use a Controlled Night Check
- Observe the result from every relevant viewpoint: the facade or sign itself, the street, neighboring property, and any nearby windows or walkways.
- Change one variable at a time, whether that's the aiming point, a shield, or fixture spacing, and record what changed.
- If the defect doesn't resolve after a reasonable adjustment, stop treating tilt as the fix and check the optic or fixture layout instead. Our related breakdown on diagnosing exterior glare walks through separating an aiming issue from a fixture or site issue.
Change the Method for Optics and Tight Mounting Locations
The same setback-and-tilt method needs different inputs depending on what you're lighting and how much room you have to work with. Two conditions change the plan the most: the target's size and shape, and how much horizontal setback is actually available.
When the Target Changes the Plan
- A tall or broad facade usually needs attention to overlap between fixtures and coverage at both ends of the wall, not just the center.
- A sign needs attention to its exact face dimensions, legibility from a normal viewing distance, and controlling spill beyond the sign edges.
- Surface texture and reflectance, such as a matte painted wall versus a reflective sign material, can make the same fixture look different once installed.
When Setback Is Constrained
Don't force a long-setback layout onto a short mounting arm or a tight property line; the math still works, but the resulting angle may exceed what the optic or mounting hardware is designed to hold. In that case, verify the fixture's permitted aiming range, its optic distribution, and whether a different mounting style fits the space. Retrofitting an existing mounting point raises the same question, since the prior fixture's coverage doesn't guarantee a replacement will reproduce it; see our guide on commercial flood light retrofit planning for that comparison. When the existing point can't reach the target cleanly, a layout change or a photometric review is a more reliable next step than forcing the calculated angle.
Check Glare, Upward Spill, and Local Requirements
Before finalizing the aim, check the light's effect at the site, not just on the facade or sign itself. Glare, upward spill, and light trespass are separate problems from hot spots or scalloping, and they carry their own verification step.
Control the Light at the Site
- Check the beam from every relevant viewpoint: drivers, pedestrians, neighboring windows, and the sky-facing direction.
- Use only the light needed for the target; review shielding, aiming angle, output, and any dimming or scheduling controls together rather than in isolation.
- Look for light landing beyond the facade or sign edges, or above the target toward the sky.
Verify the Governing Requirements
Check your city, county, zoning, sign, and outdoor-lighting rules for the project location before final sign-off. Responsible outdoor lighting guidance recommends checking whether your area has an outdoor lighting ordinance and confirming it's enforced, and treats a DarkSky-approved product listing as a separate check from local code compliance (responsible outdoor lighting and local ordinances). Electrical installation decisions and formal code-compliance determinations belong to a qualified electrician or your local building or zoning authority, not to this calculation.
Verify Mounting Limits and Product Documentation
Before you order a fixture or apply your calculated angle, confirm the exact configuration you're buying can actually hold that angle and mount the way your project needs.
Check the Exact Fixture Record
- Match the exact series, model, wattage, and variant before relying on any mounting spec.
- Confirm the permitted mounting configuration and the aiming range that configuration allows.
- Request the optic distribution and, if available, a photometric file for the specific unit.
What the Supplied HPFD01 Facts Do and Do Not Show
For the HPFD01 series, the available product information distinguishes 27W and 40W configurations using a trunion or 1/2-inch knuckle mount from the 120W configuration, which uses a yoke or slipfitter mount, and lists a NEMA 7H x 7V beam classification for the line. That record does not include a project-specific photometric file, a beam-coverage rating, or a universal facade or sign aiming recommendation, so it can't confirm on its own that a given unit will evenly wash a specific wall or sign. Use the exact product listing in the LED flood light collection as a place to check current specifications and mounting details, not as proof that a particular unit fits your project. If your setback is unusual or the mounting location is tight, a project-specific photometric review is the more reliable next step before ordering.
FAQs
How do I check whether a facade or sign flood light is creating too much spill?
Walk or view the site from every position a person would actually experience it: the sidewalk, the road, a neighboring window, and if relevant, looking up toward the sky. If light lands where it shouldn't, adjust aiming, add shielding, change the optic, lower output, or use scheduling controls, then recheck from that same viewpoint rather than judging only from directly in front of the fixture.
Does a DarkSky designation automatically mean my commercial sign lighting is code-compliant?
No. A DarkSky-listed product or responsible-lighting guidance can help you choose lower-glare equipment and understand general principles, but it does not confirm compliance with your specific local sign, zoning, or outdoor-lighting rules (responsible outdoor lighting and local ordinances). Check your governing jurisdiction separately before final installation.
What if I cannot achieve the calculated setback distance?
Don't force the calculated angle onto a mount that wasn't designed to hold it. Instead, verify the fixture's permitted mounting range, its optic and shielding options, and whether the available photometric data covers a shorter setback. If the constrained location still can't produce a clean pattern, a project-specific lighting design review is a safer next step than adjusting tilt alone.
