Learning how to light garage with ceiling storage racks starts by recognizing that racks block the direct line of sight between overhead fixtures and the floor. The fix is not simply putting a brighter bulb in the same obstructed ceiling box. Instead, map the dark floor strips and add light sources with clear paths to those specific areas.
A workable layout layers ceiling fixtures with wall-side, under-rack, or localized task lighting depending on your vertical clearances. Start by identifying where the shadows fall, then match a placement to each dark zone before purchasing fixtures.
The fix for rack-created shadow zones: layer light around the obstruction
A ceiling-mounted storage rack can sit directly between your light fixture and the floor, cutting off the light path even when the fixture itself still works. Adding wattage at that same ceiling spot will not help if the rack remains in the way. The practical response is treating lighting as layers: keep a clear-path ceiling source wherever the rack does not block it, then add wall-side, under-rack, or localized task lighting for the areas that stay dark.

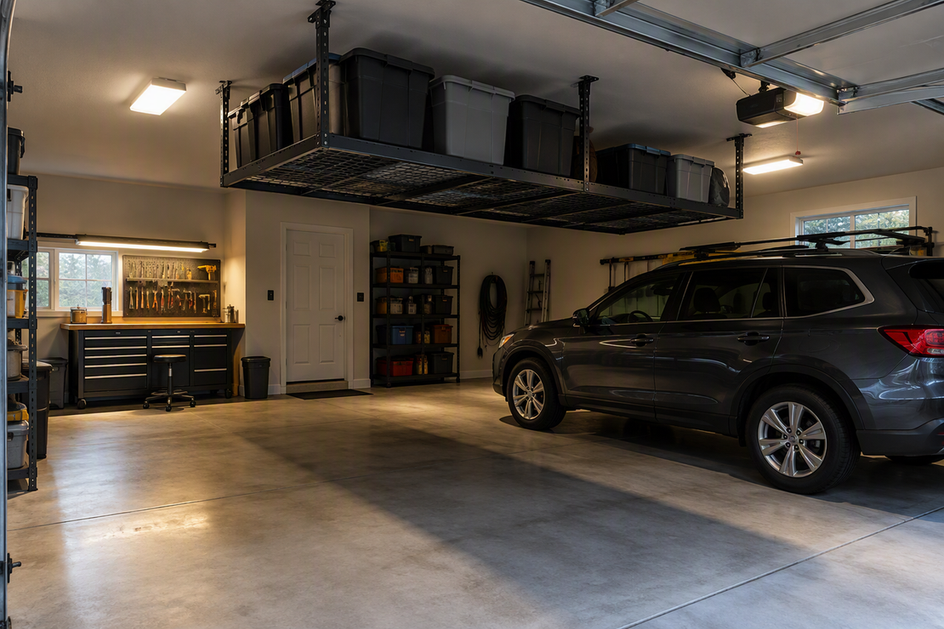

Judge visibility at the floor, walkway, vehicle perimeter, or workbench rather than directly under the fixture lens. A garage can appear bright from the doorway while a tool bench or parking strip remains completely shadowed. That obstruction gap is what a layered layout corrects.
Map the rack, fixtures, and shadowed work areas
Before buying anything, sketch your garage footprint and record where the rack, existing junction boxes, vehicles, and work zones sit. This converts a vague dark-room complaint into verified measurements and shadow coordinates.
Record the vertical clearances
- Measure floor-to-ceiling height and floor-to-rack-underside height separately.
- Note the rack's footprint and the location of every existing or planned fixture box.
- Record vehicle clearance and garage door paths that could physically conflict with a new fixture.
Trace the actual shadowed zones
- Walk the garage floor and outline dark floor strips, walkways, vehicle flanks, and work surfaces.
- Repeat the walk-through with intended totes or storage bins loaded on the rack, as an empty wire frame lets through far more light than loaded solid containers.
- Mark your normal stance at each workbench to observe whether your body casts a secondary shadow over the work.
If you are also accommodating charging equipment, an EV garage lighting layout follows the same principle: map the obstruction and the cord path together before committing to fixture locations.
Choose ceiling, wall-side, or under-rack placement
Your sketch will indicate which placement physically bypasses each shadow. No single fixture position works everywhere; the right layer depends on whether the rack framing or tote stack creates the dark zone.
When the ceiling still has a clear path
Keep or add ceiling fixtures only where the rack does not cast an umbrella shadow over primary walking or parking paths. If an existing fixture sits directly above the rack platform, relocating the box or adding an unobstructed ceiling run is far more effective than increasing lumens at the blocked point.
When the rack underside or side needs its own layer
Wall-side or under-rack lighting provides a direct line of sight when the rack platform is the primary obstruction. Underside mounting is conditional: it depends on fixture weight, rack frame structural integrity, vertical headroom clearance, and whether the fixture manufacturer permits surface mounting on that specific substrate.
When one work area needs more control
Add localized task lighting when a bench or sharpening station stays dim despite ambient overhead fixtures. Position the task light close to the work surface, verifying that the beam does not produce direct eye glare or disruptive hand shadows while you handle tools.
| Ceiling/rack condition | Visibility issue | Suitable placement | What to verify |
|---|---|---|---|
| Rack does not block fixture | Even lighting reaches floor | Clear-path ceiling fixture | Fixture position relative to rack footprint |
| Rack sits between fixture and floor | Dark floor strip or walkway | Wall-side fixture | Mounting height and distribution angle |
| Task area falls under rack | Dim or shadowed work surface | Under-rack fixture | Manufacturer mounting instructions and clearance |
| General light present but bench stays dim | Weak task visibility | Localized task light | Glare and hand-shadow at the work surface |
These layers can be combined across different zones within the same garage. Regardless of placement, verify that the selected fixture's mounting provisions and distribution angle are explicitly documented for your space.
Verify fixture and control specifications before buying
Once you map target positions, consult manufacturer specification sheets to confirm the fixture meets the optical and electrical needs of that position.
Translate the label into a layout decision
- Lumens quantify total light output, while wattage indicates electrical power consumption; wattage alone does not measure brightness.
- Correlated Color Temperature (CCT) dictates whether illumination looks warm or cool, while the Color Rendering Index rating determines how accurately object colors appear under the light source.
- Distribution angle and mounting geometry determine whether the beam reaches a shadowed floor strip beside a suspended rack, regardless of lumen output.
Treat controls and retrofit conditions as compatibility checks
- Verify dimmer, motion-sensor, timer, and 0–10V control compatibility against both the fixture's driver documentation and your existing wall control.
- Check circuit voltage, total connected wattage, inrush current, and electrical box load limits against manufacturer instructions.
- Treat signs such as flickering, hot faceplates, persistent buzzing, scorched plastic, burning odors, or tripping breakers as reasons to seek qualified electrical inspection rather than normal operating characteristics.
When considering mounting hardware, examine the manufacturer's documented scope. For instance, the Surface Mounting Kits for HPLH02 Series is listed specifically as a surface-mount bracket for compatible HPLH02 configurations, requiring two brackets per fixture. That listing verifies mechanical fit for those specified units only; it does not verify clearance under your specific storage rack or assess circuit compatibility.
Set the installation boundary before you start
Drafting a lighting sketch, checking clearances, and reviewing specification sheets are straightforward DIY planning steps. Any work altering home wiring, adding branch circuits, or retrofitting wall controls belongs to a different scope.
Keep planning separate from electrical work
Measuring rack perimeters does not carry electrical risk. However, whenever a project involves running new building wire, tapping junction boxes, or adding dedicated circuits, hire a licensed electrician to safely de-energize the circuit and execute the installation within your local permitting rules.
Stop when the retrofit shows warning signs
If you encounter unexplained buzzing, flickering, unusually warm enclosures, or an overloaded breaker, stop installation immediately. Do not attempt to mask electrical incompatibilities with different lamps. Have a licensed professional inspect the circuit, and confirm that all modifications adhere to current local building codes.
Use this before-buying checklist
Review these points before ordering fixtures or beginning mechanical installation:
- Sketch documents ceiling height, rack underside clearance, overall footprint, vehicle paths, and active work zones.
- Shadow zones are evaluated with the rack loaded with actual opaque bins, not assessed merely as an empty frame.
- Every identified dark patch is paired with a distinct clear-path placement: ceiling, wall-side, under-rack, or focused task.
- Fixture specifications—including lumen distribution, mounting design, voltage, driver draw, and control compatibility—match your existing infrastructure.
- Structural mounting surfaces are verified and any planned electrical wiring changes are scheduled with a qualified professional.
Proceed with purchasing once every layout and documentation checkpoint is satisfied. If physical clearance or electrical capacity remains questionable, adjust the lighting plan or consult professional support.
FAQs
What if the rack is empty now but will hold opaque totes later?
Always plan your lighting against the fully loaded condition. Solid plastic totes create continuous, dense shadows across the floor, whereas an unladen wire rack permits partial light transmission. Re-verify your sketched light paths with actual storage containers in place before drilling ceiling or wall mounts.
Does a surface-mount accessory prove that a fixture will work under a storage rack?
No. An approved surface-mounting bracket only confirms that the fixture can attach directly to an appropriate flat substrate; it does not evaluate vertical head clearance, heat dissipation space under a metal platform, or cord routing safety. Always cross-check the fixture's installation manual against your rack manufacturer's structural guidelines.
How do I prevent glare when mounting wall-side fixtures beneath high racks?
Position wall fixtures below the bottom perimeter of the rack frame but above normal standing eye level, typically angled downward toward the floor or workbench. Choosing fixtures with diffuse frosted lenses or directed beam optics ensures the illumination washes the walking lane without shining directly into your line of sight as you walk past the rack.
