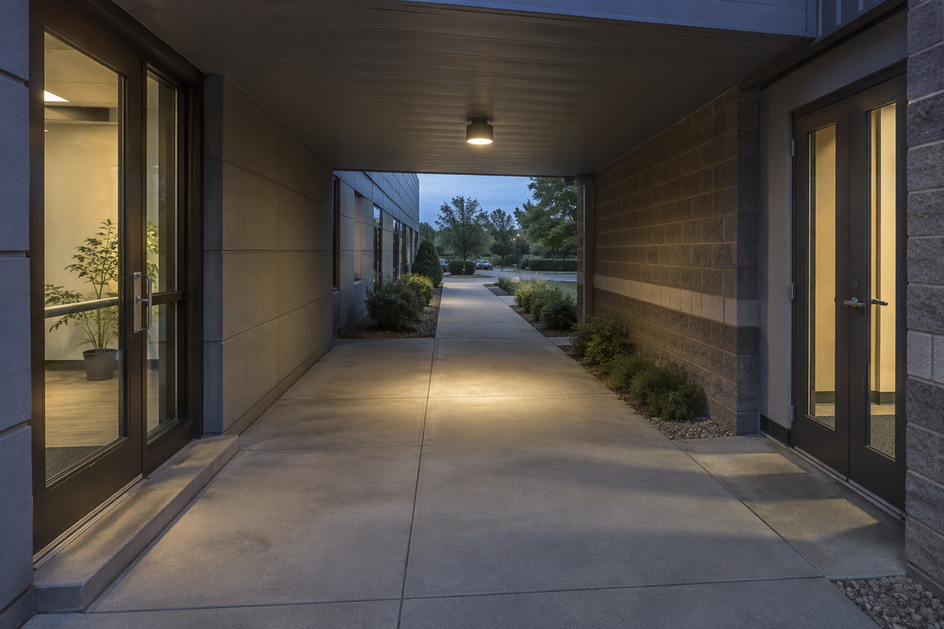

How to Plan Lighting for a Covered Commercial Walkway Between Buildings

Plan covered walkway lighting as a separate pedestrian-lighting job, not as part of the parking lot, plaza, or lobby it connects. The roof changes where fixtures can mount and how light reaches the walking surface. Start with a site record, then get a route-coverage review based on it, check each end on its own, and confirm which local rules apply before anyone picks equipment.

No single fixture count, spacing, or light level fits every connector. The layout has to come from the measured site, the criteria your project reviewer sets, and the requirements adopted where the building stands.

How to Plan a Covered Commercial Walkway

Follow these five steps in order and finish them before you buy fixtures.

1. Treat the covered route as its own lighting zone with its own plan, not as an extension of the site or building lighting.
2. Record the walkway's dimensions, overhead structure, mounting surfaces, openings, and how people use it.
3. Have a site-specific layout developed and checked for coverage along the whole route.
4. Record the lighting at both connections and include each one in the review.
5. Confirm the jurisdiction, whether the walkway is permanent or temporary, and which requirements have been adopted.

These steps give you a planning brief. They are not an engineered lighting design or a code-compliance decision. Before installation, get a photometric review and an authority review for your specific project. Leave circuit design, wiring, and breaker selection to a licensed electrician.

Record the Conditions That Change the Lighting Plan

Walk the connector and write down each condition below, along with what it will affect in the layout. This record becomes the input for every later step, so measure it instead of estimating.

• Length and clear width: These set how far light has to carry along the path and across it. They also show which fixture arrangements are worth modeling.
• Route direction and use: Note entry and exit points, busy times, after-dark hours, and whether carts or deliveries share the path. Use and hours affect what the reviewer models and when the lights need to run.
• Roof or ceiling height and material: Overhead height limits where fixtures can mount and changes how far each fixture's light spreads. The material decides whether a surface can hold a fixture and how much light it bounces back down.
• Mounting surfaces and obstructions: Mark beams, drainage, signs, and other equipment that could block light or rule out a position. If the overhead clearance is tight, our guide to screening fixtures under mounting limits shows how to sort candidates against a site record.
• Side openings and daylight: Mark open sides, gaps, and glazed sections. They change daytime conditions, can let light spill out, and can expose fixtures to weather. That affects where fixtures go and which location rating you check on each candidate.
• Adjoining lighting at each end: Write down what lies beyond end A and end B separately, such as a lobby, an entrance canopy, or an open lot. Record them as two separate observations.
• Project status and location: Label the walkway permanent or temporary, and note its city, county, state, and any permit tied to it.

Plan and Verify Coverage Along the Route

Ask for a coverage review of the whole covered route, built from your site record. A fixture count guessed from length alone skips the conditions that actually shape the layout.

1. Give the site record to the person preparing the layout.
2. Have the responsible reviewer, such as a lighting designer or engineer, set the criteria for this project and location.
3. Ask for a photometric layout that shows predicted light from one end of the route to the other, including the stretches near openings.
4. Check the result against visibility factors. Denver's listed visibility factors are illuminance, luminance, uniformity, glare, contrast, and adaptation. Its guidelines say all six must be addressed, and the list makes a practical set of questions to put to your designer.
5. Revise and rerun the layout until it meets the criteria the reviewer set.

One documented example shows what a route-wide review can look like. Under Maryland SHA's covered walkway guidelines, covered walkways used during construction or maintenance under an MDOT SHA permit must be lit at all times by daylight or electric light. Illumination must be spread evenly along the entire length, and photometric calculations go in for review and approval. Those rules apply inside Maryland's permit program. For a permanent connector anywhere else, your reviewer sets criteria from the requirements that apply locally.

If fixture placement is still open, our guide on whether to request a layout or quote first explains why a layout should come before a contractor quote. For help turning your site record into a layout, start with our lighting design support page. Once criteria are set, check candidate fixtures against them using each model's current documentation, whether you start with our LED canopy lights or the wider commercial lighting collection.

Address Both Walkway Transitions

Check each end on its own, because the area beyond one end can be lit very differently from the area beyond the other. Give the reviewer two separate endpoint records, not one shared assumption.

• End A: Note whether it opens into a building interior, an entrance, or an outdoor area. Record the lighting there at the hours the walkway is used, plus any door, opening, or canopy at the threshold.
• End B: Repeat the same check without copying End A's notes.
• Day and night contrast: Flag any end that looks much brighter or darker than the covered section, either in daylight or after dark.
• Review scope: Ask that the layout reach both thresholds and show how the covered section meets each adjoining area.

Adaptation means the eye adjusting as a person moves between brighter and darker spaces. Denver's guidance treats it as a design factor. Its tunnel-specific adaptation example says long pedestrian tunnels, 100 feet or more, should consider adding luminaires at the entrances so bicyclists can adjust from bright daylight to a dark interior. That advice is written for tunnels. It does not set a transition target for a covered building connector, so the reviewer should work from your recorded end conditions.

If one end opens onto an outdoor service area or alley, our comparison of wall packs and flood lights covers glare, spill, and mounting trade-offs for that space.

Confirm Requirements for the Project and Walkway Type

What applies depends on where the project is and what kind of walkway it is, so your research starts with those two facts. Work through this sequence with your project team.

1. Identify the city, county, and state, and the authority having jurisdiction (AHJ), meaning the office that issues permits and enforces codes there.
2. Classify the walkway as a permanent connector or a temporary covered walkway for construction or maintenance, and note any permit attached to it.
3. Confirm the code edition and any amendments that are actually in force. According to ICC code adoption resources, jurisdictions adopt model codes through an enacting law, and that law should include the full text of any amendments. A model-code page alone does not tell you what governs your site.
4. Ask the AHJ for the permit conditions that apply to the walkway's lighting.
5. Leave the compliance decision to your project professionals and the AHJ.

Both walkway-specific examples in this guide cover temporary work. The 2024 IBC construction-safeguards provision, Section 3306.7, says covered walkways must have adequate lighting at all times and a clear height of at least 8 feet. It sits in Chapter 33, Safeguards During Construction. Maryland's guidance is limited to work done under an MDOT SHA construction or maintenance permit. Neither one names the rule for a permanent connector in your jurisdiction. That answer depends on your project's location and conditions, confirmed with the AHJ.

FAQs

Does the 2024 IBC covered-walkway provision apply to every US project?

No. The 2024 IBC is model text, and it only has legal force where a jurisdiction has adopted it, possibly with amendments. Section 3306.7 also sits in the construction-safeguards chapter, so it deals with walkways used during construction. Ask your AHJ which edition is in force and whether it was amended.

Do Maryland SHA's guidelines govern a permanent walkway in another state?

No. For a covered walkway used during construction or maintenance under an MDOT SHA permit, Maryland's guidance calls for light spread along the route and photometric calculations reviewed against its lighting guidelines. It is a useful model for how route-wide review can work, not a nationwide rule or a permanent-connector requirement.

Does Denver's 100-foot tunnel guidance set a transition target for a building connector?

No. The 100-foot threshold and the advice to add luminaires at the entrances apply to long pedestrian tunnels in Denver's guidelines. For a covered connector, give the reviewer separate lighting notes for each end and let them decide whether the transitions need anything extra.

Does a photometric layout prove the walkway meets code?

No. A photometric layout predicts how light will fall along the route under the conditions modeled. Whether the design complies is decided by your project professionals and the AHJ, based on the adopted code and any permit conditions.

Is covered walkway lighting planned differently for a temporary construction walkway?

The planning steps overlap: record the site, review coverage, and check both ends. The requirements research changes, though. Temporary walkways may fall under construction-safeguard provisions or permit conditions, while a permanent connector needs whatever rules the local authority has adopted for permanent work.
