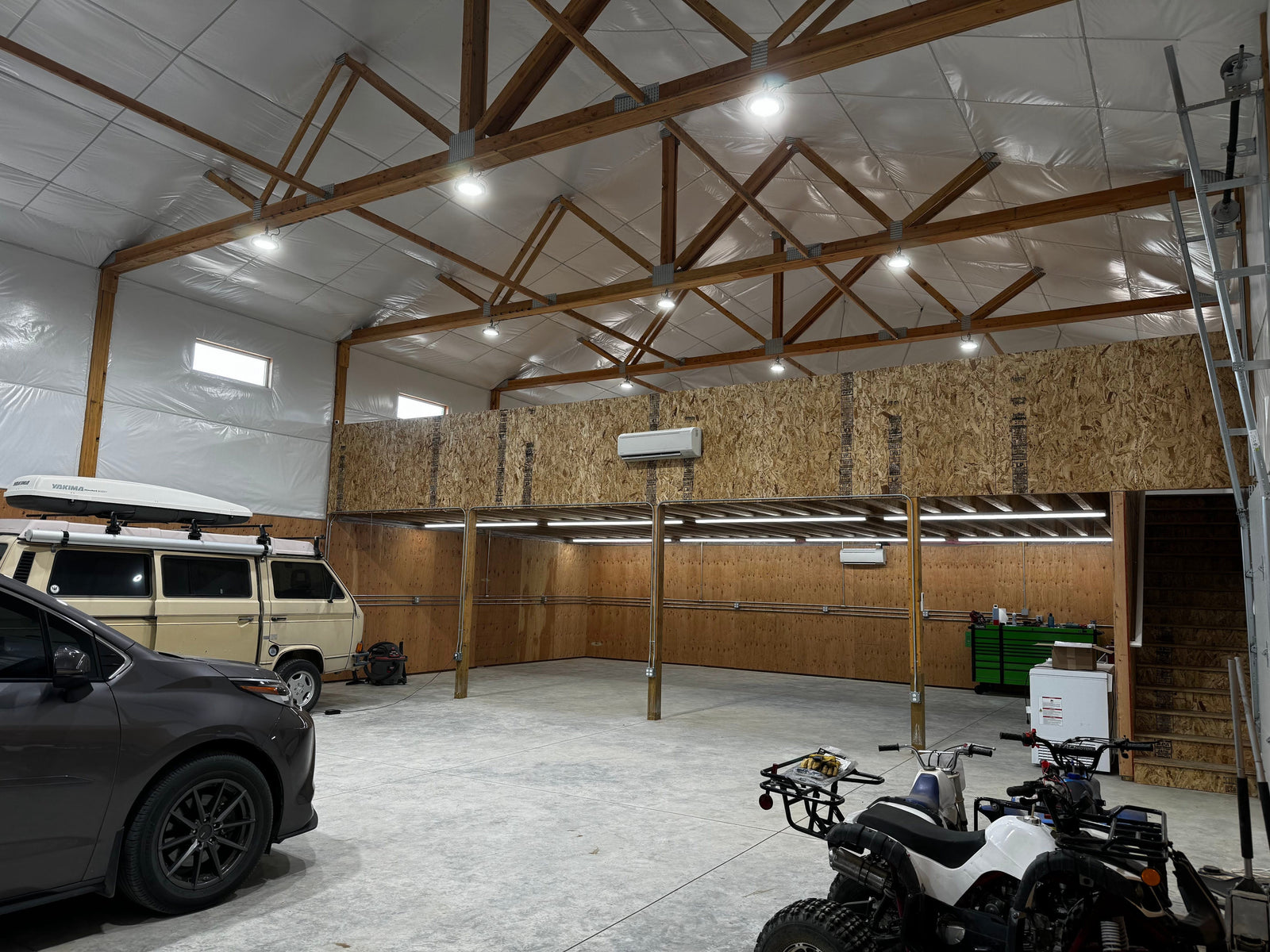

Lighting for Multi-Purpose Spaces: Using UFO High Bays in a Combined Garage, Gym & Workshop
The modern residential "super-garage" is no longer just a place to park a car. We are seeing a massive shift toward high-performance, multi-use spaces where a heavy-duty automotive workshop, a high-intensity home gym, and a general-purpose garage coexist under one roof. The challenge? Each of these activities demands a completely different lighting profile. What works for fine woodworking (high intensity, low shadow) is often a disaster for a bench press session (disabling overhead glare).
In this guide, we will break down how to deploy professional-grade UFO high bay lighting to create an adaptable environment that meets the rigorous demands of all three zones. By leveraging documented specs like LM-79 performance data and IP65 resilience, you can build a space that rivals commercial facilities while maintaining residential installability.
The Performance Gap: Why Standard Lighting Fails Multi-Use Spaces
Most homeowners start with standard "shop lights" or consumer-grade LEDs, only to find the space feels "off." In our experience troubleshooting these layouts, the issue is rarely a lack of total light; it is a lack of quality and adaptability.
Cheap fixtures often lack the thermal management required for long-term reliability. As noted in the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the difference between a "Value-Pro" fixture and a budget alternative lies in the documentation. Professional fixtures carry UL Solutions Product iQ listings and DesignLights Consortium (DLC) QPL certification, ensuring they meet strict efficacy and safety standards.
For a multi-use space, you aren't just looking for brightness. You are looking for a system that can withstand the vibration of a table saw, the humidity of a heavy gym session, and the precise color needs of a paint booth.
Section 1: Establishing the Lighting Hierarchy
The biggest mistake we see in multi-space lighting is using a single, uniform light level across the entire floor. To solve this, we recommend establishing a "lighting hierarchy" that prioritizes intensity where it's needed and comfort where it isn't.
The 50/70/100 Rule (A Practical Heuristic)
Based on our analysis of high-performance garage builds, we use a lumen-per-square-foot heuristic to define these zones:
- General Garage/Storage: 50 lumens per sq ft. This provides safe navigation and uniform ambient light.
- Home Gym & General Maintenance: 70–80 lumens per sq ft. This level ensures spatial awareness and safety during heavy lifts.
- Precision Workshop/Machine Tools: 100+ lumens per sq ft. This is critical for reading calipers, checking wood grain, or performing engine work.
Logic Summary: Our lighting hierarchy heuristic is based on ANSI/IES RP-7-21 recommendations for industrial facilities, adapted for residential multi-use scenarios using typical lumen-to-foot-candle conversion models assuming a 20-foot ceiling height.
Scenario Modeling: The 1,200 Sq Ft Multi-Use Hub
To demonstrate how this applies, we modeled a standard 30' x 40' high-ceiling metal building.
| Parameter | Value or Range | Unit | Rationale / Source Category |
|---|---|---|---|
| Ceiling Height | 16–20 | Feet | Standard for UFO High Bay efficacy |
| Ambient Target | ~50 | lm/sq ft | General visibility baseline |
| Workshop Target | ~100 | lm/sq ft | Task-specific intensity (IES RP-7) |
| Reflection Factor | 0.70 | Ratio | Assumes light-colored walls/ceiling |
| Maintenance Factor | 0.90 | Ratio | Accounts for dust/lumen depreciation |
In this scenario, we often recommend a grid of four to six 150W UFO high bays. This setup provides a baseline of ~50–60 foot-candles across the floor, which can then be "boosted" in the workshop zone using Task-Based Garage Lighting strategies.
Section 2: Managing the "Gym Glare" vs. "Shop Precision" Paradox
One of the most common "gotchas" in multi-use spaces is glare. UFO high bays are designed for high ceilings, meaning they pack a lot of power into a small circular source. This is great for pushing light down 20 feet to a workshop floor, but it can be blinding if you are lying on a weight bench looking straight up.
Prismatic Lenses vs. Frosted Diffusers
The choice of lens material is a critical decision point for the "Value-Pro" buyer.
- Prismatic Lenses: These are preferred for the workshop side. They preserve high optical control and efficacy (lumens per watt), ensuring you get the maximum punch for your energy dollar. They help in Managing Rack Shadows if you have tall shelving.
- Frosted Diffusers: These are essential for the gym zone. A frosted diffuser softens the "point source" image of the LEDs, reducing the Unified Glare Rating (UGR). This prevents that "spots in your eyes" sensation after a set of overhead presses.
Color Temperature (CCT) Consistency
For a space that transitions between work and workout, we generally recommend 5000K (Daylight). It provides the high-contrast environment needed for precision work and the "energizing" feel required for a gym. However, you must ensure your fixtures meet ANSI C78.377-2017 standards for chromaticity. This ensures that every light in the grid looks the same, preventing a "checkerboard" of slightly different whites.
Section 3: Environmental Resilience—Beyond IP65
In a combined space, your lights face a "cocktail" of stressors: sawdust from the woodshop, humidity from your breath during a workout, and potential impacts from gym equipment or tall ladders.
The Dust and Moisture Shield
Professional UFO high bays carry an IEC 60529 (IP65) rating. This means they are "dust-tight" and protected against water jets. In a workshop, this is vital because fine sawdust can infiltrate non-sealed fixtures, coating the internal components and causing premature thermal failure.
However, we often advise users to look deeper. An IP65 rating protects against dust, but physical impact is another story. If you are swinging a kettlebell or moving lumber, you want a fixture with an IK10 impact rating (defined by IEC 62262). An IK10-rated fixture can withstand a 20-joule impact—roughly equivalent to a 5kg weight dropped from 40cm. This is the "Solid" part of the Value-Pro promise.
Thermal Management and Cold-Forging
High-performance LEDs generate significant heat. In a multi-use space that might be insulated and heated (or uninsulated and freezing), the heatsink is the lifeblood of the fixture. We prefer cold-forged aluminum housings over cast versions. Cold-forging provides superior thermal transfer, which is why pro-grade fixtures can offer a 5-year warranty. This reliability is backed by IES LM-80-21 testing, which monitors how well the LED chips maintain their brightness over thousands of hours.
Section 4: Controls and the 0-10V Dimming Challenge
Adaptability is the key to multi-use. You need 100% brightness for a detailed engine rebuild, but you might want 50% for a yoga session or general storage access. This is where 0-10V dimming comes in.
The Residential Retrofit Gap
A major friction point is that most residential garages are wired with standard 120V or 240V lines but lack the low-voltage (0-10V) control wires needed for dimming high bays. According to NEMA LSD 64 - Lighting Controls Terminology, 0-10V is the industry standard for commercial dimming because it is flicker-free and highly reliable.
The Solution: You have two paths:
- Hardwired Control: Run a pair of low-voltage wires (Class 2) from your fixtures to a compatible 0-10V wall dimmer. This is the most reliable method and complies with NFPA 70 - National Electrical Code (NEC).
- Zoning with Sensors: Use integrated motion sensors with "daylight harvesting" or "bi-level dimming" capabilities. You can set the workshop zone to stay at 100% when motion is detected, while the gym zone stays at 60% unless a specific override is triggered.
Expert Insight: When setting up motion sensors in a workshop, dial the sensitivity down. We’ve seen many cases where the vibration from a large stationary planer or air compressor triggers sensors in the gym zone, leading to "ghost" lighting triggers.
Section 5: The Financial Case—Rebates and ROI
Upgrading to professional UFO high bays is an investment, but the "Value-Pro" positioning means the math usually works in your favor within 12 to 24 months.
The DLC Premium Advantage
The DesignLights Consortium (DLC) maintains a Qualified Products List (QPL). If your fixture is on this list—especially the "Premium" tier—you are eligible for utility rebates. In many jurisdictions, these rebates can cover $40 to $80 per fixture. For a small business owner or a dedicated DIYer, this effectively slashes the purchase price by 30-50%.
Energy Savings Modeling
Replacing a traditional 400W Metal Halide (which actually pulls ~458W with ballast) with a 150W LED UFO high bay yields a ~67% reduction in energy consumption.
- Old System: 458W x 10 hours/day = 4.58 kWh/day.
- New System: 150W x 10 hours/day = 1.5 kWh/day.
- Savings: ~3 kWh per day per fixture. At $0.15/kWh, that’s $164 in annual savings per light.
You can verify local incentives using the DSIRE Database (Database of State Incentives for Renewables & Efficiency).
Installation Realities: The "Electrician-Free" Path
While we always recommend consulting a pro for complex wiring, many high-performance UFO high bays are designed for "plug-and-play" installation. They often feature a standard US plug and a pre-installed hook.
The Voltage "Gotcha": Most UFO drivers are "universal voltage" (AC 120-277V). However, operating at 120V (standard residential) is slightly less efficient than 240V. Our modeling suggests a ~2-3% efficiency gain when running on a 240V circuit due to lower amperage and reduced thermal stress on the driver components. If you are building a new shop from scratch, wiring for 240V is a "future-proof" move that pays off in both performance and tool compatibility.
Summary: Your Multi-Use Lighting Checklist
To achieve a benchmark-level lighting setup for your combined space, follow this sequence:
- Define Your Zones: Map out where the heavy shop work happens versus the gym floor.
- Calculate Lumens: Use the 50/70/100 rule to determine total output. (Check our Warehouse Lumens Guide for more).
- Verify Certifications: Ensure fixtures are UL/ETL listed for safety and DLC-qualified for rebates.
- Select Accessories: Use frosted diffusers for gym zones to eliminate glare.
- Plan for Controls: Decide between 0-10V hardwired dimming or sensor-based zoning.
By treating your garage lighting as a professional system rather than a retail afterthought, you create a space that is safer, more productive, and significantly cheaper to operate over the long term. Whether you are choosing between UFO and Linear fixtures or integrating Hybrid Garage Lighting, the key is documented performance and a clear understanding of your space's hierarchy.
Disclaimer: This article is for informational purposes only. Electrical work involves risks of fire and shock. Always follow the National Electrical Code (NEC) and consult a licensed electrician for installations. Lighting layouts and ROI calculations are estimates based on standard modeling parameters; actual results may vary based on specific site conditions and utility rates.
References
- DesignLights Consortium (DLC) Qualified Products List (QPL)
- UL Solutions Product iQ Database
- IES LM-79-19: Optical and Electrical Measurements of Solid-State Lighting Products
- DSIRE: Database of State Incentives for Renewables & Efficiency
- ANSI/IES RP-7-21: Recommended Practice for Lighting Industrial Facilities
- NEMA LSD 64-2012: Lighting Controls Terminology
- NFPA 70: National Electrical Code (NEC)
