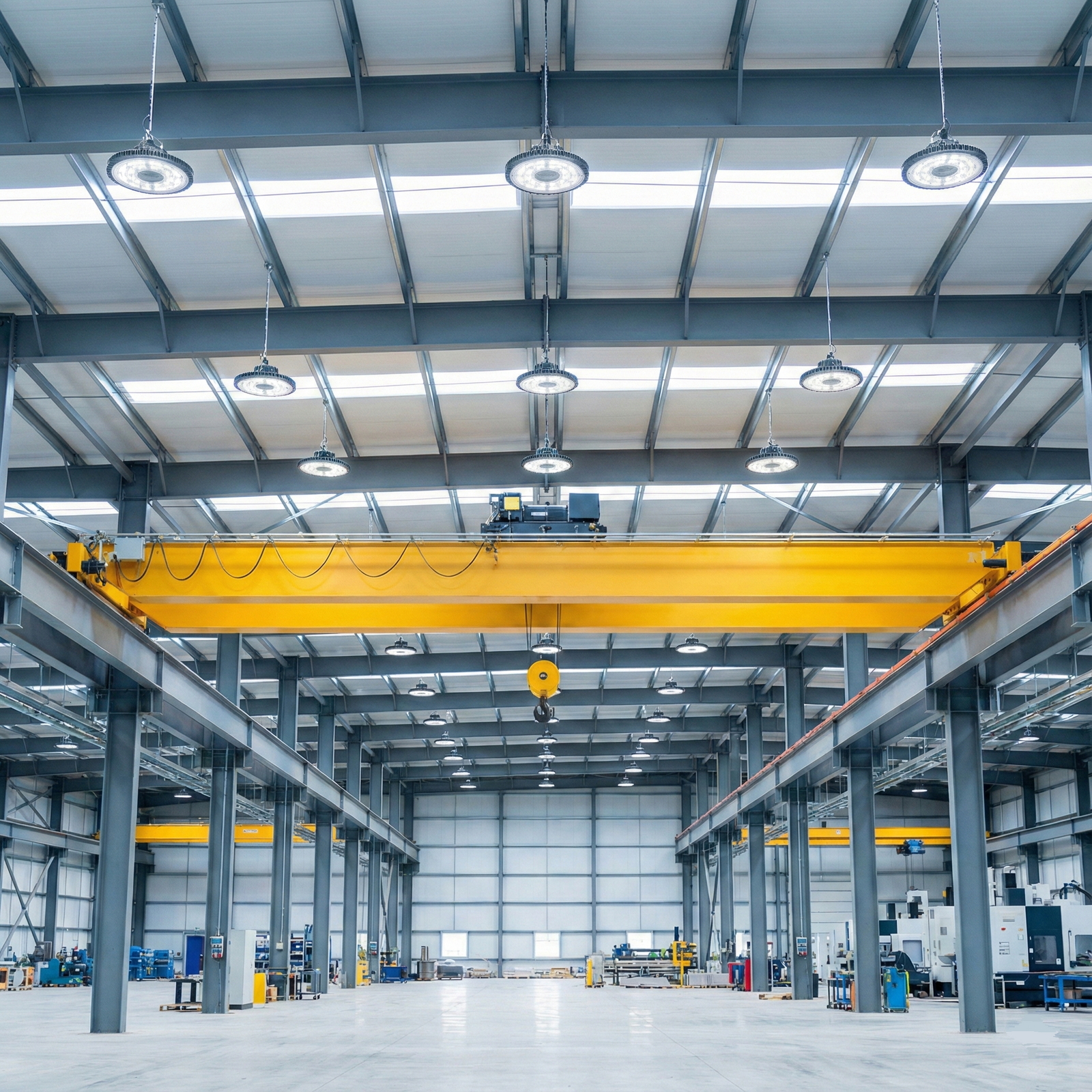

The Engineering Behind High-Performance Circular High-Bay Lighting
In the commercial lighting sector, the decision to specify a circular high-bay fixture—often referred to as a "UFO" due to its low-profile, disc-like shape—is frequently driven by two primary metrics: lumens and price. However, for facility managers and electrical contractors, these numbers only tell part of the story. The true value of an industrial luminaire is found in the components that are often invisible at the point of purchase: the thermal management system, the quality of the LED chips, and the verifiable data backing their lifetime claims.
A high-quality industrial fixture is an investment in "the no-ladder life." It is designed to operate in demanding environments (high heat, dust, or humidity) for a decade or more without maintenance. Achieving this requires a synergy between cold-forged aluminum heatsinks, LM-80-certified LED packages, and compliance with rigorous safety standards like UL 1598 (Luminaires).
This guide deconstructs the technical specifications of high-performance high bays, providing the documentation and heuristics needed to distinguish professional-grade hardware from consumer-grade alternatives. For a broader view of the current market, refer to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.
Thermal Management: Why Heatsink Design Dictates Lifespan
In demanding industrial environments, the number one cause of premature LED failure is inadequate thermal management. While the LED itself does not emit infrared heat like a halogen bulb, the junction where the light is produced generates significant thermal energy. If this heat is not efficiently dissipated, the LED's phosphor layer degrades, leading to color shift and rapid lumen depreciation.
Cold-Forged vs. Die-Cast Aluminum
Experienced specifiers know that the manufacturing process of a heatsink is as critical as the material used. Most budget fixtures use die-cast aluminum (typically ADC12 alloy). While cost-effective, die-casting introduces internal porosities and impurities that can act as thermal bottlenecks.
In contrast, high-performance fixtures often utilize cold-forging. This process involves shaping pure aluminum (typically 1070 alloy) under immense pressure at room temperature.
- Thermal Conductivity: Pure 1070 aluminum has a thermal conductivity of approximately 210–230 W/m·K, whereas die-cast aluminum alloys often hover around 96–120 W/m·K (based on standard metallurgical properties).
- Structural Integrity: Cold-forging creates a denser, grain-aligned structure with superior mechanical strength. This prevents solder joint fatigue—a common failure point in high-vibration environments like manufacturing plants with heavy machinery.
Logic Summary: Our analysis of thermal efficiency assumes the use of 1070 aluminum for cold-forging versus standard ADC12 for die-casting, reflecting a ~50% theoretical increase in thermal conductivity at the material level (not a lab study).
Fin Design and Surface Area
A common mistake is equating a heavy heatsink with good performance. A well-designed cold-forged heatsink can be lighter and more effective than a bulky cast one because it maximizes the Surface Area to Volume Ratio.
In practice, you can often feel the quality difference: a high-quality heatsink will have sharp, uniform fins without burrs, indicating precise manufacturing. These fins create a "chimney effect," drawing cool air up through the center of the fixture and exhausting heat out the sides.
Decoding LED Chip Quality: LM-79 vs. LM-80
When evaluating a fixture's "brightness," the raw lumen count is less important than the quality of the light and the reliability of the source. Professional B2B buyers rely on two standardized reports from the Illuminating Engineering Society (IES): LM-79 and LM-80.
The "Performance Report" (LM-79)
The IES LM-79-19 standard defines the method for measuring a fixture's total luminous flux, efficacy (lm/W), and color characteristics.
- Efficacy: A professional-grade high bay should typically deliver 130–150 lumens per watt (lm/W).
- Color Consistency: This report verifies that the product's Correlated Color Temperature (CCT) falls within the standard quadrangles defined by ANSI C78.377-2017. This ensures that if you install 50 lights in a warehouse, they all look identical.
The "Longevity Test" (LM-80)
While LM-79 is a snapshot of a new light, IES LM-80-21 is a long-term test of the LED chips themselves (not the whole fixture). The chips are tested for at least 6,000 hours at specific temperatures (e.g., 55°C, 85°C, and 105°C) to measure lumen maintenance.
Expert Insight: Real-world experience shows that fixtures whose LM-80 data is based on testing at a lower case temperature (e.g., 55°C Tc) will generally outlast those tested only at higher temperatures, even if the projected hours are similar. An increase of 10°C in operating temperature can roughly halve the expected lifespan of the LED package.
| Metric | LM-79 | LM-80 |
|---|---|---|
| Focus | Complete Fixture | LED Chip/Package |
| Duration | Instantaneous | 6,000+ Hours |
| Data Points | Lumens, CCT, CRI, Watts | Lumen Depreciation over time |
| Purpose | Performance Verification | Lifetime Prediction |
Lifetime Ratings: The Math of the "L70" Projection
The most misunderstood specification in lighting is the "50,000-hour" or "100,000-hour" rating. These are not guarantees of failure-free operation; they are statistical projections of when the light will dim to 70% of its original output ($L_{70}$).
The TM-21 Extrapolation
To turn 6,000 hours of LM-80 data into a 50,000-hour claim, manufacturers use the IES TM-21-21 standard.
- The 6x Rule: IES standards prohibit projecting a lifespan more than six times the actual test duration. If a manufacturer tests for 6,000 hours, they can only legally claim a projection of up to 36,000 hours.
- Beware of Absolutes: Claims of "100,000 hours" often lack the published LM-80 data to support them. Always ask for the TM-21 report to verify the calculation basis.
L70/B50 vs. Real-World Failure
A standard $L_{70}$ rating is often paired with a $B_{50}$ metric. This means that after the rated hours, 50% of the fixtures in a sample are expected to have fallen below 70% of their initial brightness. In industrial settings, this "statistical decay" matters less than the failure of the driver (the power supply), which is the most common cause of a "dead" light.
Method & Assumptions: Our lifetime analysis follows the TM-21 exponential decay model.
Parameter Value/Range Unit Source Category Test Duration 6,000–10,000 Hours LM-80 Standard Extrapolation Cap 6x Multiplier TM-21 Standard Target Maintenance 70% ($L_{70}$) Percent Industry Baseline Junction Temp ($T_j$) 85–105 °C Typical Operating Range
Certifications: Verifying Safety and Rebate Eligibility
For B2B projects, certifications are the first point of verification. They protect the facility from fire hazards and the owner from financial loss by enabling utility rebates.
UL Listed vs. Recognized (UL 1598 & 8750)
- UL Listed: The entire fixture has been tested and meets safety standards for its intended use (e.g., UL 1598 for general luminaires).
- UL Recognized: Only a component (like the driver) is certified. A fixture that is only "Recognized" may not pass a building inspection.
- Verification: You can verify any claim in the UL Solutions Product iQ Database.
DLC Premium: The ROI Accelerator
The DesignLights Consortium (DLC) Qualified Products List (QPL) is the gold standard for energy efficiency.
- DLC Standard vs. Premium: DLC Premium requires higher efficacy (lm/W) and stricter requirements for driver reliability and color consistency.
- Rebates: Most utility companies in the US require a DLC-listed product to qualify for rebates, which can cover 30–70% of the fixture cost. For sizing and ROI calculations, see our Warehouse Lumens Guide for UFO High Bay Lights.
FCC Part 15 Compliance
Industrial LED drivers can generate significant electromagnetic interference (EMI). FCC Part 15 compliance ensures that the lighting system does not interfere with wireless networks, machinery controls, or sensitive electronics in labs and hospitals.
Environmental Protection: IP and IK Ratings
Industrial lighting must withstand more than just heat; it must survive moisture, dust, and physical impact.
The IP65 Sealing Heuristic
For IEC 60529 (IP Ratings), the critical factor for high bays is often the '5'—protection against water jets. In washdown environments (like food processing or car washes), the sealing integrity is paramount.
- Practical Heuristic: Look for fixtures that use continuous silicone gaskets rather than segmented foam or rubber. Silicone maintains its elasticity over thousands of thermal cycles, preventing the "breathing" effect that sucks moisture into the lens as the light cools down.
- Cable Entry: Ensure the power cord entry point uses a compression-style strain relief with a rubber grommet, not just a plastic nut.
Impact Resistance (IK Ratings)
In gymnasiums or low-ceiling workshops, fixtures are at risk of mechanical impact. The IEC 62262 (IK Rating) measures this in Joules.
- IK08: Resists a 5-Joule impact (typical for standard industrial use).
- IK10: Resists a 20-Joule impact (required for high-vibration or high-impact areas like sports arenas).
- Note: High IK ratings protect the enclosure, but the internal components must also be secured to prevent resonant failure from constant vibration.
Scenario Analysis: Selecting the Right Grade
The "best" light depends on the specific environmental stressors of the application.
Scenario A: The Standard 20ft Warehouse
- Priority: Efficacy and Rebate Eligibility.
- Requirement: DLC Premium, 140+ lm/W, 5000K CCT.
- Thermal: Standard die-cast or forged heatsink is usually sufficient if the ambient temperature stays below 104°F (40°C).
- Insight: Focus on Uniformity in Open Areas to reduce the total fixture count.
Scenario B: The High-Heat Manufacturing Foundry or Cold Storage
- Priority: Thermal Stability and Sealing.
- Requirement: Cold-forged aluminum heatsink, IP65 with silicone gaskets, $L_{70}$ @ 100,000 hours (verified by TM-21).
- Thermal: Cold-forging is non-negotiable here to handle the rapid thermal cycling or high ambient heat.
- Insight: In sub-zero cold storage, LEDs actually operate more efficiently, but the driver must be rated for low-temperature startup (typically -22°F / -30°C).
Summary of Quality Indicators
When reviewing a specification sheet, use this checklist to verify "Pro-Grade" status:
- Heatsink: Is it cold-forged 1070 aluminum? (Higher density = better thermal path).
- Certifications: Is it UL Listed (not just components) and DLC Premium?
- Documentation: Are LM-79, LM-80, and TM-21 reports available upon request?
- Sealing: Does it use continuous silicone gaskets for IP65 protection?
- Warranty: Does the manufacturer offer a 5-year replacement warranty with clear terms? (e.g., Hyperlite's 5-Year Warranty Policy).
By focusing on these technical artifacts rather than just the initial price, facility managers can ensure a lighting system that delivers consistent performance and a rapid return on investment.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering or electrical advice. Always consult with a licensed electrician and refer to the National Electrical Code (NEC) and local building codes before beginning any lighting installation.
