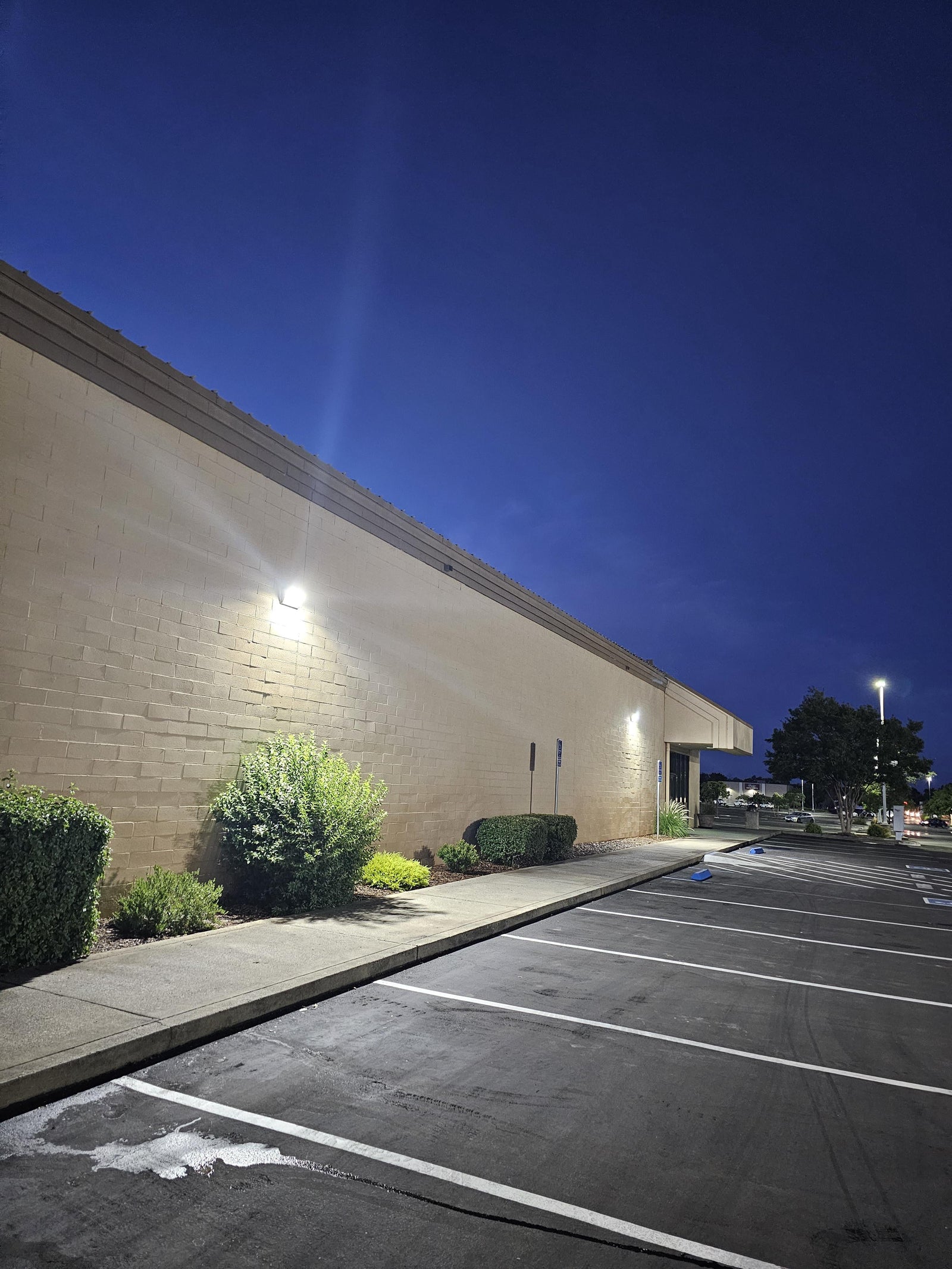

Balancing Security & Style with Facade Wall Pack Lights

Your building's facade is your primary handshake with the public. It communicates brand identity, invites customers in, and serves as the first line of security. For retail store owners and facility managers, the challenge is to find lighting that enhances security without compromising brand aesthetics. This guide provides a technical framework for selecting LED wall pack lights that achieve both, ensuring your property is safe, welcoming, and visually appealing.

We will explore the critical specifications, compliance standards, and design strategies that turn facade lighting from a necessary expense into a strategic asset. The goal is to equip you with the knowledge to choose fixtures that deliver verified performance, straightforward installation, and long-term reliability.

Rethinking Facade Lighting: Beyond Raw Brightness

Effective facade lighting is a calculated balance of intensity, coverage, and control. It’s not just about flooding an area with light, which can create glare and harsh shadows that may actually hinder security. A strategic approach layers light to deter threats, guide visitors, and highlight architectural features.

Core Principles for Security and Appeal

• Uniformity: Even illumination across walls and pathways eliminates dark spots where intruders can hide. The goal is to create a consistent field of light, which is often measured by a max/min uniformity ratio. A lower ratio (e.g., 3:1) is better than a high one (e.g., 10:1). For a deeper dive into this concept, see our guide on achieving lighting uniformity.
• Targeted Illumination: Light should be directed precisely where it's needed—on your building, walkways, and entrances—not spilling into the sky or neighboring properties. This is a key aspect of preventing light trespass, a common issue with poorly chosen fixtures.
• Visual Comfort: Lighting should make people feel safe and comfortable, not blinded. Harsh glare can be disorienting for customers and create deep shadows that work against security efforts.

Myth: Brighter is Always Better for Security

A common misconception is that the brightest possible lights provide the best security. In reality, excessive brightness, or high lumen output without proper optical control, leads to glare. Glare can be disabling, making it difficult for security cameras to capture clear images and for people to see their surroundings. The key isn't just brightness, but controlled, uniform brightness.

Decoding Technical Specifications for Wall Packs

Choosing the right wall pack requires looking past marketing claims and understanding the technical data. These specifications, typically found on LM-79 test reports and product spec sheets, define a fixture's performance, durability, and suitability for your application.

Lumens, Wattage, and Efficacy

• Lumens (lm): Measures the total amount of visible light emitted by a source. This indicates the fixture's brightness.
• Wattage (W): Measures the amount of electrical power the fixture consumes.
• Efficacy (lm/W): Calculated by dividing lumens by wattage, this is the most important metric for efficiency. A higher efficacy means more light for less energy. Look for fixtures that meet or exceed the benchmarks set by programs like the DesignLights Consortium (DLC) Qualified Products List (QPL), which often require efficacies well over 100 lm/W.

Color Properties: CCT and CRI

• Correlated Color Temperature (CCT): Measured in Kelvin (K), CCT describes the perceived warmth or coolness of the light. For storefronts where brand colors are important, a neutral to warm CCT of 3000K to 4000K is often preferred. For general security where perceived brightness is key, a cooler 5000K is effective. Consistency is vital; standards like ANSI C78.377 ensure that a 4000K from one manufacturer looks the same as another's.

• Color Rendering Index (CRI): This scale (0-100) measures how accurately a light source reveals the true colors of objects. For general security and non-public areas, a CRI of 70+ is sufficient. For main entrances, retail displays, and areas where brand presentation is critical, specify a CRI of 80+ to ensure products and architectural finishes look their best.

Optics and Glare Control: Full-Cutoff Fixtures

Modern wall packs use precise optics to direct light. A full-cutoff design is the industry standard for responsible exterior lighting. These fixtures have a flat lens and direct all their light downward (below the horizontal plane), preventing uplight that contributes to sky glow and light trespass. Some fixtures, like the adjustable Wall Pack Light - Wall E series, allow you to aim the light module, providing flexibility while maintaining cutoff principles to avoid annoying neighbors. For more on this, our article on floodlight optics offers valuable insights.

Durability and Weatherproofing

Exterior fixtures must withstand the elements. Two key ratings define their resilience:

• IP Rating (Ingress Protection): Defined by the IEC 60529 standard, this two-digit number rates an enclosure's protection against solids (first digit) and liquids (second digit). For wall packs, look for IP65 at a minimum, which signifies the fixture is "dust tight" and protected against water jets from any direction.
• IK Rating (Impact Protection): This rates a fixture's resistance to mechanical impact, measured in joules. While not always listed, a rating of IK08 or higher is beneficial for fixtures in areas prone to vandalism or accidental contact.

For installations in coastal areas with salt-laden air, material choice is critical. Specify fixtures with corrosion-resistant finishes and stainless steel fasteners to prevent premature failure.

Case in Point: From Glare to Glow with a Strategic Upgrade

To illustrate these principles, consider a real-world scenario: A suburban retail strip mall was lit by aging 250W metal halide (MH) wall packs. The lighting was inefficient, created harsh glare, and left dark spots between fixtures, posing a security risk. Maintenance was a constant issue, with bulbs requiring frequent replacement.

The Solution: The facility manager opted for an upgrade to 80W full-cutoff LED wall packs with a 5000K CCT and a CRI of 70+. The selection was based on LM-79 reports verifying a high efficacy of 140 lm/W and a DLC Premium listing, which made the project eligible for a significant utility rebate.

The Process & Results:

• Photometric Analysis: Before purchasing, the manufacturer provided IES files for the proposed fixtures. A lighting designer used these to create a layout plan, ensuring a uniform 3:1 max/min ratio and eliminating light trespass onto an adjacent residential street.
• Quantifiable Gains: The upgrade resulted in a 68% reduction in energy consumption. Post-installation light meter readings confirmed the predicted uniformity, and security camera footage was noticeably clearer at night. The project qualified for a $75 per-fixture rebate, reducing the total project cost by nearly 20%.

Smart Controls and Regulatory Compliance

Static, always-on lighting is becoming a thing of the past. Smart controls save energy, extend fixture life, and are often required by modern energy codes.

Essential Controls

• Dusk-to-Dawn Photocells: This is the most common control. A photocell automatically turns lights on at dusk and off at dawn. A common installation error is placing the photocell where it can be triggered by another light source or shadowed by an eave, causing it to cycle improperly. Always test photocell location at night before finalizing the installation.
• 0-10V Dimming & Motion Sensors: Most commercial-grade LED fixtures come with 0-10V dimming drivers. This allows the light to operate at a lower, energy-saving level and ramp up to full brightness when a motion sensor is triggered. This is a core requirement for complying with energy standards like ASHRAE 90.1 and California's Title 24.

Verified Safety and Performance

Certifications are non-negotiable for commercial projects. They provide third-party proof that a product is safe and performs as advertised.

• UL/ETL Listed: A UL or ETL mark, verified through the UL Solutions Product iQ Database, indicates the fixture has been tested and meets North American safety standards like UL 1598 for luminaires. This is crucial for passing electrical inspections and for insurance purposes.
• DLC Listed: The DesignLights Consortium (DLC) QPL is the benchmark for energy efficiency and quality. A DLC listing is almost always a prerequisite for qualifying for local utility rebates, which can significantly lower the upfront cost of a lighting upgrade.

Navigating Local Codes and Inspections

Beyond national standards like UL, local jurisdictions have their own rules. Before starting a project, it's critical to:

• Contact Your Local Authority: Reach out to your city or county's building or planning department. Inquire about specific ordinances related to exterior lighting, such as limits on brightness, color temperature, or light trespass (often called "dark sky" ordinances).
• Confirm Permitting: All commercial electrical work requires a permit. Your licensed electrician will typically handle the application, but understanding the process helps in project planning.
• Plan for Inspection: The installation will need to be inspected by a local official to ensure it complies with the National Electrical Code (NEC) and local amendments. Using UL/ETL listed products is a non-negotiable prerequisite for passing this inspection.

Application Guide: Lighting Different Facade Zones

Not all areas of your facade have the same lighting needs. A zoned approach ensures you get the right light in the right place.

Facade Zone	Primary Goal	Recommended CCT	Recommended CRI	Fixture Type & Notes
Main Entrances	Welcome & Brand	3000K–4000K	80+	Architecturally pleasing full-cutoff wall packs. Higher CRI ensures accurate brand color representation.
Perimeter Walls	Security & Deterrence	4000K–5000K	70+	Standard full-cutoff wall packs. Spacing is key; use a placement guide to ensure uniform coverage.
Loading Docks	Safety & Task	5000K	70+	Durable, high-lumen wall packs or targeted flood lights like the Hyperlite Led Flood Light - Mars Series. Consider adding adjustable fixtures to illuminate inside trailers.
Architectural Details	Aesthetics	3000K	80+	Smaller, aimable floodlights or wall grazers to highlight textures, columns, or signage.

Before purchasing, conduct a simple site assessment. Note mounting heights, existing fixture locations, and problem areas like dark corners or sources of glare. For complex projects, providing your architect or designer with IES files is essential for creating an accurate photometric plan. Many manufacturers offer these files for free, which can be used to model a lighting layout and ensure performance before installation.

Project Planning: A Pre-Purchase and Installation Checklist

Use this checklist to guide your project from planning to completion.

• ☐ Site Assessment:
  • Measure mounting heights and desired coverage areas.
  • Identify existing wiring and voltage (e.g., 120V, 277V).
  • Note problem areas like dark spots, sources of glare, or potential vandalism.
• ☐ Define Specifications:
  • Choose CCT and CRI based on the zone (e.g., 4000K/CRI 80+ for entrances, 5000K/CRI 70+ for perimeter).
  • Determine required lumen output based on mounting height and desired brightness.
• ☐ Verify Compliance & Rebates:
  • Confirm the fixture is UL or ETL Listed by checking the UL Product iQ database.
  • Check the DLC Qualified Products List (QPL) to ensure eligibility for utility rebates.
  • Consult local municipal codes for "dark sky" or light trespass ordinances.
• ☐ Select Hardware:
  • Insist on full-cutoff optics to prevent glare and light pollution.
  • Specify a minimum IP65 rating for weather resistance.
  • Choose appropriate controls (photocell, motion sensor, 0-10V dimming).
• ☐ Plan Installation:
  • Hire a qualified and licensed professional electrician.
  • Request a photometric layout plan for complex areas to guarantee performance.
  • Provide the installer with the manufacturer's installation sheet and confirm the location of controls like photocells to avoid interference.

Wrapping Up: A Strategic Investment

Choosing the right LED wall packs is a strategic decision that pays dividends in security, energy savings, and brand enhancement. By moving beyond a simple "more is better" approach, you can create a lighting plan that is both effective and efficient.

Focus on the key technical pillars: high efficacy (lm/W), appropriate color properties (CCT/CRI), and robust, weatherproof construction (IP65). Prioritize full-cutoff optics to be a good neighbor and maximize usable light. Finally, insist on verified safety and performance through UL/ETL and DLC certifications to guarantee quality and unlock potential rebates. A well-lit facade is a powerful statement that tells customers you care about their safety and your brand's presentation.

Frequently Asked Questions (FAQ)

What is the difference between a UL Listing and a DLC Listing? A UL (Underwriters Laboratories) or ETL (Intertek) listing certifies that a product meets established safety standards for electrical and fire risk. A DLC (DesignLights Consortium) listing, on the other hand, certifies that a product meets high standards for energy efficiency and performance. Safety certification (UL/ETL) is mandatory for most electrical products, while DLC certification is voluntary but often required to qualify for utility rebates.

How far apart should I space my wall packs? Spacing depends on the mounting height, the lumen output of the fixture, and its beam angle. A common rule of thumb for perimeter security is a spacing-to-mounting-height ratio of 1.5:1 to 2:1. For example, a fixture mounted at 15 feet could be spaced 22 to 30 feet apart. However, always consult the manufacturer's photometric layout guide or use IES files for an accurate plan.

Can I replace my old metal halide wall pack with an LED one? Yes, this is one of the most common and effective energy-saving upgrades. An LED wall pack can provide the same or greater light output for 60-80% less energy. Look for a retrofit-friendly design and ensure the voltage (e.g., AC 100-277V) is compatible with your building's wiring.

What does a 5-year warranty cover? A 5-year warranty typically covers defects in materials and workmanship, including the LED chips, driver, and housing. It ensures that the fixture will perform as specified for that period under normal operating conditions. Always check the specific terms, but a strong warranty is a key indicator of a manufacturer's confidence in their product quality.

This article is for informational purposes only. Electrical work can be dangerous. Always consult a qualified and licensed professional electrician for installation and to ensure your project complies with all applicable national and local building/electrical codes and permitting requirements.
