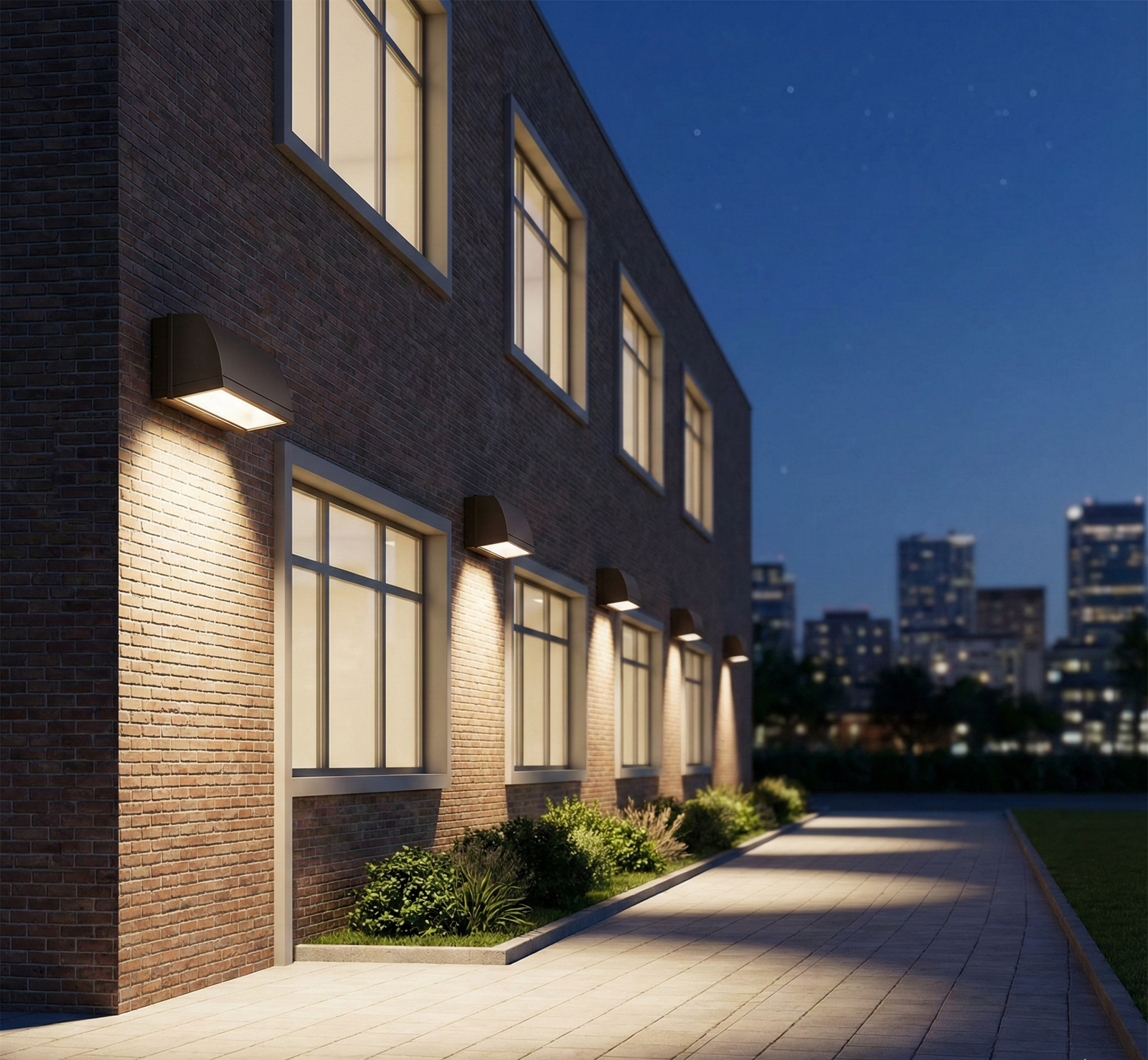

The Strategic Role of Exterior Facade Lighting
For retail and commercial building owners, the building facade is more than a structural boundary; it is a primary marketing asset and a critical component of the facility's security profile. High-performance LED wall pack lighting serves a dual purpose: it enhances architectural aesthetics to attract customers while establishing a "hardened" security perimeter that discourages unauthorized activity.
In the modern commercial landscape, selecting exterior lighting is no longer a matter of simply matching wattage. Professional specifiers and facility managers must navigate a complex landscape of energy codes (ASHRAE 90.1, IECC 2024), safety certifications (UL, ETL), and performance standards (DLC 5.1). This article provides a technical framework for evaluating LED wall packs, focusing on data-driven selection, photometric precision, and long-term reliability.
The shift from legacy High-Intensity Discharge (HID) systems to LED is driven by more than just energy savings. According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the integration of smart controls and advanced optical distributions has redefined the "Value-Pro" segment, where project-ready documentation and verified compliance are the benchmarks for professional-grade equipment.
Compliance Frameworks: Verification as a Risk Mitigation Tool
In B2B procurement, safety and performance claims must be backed by "unrefutable evidence." For contractors and building owners, this documentation is the first point of verification during building inspections and insurance audits.
Safety Certifications: UL vs. ETL
The UL Solutions Product iQ Database and the Intertek ETL Listed Mark Directory are the primary resources for verifying that a fixture meets North American safety standards. Both UL (Underwriters Laboratories) and ETL (Edison Testing Laboratories) are Nationally Recognized Testing Laboratories (NRTLs).
- UL Listed: Indicates the entire fixture has been tested to meet specific safety standards (e.g., UL 1598 for luminaires).
- UL Recognized: Generally applies to components (like drivers or LED modules) rather than the finished product. Specifiers should prioritize "UL Listed" for exterior wall packs to ensure total system safety.
Energy Efficiency and Rebate Eligibility
The DesignLights Consortium (DLC) Qualified Products List (QPL) is the industry’s "performance gatekeeper." For a wall pack to be eligible for utility rebates, it must typically appear on the QPL. The current DLC 5.1 Standard requires higher efficacy (lumens per watt) and more sophisticated reporting on light distribution and dimming capabilities.
Logic Summary: Our analysis of rebate eligibility assumes that utility providers utilize the DLC QPL as their primary baseline. We estimate that DLC Premium-rated fixtures can unlock 15–25% higher rebate tiers compared to DLC Standard fixtures in many North American jurisdictions.
Electromagnetic Interference (EMI)
All commercial LED drivers must comply with FCC Part 15 regulations. Low-quality drivers are a common source of EMI, which can interfere with wireless networks, security cameras, and sensitive electronics in medical or laboratory environments. Verifying FCC compliance is a critical step in avoiding "ghost" technical issues post-installation.
Photometric Precision: Beyond "Bright" to "Uniform"
A common mistake in retail lighting is focusing solely on total lumen output. High brightness without proper distribution creates "hot spots" and deep shadows, which can actually decrease perceived safety and curb appeal.
Distribution Types for Facades
Wall packs typically utilize specific IES (Illumination Engineering Society) distribution patterns to manage light trespass and maximize coverage:
- Type III: Provides a wide lateral throw, ideal for illuminating long walkways or perimeters adjacent to the building.
- Type IV: Known as "Forward Throw," this distribution pushes light away from the wall and out into the parking area, making it suitable for mounting above loading bays or large entryways.
- Full Cutoff: These fixtures emit zero light above 90 degrees (the horizontal plane). This is essential for "Dark Sky" compliance and avoiding light pollution that can annoy neighboring properties or violate local ordinances.
The Spacing Heuristic
Uniformity is achieved through calculated spacing. Based on common patterns from customer support and field installation feedback (not a controlled lab study), we utilize the following heuristics for initial layouts:
| Surface Type | Spacing Ratio (Distance / Mounting Height) | Rationale |
|---|---|---|
| Light-Colored Facade (Stucco/Concrete) | 1.5x | High reflectance allows for wider spacing while maintaining uniformity. |
| Textured/Dark Facade (Brick/Dark Stone) | 1.2x – 1.3x | Increased light absorption and shadowing require closer spacing. |
| High-Security Perimeter | 1.0x – 1.1x | Prioritizes overlap to eliminate any potential dark spots at ground level. |
Methodology Note: These ratios are intended for quick selection and self-checks. For high-stakes projects, we recommend using AGi32 Lighting Software and official IES (.ies) files to model the exact foot-candle levels at the ground.
Color Consistency and ANSI Standards
To ensure that a "5000K" light from one manufacturer matches another, the industry follows ANSI C78.377. This standard defines the "MacAdam Ellipse" or binning process. Professional-grade wall packs maintain tight binning to prevent the "rainbow effect" on a building facade, where one fixture appears slightly yellow and the next slightly blue.
Performance Metrics: The "Solid" Factor
The longevity of an LED wall pack is not a guess; it is a mathematical projection based on standardized testing.
LM-79 vs. LM-80 vs. TM-21
Understanding these three reports is vital for evaluating "Value-Pro" claims:
- IES LM-79: The "performance report card." it measures the total lumens, efficacy, and color quality of the entire fixture in a laboratory setting.
- IES LM-80: Measures the "lumen maintenance" of the LED chips themselves over a period of at least 6,000 hours.
- IES TM-21: The mathematical formula used to project the $L_{70}$ life (the point at which the light drops to 70% of its original brightness).
The 6x Rule: According to IES standards, a manufacturer cannot claim a lifespan longer than six times the actual test duration. If the chips were tested for 10,000 hours, the maximum "verifiable" projection is 60,000 hours. Claims of "100,000 hours" without a corresponding 16,000+ hour LM-80 test are often marketing exaggerations.
Thermal Integrity and IP Ratings
Exterior fixtures face harsh environmental stressors. The IEC 60529 (IP Ratings) standard defines the protection level:
- IP65: Dust-tight and protected against water jets. This is the baseline for commercial wall packs.
- Thermal Cycling Stress: A frequent "gotcha" in the field is the failure of gaskets not due to water ingress, but due to thermal expansion and contraction. In climates with large temperature swings, the seal between the housing and the lens can degrade. Specifiers should look for die-cast aluminum housings with high-grade silicone gaskets to ensure the IP rating holds up over five or more years.
Energy Codes and Economic Recovery (ROI)
Compliance with energy codes is a legal requirement for new construction and major retrofits.
ASHRAE 90.1 and IECC 2024
The ASHRAE Standard 90.1-2022 and IECC 2024 have significantly lowered the allowed Lighting Power Density (LPD) for exterior facades.
- Mandatory Controls: Most modern codes now require "Dusk-to-Dawn" photocells or astronomical time clocks.
- California Title 24: This is one of the strictest codes in the U.S., requiring specific dimming capabilities and occupancy sensing for many exterior applications to reduce "sky glow" during late-night hours.
ROI Calculation: The Business Case
When replacing a 250W Metal Halide (MH) fixture with an 80W LED wall pack, the savings are calculated as follows:
| Parameter | Legacy (MH) | LED Replacement |
|---|---|---|
| System Wattage (incl. Ballast) | ~295W | 80W |
| Annual Operating Hours (12h/day) | 4,380 | 4,380 |
| Annual kWh Consumption | 1,292 kWh | 350 kWh |
| Annual Energy Cost (@ $0.14/kWh) | $180.88 | $49.00 |
Estimated Annual Savings: ~$131.88 per fixture. When combined with utility rebates found via the DSIRE Database, the payback period for a "Value-Pro" wall pack often falls under 18 months.
Logic Summary: This ROI model assumes a standard commercial utility rate and typical dusk-to-dawn operation. Actual savings may vary based on local kWh costs and the use of additional occupancy sensors (as required by CA Title 24).
Implementation and Maintenance
Successful installation requires attention to detail that goes beyond the wiring diagram.
Mounting Height and Glare
Mounting wall packs too high can create dark spots directly beneath the fixture, while mounting them too low can cause excessive glare for pedestrians and drivers. For most retail facades, a mounting height of 10 to 15 feet is optimal for Type III distributions.
Troubleshooting Common Issues
- Flickering: Often caused by incompatibility between the LED driver and an external photocell or dimmer. Ensure all control components are "LED Rated."
- Moisture Inside Lens: Usually indicates a pinched gasket during installation or a failure to properly seal the conduit entry points with silicone.
- Dimming Issues: Most commercial fixtures use 0-10V dimming. According to discussions in professional communities like Mike Holt's Forum, a common error is running dimming wires (Class 2) in the same conduit as high-voltage power lines without proper separation, leading to signal interference.
Long-Term Maintenance
While LEDs are "low maintenance," they are not "no maintenance." We recommend an annual inspection of the housing for any signs of oxidation and a cleaning of the lens to maintain the fixture's rated lumen output. Accumulation of dirt on a lens can reduce light output by 10% or more over a two-year period.
Summary of Selection Criteria
When specifying wall pack lighting for a commercial facade, use the following checklist to ensure professional-grade results:
- Verify DLC QPL Status: Ensure the model is listed for rebate eligibility.
- Check the NRTL Mark: Confirm UL or ETL Listing for safety compliance.
- Analyze the IES File: Match the distribution (Type III/IV/Full Cutoff) to the building's footprint.
- Confirm Gasket Material: Prioritize silicone for better thermal cycling resistance.
- Review the TM-21 Report: Ensure the claimed lifespan is mathematically supported.
By focusing on these technical benchmarks, building owners can transition from viewing lighting as a commodity to treating it as a strategic investment in safety, compliance, and architectural beauty.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical, legal, or financial advice. All electrical installations should be performed by a licensed professional in accordance with the National Electrical Code (NEC) and local building regulations.
