Picking, packing, receiving, and storage aisles should not automatically be treated as one lighting zone. Aisles may need evaluation for travel paths and rack faces, while picking and packing stations depend on labels, packages, paperwork, and work surfaces. A practical warehouse lighting approach is to map each area by task, check horizontal and vertical visibility separately, and request a photometric review when mixed geometry or persistent dark spots make a room-level assumption unreliable.

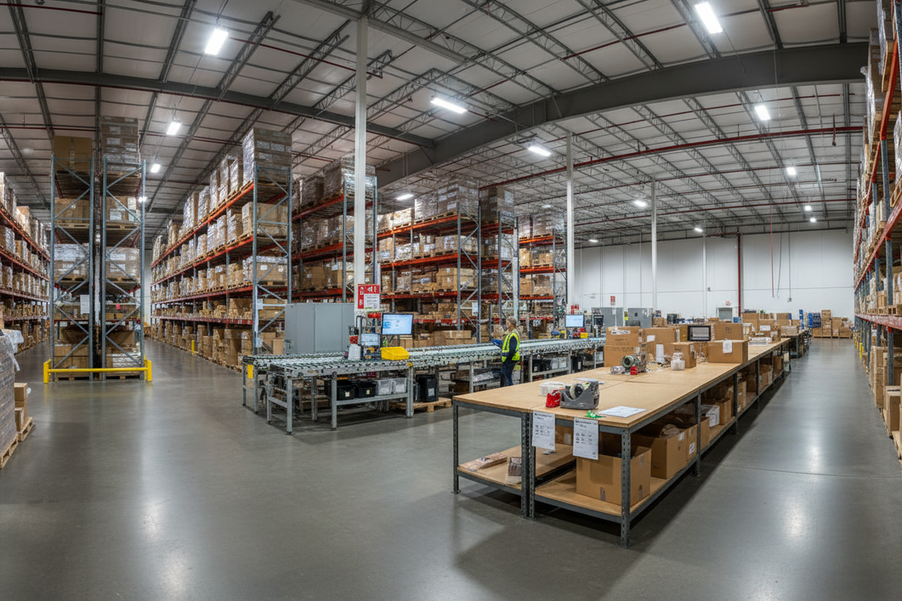

Separate Task Zones from Storage Aisles
Start by classifying the warehouse according to what workers need to see and where each visual task takes place. One lighting approach can work when the distribution, controls, surfaces, and site layout support both uses, but every task zone does not automatically need its own fixture arrangement.
Use a Task-Zone Versus Aisle Matrix
Use this qualitative matrix to mark representative areas before comparing high-bay categories or fixture layouts. It keeps the decision tied to the actual visual task rather than floor area alone.
| Area type | Primary visual task | Initial lighting planning question |
|---|---|---|
| Picking station | Read labels and locate items at changing package positions | Can the worker see label faces and package surfaces from the normal picking viewpoint? |
| Packing bench | Scan, sort, inspect, and handle packages or paperwork | Does the proposed distribution reach the bench without troublesome shadows or reflections? |
| Receiving table | Check incoming goods, labels, paperwork, and package condition | Do changing package heights and table positions require a separate representative check? |
| Storage aisle | Travel, locate inventory, and view rack-facing information | Are the travel path and vertical rack or label surfaces being evaluated separately? |
| Open staging area | Move, group, inspect, and temporarily position packages | Does the open-floor layout differ enough from the rack zones to require its own model? |
OSHA's warehouse guidance treats lighting and work surfaces around operating areas as part of the site review, alongside clear aisles, loading docks, passages, and adequately lit exit routes. That supports separating the checks without turning OSHA guidance into one universal warehouse lighting target. OSHA's warehouse guidance provides a useful safety-oriented boundary for the layout discussion.
Plan Around the Actual Work Surface
Mark the work surface, label position, package height, and worker viewpoint on a scaled plan. A station that occupies little floor area may still need careful review because the relevant surface could be a vertical barcode, a sloped carton, a bench, or paperwork held at changing angles.
Your next action is to mark at least one representative picking station, packing bench, receiving table, storage aisle, and open staging area. The resulting map can also support a later warehouse lighting uniformity review without assuming that uniformity alone answers every task question.
Match Warehouse Lighting to Rack Geometry
Aisle planning changes with rack orientation, cross-aisle sight lines, open-floor conditions, and the surfaces workers need to see. Judge the layout from both the travel path and the rack-facing or task-facing surfaces; floor brightness alone does not establish visibility on labels or rack faces.
| Layout condition | What to evaluate | Planning implication |
|---|---|---|
| Long parallel racks | Travel path, rack faces, label orientation, and viewing direction | Compare a distribution against the rack geometry and vertical surfaces rather than assuming an open-area layout transfers directly. |
| Cross aisles | Intersections, sight lines, turning areas, and restricted visibility | Review representative intersections separately when racks or equipment change the viewpoint. |
| Open floor or staging area | Package positions, work zones, circulation, and changing layouts | Evaluate it as open-floor space when its visual tasks and geometry differ from narrow aisles. |
| Mixed rack and task zones | Rack faces beside benches, tables, or picking points | Check whether one distribution serves both surfaces; separate zones in the model if the priorities conflict. |
IES industrial-lighting guidance distinguishes horizontal and vertical illuminance in warehouse and storage-area evaluation, so the layout should not rely on a single floor-plane reading. Review the horizontal and vertical illuminance guidance for warehouse areas alongside the actual rack plan and applicable photometric files. An aisle-oriented distribution may fit one rack arrangement, while an open-area distribution may fit another, but neither is a universal answer.
When comparing options, use the rack centerlines, aisle direction, cross aisles, and open-floor boundaries as the reference points. A fixture category or optic should remain an option to verify against the modeled layout, not a guarantee of uniformity, glare control, or code compliance. For a more technical follow-up, review why aisle-optic IES files matter when rack conditions vary.
Check Labels and Work Surfaces at Every Station
When labels, barcodes, packages, or paperwork are difficult to see, inspect the actual task from the worker's position instead of increasing general aisle brightness by assumption. Picking, packing, and receiving may share a lighting approach only after their surfaces, viewpoints, and surrounding geometry have been compared.
Prioritize Label and Barcode Visibility
Check representative positions and package orientations, not just one central point in the room:
- Label orientation: Note whether labels face the aisle, point upward, sit on a carton side, or change direction as workers handle packages.
- Package height and worker position: Record the range of package heights and where the worker stands, reaches, scans, or reads information.
- Shadows and reflections: Look for rack members, conveyors, equipment, or glossy packaging that can block or reflect light at the viewing angle.
If a target is needed, choose criteria for the specific task and surface rather than inserting a generic warehouse number. The IES Illuminance Selector provides task-specific horizontal and vertical criteria and allows US customary footcandles or metric lux; it is a method for selecting applicable criteria, not a design result for your facility.
Evaluate Packing and Receiving Surfaces
Packing benches and receiving tables often combine scanning, paperwork, inspection, and package handling. Identify the actual horizontal surface, the vertical label or document surface, the worker's normal viewpoint, and nearby equipment before deciding whether general lighting is enough.
A persistent visibility complaint is a reason to compare representative stations rather than simply treating the whole building as dim. If picking uses vertical labels while packing uses a bench and receiving uses changing package positions, the review should preserve those differences. Category exploration, such as linear high bay options, belongs after those task conditions are documented; a collection page does not validate fit for a particular station.
Account for Ceiling Height and Obstructions
Ceiling height, rack height, overhead equipment, and suspended building systems can change both light paths and operating sight lines. A mixed warehouse should be reviewed as representative zones when mounting conditions, rack geometry, or obstructions vary instead of being modeled as one uniform room.
Map Mounting Height and Obstructions
Record these inputs before selecting or spacing fixtures:
- Mounting height: Measure the planned or existing fixture mounting elevation, not only the building's peak ceiling height.
- Rack and equipment geometry: Mark rack heights, conveyors, beams, sprinklers, signs, suspended equipment, and other objects that may interrupt light or sight lines.
- Task-surface locations: Place benches, tables, picking faces, receiving points, and other work surfaces on the plan with their approximate heights and orientations.
OSHA's powered-industrial-truck guidance calls attention to visibility restrictions, narrow aisles, cross aisles, and overhead installations. Include those operating conditions in the review, but do not imply that lighting alone removes forklift or workplace hazards. The goal is to identify what must be modeled and checked together.
Separate Open-Floor and Rack-Zone Assumptions
Open staging or receiving areas may have changing package positions and broad sight lines, while narrow rack aisles impose different geometry. Test the assumptions separately when a fixture layout designed around rack spacing is being extended into open floor, or when open-area lighting is being used near tall racks.
Also record areas that may change after installation, such as new conveyors, rack reconfiguration, or relocated packing benches. A broad high bay lighting options category link can help with later comparison, but current voltage, mounting, control, photometric, environmental, and project requirements still need to be verified for the specific configuration.
Request a Photometric Review Before Finalizing the Layout
A photometric review is worth requesting when mixed task zones, variable mounting heights, obstructions, reconfiguration, or repeated visibility concerns make a simple room description unreliable. It helps compare a proposed layout with site inputs; it does not automatically establish code compliance or guarantee installation performance.
Use this sequence:
- Collect a scaled plan and operating zones. Show floor dimensions, rack rows, aisles, cross aisles, picking points, packing benches, receiving tables, staging areas, and travel paths.
- Document geometry and obstructions. Add mounting heights, rack and equipment heights, overhead installations, task-surface elevations, and any restricted sight lines.
- Define the visual checks. State which areas need review for travel paths, rack faces, labels, benches, paperwork, package surfaces, horizontal planes, and vertical planes.
- Review photometrics and product documentation before ordering. Compare the modeled distribution and applicable task criteria, then verify the current product's electrical details, mounting method, controls, environmental information, and project requirements for the exact configuration.
Request assistance sooner when the facility combines narrow aisles with open staging, has more than one mounting height, contains conveyors or tall obstructions, is being reconfigured, or has recurring dark spots that a general layout cannot explain. ANSI/IES RP-7-21 can serve as a reference for designing or redesigning permanently installed industrial lighting systems, but it is guidance rather than automatic approval under local requirements. The ANSI/IES RP-7-21 description supports using engineering judgment and project-specific review.
Do not use a construction-area minimum as a complete target for picking, packing, or rack-face tasks. OSHA 1926.56 addresses specified construction-area conditions, while warehouse task design still needs to account for the actual visual task, layout, and applicable project requirements.
Once the inputs are ready, we can help compare relevant high-bay categories or review a lighting-design request. Send the scaled layout, rack and mounting heights, obstructions, task zones, and any available photometric files; we can then keep the next step tied to the facility rather than promise a one-size-fits-all result.
FAQs
Use these checks when deciding whether mixed warehouse zones need separate review.
Should Aisles and Packing Stations Use the Same Fixtures?
They can when rack geometry, work surfaces, viewpoints, controls, and modeled distribution support both tasks. Compare representative zones before standardizing.
Do Picking and Packing Stations Need Different Lighting?
Not necessarily. If package heights, viewpoints, and surrounding geometry differ, model each station type instead of assuming the task names determine the fixture choice.
How Do You Light Warehouse Work Surfaces?
Identify the surface, viewpoint, label or paperwork orientation, package height, shadows, and reflections. Then select applicable horizontal or vertical criteria in footcandles or lux and compare them with the proposed distribution.
When Is a Photometric Review Helpful for Warehouse Lighting?
Request one for mixed ceiling heights, new racks or conveyors, reconfiguration, repeated dark spots, or a need to compare product photometric files. Gather the revised plan and representative task zones first.
