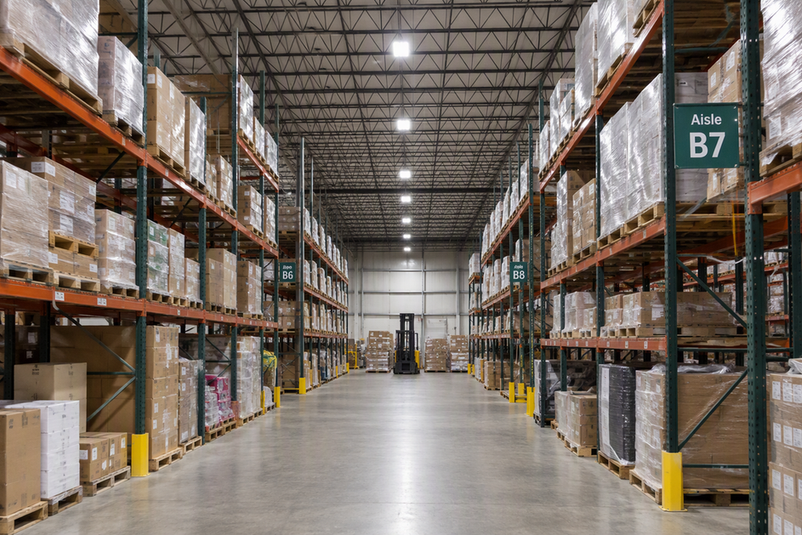

Roof trusses affect a warehouse high bay layout in two separate ways. A truss can block the spot where you planned to hang a fixture, which is a mounting limit, or it can sit between a usable fixture spot and the aisle you need to light, which is a possible coverage gap. Moving a fixture solves the first problem by giving it a new position, but the move alone does not show that the second problem is gone.
So classify the issue before you relocate anything. Then put the trusses, fixtures, and target areas on one drawing, and bring in fixture photometric data when the drawing can't settle the result.
Mounting Limit or Coverage Gap? Start With the Geometry
The first question is simple: can the fixture go where you planned it? If not, you have a position problem. If it can, but a truss appears to sit between that fixture and a named aisle or work area, you have a coverage question that still needs an answer.
| What you see | What to check on the layout | What it means next |
|---|---|---|
| Planned fixture spot conflicts with a truss member | Truss and intended coordinate marked on the same plan | Mounting limit: find an alternative position |
| Fixture spot is open, but a truss sits between it and a named target | Fixture, truss, and target marked together, plus a vertical view | Possible coverage concern, unconfirmed until assessed |
| Fixture moved to clear a truss | New position checked against the same targets | New geometry; coverage result still unknown |
Name the target before you judge any obstruction. "The aisle between rack rows 4 and 5" or "the packing table by Dock 2" gives you something to check. A truss that lines up with a fixture on the drawing is a reason to look closer. It is not a measured shortfall in light.
The third row is where layouts often go wrong. Shifting a fixture a few feet to clear a truss member can fix the mounting problem. It also changes the angle to every target area, and the distance to neighboring fixtures. Compare the revised positions with your high bay spacing plan so one fix doesn't create a new uneven zone.
If the alternative spot means hanging from a different truss member, fixture weight becomes its own question. Our guide to truss weight load considerations covers that topic. Attachment and load decisions belong with a qualified structural professional, not with a lighting sketch.
Map the Trusses, Fixtures, Aisles, and Target Areas
A useful review drawing shows trusses, existing fixtures, proposed fixtures, and named target areas together. Add a vertical view when the roof plan alone leaves their relative heights unclear.
- Truss members: the location and direction of each member over the area in question.
- Existing fixtures: where lights hang today, marked as observed positions.
- Candidate fixtures: each proposed or alternative position, marked as proposed.
- Target areas: the aisles, work areas, or surfaces whose coverage is in question, each with a short name.
- Vertical relationship: a section or elevation through the truss, fixture, and target when the plan view can't show which sits above or in front of which.
- Fixture details: the model for each position and any photometric file you have for it.
Keep observed and proposed positions visually different, such as solid versus dashed symbols. Mixing them is how a planned move gets mistaken for a finished result. The same goes for target names: use the same label on every view so a reviewer can trace one aisle across the plan and the section.
Truss direction matters for which check applies. When trusses run parallel to an aisle, a member may sit along the aisle for its whole length. When they run across it, members cross the aisle at intervals. Either way, the drawing should make that relationship visible so the right target gets checked.
Record the exact model at each position, whether it comes from our high bay lights or another source. Light distribution differs by fixture, so a reviewer needs to know what hangs where.
When the Sketch Is Not Enough to Assess Coverage
A sketch can identify a question, but it cannot prove an illuminance shortfall. When the mapped geometry still leaves a target result uncertain, the next step is a calculation that uses real fixture data.
The VA defines a point-method calculation as a procedure for predicting illuminance at selected points using luminaire photometric data. That is why the fixture file matters: without it, there is nothing to calculate from. The definition does not say whether a given analysis includes roof trusses as obstructions. Ask whoever runs the assessment whether the specific truss geometry is represented in the model.
Your marked layout feeds directly into that setup. Each named aisle or work area can become a calculation area. As one software example, DIALux evo documentation on calculation objects describes drawing calculation surfaces or points in a scene and assigning parameters, including horizontal and vertical illuminance. Vertical options help when the concern is a rack face or wall rather than the floor. If that describes your site, our guide on how to diagnose dark rack faces walks through geometry and fixture distribution checks.
If the concern remains after a proposed move, run the proposed geometry against the same named targets. Don't swap in new targets or treat the move as the answer. Send the marked drawings, target names, fixture positions, and photometric files together with any request for a project-specific lighting design. Then confirm that the trusses will be part of the model.
