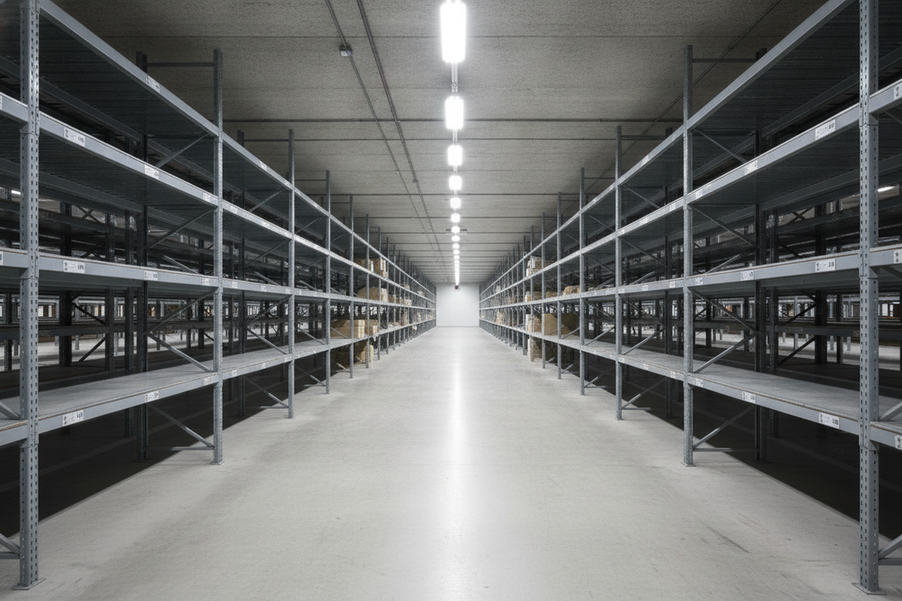

A warehouse can look bright underfoot while labels, pallet faces, and upper shelves remain difficult to read because those surfaces do not receive light in the same orientation as the floor. The floor is a horizontal plane; a rack face is a vertical or intermediate task surface. Start with the failed task, its height, the rack face involved, and the worker's viewing direction—not by automatically adding more output. The right warehouse lighting diagnosis may call for a different fixture orientation, distribution, glare control, or modeled layout rather than a brighter floor.
Separate Floor Brightness From Rack-Face Visibility
Warehouse lighting should be judged against the surface the worker needs to see. A floor reading describes horizontal illumination, while labels, pallet faces, shelf edges, and barcodes require evaluation on their actual vertical or intermediate task surfaces. The IES distinction between horizontal and vertical illumination planes supports checking the rack face separately instead of treating average floor brightness as proof of readability.
First, identify the exact complaint:
- Is the problem label reading, barcode scanning, pallet identification, replenishment, or general travel?
- Which rack face is affected, and at what elevation—lower, middle, or upper storage?
- Is the worker looking straight across the aisle, at an angle, upward, or downward?
- Do rack uprights, pallets, conveyors, or overhangs create a visible shadow pattern?
A bright floor may still leave a rack face poorly lit, uneven, or affected by glare. Industrial lighting also has to account for uniformity, movement, glare, and task demands; “more light” is not automatically the same as better visibility. If the issue is specifically vertical illuminance in aisles, compare the affected rack face with the floor instead of relying on a floor-only measurement.
Match the Lighting Plan to Rack Height and Aisle Geometry
Rack height, storage depth, aisle width, and obstructions determine how light reaches the target face. A fixture arrangement that works for lower shelving may leave upper pallet faces blocked, while a narrow aisle can make a small aiming error more noticeable. The layout should model the actual rack arrangement and review upper, middle, and lower storage levels separately.
Tall Racks and Upper Pallet Faces
Tall racks and stacked inventory can block or absorb light before it reaches the face behind them. Official large-volume-space guidance notes that tall obstructions affect illumination and that vertical surfaces can block light; when shelving approaches the ceiling, fixture placement relative to the aisle becomes especially important. The BPA guidance on rack geometry and fixture placement is useful as conditional planning guidance, not as a universal spacing or illuminance rule.
Review the rack at three levels rather than inferring every level from the floor:
- Upper faces: Check whether high storage, ceiling proximity, or cross-aisle obstructions interrupt the light path.
- Middle faces: Check the normal picking and labeling zone for shadows from pallets, uprights, and adjacent fixtures.
- Lower faces: Check whether rack depth and low-angle light leave shelf edges or labels in shadow.
The result can change when storage depth, pallet overhang, conveyor placement, or rack orientation changes. If the layout is still being modified, document those assumptions and identify which future changes require the model to be rerun.
Narrow Aisles, Wide Aisles, and Changing Storage Layouts
Aisle width changes how sensitive the installation is to aiming, glare, spill, and fixture spacing. Wider aisles may allow more flexibility, but they still need obstruction and vertical-plane checks. A changing layout requires explicit assumptions because a once-useful light path may be affected by moved racks, taller inventory, or new equipment.
| Warehouse condition | What changes in the light path | Next planning check |
|---|---|---|
| Tall storage or heavy obstruction | Upper faces may be blocked or shaded | Model upper, middle, and lower rack-face planes |
| Narrow aisle | Orientation, glare, and cross-aisle spill become more sensitive | Compare fixture alignment with the aisle centerline and viewing direction |
| Wider aisle or lower shelving | Layout may have more placement flexibility | Check spacing, uniformity, and the actual target faces |
| Changing racks or equipment | Future obstructions can invalidate the original result | Record assumptions and define when revalidation is needed |
These are conditional rules, not fixture-count formulas. The useful comparison is the actual warehouse geometry against the proposed light distribution. For a second look at this decision, see aisle optics for rack layouts.
Choose Warehouse Lighting Distribution Before Adding More Output
When the floor is already bright, distribution and direction may matter more than additional output. The next intervention should address the failed rack face: fixture orientation, optic control, shadows, glare, or cross-aisle spill. A linear high bay or aisle-controlled optic can be a plausible category, but only when the site geometry and the fixture's actual IES file produce acceptable vertical-plane results.
Linear High Bays and Aisle-Controlled Optics
Linear high bays are a conditional starting category when their length, mounting direction, and distribution align with the aisle and the modeled rack faces. Aisle-controlled optics are worth evaluating when rack geometry, glare, or spill requires tighter control. Neither category is universally better than a UFO high bay; the comparison must use matching mounting heights, spacing assumptions, optic data, and horizontal and vertical results.
| Planning path | Best-fit condition | Verification question |
|---|---|---|
| Linear high bay aligned with the aisle | Aisle direction and mounting layout support controlled coverage | Does the IES file show the needed rack-face results without excessive glare or spill? |
| Aisle-controlled optic | Rack geometry or lower-shelf shadows call for tighter distribution | Does the optic remain compatible with the fixture and improve the affected task plane? |
| Higher-output replacement | Existing distribution is already appropriate but modeled results remain insufficient | Is output actually the limiting variable, or is the face still blocked or poorly aimed? |
The LHBC product information lists an optional 60×110-degree aisle beam, while the separate aisle-lens page lists UGR<25 and warehouse/rack design intent. Those are manufacturer-provided category facts, not proof of performance in a particular warehouse. If the category fits the design brief, you can review linear high bay options and then verify the exact configuration, compatibility, current specifications, and IES file before selecting it. For a localized lower-shelf issue, bottom-shelf visibility should be evaluated at that shelf height rather than inferred from the floor.
Prepare a Request-Ready Photometric Layout Brief
A useful photometric request describes the building, racks, task, existing fixtures, obstructions, and the surfaces that are failing. Ask for assumptions and results that expose both the horizontal floor condition and the vertical rack-face condition. Missing dimensions, task heights, or fixture files should be flagged as design gaps before purchase or redesign.
Site, Rack, and Task Inputs
Collect these inputs in order:
- Ceiling height and actual fixture mounting height
- Aisle width, aisle orientation, rack height, and rack depth
- Upper, middle, and lower storage elevations where visibility matters
- Existing fixture locations, spacing, orientation, controls, and available IES files
- Conveyors, beams, sprinklers, signs, pallet overhangs, or other obstructions
- The exact task: picking, barcode scanning, label reading, pallet identification, replenishment, or circulation
- The affected rack face, viewing direction, photos, drawings, and examples of the visibility failure
- Planned rack moves or equipment changes that could alter the light path
Do not describe the problem only as “the aisle is dark.” Mark the label or pallet face, approximate task height, and direction from which the worker views it. That gives the designer a surface to evaluate.
Photometric Deliverables to Request
Request a layout that identifies the calculation planes, target heights, mounting assumptions, fixture spacing, orientation, distribution, and obstructions. The IES Illuminance Selector FAQs explain that recommended values and uniformity can be associated with horizontal and vertical target surfaces and their heights; use that approach to specify the actual task surface rather than applying one generic warehouse number.
Ask for:
- Horizontal results for the floor or other circulation plane
- Vertical results on the affected rack faces at stated elevations and orientations
- Uniformity results and any glare or shadow considerations relevant to the task
- Proposed fixture locations, spacing, mounting height, aiming, and control assumptions
- Existing-versus-proposed comparison, if current fixtures are available
- The IES files and exact product or configuration used in the calculation
- A clear list of assumptions, exclusions, and layout changes that would require revalidation
The BPA example layout shows mounting height, spacing, and horizontal and vertical results, but its example values are not universal warehouse targets. Use the official layout guidance to request transparent inputs and outputs, not to copy a fixture count or illuminance value. If we support a design review, we can help organize the fixture-category and photometric questions, but the responsible lighting professional must apply task-appropriate targets and local project requirements.
FAQs
Use these questions to pressure-test the photometric request and isolate the visibility problem. They supplement a photometric review rather than replacing one.
How Does Ceiling Height Affect Warehouse Light Distribution?
Mounting height changes beam spread, spacing sensitivity, delivered light at the rack face, and shadows around tall storage. Include actual mounting and rack-top elevations in the model, then compare vertical results before accepting a fixture count.
Are Linear High Bays Better Than UFO High Bays for Warehouse Aisles?
Neither is automatically better. Compare aisle alignment, rack geometry, mounting height, optic data, glare, spacing, and vertical-plane results in matched layouts. Verify the exact IES file rather than choosing by shape or lumen rating.
What Should I Check If Only the Bottom Shelves Are Hard to Read?
Check rack depth, shelf overhang, fixture spacing, low-angle shadows, and the useful distribution pattern. Request a vertical calculation plane at the bottom-shelf label height before replacing fixtures with higher-output models.
Does Barcode Scanning Need a Different Warehouse Lighting Check Than General Aisle Travel?
Yes. Scanning depends on the barcode or label surface, its height, viewing direction, and glare at that task. Mark the scanning location and face in the request, and evaluate it separately from the floor or general circulation plane.
