The Problem with Standard Lighting in High-Rack Aisles

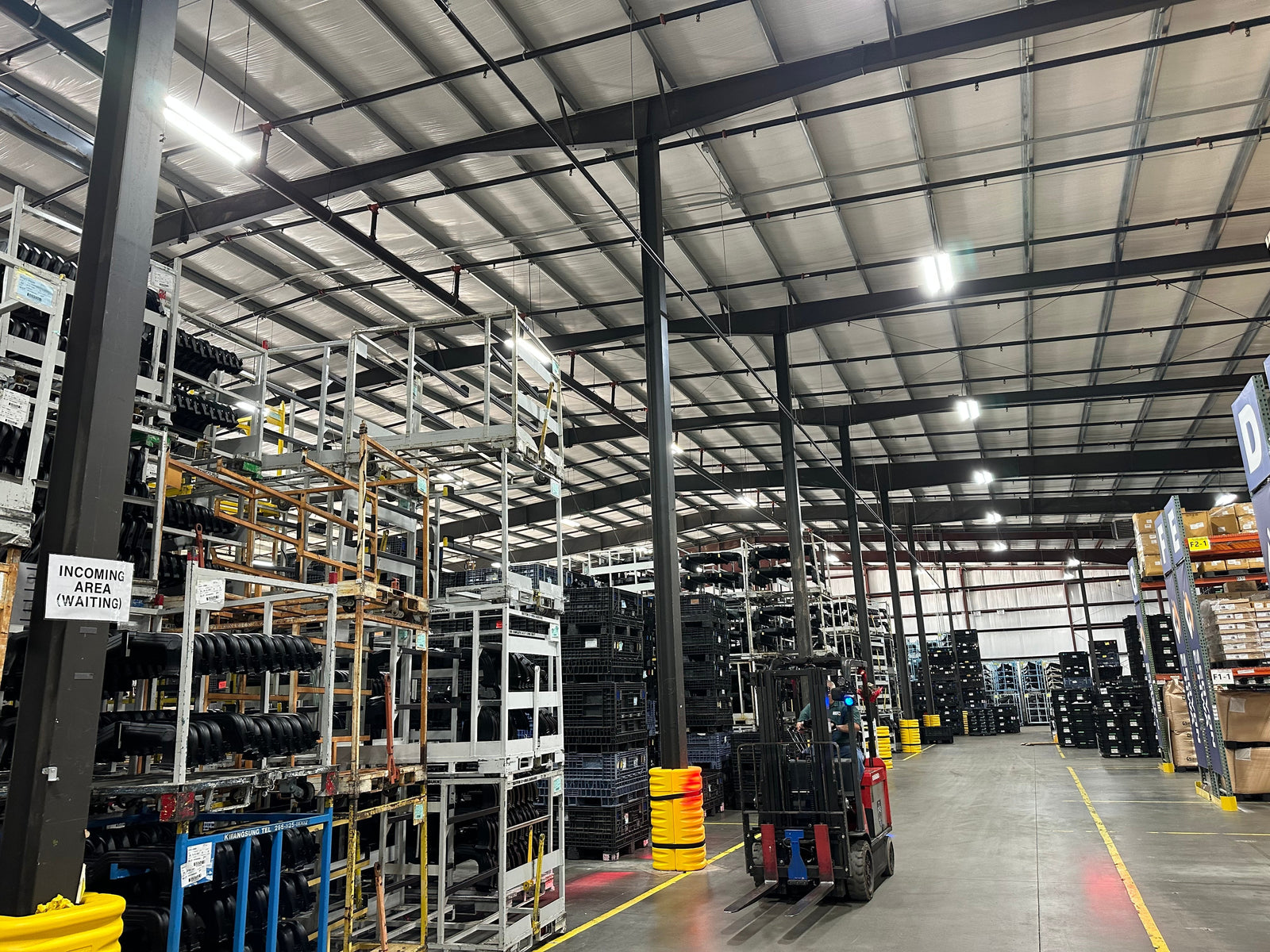

Walk through a modern distribution center, and you'll see rows of pallet racks stretching towards the ceiling. In these dense storage environments, lighting the floor is easy, but lighting the product is hard. The fundamental challenge is getting light from a fixture mounted 30 feet in the air onto the vertical face of a box located on a shelf halfway down the rack.
Standard linear high bays are excellent for open areas. They typically cast a wide, symmetrical beam designed to create a uniform pool of light on a horizontal surface, like an assembly floor or open staging zone. However, when you place these fixtures directly over a narrow aisle, a significant portion of their output is wasted. Light spills onto the top of the racks, gets lost high up on the walls, and fails to penetrate deep into the shelving. The result is a brightly lit floor, but dim, shadowed product faces that make it difficult for workers to identify and pick SKUs accurately. This inefficiency directly translates to higher energy bills and can negatively impact operational productivity.
This article compares the performance of standard linear high bays with specialized aisle-optic fixtures. We will explore the critical concept of vertical illuminance and provide a technical framework for choosing the right fixture to improve visibility and reduce energy consumption in high-rack warehouse environments.
Understanding Light Distribution: Beam Shape is Everything
In warehouse lighting, the raw lumen output of a fixture is only part of the story. The real driver of performance is where those lumens are directed. This is controlled by the fixture's optics, which shape the light into a specific beam pattern.
Standard Linear High Bay Distribution
A standard linear high bay, such as the Linear High Bay LED Lights -HPLH01 Series, is engineered for broad, general illumination. Its internal optics typically produce a wide, diffuse beam angle (often 110° or more) in a "batwing" or circular distribution. This is ideal for covering large, open floor areas with an even layer of horizontal illuminance.
Think of it like a sprinkler head designed to water a wide, circular patch of lawn. It's effective for open spaces but inefficient for watering a long, narrow flower bed—too much water lands on the surrounding pavement. Similarly, when used in a narrow aisle, the wide beam of a standard fixture wastes a tremendous amount of light on non-critical surfaces.
Aisle-Optic Distribution: A Specialized Tool
An aisle-optic high bay is a purpose-built tool. Its specialized lenses are engineered to capture and redirect light that would otherwise be wasted. Instead of a wide, circular pattern, it produces a long, narrow, and often asymmetric rectangular beam.
This precise distribution acts like a spotlight, concentrating the fixture's output directly onto the vertical faces of the racks and the floor of the aisle itself. Very little light spills onto the top of the racking, leading to a dramatic increase in efficiency and effectiveness. It ensures the light goes exactly where it's needed for picking operations: the product.
Vertical Illuminance: The Metric That Matters
For decades, lighting design focused on horizontal illuminance—the amount of light landing on the floor, measured in foot-candles (fc) or lux. While this is important for safe navigation, it is a poor indicator of visibility in a racking aisle.
Why Horizontal Foot-Candles are Misleading
A common mistake I see in warehouse retrofits is relying solely on floor-level foot-candle readings. A layout with standard fixtures might achieve 30 fc on the concrete floor, meeting a baseline safety standard. However, the vertical illuminance on a box at eye level could be as low as 5-10 fc, lost in shadow. This forces employees to use flashlights or strain to read labels, slowing down picking and increasing the risk of errors.
The Real Goal: Consistent Vertical Illuminance
The primary goal in aisle lighting is to achieve adequate and uniform vertical illuminance on the rack faces from top to bottom. The Illuminating Engineering Society's ANSI/IES RP-7-21, Recommended Practice for Lighting for Industrial Facilities, provides detailed guidance on appropriate light levels. For most picking operations in a high-rack environment, a practical target is to achieve a consistent 20 to 50 vertical foot-candles (215–538 lux) on the SKU faces. This ensures that labels are clear and legible, improving both speed and accuracy.
Aisle-optic fixtures are specifically designed to deliver this vertical punch, pushing light down into the canyon between racks.
Case Study: Aisle-Optic vs. Standard Fixture Simulation
To illustrate the real-world difference, consider the following photometric simulation for a typical warehouse bay with a 30-foot mounting height and 10-foot wide aisles. This analysis, based on methodologies used in third-party lighting design reports, compares two common scenarios.
- Scenario A (Standard Optic): Uses 150W standard linear high bays. These fixtures create bright spots on the floor directly below them but leave the vertical product faces on the mid-to-lower shelves in relative darkness.
- Scenario B (Aisle Optic): Uses lower-wattage 100W aisle-optic fixtures. These fixtures precisely direct light onto the rack faces, creating consistent vertical illumination from top to bottom.
| Metric | Scenario A: Standard Optic | Scenario B: Aisle Optic | Result |
|---|---|---|---|
| Fixture Wattage | 150W | 100W | 33% Lower Power Draw |
| Avg. Horizontal fc (Floor) | 32 fc | 28 fc | Both meet safety standards |
| Avg. Vertical fc (Mid-Rack) | 8 fc | 25 fc | 212% More Light on Target |
| Uniformity (Avg:Min Vertical) | 6:1 (Spotty) | 2.5:1 (Uniform) | Improved Visual Comfort |
The data is clear: while consuming 33% less energy, the aisle-optic layout delivers over 200% more task-critical light on the vertical surfaces, dramatically improving conditions for picking accuracy and efficiency.
Design Parameters for Aisle Lighting
Achieving optimal vertical illuminance requires a different approach to layout design. Simply swapping fixtures one-for-one without adjusting spacing is a recipe for poor performance. The key is to understand the relationship between mounting height, spacing, and beam shape.
Spacing-to-Mounting-Height (S/H) Ratio
The Spacing-to-Mounting-Height (S/H) ratio is a critical parameter in lighting design. It defines the maximum recommended distance between fixtures to ensure uniform light coverage.
- Standard Linear Fixtures: These often have a high S/H ratio of 1.8 to 2.5. This means at a 30-foot mounting height, they can be spaced as far as 54 to 75 feet apart for open-area lighting.
- Aisle-Optic Fixtures: These have a much lower recommended S/H ratio, typically between 1.0 and 1.5. At the same 30-foot mounting height, they should be spaced only 30 to 45 feet apart along the aisle.
Attempting to use a wider spacing with aisle optics will create dark spots between fixtures, compromising uniformity. For more detailed guidance on this, see our article on Spacing and Layout for Linear High Bay Mounting.
Quick Selection Guide: Matching Optics to Your Aisle
Use this table as a starting point for selecting the right fixture type based on your facility's dimensions. Always confirm final selections with a photometric layout.
| Mounting Height | Aisle Width | Recommended Optic | Recommended S/H Ratio | Example Fixture Type |
|---|---|---|---|---|
| 20–25 ft | 10–12 ft | Aisle Optic | 1.2–1.5 | HPLH01 w/ Aisle Lens |
| 25–35 ft | 10–12 ft | Aisle Optic | 1.0–1.3 | HPLH01 w/ Aisle Lens |
| 25–35 ft | 6–9 ft (Narrow) | Asymmetric Aisle Optic | 1.0–1.2 | HPLH01 w/ Asymmetric Lens |
| >35 ft | Any | Aisle Optic | <1.0 | Requires Photometric Study |
Aiming and Asymmetric Optics
For particularly tall racks (over 12 feet) or very narrow aisles (under 6 feet), even standard aisle optics can benefit from strategic aiming. By tilting the fixture 5° to 15° toward the aisle centerline, you can significantly boost the vertical foot-candles on the lower shelves. In extremely narrow applications, fixtures with dedicated asymmetric optics that build in a 20°-30° offset are a highly effective solution.
Comparison: Standard vs. Aisle-Optic
| Feature | Standard Linear High Bay | Aisle-Optic Linear High Bay |
|---|---|---|
| Beam Shape | Wide, Symmetrical (e.g., 110°) | Narrow, Rectangular, often Asymmetric |
| Ideal Application | Open Areas, Staging Floors, Workshops | High-Rack Aisles, Narrow Corridors |
| Light Distribution | High horizontal illuminance | High vertical illuminance |
| Typical S/H Ratio | 1.8 - 2.5 | 1.0 - 1.5 |
| Energy Efficiency | Lower in aisles due to wasted light | Higher in aisles; lumens are targeted |
| Primary Goal | Illuminate the floor | Illuminate the rack face |
Common Myths and Costly Mistakes
Basing a lighting decision on incomplete information can lead to poor outcomes and wasted investment. Here are a few common misconceptions we encounter.
Myth #1: More Lumens are Always Better
This is the most common mistake in lighting procurement. A 25,000-lumen standard fixture will almost always perform worse in a narrow aisle than a 18,000-lumen aisle-optic fixture. The reason is efficiency. The aisle-optic fixture directs a higher percentage of its lumens onto the target, while the standard fixture wastes its higher output on irrelevant surfaces. Always prioritize the photometric distribution (the beam shape) over raw lumen output. To make an informed choice, it's crucial to understand how many lumens you really need for your specific ceiling height and application, a topic explored in our High Bay Lumen Needs for 15-40 ft Ceilings guide.
Myth #2: Photometric Files are Optional
Facility managers sometimes try to save time by skipping a formal lighting layout. This is a critical error. A photometric layout, created using IES files in software like AGi32, is the only way to accurately predict performance before purchasing and installing hundreds of fixtures. An IES (Illuminating Engineering Society) file, defined by standards like IES LM-63-19, is a digital fingerprint of a fixture's unique light distribution. Without it, you cannot:
- Verify vertical foot-candle levels.
- Confirm lighting uniformity.
- Generate the documentation required for most utility rebates.
Insisting on receiving these files is a non-negotiable step for any professional project. For a deeper dive, read about the Photometric Data Electricians Need for High Bays.
Myth #3: Initial Cost is the Only Cost
Focusing only on the upfront fixture price ignores the total cost of ownership. The energy wasted by an inefficient lighting system adds up quickly. As our case study showed, a layout using aisle-optic fixtures can allow you to use a lower-wattage model, generating significant energy savings over the life of the system. Furthermore, many utility rebate programs, cataloged in databases like the DesignLights Consortium (DLC) Qualified Products List, offer higher incentives for high-efficacy fixtures and those with advanced controls, which can dramatically lower the initial project cost.
Wrapping Up: The Right Tool for the Job
For open warehouse spaces, standard linear high bays provide excellent value and performance. They are a reliable and efficient solution for general illumination. However, when it comes to high-rack and narrow-aisle environments, the laws of physics favor a specialized approach.
Aisle-optic linear high bays are purpose-built to solve the challenge of vertical illuminance. By precisely controlling their light distribution, they put light exactly where it is needed: on the products. This targeted approach eliminates wasted energy, improves worker accuracy, and enhances safety. While the fixture itself may represent a different initial investment, the long-term returns in energy savings and operational efficiency make it the superior technical choice for modern, high-density storage applications.
Before your next warehouse lighting project, look beyond the lumens and demand a photometric layout. Choosing the right optical distribution is the single most important decision you can make.
Frequently Asked Questions (FAQ)
What is vertical illuminance?
Vertical illuminance is the measurement of light that falls on a vertical surface, like the face of a pallet rack. It is measured in foot-candles (fc) or lux and is the most important metric for assessing visibility for picking tasks in a warehouse aisle.
How do I know if I need aisle-optic fixtures?
If you have racks taller than 12 feet and aisle widths less than 1.5 times your fixture mounting height, you are a prime candidate for aisle-optic fixtures. Our Quick Selection Guide above can provide a starting point. They are specifically designed for environments where getting light onto vertical surfaces is the primary goal.
Can I use standard linear high bays in aisles?
You can, but it is highly inefficient. A standard fixture with a wide beam pattern will waste a significant amount of light on the tops of the racks and the floor, leading to higher energy costs and poor visibility on product labels, as demonstrated in our case study.
What are IES files and why do I need them?
An IES file is a standardized digital file that describes the exact light distribution pattern of a specific fixture. Lighting designers use these files in specialized software to create photometric layouts, which are simulations that accurately predict how a space will be lit. They are essential for verifying performance and are typically required to qualify for utility rebates.
Disclaimer: This article is for informational purposes only. The installation of high bay lighting should always be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local regulations. For complex layouts, consulting a professional lighting designer is strongly recommended.
