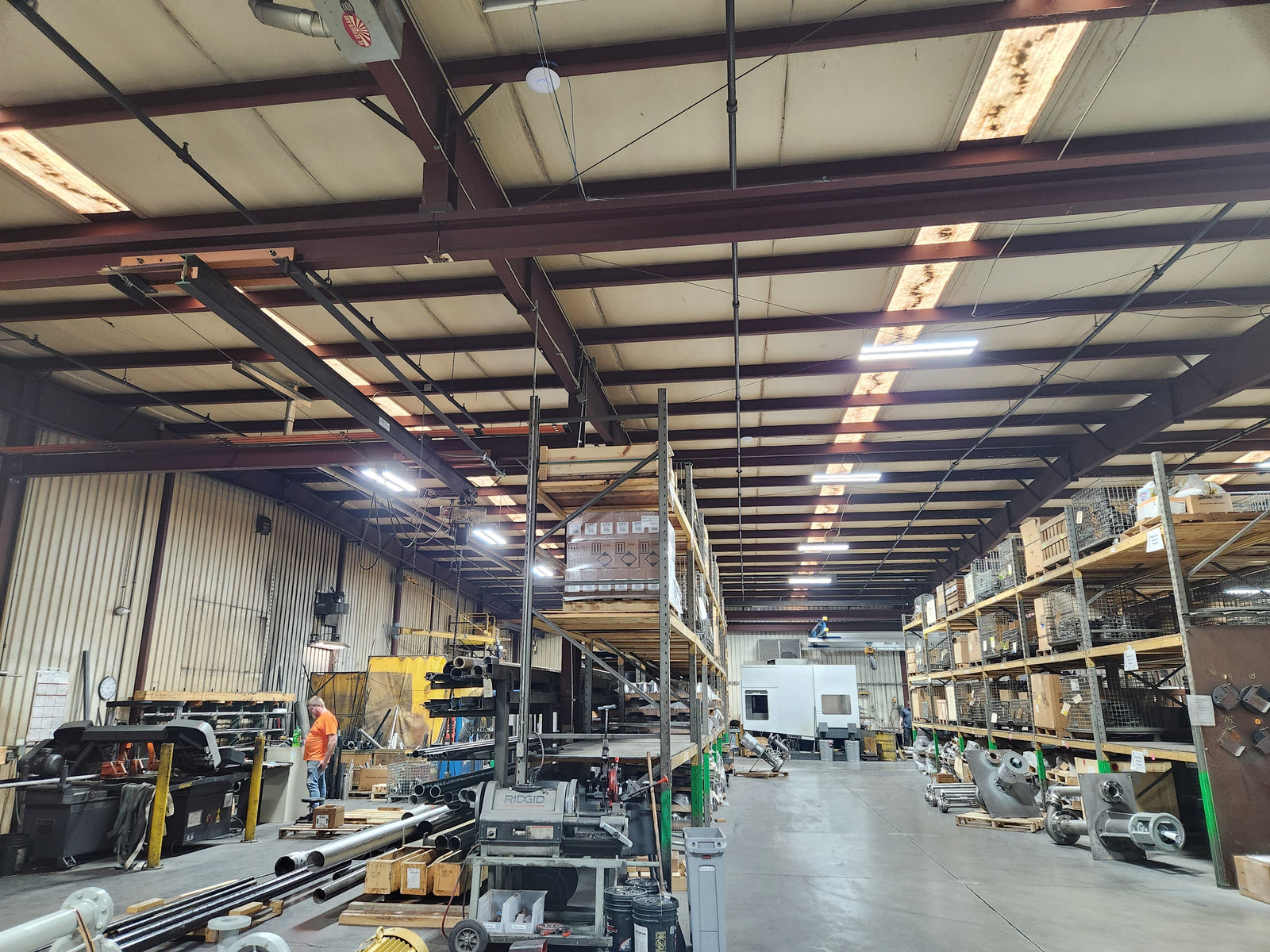

The Critical Shift: From Floor Lighting to Vertical Illumination
For decades, the primary goal in warehouse lighting was achieving a target brightness on the floor. This metric, known as horizontal illuminance, is easy to measure and seemed logical. However, in a modern high-rack environment, focusing solely on the floor is a critical mistake. The most important tasks—identifying products, reading labels, and scanning barcodes—happen on the vertical faces of the racks, not on the concrete aisle below.
Properly lighting these vertical surfaces, a metric called vertical illuminance, is the key to unlocking major gains in operational efficiency and safety. When pickers can't read a label or a scanner fails to register a barcode, the entire workflow grinds to a halt. I've seen facilities struggle with persistent picking errors and slow cycle times, and the culprit wasn’t the staff or the scanners—it was poor light on the target. Getting this right eliminates a massive, often-overlooked source of daily friction.
Horizontal vs. Vertical Foot-Candles: A Tale of Two Surfaces
Imagine holding a flashlight in a dark room. If you point it at the floor, you create a bright horizontal circle. If you point it at a bookshelf, you illuminate the vertical spines of the books. Warehouse lighting operates on the same principle.
- Horizontal Illuminance: Measured in foot-candles (fc) or lux on a horizontal plane, typically 30 inches above the finished floor. It’s important for general navigation and safety in open areas.
- Vertical Illuminance: Measured in foot-candles or lux on a vertical plane. In a warehouse, this is the light that actually falls on the face of a pallet, a carton, or a bin location.
The Illuminating Engineering Society (IES) provides guidance in its ANSI/IES RP-7 – Lighting Industrial Facilities, which recommends illuminance levels based on the visual tasks being performed. For high-rack areas, the critical task is almost always vertical.
Debunking the "More Lumens" Myth
A pervasive myth in lighting is that more lumens (higher brightness) automatically equals better illumination. This leads many to select the high bay with the highest lumen output, often a round "UFO" style fixture, assuming it will solve their problems. In a high-rack setting, this approach often backfires.
Raw lumen output is meaningless without considering light distribution—where those lumens actually go. A powerful, wide-distribution UFO high bay can blast the floor directly beneath it with 50-60 fc while the vertical face of a rack only a few feet away sits in a "cave" with less than 5 fc. This creates extreme contrast, forcing workers' eyes to constantly readjust and causing scanner errors. The solution isn't more power; it's more precise control over the light's shape.
The Right Tool for the Job: Aisle-Optic Linear High Bays
To effectively light the vertical faces of high racks, you need a fixture designed specifically for the geometry of an aisle. This is where aisle-optic linear high bays excel. Unlike the circular beam of a UFO light, these fixtures use specialized lenses to shape the light into a long, narrow rectangle.
This tailored distribution pattern allows you to direct light sideways onto the rack faces and down the length of the aisle, minimizing wasted light on the top of racks or the floor. From my experience commissioning projects, switching from general-purpose round high bays to aisle-optic linear fixtures is the single most impactful change for improving rack-face uniformity. These specialized optics are a core feature of professional-grade fixtures like the Linear High Bay LED Lights -HPLH01 Series, 18200lumens, Adjustable Wattage & CCT, 120-277V, which are engineered for these exact applications.
Understanding Photometric Files (IES)
How can you be sure a fixture has the right distribution before you buy it? You must request its photometric data file, commonly known as an IES file. Governed by the IES LM-63 standard, this small text file is a digital map of how a specific luminaire emits light in three dimensions.
Lighting designers and electrical engineers import these files into software like AGi32 or DIALux to accurately simulate a lighting layout. This allows them to predict the exact vertical foot-candle levels on every rack face before a single fixture is installed. A mistake I often see is relying on marketing claims about "beam angle." An IES file is the only ground truth for a fixture's performance. You can learn more about why this data is essential in our guide to Photometric Data Electricians Need for High Bays.
A Practical 4-Step Layout Methodology
Achieving excellent vertical illuminance isn’t academic; it follows a repeatable, field-tested process. Here is a straightforward methodology for planning your high-rack lighting layout.
Step 1: Define Your Target Illuminance
Before you can determine spacing or fixture count, you must define how much light you need. This depends entirely on the tasks performed in the aisles. A bulk storage area has different needs than a high-velocity picking zone.
Recommended Vertical Illuminance on Rack Faces
| Task Type | Vertical FC (Minimum) | Vertical Lux (Minimum) | Notes |
|---|---|---|---|
| Bulk Storage (Low Activity) | 5–10 fc | 50–100 lux | For general visibility and forklift navigation. |
| Active Manual Picking | 15–20 fc | 150–200 lux | For easily reading printed labels by eye. |
| Barcode Scanning (RF Guns) | 20–30 fc | 200–300 lux | Critical for first-pass scanner accuracy. |
Pro Tip: I always add a 1-2 fc contingency buffer. If your products have dark or semi-reflective packaging (like shrink-wrapped pallets), they can absorb 10-25% of the light that hits them. This buffer ensures you meet your targets even with less-than-ideal surface reflectance.
Step 2: Apply the Spacing-to-Mounting-Height Ratio (SMHR)
Once you know your target, you can determine fixture spacing. The most reliable starting point is the Spacing-to-Mounting-Height Ratio (SMHR). For aisle-optic linear high bays in a typical rack environment, a practical SMHR is between 1.0 and 1.2.
-
Calculation:
Spacing = Mounting Height x SMHR - Example: If your fixtures are mounted at 30 feet, your spacing between fixtures down the aisle should be between 30 feet (30 x 1.0) and 36 feet (30 x 1.2).
This heuristic ensures that the light distribution from one fixture overlaps effectively with the next, creating a continuous band of light along the aisle. For more detail on this, see our guide on linear high bay spacing.
Step 3: Position Fixtures Correctly Over the Aisle
Fixture placement is simple but critical: aisle-optic linear high bays must be centered directly over the aisle. Their optics are designed to throw light out to the sides to hit the rack faces. If you offset the fixtures towards one side, you will over-light one rack while leaving the other in shadow.
For very narrow aisle (VNA) applications where the aisle width is significantly less than the mounting height, the choice of a narrow, aisle-specific beam shape is even more crucial to drive light down into the picking area without creating glare for operators.
Step 4: Verify with a Sanity Check
Before finalizing any large project, a quick photometric simulation is the best sanity check. Using the manufacturer's IES file, a designer can confirm in minutes that your proposed layout meets the vertical illuminance targets from Step 1.
After installation, the job isn't done. A common mistake is to walk away without commissioning the system. I always recommend using a handheld lux meter on a tripod, set to the height of a typical SKU picking face, to take measurements. Documenting these real-world "before and after" readings validates the success of the project and provides concrete data for management.
Integrating Controls for Next-Level Efficiency
A well-designed layout provides the potential for great lighting. A well-controlled system delivers it efficiently and cost-effectively. Modern energy codes and operational demands require intelligent lighting controls.
The Power of 0-10V Dimming
Most professional-grade luminaires, including the HPLH01 Series, are equipped with 0-10V dimming drivers as a standard feature. This allows you to smoothly adjust the light output from 100% down to 10% (or off). This capability is a cornerstone of compliance with energy standards like ASHRAE 90.1.
From a practical standpoint, dimming is essential for operational flexibility. During overnight shifts with less activity, you can dim the lights to a lower-but-safe minimum level, saving significant energy while still providing enough vertical illuminance for navigation and security.
Smart Zoning with Occupancy Sensors
The most effective control strategy in a high-rack warehouse is to group fixtures by aisle and control each zone with an occupancy sensor. When a forklift or picker enters an aisle, the lights ramp up to full brightness. After a set period of inactivity, they dim back down.
Proper sensor placement is key. As noted in the DOE's guide on wireless occupancy sensors, sensors in high-bay areas should be positioned to detect motion at the ends of the aisles to prevent unwanted triggers from cross-traffic. This strategy stops you from wasting energy lighting empty aisles, which in many facilities can account for over 50% of the operating hours.
Key Takeaways for a Successful High-Rack Layout
Designing an effective lighting system for a high-rack warehouse is a science of precision, not just power. By shifting your focus from the floor to the vertical rack face, you can dramatically improve productivity and safety.
- Focus on Vertical Illuminance: Your primary goal is to deliver adequate light to the vertical surfaces where products are stored and identified.
- Select Aisle-Optic Fixtures: Use linear high bays with specialized optics that shape light for long, narrow aisles.
- Demand Photometric Data: Never trust marketing claims alone. Use IES files to verify a fixture's light distribution and plan your layout accurately.
- Follow a Structured Methodology: Define your illuminance targets, use the SMHR to establish spacing, and center your fixtures over the aisles.
- Integrate Smart Controls: Leverage 0-10V dimming and aisle-by-aisle occupancy sensing to maximize energy savings without compromising performance.
Frequently Asked Questions (FAQ)
How many foot-candles do I need on my warehouse racks?
This depends on the task. For general bulk storage, 5-10 vertical foot-candles (fc) is often sufficient. For active manual picking, aim for 15-20 fc. For areas with heavy barcode scanning, 20-30 fc is the recommended target to ensure first-pass read accuracy.
Can I use round UFO high bays for racked aisles?
While you can, it is highly inefficient. Round UFOs create a circular light pattern that wastes a tremendous amount of light on top of the racks and creates dark spots on the vertical faces. Aisle-optic linear high bays are specifically designed to direct light onto the racks in an aisle, making them a far more effective and efficient solution.
What is an IES file and why do I need it?
An IES file is a standardized photometric data file that describes exactly how a light fixture distributes its light. Lighting designers use these files in simulation software to accurately predict light levels before installation. It is the only way to guarantee that a proposed layout will meet your vertical illuminance targets.
Do I need a motion sensor on every high bay light?
No, this is generally not necessary or cost-effective. The best practice is to group the lights in each aisle into a single control zone. One occupancy sensor can then control all the lights in that aisle, turning them on when someone enters and dimming them after the aisle is vacant.
