Plan the high-bay layout for the whole warehouse, then check the assembly cell on its own as a task zone. The storage grid gives you a starting point, but it does not prove the light works at the bench where someone assembles parts all shift.
That check does not mean the cell needs separate fixtures. It means someone must review the light at the real work surface, against a task criterion that fits the job, before you call the existing plan good enough.

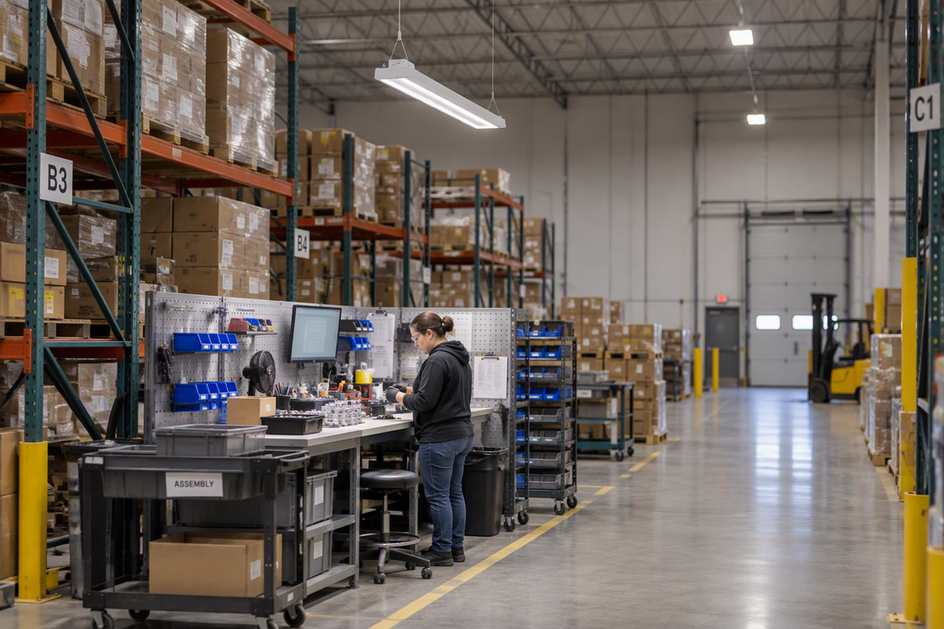

Treat the Assembly Cell as a Task Zone Within the Warehouse
No, the cell is not just another patch of storage floor. Storage and movement areas are planned around aisles, racks, and travel paths. An assembly cell adds a fixed work surface and an operator who looks in one main direction for long periods. Those two facts change what a lighting review has to look at.
Begin with two observations before you think about fixtures. First, where exactly is the work surface: its height, size, and position inside the cell? Second, which way does the operator face while working? A bench that faces a rack wall sits under different conditions than one that faces an open aisle, even if both are under the same row of high bays.
Keep the surrounding warehouse in the picture. The cell shares light with nearby storage and circulation, so the review should cover how the cell sits within that layout, not treat it as an isolated room. Good warehouse assembly lighting starts from the general plan and then asks one narrower question: what reaches this bench, from this view, in this spot?
Whether the answer is "the existing grid works" or "the cell needs its own layout" comes later. Neither result should be assumed at this stage.
Map the Cell, Task, and Surrounding Conditions
Document the cell and its surroundings on one site sketch before anyone compares it to the high-bay layout. The table below lists what to record and why a reviewer needs it.
| Area or input | What to record | Why the reviewer needs it |
|---|---|---|
| Cell footprint | Length, width, location on floor plan | Places the cell within the fixture grid |
| Work surface | Bench height, size, position in cell | Sets where light is assessed |
| Task | What is assembled, part size, visual detail | Guides choice of task criterion |
| Operator view | Standing or seated spot, facing direction | Shows which light reaches the line of sight |
| Mounting conditions | Ceiling or mounting height, current fixture layout | Must match the real installation |
| Nearby obstructions | Racks, equipment, hoists, tall stock | May block or shade the work surface |
| Storage and circulation | Adjacent aisles, travel routes, staging areas | Keeps the cell in context of the wider plan |
| Changing setups | Shifts in bench position, task, or orientation | Flags conditions a single review may miss |
Mark racks, equipment, and travel routes on the same drawing as the bench. A rack that sits between a fixture and the bench changes the review, and a reviewer can only account for it if it appears on the plan.
Label anything that moves. If the bench gets rotated for certain jobs or the task changes by product line, note each arrangement. A review built on last year's setup may not describe the current one.
If an exit route runs along or through the cell area, check it separately. OSHA's exit route lighting rule covers seeing along the route, which is a different question from task light at the bench.
Review the Work Surface Against the High-Bay Layout
Ask for a review that checks the existing high-bay arrangement at the assembly work surface, using real mounting, task, viewing direction, and surrounding conditions. A fixture's lumen rating shows total output. It does not show how much of that light lands on a bench under a specific layout with racks nearby. Photometric data tied to the actual layout answers that question.
Use this sequence to set up the review:
- Assemble the site and task inputs. Hand over the site sketch, cell and bench dimensions, task description, operator position and view, and any alternate setups you labeled.
- Supply fixture and layout details. Include the current fixture positions, mounting height, and the photometric file or data for the installed or proposed fixtures. If you need to review IES layout data before sending it, confirm the file matches the exact fixture and configuration.
- Request assessment at the actual work surface. Ask that calculation points or a work plane be placed at bench height within the cell, not only across the general storage floor.
- Ask which criterion and method were used. The reviewer should name the task criterion chosen for your assembly work and how the bench was assessed.
On method, the VA Lighting Design Manual describes point calculations using luminaire photometric data to estimate illuminance at selected locations. It also describes a lumen method for estimating average illuminance on a work plane. Point results at the bench and an average across a broad area can tell different stories, so ask the reviewer to state which approach was used and what area it covers.
The manual explains general methods. It does not set an assembly-task target. That criterion has to come from the reviewer and fit your task. When the report comes back, it helps to read a photometric report with an eye on whether the cell's calculation area appears at all, and whether the figures shown describe the bench or the whole room.
Decide Whether the Existing Plan Needs a Separate Review
The existing layout stays a candidate only when a review applies a task-matched criterion to the current work surface. If any part of that is missing, the cell needs its own follow-up.
- Keep the existing layout under consideration when the reviewer has named a criterion suited to the assembly task, the calculation covers the bench at its real height and position, and the current viewing direction, mounting conditions, and nearby obstructions are represented. Results that meet the stated criterion support staying with the current plan for now.
- Pursue a separate task-zone review when the result falls short of the criterion, the cell was left out of the calculation, no task criterion was chosen, or inputs such as bench position, task, or nearby racks are unknown or have changed since the review. Treat each of these as unresolved, not as a pass.
A separate review may end in fixture changes over the cell, a different layout, or supplemental task lighting. If it points toward new fixtures, our high bay fixture options and linear high bay lights are places to compare photometric files against the review's needs. For a layout built around your sketch and task inputs, our project lighting design page explains how to start.
Watch for one regulatory mix-up. OSHA's construction illumination rule lists minimums for covered construction work, including indoor warehouse areas while that work is in progress. It does not set an assembly-task target for normal warehouse operations. Code compliance, wiring, and circuit decisions belong with a licensed electrician, lighting designer, or the local authority having jurisdiction.
FAQs
What happens to the review if we rotate the bench for some jobs?
Each orientation changes what the operator faces and which fixtures sit in front of or behind them. Record every arrangement the cell actually uses and ask the reviewer to check each one, or at least the one used most of the shift. A review of a single orientation describes only that setup.
Can a higher-lumen fixture fix a dim assembly bench?
Not by itself. More total output does not show where the light lands or whether a rack is shading the bench. Compare photometric data for the candidate fixture in the real layout at bench height before you buy. That shows whether the change reaches the work surface.
A rack was added next to the cell after the lighting review. Does that matter?
Yes. A new rack, machine, or stack of tall stock can block light that the original review counted on. Update the site sketch and treat the old result as out of date for the cell. Then ask for the calculation to be rerun with the new obstruction in place.
Should the inspection step in our cell be reviewed the same way?
Inspection often depends on how light hits the part from the inspector's real line of sight. That is narrower than general task light on the bench. If the cell includes inspection, note that position separately. You can also look at how inspection station viewing angles affect the choice between fixed and repositionable supplemental light.
