If you added an awning or sign, don't assume the old mounting point still works. A new feature on the facade can block or redirect light from a wall pack that hasn't moved an inch. Before you order a wall pack replacement, check how the new feature sits relative to the fixture, list the areas that still need light, and compare those areas with the distribution information for the exact replacement you plan to buy.
The old location is a reasonable place to start. The review decides whether you keep it, rethink the layout, or confirm coverage before you spend money.

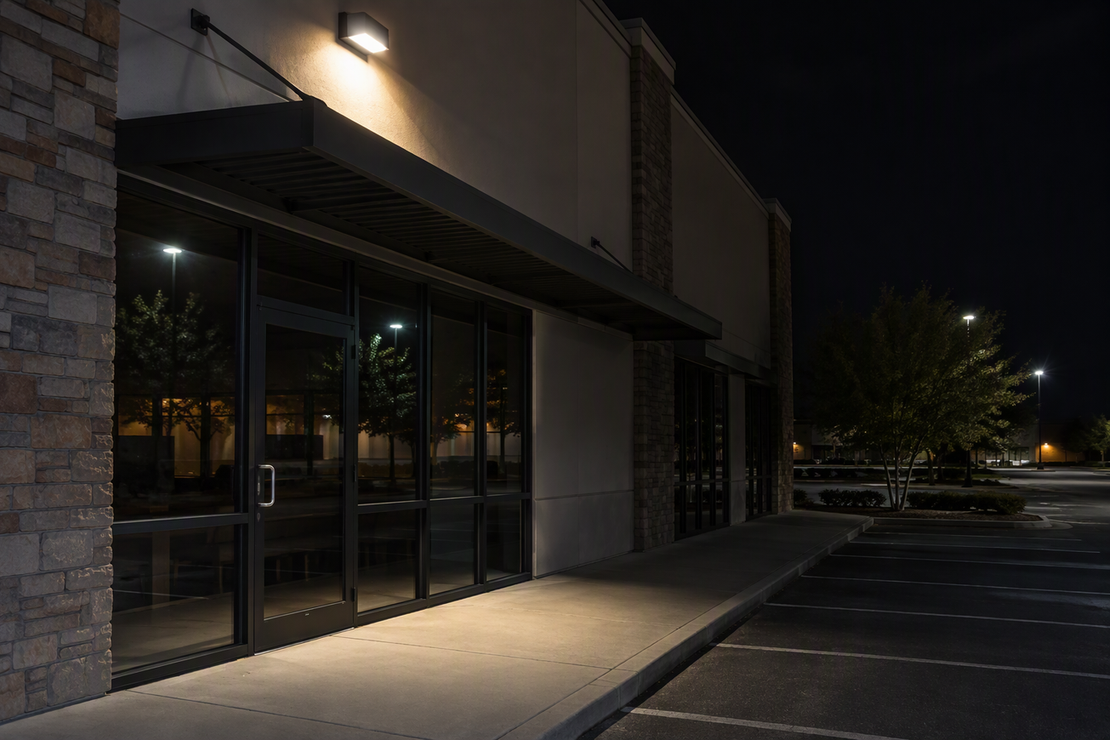

How an Awning or Sign Can Change the Wall Pack's Light Path
What matters is where the new feature sits and how far it extends, not just the fact that it exists. Because a wall pack casts light outward and down, any projection into that beam may cast shadows, trim distribution, or bounce light unexpectedly. Whether light loss happens depends on the feature's actual geometry.
Stand where you can see both the fixture and the new feature, then work through these prompts:
- Locate the feature. Note whether the awning or sign is above, below, beside, or directly in front of the fixture.
- Record its size and projection. Measure or estimate how far it extends from the wall, how wide it is, and the vertical gap between it and the fixture, in feet and inches.
- Trace the outgoing path. Picture the light leaving the fixture toward the walkway, door, or lot edge it's supposed to reach. Does the feature's edge or face cross that line?
- Check for new reflective or shadowed surfaces. The underside of an awning or a sign's face may now catch light that used to reach the ground.
A sign mounted near the fixture isn't automatically a problem. A flat sign set well to one side may never touch the beam, while a deep awning directly below the fixture could sit squarely in it. A related principle shows up in street lighting: the Global Street Design Guide's lighting guidance tells designers to consider obstructions such as trees or billboards when spacing fixtures for roads and sidewalks. That advice was written for roadways, but the habit carries over. Look for what now stands between the light and its target.
Check the Areas You Still Need to Illuminate
Decide what the fixture must light before evaluating the mounting position. List each priority target area, including doorways, walkways under the awning, and parking zones, then sketch them on a facade diagram. That visual map helps identify potential sightline gaps or areas where the projection might block light, though it cannot confirm actual ground coverage on its own.
Next, get the distribution information for the exact replacement model or variant you're considering. Distribution data shows where a fixture is designed to send its light, such as how far forward it throws and how wide it spreads. That tells you whether the replacement aims light toward your target areas at all. It can't tell you what an awning edge will do to that light. You still need to bring your site sketch to the comparison.
Don't let the lumen rating answer the coverage question. A higher lumen figure describes total light output, not where that light lands, so a brighter fixture behind an awning can still leave the walkway in shadow. In the same way, the old fixture lighting an area last year doesn't confirm that a new one will light it now. If the documentation and your sketch don't settle whether the changed facade still allows useful coverage, treat coverage as unconfirmed.
If the facade change affects more than one fixture, it helps to map exterior lighting zones across the whole building before you choose any single replacement.
Keep the Location, Reassess the Layout, or Verify Before Buying
Your review should end in one of three actions, and none of them is the default. The fact that the old mounting point is still there doesn't count as a reason to go ahead.
| Review finding | Next step | What it means |
|---|---|---|
| Clear path to all target areas; replacement data aims light there | Keep the location under consideration | Proceed to pre-purchase checks |
| Feature crosses the path, or a target area sits behind it | Reassess fixture position or layout | Old spot may not serve the new facade |
| Geometry unclear or distribution data missing | Verify coverage before purchase | Don't order until the gap closes |
The reassess branch doesn't automatically mean moving the fixture. The answer might be a different mounting height, a second fixture, or a different fixture type for the area under the awning. At a storefront door, for example, the right mix depends on entry geometry and coverage as much as on the wall pack itself.
For the verify branch, you need an actual coverage check, not more guessing. You can model the space with our online lighting layout tool or have a lighting professional review the site with the exact product's distribution data.
What to Gather Before Purchase or Installation
Collect three groups of information before you buy: the site's new geometry, what's on the wall now, and documentation for the exact replacement. Keeping them separate makes it easier to see what's still missing.
- Site geometry: The awning or sign's position, width, projection, and distance from the fixture, plus your marked list of areas that still need light. Photos taken from the ground and from the target areas help.
- Existing fixture: The brand, model, and any label details you can safely read or photograph. Also note how it's mounted and whether it runs on a photocell, timer, or other control.
- Replacement documentation: The current spec sheet and installation instructions for the exact model or variant, including distribution information, mounting method, input voltage, and control options. Confirm mounting and control compatibility from those documents rather than assuming the new unit matches the old one. This follows DOE FEMP's exterior-lighting purchasing guidance, which says an informed choice depends on accurate, relevant data on product performance, cost, and reliability.
- Electrical questions: Take anything involving the circuit, wiring, or the electrical connection to a qualified electrician. That includes whether existing wiring can feed a new position. This guide doesn't cover wiring or live testing.
When all three groups are complete and match your decision from the table, you're ready to order a wall pack replacement.
FAQs
Will a higher-lumen wall pack make up for light lost to an awning?
Not reliably. Lumens measure how much light a fixture produces, not where it goes. If an awning sits between the fixture and the walkway, more output may mostly light the awning's underside. Compare the replacement's distribution information with your target areas instead.
Can a wall pack replacement still be a one-for-one swap after the facade changes?
Yes, if your review shows a clear path to every area that needs light and the replacement's documentation supports that coverage and the existing mounting. If either point fails, plan for new coverage. Our guide to a one-for-one replacement or new plan walks through a similar reuse-or-rethink decision for flood lights.
What if I can't identify the old fixture?
You can still move forward. Record its mounting style, size, and any controls you can see, and photograph it. Base your choice on the replacement's own documentation and your site sketch, since the new fixture's data is what decides coverage anyway.
Should the new wall pack go above or below the awning?
No single position is right for every building. The best spot depends on which areas need light and whether the awning blocks the path from each option. Sketch both positions against your target areas. Then compare them with the replacement's distribution information before you change the mounting point.
