The Criticality of Vertical Illuminance in Sports Facilities

In high-speed aerial sports such as volleyball, basketball, and badminton, the playing surface is only one part of the visual environment. While standard lighting designs often focus on horizontal foot-candles (fc)—the amount of light reaching the floor—this metric fails to account for the athlete's visual needs when the ball is in flight. For a volleyball player tracking a serve or a basketball player rebounding a shot, the ball frequently travels 15 to 25 feet above the court. If the lighting system does not provide sufficient vertical illuminance, the ball may enter a "blackout" zone, where it loses contrast against the ceiling or becomes a silhouette, severely impacting player performance and safety.

Vertical illuminance refers to the light landing on a vertical plane, such as the side of a ball or a player’s face. In a professional athletic hall, achieving a balance between horizontal and vertical light is the hallmark of a high-performance system. According to the Illuminating Engineering Society (IES), proper sports lighting must ensure that objects remain visible throughout their entire trajectory. However, a common pitfall in gym lighting is the assumption that meeting horizontal lux targets (lumens per square meter) automatically ensures vertical visibility. In practice, vertical illuminance levels should typically reach 30% to 50% of the horizontal target at the peak of the ball's trajectory to maintain adequate chromatic contrast.

Uniform LED shop lights and recessed LED panel lights illuminating a commercial gym with weight benches and mirrored wall

The Technical Gap: IES Standards vs. Practical Performance

A significant challenge for facility managers and contractors is the interpretation of industry standards. While the IES RP-6 (Recommended Practice for Sports and Recreational Area Lighting) provides a framework for measurement, it does not always publish explicit, sport-specific minimum vertical foot-candle values for ball tracking in recreational classes. Instead, these standards often prioritize vertical light for camera operation and facial recognition in televised events.

This creates a "hidden cost" of compliance. A facility built strictly to meet the minimum horizontal requirements of older codes, such as the European EN 12193:2008, may find its lighting inadequate for contemporary high-speed sports. Research suggests that the Spectral Power Distribution (SPD) of modern Light Emitting Diode (LED) technology, particularly those with spikes in the blue spectrum, can alter depth perception and tracking accuracy if vertical uniformity is poor. As noted in the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, professional-grade specifications now demand verifiable photometric data that addresses these vertical planes.

Heuristic: The 30-50% Vertical-to-Horizontal Ratio

For most multi-purpose gyms, a reliable rule of thumb is to aim for a vertical-to-horizontal illuminance ratio of 0.3 to 0.5. If your target horizontal illuminance is 50 fc (a typical standard for high school competition), the vertical illuminance at 15 feet above the floor should ideally range between 15 fc and 25 fc. This ensures the ball remains illuminated from the side, preventing the "flicker" effect that occurs when an object moves rapidly between bright spots and shadows.

Logic Summary: This heuristic is derived from common patterns in sports lighting design and manufacturer IES file simulations (not a mandated regulatory standard). It is intended for quick selection and self-checking during the design phase.

Optics and Placement: Engineering for Aerial Visibility

Achieving vertical uniformity requires a strategic selection of optics and fixture placement. Unlike a warehouse where light is directed straight down into aisles, a sports arena requires a wider distribution to "wrap" light around aerial objects.

Spacing-to-Mounting-Height (S/MH) Ratios

For UFO-style high bays (circular fixtures), experienced designers typically use a spacing-to-mounting-height ratio of 1.2:1 to 1.5:1. For example, if fixtures are mounted at 25 feet, they should be spaced no more than 30 to 37 feet apart. Exceeding this ratio often results in "hot spots" on the floor and dark voids in the air.

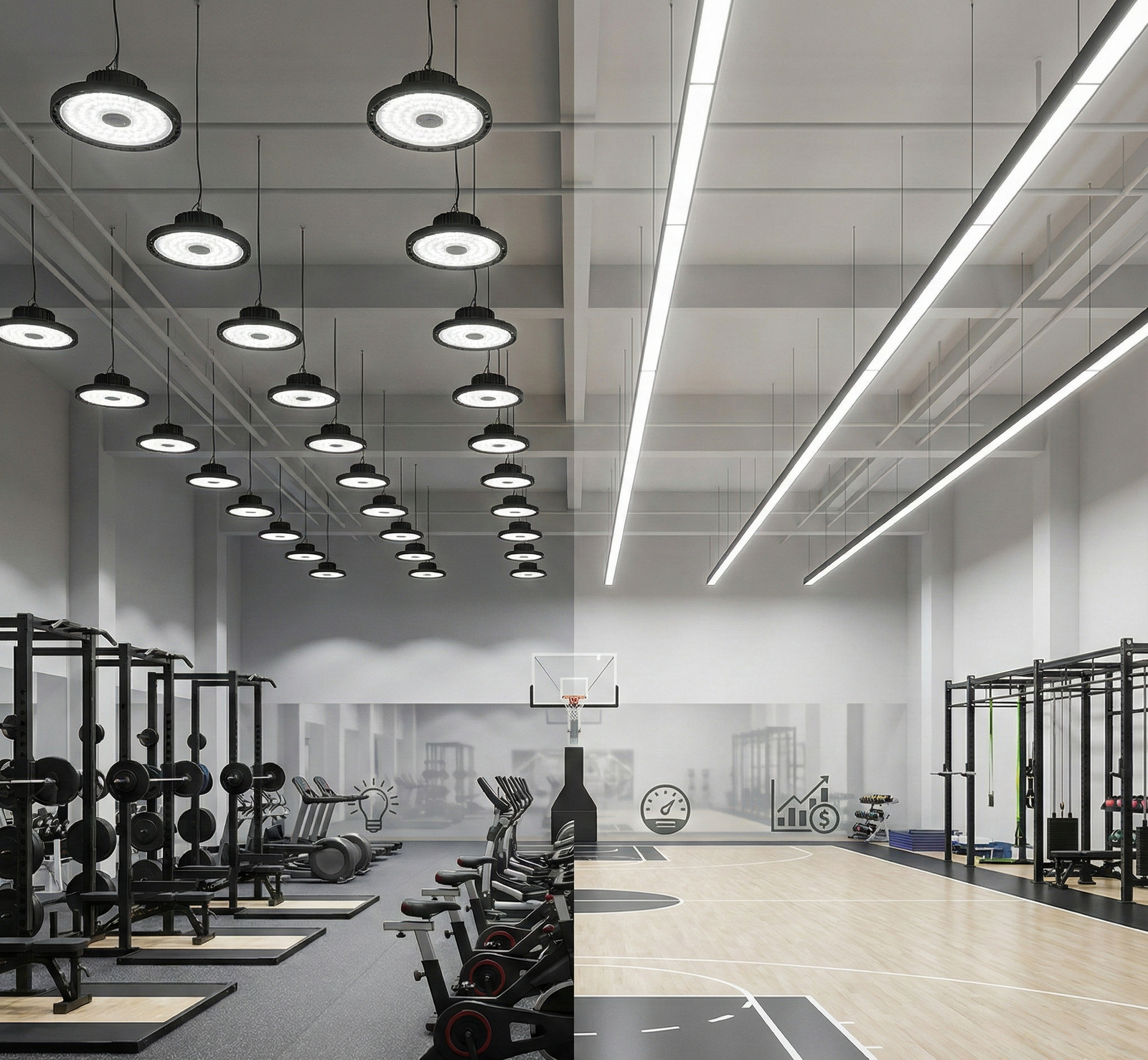

Linear vs. UFO Fixtures

Linear high bays offer a distinct advantage in rectangular court layouts. By aligning the long axis of a linear fixture parallel to the sidelines, designers can achieve superior vertical illumination over the net in volleyball or the key in basketball. Linear optics often provide a 110° or 120° beam angle, which contributes to better light overlap at higher elevations.

Color Temperature and Contrast

The Correlated Color Temperature (CCT) plays a vital role in visual acuity. While 4000K (neutral white) is common in offices, 5000K (cool white) is generally preferred for indoor sports. The higher blue content in 5000K light provides greater chromatic contrast against wood floors and typical gym walls, making a fast-moving ball easier to track. Furthermore, a high Color Rendering Index (CRI) of 80 or above is essential for distinguishing team colors and ball markings.

LED High Bay lights in a high-ceiling warehouse with light meter and IES lighting standards clipboard

Compliance, Safety, and ROI

Specifying lighting for a sports facility involves navigating a complex web of safety and energy regulations. Beyond visual performance, fixtures must meet rigorous durability standards.

Safety Certifications: UL and IK Ratings

All fixtures in a gymnasium should be UL Listed or ETL Listed to ensure they meet North American safety standards for electrical fire and shock hazards. Given the high risk of impact from stray balls, fixtures should also carry an IK10 rating, indicating they can withstand significant mechanical impact without shattering. For more on this, see our guide on Gym Lighting IK Impact Ratings.

Energy Codes and Rebates

Compliance with ASHRAE Standard 90.1-2022 or the International Energy Conservation Code (IECC) 2024 is often a legal requirement for new construction. These codes mandate strict Lighting Power Density (LPD) limits and the use of controls, such as occupancy sensors and 0-10V dimming.

To offset the initial capital expenditure, facility managers should utilize the DesignLights Consortium (DLC) Qualified Products List (QPL). Fixtures that are DLC Premium certified are often eligible for significant utility rebates. These rebates can be identified through the DSIRE Database, which tracks state and local incentives across the US.

Scenario Modeling: High School Gym Retrofit

To demonstrate the practical impact of these principles, we modeled a typical retrofit scenario for a high school athletic director. The objective was to replace legacy metal halide lighting with high-performance LEDs while meeting IES RP-6 competition standards.

Modeling Note (Reproducible Parameters)

This analysis is a deterministic scenario model based on standard industry heuristics and the parameters listed below. It is intended as a decision aid, not a laboratory study.

Parameter	Value	Unit	Rationale / Source
Facility Size	84 x 50	ft	Standard NFHS basketball court
Mounting Height	25	ft	Typical high school gym ceiling
Target Illuminance	87.5	fc	IES RP-6 Professional/TV Class
Legacy System	458W MH	W	400W lamp + ballast draw
LED Replacement	150W LED	W	High-efficacy sports high bay
Annual Operation	4,000	hrs	School/Community use schedule
Utility Rate	0.14	$/kWh	US Commercial Average (EIA)

Financial and Performance Outcomes

Annual Energy Savings: ~$6,900 (calculated as (458W - 150W) * 40 fixtures * 4000 hrs / 1000 * $0.14).
Maintenance Savings: ~$2,880 annually due to the elimination of metal halide relamping cycles.
Simple Payback: ~0.8 years (assuming a $12,000 project cost and $4,000 in rebates).
Vertical Performance: The 90° beam optics in this model provided a vertical-to-horizontal ratio of 0.42 at 15 feet, well within the recommended 30-50% range.

ESG and Carbon Impact

The retrofit reduces electricity consumption by approximately 49,280 kWh annually. According to the US EPA eGRID national average factors, this avoids ~10 metric tons of CO2e per year—equivalent to the carbon sequestered by approximately 166 tree seedlings grown for 10 years.

LED High Bay lights in a high‑ceiling warehouse with tablet displaying lighting layout and beam patterns

Field Validation: How to Measure Vertical Lux

Once a system is installed, on-site validation is critical. Relying solely on a floor-level reading is insufficient for aerial sports. A professional validation should include:

Multi-Height Measurements: Use a calibrated lux meter to take readings at 1 meter (3.3 ft), 3 meters (10 ft), and 5 meters (16.4 ft) above the floor.
Point Distribution: Measure at the center of the court, the four corners, and directly under the net or baskets.
Uniformity Check: Calculate the Max-to-Min ratio. For competition play, a variance greater than 30% in vertical illuminance often indicates poor optic selection or excessive fixture spacing.

If you observe "strobe-like" effects when looking up, it may be due to high-frequency flicker in the LED drivers. Ensuring your fixtures are "flicker-free" is essential for both player comfort and high-speed photography. For further reading on layout precision, see our guide on Achieving Lighting Uniformity in a Warehouse Layout, which applies many of the same photometric principles.

Strategic Implementation

Designing for vertical foot-candles is the difference between a "lit room" and a "professional sports arena." By prioritizing vertical uniformity, selecting 5000K CCT for contrast, and leveraging DLC-certified technology for ROI, facility managers can create environments where athletes can perform at their peak without visual interference.

Summary Checklist for Facility Managers:

Target Ratio: Aim for vertical illuminance that is 30-50% of the horizontal target at ball trajectory heights.
Optic Choice: Use 90° to 120° beam angles to ensure adequate light overlap in the air.
Mounting: Maintain a Spacing-to-Mounting-Height ratio of 1.2:1 to 1.5:1.
Certification: Verify UL/ETL safety listings and IK10 impact ratings for ball-strike zones.
Financials: Check the DLC QPL and DSIRE for rebate eligibility to maximize ROI.

YMYL Disclaimer: This article is for informational purposes only and does not constitute professional engineering, legal, or financial advice. Lighting requirements vary by jurisdiction and specific sport governing bodies (e.g., FIBA, FIVB). Always consult with a licensed electrical contractor or lighting professional for site-specific designs and compliance with local building codes.
