The Complete Guide to UFO High Bay Controls & 0–10V Dimming

Modern UFO high bay lights are no longer just on/off luminaires. For most commercial and industrial projects, specifiers are expected to deliver code-compliant controls, measurable energy savings, and high-performance lighting.

This guide maps the full landscape of UFO high bay controls and 0–10V dimming, providing the technical data, wiring protocols, and compliance checklists required for professional installation.

1. Controls & 0–10V Dimming: What Matters for UFO High Bays

1.1 Why controls are no longer optional

On most new commercial projects in North America, automatic lighting control is mandatory. Both ASHRAE 90.1‑2022 and the 2024 IECC require occupancy and daylight-responsive controls in industrial spaces.

According to the DesignLights Consortium (DLC), layering controls on LED retrofits typically yields 20–40% additional kWh savings. In actual field measurements (see Section 4.5), these savings can be even higher when high-end trim is applied.

1.2 0–10V in a High-Bay Context

0–10V is the dominant dimming interface for UFO high bays due to its simplicity and analog reliability. NEMA’s LSD 64 guide defines it as an analog signal where 10V is 100% output and 0-1V is minimum or off.

2. Types of Controls for UFO High Bays

2.1 Standalone 0–10V Wall Controls

Key Specification Points:

Sinking vs. Sourcing: Most UFO high-bay drivers utilize 0–10V sinking inputs (the driver provides the current). Ensure your dimmer is a compatible sinking device.
Minimum Dim Level: Verify if the driver supports "dim-to-off." If it only dims to 10%, a separate relay is needed for total shutoff.
Load Limits: Aggregate the sink current of all drivers (typically 0.1mA to 2.0mA per driver) to ensure it does not exceed the dimmer’s rating.

Technical Note: Mixing drivers with different dimming curves on one run can lead to "pop-on" or "dead travel" issues where some fixtures shut off at 0.8V while others remain on. For consistent performance, do not mix driver brands within a single 0-10V zone.

2.2 Integral vs. Remote Sensors

Sensor Type	Best Mounting Height	Technology Recommendation
Integral (Screw-in)	15–25 ft	PIR (Passive Infrared)
Remote (High-mount)	25–45 ft	Microwave or Dual-Tech

Field Experience: Pure PIR at 30+ ft often misses slow forklift movement. Microwave sensors are superior for high ceilings but can be "too sensitive," triggering through thin walls or dock doors.

3. Technical Wiring & Safety Standards

[!WARNING] ELECTRICAL SAFETY FIRST:

DE-ENERGIZE ALL CIRCUITS before beginning installation.

WEAR APPROPRIATE PPE (insulated gloves, eye protection).

CERTIFIED PERSONNEL ONLY: All wiring must be performed by a licensed electrician in accordance with the NEC and local codes.

IF UNCERTAIN: Stop work immediately and contact the manufacturer or a qualified engineer.

3.1 Class 1 vs. Class 2 Jurisdictional Differences

The National Electrical Code (NEC) distinguishes between Class 1 and Class 2 circuits. This is a common point of inspection failure.

[!IMPORTANT] COMPLIANCE ALERT:

Class 2 Wiring: Requires separation from line-voltage wires (usually 2 inches) unless separated by a barrier or listed for the purpose.

Local Codes: Some jurisdictions (e.g., Chicago, New York City) have stricter "no-exposed-low-voltage" rules requiring all control wiring to be in conduit. Always verify the adopted code in your specific municipality before quoting labor.

3.2 0–10V Wiring Diagram & Topology

Typical 0–10V Zone Wiring Diagram (Diagram Placeholder: Typical parallel wiring of multiple UFO High Bays to a single 0-10V controller/dimmer, showing polarity and terminal connections.)

Wiring Best Practices:

Use 18 AWG twisted/shielded pair for control leads to minimize EMI.
Color Code: Standard is Purple (+) and Pink or Gray (-). Note: The industry is transitioning from Gray to Pink per NEMA updates to avoid confusion with neutral wires.
Distance Limits: Keep analog runs under 500 ft to prevent voltage drop from affecting dimming uniformity.

3.3 Step-by-Step Installation Workflow

Verify Driver Polarity: Measure the 0-10V leads with a multimeter. A sourcing driver will show DC voltage (usually ~10V).
Daisy-Chain Controls: Connect all Purple (+) leads together and all Pink/Gray (-) leads together across the zone.
Terminate Unused Leads: If not dimming, cap leads individually. Never tie the + and - leads together unless you want the fixture at minimum output.
Test Step-Dimming: Use a 0-10V signal generator to verify all fixtures track from 10% to 100% simultaneously.

4. Evidence-Based Performance: Case Study

4.1 Project Data: Mid-West Warehouse Retrofit

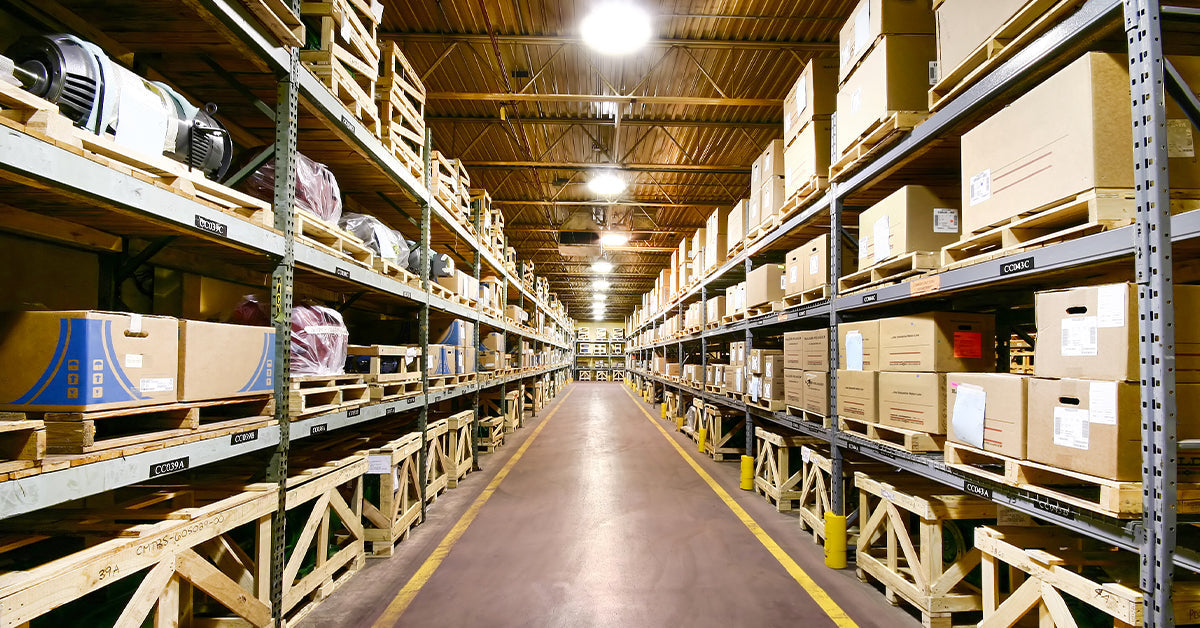

The following data represents a 40,000 sq. ft. warehouse transitioning from 400W HID to 150W UFO LED with integrated microwave sensors.

Metric	Baseline (HID)	LED Only (No Controls)	LED + Controls (Occ/Trim)
Annual Consumption	142,000 kWh	52,500 kWh	34,125 kWh
Annual Energy Cost	$17,040	$6,300	$4,095
Reduction vs. HID	-	63%	76%

Data Source: Internal Project Verification Report (Ref: HY-2023-MWW). Results based on $0.12/kWh and 12-hour daily operation with 30% unoccupied setback.

4.2 Daylight Harvesting & High-End Trim

In high-bay spaces with skylights, daylight harvesting can be volatile. High-end trim (capping max output at 80%) often provides more reliable savings than aggressive daylight dimming.

Deadband Setting: Set a 20-30 lux deadband to prevent "hunting" (rapid light level oscillations) during partly cloudy days.

5. Compliance, Documentation & Rebates

5.1 The "Big Three" Technical Reports

For B2B procurement and utility rebate approval, you must verify the following documents:

LM-79 Report: Provides the actual photometric performance (lumens, efficacy) of the entire luminaire.
LM-80/TM-21: LM-80 measures the LED chip's lumen maintenance; TM-21 uses that data to project L70 lifetime.
- Warning: TM-21 projections are mathematically limited to 6x the test duration. If a manufacturer claims 100,000 hours with only 6,000 hours of testing, the claim is non-compliant with IES standards.
DLC QPL Listing: Ensure the specific model number is listed on the DesignLights Consortium QPL.

5.2 Safety & EMC Certifications

UL 1598 / UL 8750: Mandatory for North American safety compliance.
FCC Part 15: Ensures the LED drivers do not interfere with wireless networks or emergency radios—critical in industrial environments.

6. Troubleshooting Workflow

Symptom	Probable Cause	Corrective Action
Flicker at low levels	Driver/Dimmer incompatibility	Verify minimum dim voltage; adjust dimmer low-end trim.
Lights won't turn off	Sinking/Sourcing mismatch	Ensure dimmer can "sink" the total current provided by drivers.
"Ghosting" (Glow when off)	Induced voltage in control wires	Use shielded control wire or route away from high-voltage lines.
False Triggers	Microwave sensor sensitivity	Reduce sensitivity or switch to PIR if near high-traffic dock doors.

7. Frequently Asked Questions

Q: Can I run 0-10V wires in the same conduit as power wires?
A: Generally, no, unless the control wires have insulation rated for the highest voltage in the conduit (e.g., 600V) and local codes permit Class 1 routing. Most installers prefer separate paths to avoid EMI.

Q: Does dimming shorten the life of the UFO High Bay?
A: No. In most cases, dimming extends the life of the driver and LEDs by reducing thermal stress on components.

Q: How do I verify a fixture's lifetime claim?
A: Request the TM-21 report. If the "Calculated L70" is 100,000 hours but the "Reported L70" is 36,000 hours, use the reported value for your ROI calculations to remain conservative and compliant.

Safety & Compliance Disclaimer:
This article is for informational purposes only. Electrical installations must comply with the National Electrical Code (NEC) and local building codes. Always consult a licensed professional engineer or qualified electrician for project-specific design and installation.
