Plan temporary parking lot lighting around each resurfacing phase, not around where the permanent poles stand today or might stand later. Map where crews, vehicles, and pedestrians will be in each phase. Then name who checks and updates the setup, and save the permanent area-light decision for after the pavement work is done.
This guide is a planning aid for property and facility teams working with a resurfacing contractor. The contractor's site-specific safety plan and any electrical design still govern the actual work.
Map Temporary Coverage Phase by Phase
Start with a phase map: a simple site sketch or phase log that shows what happens where, when, and who checks it. Build it with the contractor before anyone talks about equipment.
- Sequence the work. List each resurfacing phase in the order the contractor plans to do it.
- Mark the active footprint. Outline the work area for each phase on the sketch.
- Mark open access routes. Draw the entrances, drive aisles, and walkways that vehicles and pedestrians will still use during that phase.
- Record work hours. Note when each area is active, and flag any early-morning, evening, or overnight work done in low light.
- Note what changes. For each transition, write down which boundaries move, which routes close, and which detours open.
- Assign a verifier and a trigger. Name the person who checks the plan in the field at each transition, and list the changes that send them back to review it.
If you already have site photos and measurements, use them to organize a site brief that the phase log can build on.
Some projects also touch a roadway open to public travel. Where the MUTCD applies to that interface, its temporary traffic control guidance says the plan should start during planning and continue through construction. It also accounts for road users such as motorists, bicyclists, and pedestrians. That guidance covers the roadway zone. It does not set lighting rules for the interior of a private lot.
Before work begins, the resurfacing contractor or designated site-safety lead should document and verify the site-specific temporary-lighting plan. The phase map feeds that plan. It does not authorize work to start.
Decide When Temporary Coverage Can Stay or Must Move
Temporary coverage can stay where it is only while two things hold. Its documented assumptions must still match the active work and access conditions, and the named verifier must confirm that for the current phase.
- Footprint and routes stay the same. The verifier compares the current setup with the next phase entry in the log. If it still matches and the verifier confirms it, carry the arrangement forward and record the check.
- Work area, route, or low-light schedule changes. Treat this as a review trigger. A change does not automatically mean a light moves. It means the verifier checks the setup against the new conditions before the team relies on it.
- The setup no longer serves the phase. The responsible project personnel decide on the adjustment or relocation, verify it in the field, and update the phase log.
Public roadway interfaces have one extra step. There, MUTCD guidance notes that plans may need modification when conditions change. The modified plan should be approved by the responsible highway agency or roadway owner before implementation. Coordinators who want a model for running that review loop can adapt FHWA's work zone monitoring and revision steps to their own phase meetings.
Look at how often the log shows coverage needing to move. Pass that pattern to whoever sources the equipment, whether it comes from the contractor's stock or a range like our LED work lights.
Assign Field Checks, Changes, and Closeout
Before work starts, write a name next to each job below. These are suggested assignments for your team to make locally. Job titles and legal duties vary by project.
- Field verifier: the contractor or designated site-safety contact who checks the plan against field conditions at each transition.
- Change recorder: the project contact who updates the phase log and tells tenants, staff, and crews about route or schedule changes.
- Lighting change lead: the responsible personnel who carry out any adjustment or relocation and confirm it afterward.
- Regulatory checker: the person who confirms which OSHA category and jurisdiction apply to the work.
- Closeout owner: the person who schedules removal of temporary wiring and equipment and records when it is done.
The regulatory checker should start with the federal baseline. For covered construction work, OSHA's construction illumination standard lists 5 foot-candles for general construction area lighting. It lists 3 foot-candles for several specified areas, including access ways, while work is in progress. Those values attach to OSHA's area categories, so the team still has to confirm which category fits each zone of the lot. They are minimums for listed categories, not a complete lighting design.
Federal OSHA may not be the whole answer. OSHA-approved State Plans cover private-sector and/or state and local government workers in some states, and they must be at least as effective as federal OSHA. Confirm which plan covers the workers on this project, along with any local requirements.
For closeout, OSHA's temporary wiring provision says temporary wiring must be removed immediately once construction, or the purpose the wiring was installed for, is complete. Give that its own line on the closeout list. The rule covers wiring. When luminaires and other temporary equipment come out is a separate scheduling decision for the team.
Keep Permanent Area-Light Planning Separate

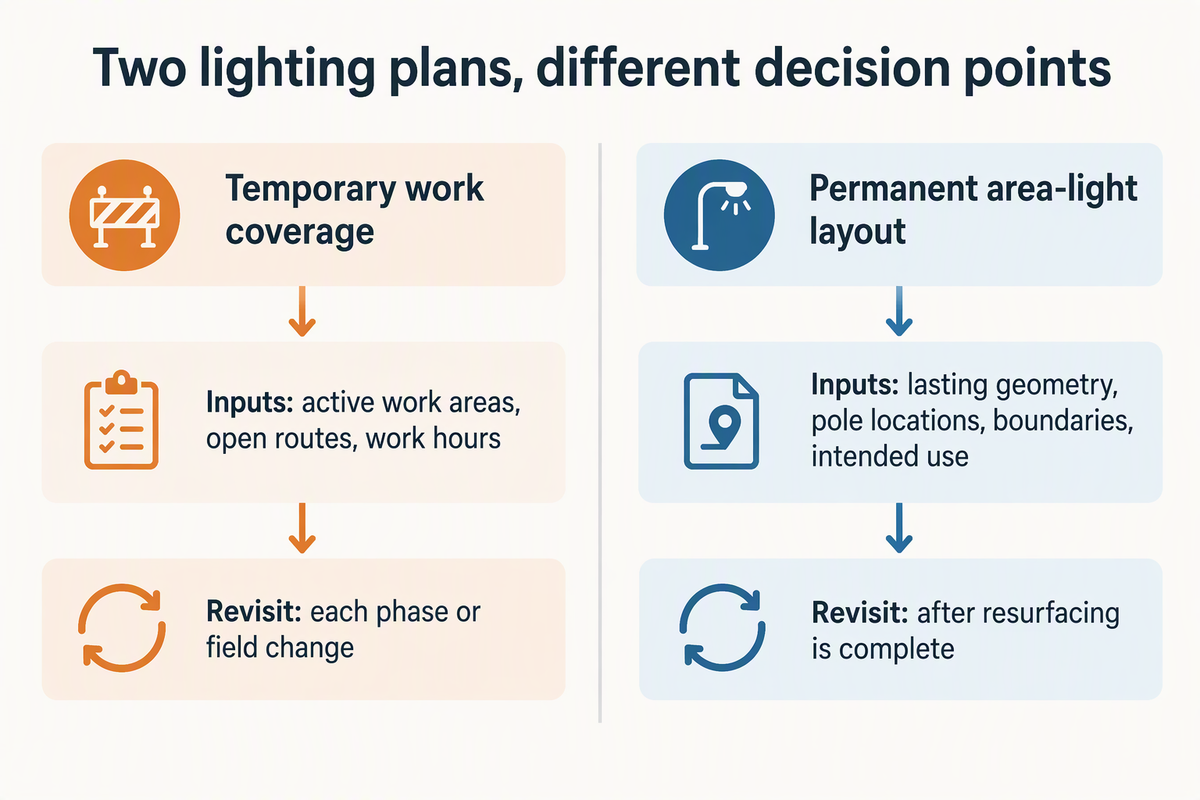

Keep two records with two decision points. Temporary coverage follows the active phase. The permanent area-light layout gets reassessed after resurfacing, based on the lot's lasting conditions.
| Plan | Purpose and inputs | When to revisit |
|---|---|---|
| Temporary work coverage | Active work areas, open routes, work hours | Each phase or field change |
| Permanent area-light layout | Lasting geometry, pole locations, boundaries, intended use | After resurfacing is complete |
A temporary light set at one corner during paving week tells you nothing about where a pole belongs. Once the new surface is in, walk the lot again. If restriping changed aisles or parking rows, treat the new lines as permanent inputs. Use them alongside the property shape and existing poles to map permanent lot zones. If fixtures are on the table, also record power and control inputs before comparing options.
Once those inputs are settled, you can compare our LED parking lot lights against them or try our online lighting layout tool. Before then, the practical next step is simpler. Put names next to each role in the phase log, and confirm the site-specific requirements with the contractor and project team before the first phase starts.
FAQs
Does OSHA's 5 foot-candle value apply to every part of a resurfacing site?
No. OSHA's illumination table ties its values to area categories. It lists 5 foot-candles for general construction area lighting and 3 foot-candles for specified areas such as access ways. The project team has to decide which category fits each zone instead of applying one number to the whole lot.
If our state runs an OSHA State Plan, do we still check federal OSHA?
Federal OSHA is a useful baseline, but the State Plan that covers your workers is the one to confirm. OSHA notes that State Plans must be at least as effective as federal OSHA, and some cover only state and local government workers. Check which plan applies to your project's employers before treating federal values as the full requirement.
Does the MUTCD govern lighting inside a private parking lot?
Not automatically. The MUTCD's temporary traffic control part applies within its roadway scope, such as work affecting roadways open to public travel. Inside a private lot, the phase map is a coordination method, not a MUTCD requirement.
Can temporary lights stay up after resurfacing and become the permanent lighting?
Plan against that. Temporary coverage was placed for construction phases, while the permanent layout should come from the finished lot's geometry, poles, boundaries, and use. Temporary wiring also has to come out once construction or its purpose is complete under OSHA's federal construction standard.
