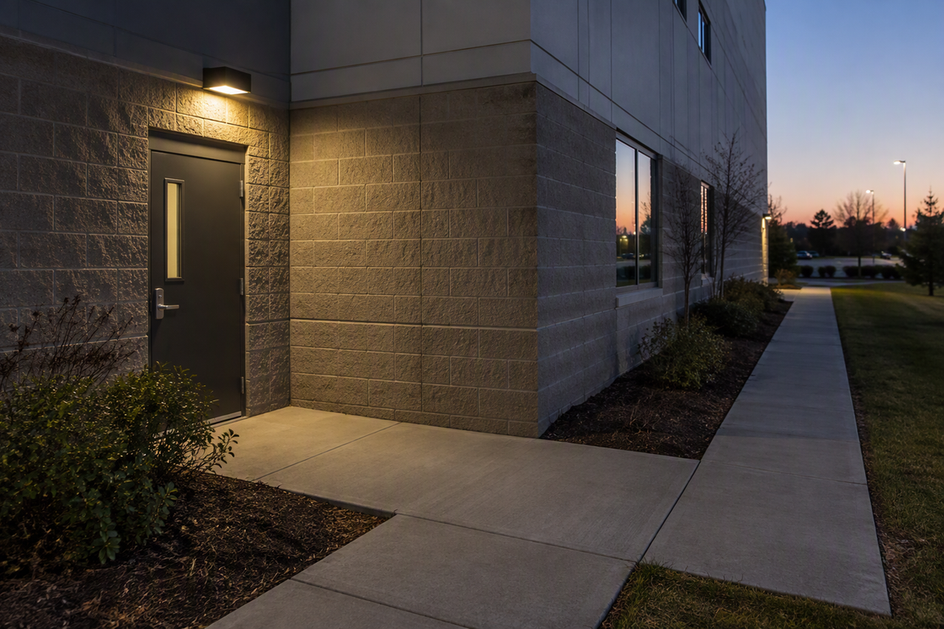

A lit wall does not show, on its own, that anyone has looked at the route that turns around the corner. The area next to the facade and the path people walk after the turn are connected, but they are different parts of the site. Each one needs its own place on the plan.
A useful exit route lighting plan does three things. It maps both areas, records the site and fixture conditions that shape them, and flags any part of the route that still has an open coverage question. Measured results and code decisions come later, from a review of the specific project.
Map the Wall-Side Area and the Route Beyond the Corner
Start the sketch with two labels instead of one. Mark Area A as the wall-side area. That covers the stretch of facade, the door or exit point, and the ground right in front of it. Mark Area B as the route beyond the corner. That is the path people take after they leave the wall, through the turn, and on toward where they are going, such as a parking area, public sidewalk, or gate.
Next, draw the line people actually walk. If foot traffic cuts across a planting strip or uses a curb cut instead of the drawn sidewalk, trace that real path. The plan should follow people, not just the paving.
In plan view, the annotation can stay simple. Use an arrow at the exit point, a bend mark at the corner, and one continuous line through Area B. Add a short handoff mark where Area A ends and Area B begins. That handoff is where light from the facade stops being the obvious answer. Area B keeps its own label even when a wall fixture sits close to the corner, because light at the facade alone does not show that the turning route has been checked. Think of this two-area sketch as a practical way to make the route visible. It is not a required design method.
Record the Corner Conditions Before Comparing Fixtures
Write down the conditions below before you compare any fixtures. Each one changes what a reviewer can conclude about Area B.
- Route and turn: the exit point, the walking line, where it bends, both path edges, and nearby surfaces such as grass, gravel, curbs, or landscape beds.
- Existing fixtures (retrofit): where current fixtures sit, which side of the corner they are on, and which way they aim, drawn with one symbol.
- Proposed fixtures (new layout): planned positions drawn with a different symbol, so no one mistakes a proposal for something already installed.
- Mounting conditions: whether there is a usable wall surface facing Area B, the approximate mounting height, and any existing poles, canopies, or junction box locations.
- Obstructions: downspouts, signs, trees, dumpsters, parked vehicles, canopy edges, and the building corner itself where it blocks the line from a fixture to the route.
- Open questions: a "?" at any spot where you cannot yet tell whether the walking surface or path edge will be visible, with a short note on why.
The mounting and obstruction notes often decide which fixture types are worth comparing. If a wall faces the turn, our guide to choosing a wall pack or flood light by coverage shape is a useful next step. If no wall surface reaches Area B, our comparison of wall-mounted and pole-mounted lighting explains when another mount may fit better. This record also feeds the wider process of commercial lighting planning, from site inputs to a survey or layout decision. Finish it before you look through our outdoor lighting fixtures. That way, each option gets judged against Area B and not just the wall.
Review the Walking Path and Flag Coverage Questions
Walk the route in the same order as a person leaving the exit. Judge Area B by what you can see along the path, not by how bright the wall looks. A U.S. Department of Energy report describes pedestrian route checks for obstacles, dark patches, and path edges. It lists obstacles such as chipped concrete, icy patches, and sidewalks buckled by tree roots. It also notes that even light along a path helps limit dark patches, and that lighting the edge of the path and the surface beyond it helps people move with confidence.
- Start at the exit point. On an existing site, walk Area A after dark under current lighting. For a new layout, follow the drawn line on the plan. Mark the first spot where the ground becomes hard to read.
- Walk through the turn. Note where the corner blocks light from the facade fixtures, and mark the handoff point on the sketch.
- Check the walking surface. Mark cracks, uneven slabs, curbs, steps, drains, and roots along the line in Area B.
- Look for dark patches. Mark any stretch where a person or object on the path would be hard to see.
- Check the path edges. Look at both edges and the surface just beyond them. Mark any edge you cannot make out.
- Flag what stays unresolved. Give each open spot a "?" and a one-line note. A flag means the spot needs more assessment. It is not a pass/fail score.
The DOE checks are general guidance for pedestrian paths, and the corner sketch is simply one way to apply them. If your flags cluster at the turn, or depend on geometry you cannot judge on foot, a lighting simulation or a qualified project review can help settle them. Our guide on when a photometric layout helps explains when a small site gains from requesting one.
What the Plan Can—and Cannot—Establish
A marked route is a planning record. It is not a photometric result or a compliance finding. The sketch shows where people walk, which conditions shape the corner, and which spots still have open questions. That gives a designer, contractor, or reviewer a clear brief to work from.
Regulated exit route lighting is a separate matter. For workplaces covered by OSHA's federal general-industry exit-route lighting requirement, each exit route must be adequately lighted so that an employee with normal vision can see along it. That rule has a defined federal scope. It does not decide how every exterior path, building type, or local jurisdiction is treated. A sketch also cannot show whether the rule applies to your site or whether the site meets it.
Local building and fire codes, and any emergency-lighting requirements, are separate questions as well. When you need a compliance answer, first identify the project's jurisdiction. Then take the plan to the authority having jurisdiction or to a qualified lighting designer or engineer, who can decide what applies and how to verify it.
FAQs
Does lighting on the wall establish coverage around the corner?
No. The wall-side area and the route that turns beyond it are separate planning areas, even though they connect. Bright light at the door says nothing certain about the path after the bend, so that route needs its own walk-through and its own notes on the plan.
What should a corner lighting plan show?
It should show the wall-side area and the walking route beyond the corner as two labeled areas joined at the turn. Add existing or proposed fixture positions, mounting conditions, obstructions, and question marks at unresolved spots. The plan organizes the review. It does not measure light levels.
Does this planning check confirm code or emergency-lighting compliance?
No. It records the route and the open questions, but it does not decide whether code or emergency-lighting rules apply to the site or are met. For a project-specific answer, confirm the jurisdiction and ask the authority having jurisdiction or a qualified design professional.
