The Critical Engineering of High-Vibration Lighting Connections

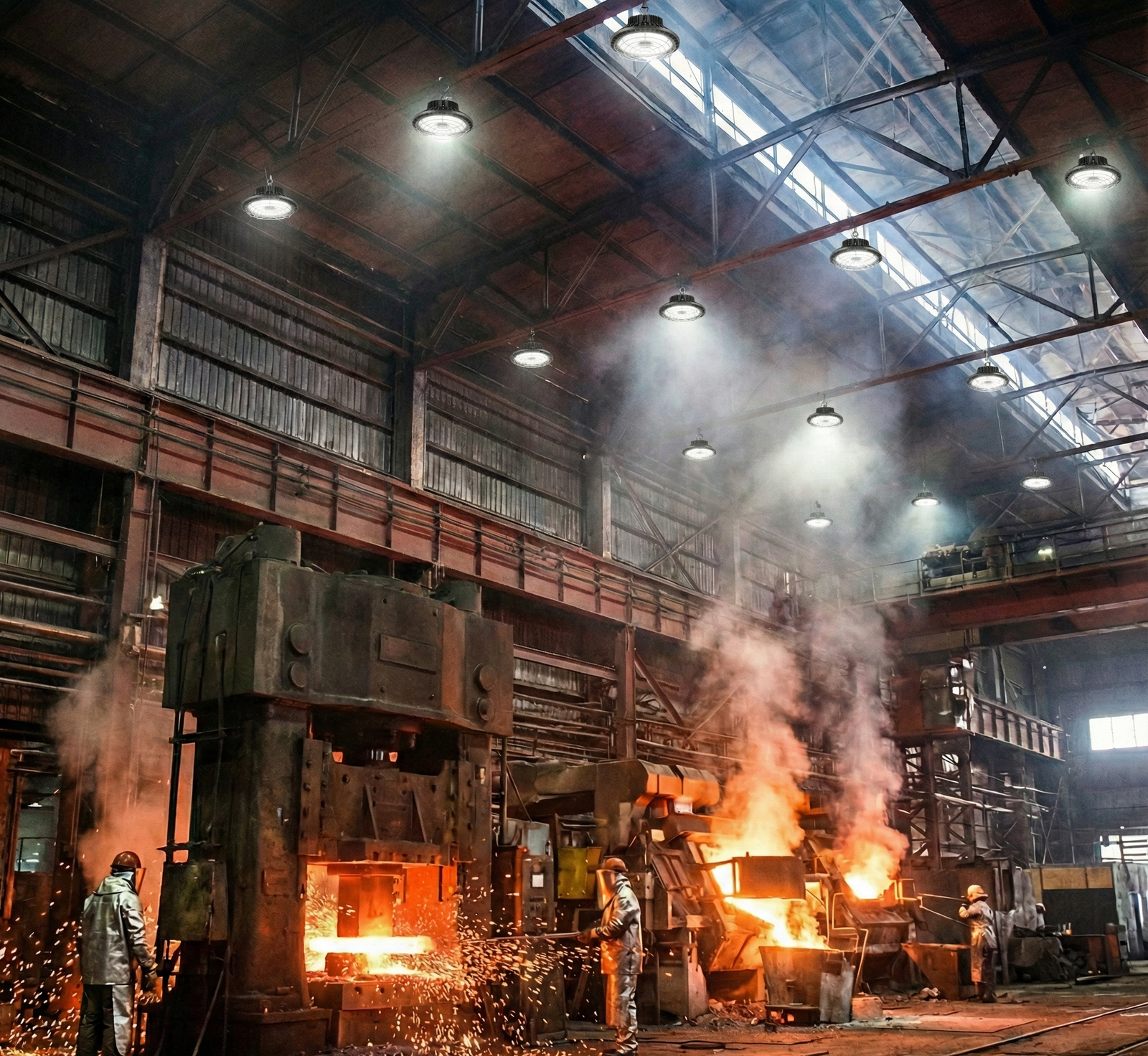

In industrial and heavy-duty commercial environments, the longevity of a lighting system is rarely determined by the LED chips alone. While lumen maintenance (LM-80) and color consistency (ANSI C78.377) are vital performance metrics, the physical integrity of the electrical connection is a frequent point of failure in high-vibration settings. Facilities such as manufacturing plants, aircraft hangars, and workshops with overhead cranes or heavy HVAC systems subject fixtures to constant, low-amplitude mechanical stress.
Without robust strain relief and precision-engineered connectors, these vibrations can lead to a phenomenon known as work-hardening of the copper strands. This process can make internal wiring brittle, potentially causing hidden breaks within the insulation that result in intermittent flickering or circuit failure. For facility managers and professional contractors, understanding the mechanics of secure wiring is more than a safety protocol; it is a practical economic driver that helps prevent production downtime and reduce long-term maintenance overhead.
Quick Takeaway: In high-vibration zones, mechanical failure at the connection point often precedes the electrical failure of the LED itself. Prioritizing strain relief is essential for system reliability.
The Physics of Failure: Work-Hardening and Mechanical Stress
In electrical applications, "strain" refers to the physical deformation of a material under stress. In a lighting fixture, this stress is exerted on the power cable and its entry point into the housing. While strain relief is often associated with preventing a single sharp pull, field observations suggest that cyclic bending—repeated, microscopic movement caused by building vibration—is a more common contributor to long-term failure.
The Mechanism of Work-Hardening
When copper wire is repeatedly flexed due to ceiling vibrations, the crystalline structure of the metal can change. This work-hardening typically increases the tensile strength but reduces ductility, making the wire prone to snapping. Often, the copper strands break while the outer PVC or rubber insulation remains intact, creating a high-resistance "hot spot" or an intermittent connection that can be difficult to diagnose without specialized equipment.
The 6-Inch Service Loop Heuristic
A common "rule of thumb" used by experienced electricians to mitigate this risk is the implementation of a service loop. By leaving approximately 6 inches (15 cm) of slack cable inside the fixture’s junction box before the strain relief grips the cable, you can help ensure that residual tension or vibration is not transferred directly to the wire terminations.
- Benefit: Effectively decouples the fixture's internal circuitry from external building vibrations.
- Maintenance: Provides sufficient length for re-termination if the fixture requires servicing in the future.
Strain Relief Standards: Beyond Pull-Out Force
To meet "Pro-Grade" expectations, a fixture should align with stringent mechanical requirements. Safety organizations like UL Solutions and Intertek (ETL) test strain relief components based on their ability to withstand specific forces.
UL 1598 and Mechanical Integrity
The UL 1598 standard for Luminaires generally mandates that a strain relief mechanism must support a specified weight (often 35 lbs for 1 minute for industrial cord-connected fixtures) without the cable shifting more than 1/16th of an inch. While this "static" test ensures the cable stays seated, high-performance fixtures often utilize cable glands that provide 360-degree compression for superior stability.
Connector Housing Fatigue
The housing material is a critical variable in connector longevity. Some entry-level lights may use plastics that can become brittle over time. Under repeated thermal expansion and vibration, these materials may develop micro-cracks. Professional-grade fixtures typically utilize cold-forged aluminum or high-impact, UV-stabilized polymers designed to maintain flexibility across typical operating ranges (often -22°F to 113°F / -30°C to 45°C).
Environmental Sealing: IP Ratings and Torque Specifications
In workshops and warehouses, a "secure" connection must also be a "sealed" one. Dust, moisture, and chemical vapors can infiltrate a fixture if the strain relief is not properly torqued.
Decoding IP65 vs. IP67
Most high-bay fixtures carry an IP65 rating according to IEC 60529, indicating protection against dust (6) and low-pressure water jets (5). However, as noted by Light Adviser, an IP65 rating does not guarantee protection against immersion. For environments with heavy wash-downs, an IP66 or IP67 rating is generally recommended.
The Role of Torque
The integrity of an IP-rated seal is heavily dependent on the installation torque of the cable gland nut.
- Under-torquing: May fail to compress the internal gasket (silicone or EPDM), allowing moisture to "wick" into the driver compartment.
- Over-torquing: Can potentially crush cable insulation or strip housing threads, compromising the seal.
Field Tip: Always refer to the manufacturer's datasheet for specific Newton-meter (Nm) values. A practical field check is the "Zero-Movement Tug": after tightening, a firm pull on the cable should result in no visible movement where the cable enters the gland.
| Component | Material Recommendation | Purpose |
|---|---|---|
| Housing | Cold-Forged Aluminum | Thermal transfer and vibration resistance |
| Seal/Gasket | Silicone or EPDM Rubber | Maintains elasticity and chemical resistance |
| Cable Gland | Nickel-Plated Brass or Nylon | Prevents thread stripping; ensures 360° grip |
| Threads | Metric or NPT | Standardized fit for liquid-tight conduit |
Economic Impact: ROI of Robust Connections
Investing in fixtures with superior build quality is a financial strategy. In high-vibration environments, the cost of a single lighting failure often extends beyond the price of the fixture itself.
TCO Scenario Modeling
This model compares legacy 400W Metal Halide (HID) systems with professional-grade LED high bays in a medium-sized facility. In high-vibration settings, industry experience suggests that HID lamps can fail up to 30% more frequently due to filament damage compared to stable environments.
Model Assumptions:
- Facility Size: 40 fixtures.
- Operating Hours: 8,760 annual hours (24/7).
- Labor Rate: $110/hour (Estimated contractor rate).
- Energy Rate: $0.18/kWh.
Step-by-Step Savings Calculation:
-
Annual Energy Savings:
- Formula: (Baseline Watts - New Watts) × Fixtures × Hours × Rate / 1000
- Calculation: (458W - 150W) × 40 × 8,760 × $0.18 / 1000 = ~$19,426
-
Annual Maintenance Savings (Estimated):
- Formula: (Estimated Failures Prevented) × (Labor Hours × Rate + Parts Cost)
- Calculation: 42 prevented interventions × (1.5 hrs × $110 + $55 parts) = ~$9,240
- Total Annual Savings: ~$28,666
- Estimated Payback Period: ~3.7 months (assuming average fixture and installation costs, excluding potential utility rebates).
Note: These figures are based on specific scenario assumptions and may vary based on local labor rates and energy costs.
Professional-grade fixtures, such as those discussed in the 2026 Commercial & Industrial LED Lighting Outlook, are engineered to withstand these stresses, helping to ensure that these calculated ROIs are achievable in practice.
Compliance and Project-Ready Documentation
For B2B projects, "secure" must be verifiable through documentation.
- UL/ETL Listing: Proof that the fixture meets North American safety standards (UL 1598). Verification is available via the ETL Listed Mark Directory.
- DLC Premium Qualification: The DesignLights Consortium (DLC) sets standards for thermal and electrical stability, which are often compromised by poor wiring.
- IES LM-63 (.ies files): Secure internal wiring ensures that light distribution remains consistent with the photometric data provided in the .ies file.
- FCC Part 15: Helps ensure the LED driver does not emit EMI that could disrupt machinery. Quality connectors can help mitigate EMI "leakage."
Installation Best Practices
Following a standardized protocol helps ensure a reliable setup for both contractors and skilled DIYers.
The Professional Checklist
- Voltage Check: Confirm the fixture (typically 120-277V AC) matches the circuit.
- Secondary Safety: High-vibration zones often require a secondary safety cable attached to a separate structural member.
- Dielectric Grease: In damp locations, a small amount of compatible dielectric grease on gland threads can prevent seizing. (Check compatibility with silicone/EPDM seals).
- Dimming Leads: If 0-10V dimming is not used, ensure wires are capped per the National Electrical Code (NEC) to prevent interference.
Avoiding the "Tension Trap"
A common error in high-ceiling installations occurs when power cords are zip-tied too tightly to support chains. As the building vibrates, this can create a constant "tug" on the strain relief. Solution: Always allow for a slight "S-curve" in the power cord alongside the support chain to provide mechanical decoupling.
Summary of Secure Connection Heuristics
- Material Choice: Favor cold-forged aluminum for high-vibration areas.
- Certification: Prioritize UL or ETL listed fixtures for commercial compliance.
- Tension Management: Utilize the 6-inch service loop and maintain cord slack (S-curves).
- Seal Integrity: Use the "Zero-Movement" check to verify IP-rated connections.
By focusing on these mechanical details, you protect the electrical heart of the lighting system, providing a foundation for long-term energy efficiency and performance.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or engineering advice. Always consult with a licensed electrician and adhere to local building codes and the National Electrical Code (NEC) for all installations.
