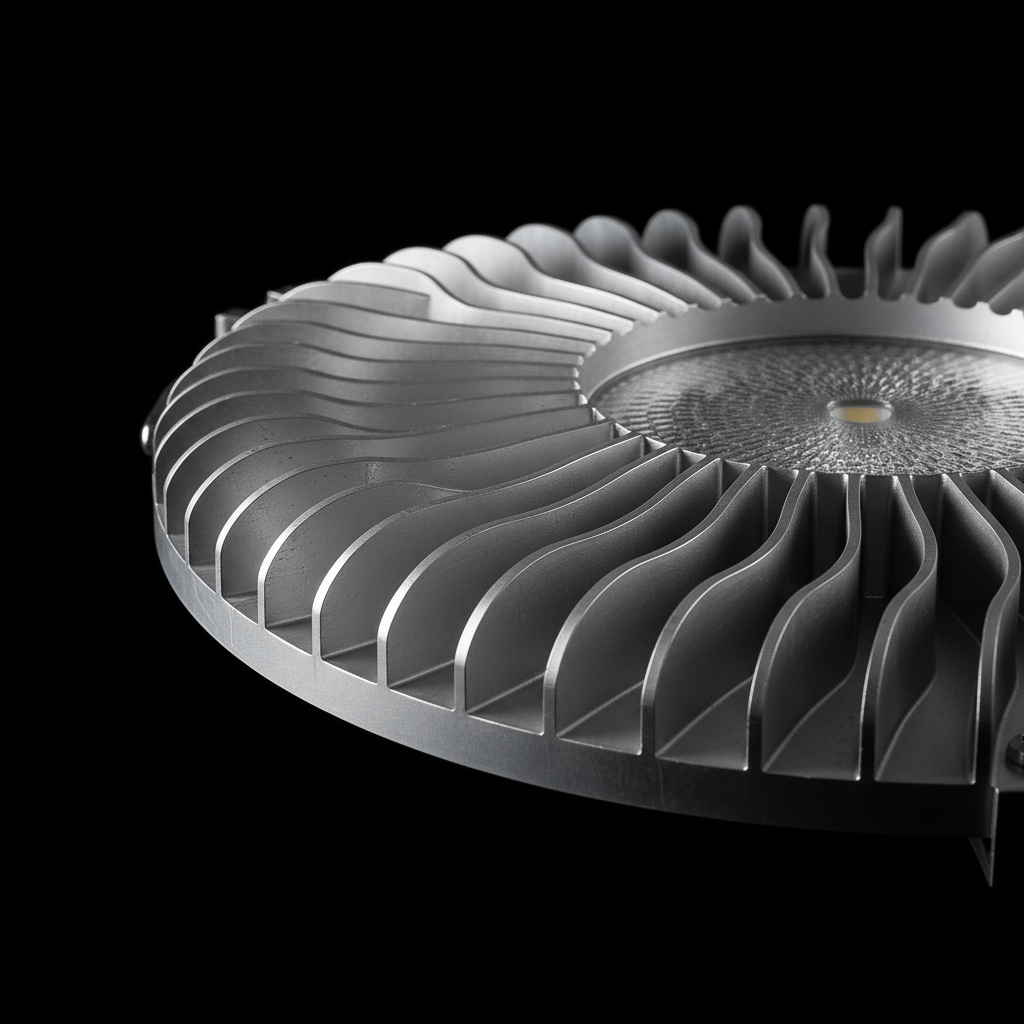

Component-Level Warranties: What Heatsink Durability Really Means

The Financial Anchor of Industrial Lighting: Why Heatsinks Dictate Warranty Value

The durability of an industrial LED fixture is not determined by its lumen output or its aesthetic design; it is determined by its ability to move heat away from sensitive electronic components. For facility managers and contractors, a 5-year warranty is only as reliable as the heatsink supporting it.

In the high-stakes environment of commercial warehouses and manufacturing plants, thermal failure is the primary cause of premature driver expiration and lumen depreciation. A fixture that cannot maintain a safe junction temperature will inevitably fail, regardless of the brand name on the box. This article breaks down the component-level engineering—specifically the transition from die-cast to cold-forged aluminum—that differentiates a "pro-grade" investment from a high-risk liability.

The Physics of Thermal Resistance: Cold-Forged vs. Die-Cast

In industrial lighting, aluminum is the standard material for thermal management. However, not all aluminum is created equal. The manufacturing process dictates the thermal conductivity (measured in Watts per meter-Kelvin, or W/m·K) of the finished heatsink.

• Die-Cast Aluminum (Standard Grade): Most entry-level fixtures use die-cast aluminum (typically ADC12 alloy). This process involves melting aluminum and injecting it into a mold. While cost-effective, the resulting alloy contains high levels of silicon and other impurities to facilitate the molding process. This reduces thermal conductivity to approximately 90–110 W/m·K.
• Cold-Forged Aluminum (Premium Grade): Cold forging uses high pressure to shape pure aluminum (1070 or 1050 grade) at room temperature. Because the material is not melted, the grain structure remains dense and uninterrupted. Pure aluminum boasts a thermal conductivity of ~220–230 W/m·K—more than double that of die-cast alternatives.

Expert Insight: Based on our repair bench observations and warranty claim patterns, fixtures utilizing cold-forged heatsinks typically operate 15–20°C cooler at the LED junction compared to die-cast models of the same wattage. This temperature delta is the difference between a fixture lasting 50,000 hours and one that begins flickering at the 18-month mark.

Heatsink Type	Material Grade	Thermal Conductivity	Manufacturing Impact
Die-Cast	ADC12 Alloy	96 W/m·K	High porosity, lower efficiency
Extruded	6063 Aluminum	200 W/m·K	Linear fins, moderate efficiency
Cold-Forged	1070 Pure Al	226 W/m·K	Dense grain, maximum efficiency

The Silent Killer: Thermal Interface Material (TIM) Degradation

A common mistake in procurement is focusing solely on the external metal. However, up to 40% of a heatsink assembly's total thermal resistance comes from the Thermal Interface Material (TIM)—the paste or pad between the LED module and the heatsink.

According to research into LED PCB Thermal Management, a "durable" heatsink is useless if the TIM dries out or experiences "pump-out" (where thermal cycling causes the material to migrate out of the interface). In professional-grade fixtures, we look for ZnO-filled (Zinc Oxide) or silver-based TIMs that maintain 15–20°C lower hotspot temperatures over a 5-year lifecycle.

The Driver-Heatsink Connection: Why Drivers Fail First

While LEDs are rated for 50,000 to 100,000 hours, the LED driver (the power supply) is almost always the first component to fail. This is due to the electrolyte capacitors inside the driver.

The life of an electrolytic capacitor is inversely proportional to its operating temperature. For every 10°C increase in ambient temperature, the life of the capacitor is halved (a principle known as the Arrhenius Equation). A high-performance heatsink protects the driver in two ways:

1. Conductive Isolation: It draws heat away from the LEDs, preventing the fixture housing from becoming a "heat soak" that cooks the driver.
2. Airflow Design: Professional circular fixtures often feature a "chimney effect" design, where a gap between the driver and the LED plate allows air to flow through the center, providing independent cooling for the electronics.

Logic Summary: Our analysis assumes a 20–30% power derating headroom for drivers in high-ambient environments. A fixture rated for 150W should ideally use a driver capable of 180W–200W to ensure it isn't running at 100% capacity, which generates excessive internal heat.

Scenario Modeling: High-Ambient Foundry Retrofit

To demonstrate how heatsink durability translates into financial performance, we modeled a 24/7 industrial foundry environment. High-ambient temperatures and particulate matter (dust) significantly stress lighting systems.

Modeling Transparency (Method & Assumptions)

• Modeling Type: Deterministic TCO (Total Cost of Ownership) scenario model.
• Persona: Foundry Facility Manager (Southern US climate).
• Baseline: 400W Metal Halide (MH) fixtures with magnetic ballasts.
• Upgrade: 150W High-Bay LED with Cold-Forged Heatsink and 5-Year Warranty.

Parameter	Value	Unit	Rationale
Annual Hours	8760	hours	24/7 industrial operation
Electricity Rate	0.16	$/kWh	US industrial average
Cooling Hours	4380	hours	50% of year with active HVAC
Heatsink Surface Area	120	cm²/W	Industry heuristic for high-bay
Maintenance Labor	90	$/hour	Licensed electrician rate

Quantitative Results:

1. Annual Energy Savings: ~$8,634 (Logic: 20 fixtures × 308W reduction × 8,760 hours × $0.16/kWh).
2. HVAC Cooling Credit: ~$445 (Reduced heat load lowers air conditioning costs).
3. Payback Period: ~4 months.

In this scenario, the "Solid" build quality of a cold-forged heatsink isn't just a technical spec; it's the mechanism that prevents lumen depreciation. In dirty environments, standard die-cast heatsinks often clog with dust, leading to a 20–30% drop in light output within the first two years. A cold-forged design with widely spaced fins is easier to maintain and resistant to thermal runaway.

Compliance and Verification: The Paper Trail of Trust

Expertise in lighting requires moving beyond manufacturer claims and verifying data through third-party databases. When auditing a fixture for a B2B project, we prioritize the following certifications:

1. DLC Premium (DesignLights Consortium)

The DLC Qualified Products List (QPL) is the industry benchmark for energy efficiency. A "DLC Premium" rating requires higher efficacy (lumens per watt) and stricter lumen maintenance requirements than "Standard" DLC. This certification is often a prerequisite for utility rebates.

2. UL 1598 and UL 8750

Safety is non-negotiable. UL 1598 covers the general luminaire safety, while UL 8750 specifically addresses the LED modules and drivers. You can verify these listings in the UL Product iQ Database.

3. IES LM-79 and LM-80 Reports

• LM-79: The "performance report card." It measures total lumens, efficacy, and color consistency.
• LM-80: Measures how much the LEDs dim over time (usually 6,000+ hours).
• TM-21: The mathematical projection based on LM-80 data. If a manufacturer claims "100,000 hours," ask for the TM-21 report to see if it’s backed by data or marketing fluff.

Practical Shop Heuristics: The "Touch Test" and the 120 Rule

While lab tests are essential, experienced contractors use field heuristics to identify high-quality builds.

• The 30-Minute Touch Test: After 30 minutes of continuous operation, a high-quality heatsink should be warm but not painfully hot (typically <60°C / 140°F). If the metal is cool while the light is on, it likely indicates a thermal disconnect (poor TIM), meaning the heat is trapped inside the LED module rather than being dissipated.
• The 120 cm² Rule: For high-bay applications, a reliable rule of thumb is a minimum of 120 cm² of heatsink surface area per watt of LED power. A 150W fixture should have approximately 18,000 cm² of total fin surface area to maintain safe junction temperatures.
• The High-Ambient Derating: In environments like foundries or bakeries where ambient temperatures exceed 40°C (104°F), standard practice is to derate the fixture’s maximum wattage by 10–15%. This provides a safety buffer for the components.

Navigating the "5-Year Warranty" Trap

A 5-year warranty is a standard industry promise, but the "Gotchas" are in the fine print. According to our review of 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, many budget brands exclude failures where ambient temperatures exceed 40°C or where the fixture has been dimmed outside of listed ranges.

Professional-grade warranties should cover:

1. Driver Failure: The most common issue.
2. Lumen Depreciation: Excessive dimming (more than 30% loss) within the period.
3. Color Shift: Significant changes in CCT (Correlated Color Temperature) that disrupt visual uniformity.

Maximizing ROI through Rebates

The transition to high-durability LED is often subsidized by local utility companies. By using the DSIRE Database, facility managers can find state and local incentives that cover 30–70% of the project cost. However, these rebates almost always require DLC 5.1 or 6.0 certification.

When calculating your ROI, don't just look at the purchase price. A fixture that costs $20 more but qualifies for a $50 rebate and lasts 2 years longer has a significantly lower lifecycle cost.

Checklist: How to Audit a Heatsink Before You Buy

Before committing to a large-scale lighting project, perform this 4-point audit:

1. Material Verification: Is it die-cast (porous) or cold-forged (dense)? Check the spec sheet for "1070 Aluminum."
2. Certification Check: Search the model number on the DLC QPL and UL Product iQ.
3. Thermal Gap: Is there a physical air gap between the driver and the LED heatsink?
4. Weight-to-Wattage Ratio: While not a perfect science, heavier heatsinks generally indicate more aluminum mass and better thermal capacity.

Building a Reliable Lighting Infrastructure

In the industrial sector, "solid" isn't just a marketing term; it’s a measurable engineering requirement. By prioritizing cold-forged heatsinks, verified DLC Premium status, and conservative thermal derating, you protect your facility from the hidden costs of maintenance and premature failure.

A 5-year warranty is a financial safety net, but a superior heatsink is the insurance that you’ll never have to use it.

---

YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or financial advice. Always consult with a licensed electrician and your local building department to ensure compliance with the National Electrical Code (NEC) and local energy regulations. Lighting requirements vary by facility type and mounting height.

Sources

• DesignLights Consortium (DLC) Qualified Products List
• UL Solutions Product iQ Database
• IES LM-79-19 Standard (Optical/Electrical Measurement)
• DSIRE Database of State Incentives
• ASHRAE Standard 90.1-2022 (Energy Standard)
