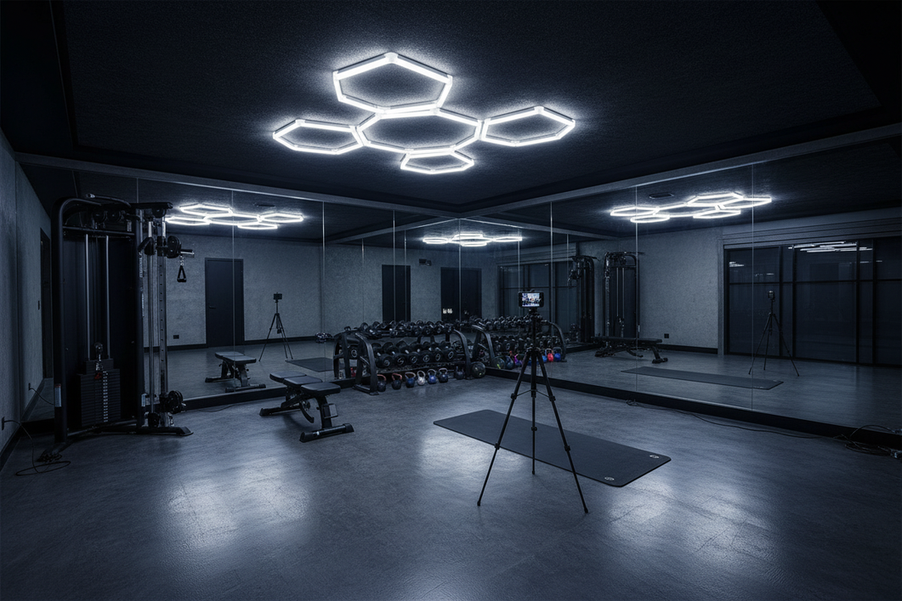

Map the room before you shop for gym lighting. Mark the training, equipment, circulation, mirror, and filming zones on one sketch. Then use ceiling height, sightlines, and clearance to decide which broad ceiling, linear, or supplemental task-lighting roles are worth investigating. A short camera preview from each filming position can reveal shadows, reflected glare, bright fixtures in the frame, or backlighting before installation.
Map five gym zones before choosing lights
A useful small-gym lighting layout starts with activities and sightlines, not a fixture category. Use the same sketch to record what people do, what blocks light, what they see, and where a fixture could be mounted.
- Training areas: Mark free-weight, machine, stretching, instruction, and other activity zones. Note where users need to see faces, working surfaces, adjustment points, and the floor. A mixed-use room may need different lighting roles even when all zones share one ceiling.
- Equipment and obstructions: Draw racks, cable machines, benches, storage, HVAC equipment, beams, doors, and other fixed features. Record the tallest equipment and any moving parts that could compete with a fixture for overhead clearance.
- Circulation: Trace paths between stations, entrances, storage, and exits. Include places where users adjust equipment or carry weights. An aisle that looks bright does not show whether every work area and transition zone is visually comfortable.
- Mirrors: Mark every mirror and the directions in which it can reflect light. Include what a person sees from the main workout positions, not just where each mirror sits on the wall.
- Filming positions and ceiling conditions: Place each phone, camera, or livestream position, then draw the subject direction and visible background. Add ceiling height, mounting surfaces, beams, obstructions, fixture clearance, and maintenance access.
For a garage gym, this map is especially useful when low or variable ceilings put fixtures close to racks and other tall equipment. For a small commercial gym, it helps separate shared ceiling coverage from localized problems. Use it as a planning document when comparing lighting options, not as electrical or code-compliance design.
Trace shadow paths around tall equipment
Tall equipment can cast different shadows across faces, working surfaces, adjustment points, rack interiors, and circulation paths. Evaluate shadows from the actual training position, then change the lighting role or location on the map before assuming a larger or brighter fixture will solve the problem.
Stand where a user will lift, adjust a cable station, use a bench, or move through a rack. From that position, inspect the face, hands, working surface, floor area, and controls. Then repeat the view from the opposite side or the next station if equipment blocks the line of sight. The room may look bright from an aisle while the inside of a rack or a machine adjustment point remains shadowed.
Compare the direction and position of the proposed ceiling or linear coverage with the obstruction. A different direction may address a mapped shadow more effectively than simply increasing output, but no single placement pattern works for every ceiling and equipment arrangement. If the problem remains localized, investigate supplemental task lighting only after checking glare, moving-equipment clearance, mounting access, and the camera view.
For a related planning reference, see this equipment-shadow planning guide. Treat it as brand-owned context, not proof that one spacing pattern fits every gym. The next action is concrete: mark the shadow location, the user's position, and the fixture role you want to compare.
Check mirror reflections before finalizing placement
Mirrors turn fixture placement into a sightline problem. Check direct and reflected bright sources from workout and camera positions, and revise the mapped location or role if a mirror sends a bright source into an important viewing line.
Stand at each primary workout position and look toward the mirror as a user would. Then stand at every intended camera position and inspect the full view, including the subject, equipment, background, and reflected ceiling area. A proposed fixture can look fine from one point and distracting from another. Check both the fixture itself and any bright area it creates in the mirror.
Do not treat more brightness as the automatic answer to reflected glare. If the mirror shows a bright source in a workout or camera view, reposition or re-aim the plan before comparing fixture size or output. Repeat the check after changing the role or location. A mirror-glare planning guide may offer related brand-owned context, but it does not establish a universal angle rule for every gym.
Choose a gym lighting role from ceiling height and task
The best role depends on the mapped ceiling condition, task direction, equipment, mirrors, and camera sightlines. Use the matrix to narrow the next category to investigate, then carry the selected role into the final space and product review.
| Mapped condition and issue | Task or sightline need | Fixture role to compare | Fit question |
|---|---|---|---|
| Open ceiling or usable mounting surface with several shared activity zones; tall equipment may block one overhead direction, and mirrors may reflect bright sources | General coverage across training and circulation areas | Broad ceiling lighting | Does the fixture's size, mounting approach, clearance, and visible reflection suit each mapped zone? |
| Ceiling and layout support a run along equipment rows or open zones; racks, machines, beams, or camera backgrounds may interrupt the run | More directional coverage along a defined row, bay, or training area | Linear lighting | Can the run fit the mounting surface and equipment clearance while keeping camera and mirror views acceptable? |
| A specific rack interior, adjustment point, work surface, or filming area remains visually difficult; a new fixture could create glare, obstruction, or a clearance conflict | Localized task or sightline problem | Supplemental task lighting | Is the problem specific enough to justify a supplemental role, and can it be mounted without interfering with movement or views? |
| Low or variable ceiling with limited mounting depth; users and equipment are close to the ceiling | Clearance and maintenance access are more restrictive | Compare the role with a fit-first approach | What are the configuration's dimensions, mounting requirements, clearance, controls, and reflected-view effects? |
Once the matrix points to a role, a category can help you browse examples without establishing suitability. For instance, compare the linear high bay category only when a linear role fits the marked layout. A hexagon lighting category is likewise a navigation path, not evidence that a particular product belongs over a rack, mirror, or camera zone.
Record the chosen role and any unresolved fit question beside its mapped zone. Carry that row into the purchase review rather than treating the category choice as the final decision.
Run the camera test from every filming position
The simplest camera check is a short preview from the actual phone or camera position with the intended subject, background, mirrors, equipment, and lighting-control scene. Use the result to revise the map before finalizing fixture locations.
- Place the camera: Set the actual phone or camera at the intended height and position. Do not test only from the doorway or an empty-room viewpoint.
- Frame the scene: Include the subject area, equipment, mirror surfaces, and background exactly as they will appear in workout videos, livestreams, or instruction clips.
- Record and inspect: Look for face and body shadows, a bright fixture in the frame, a bright reflected source, light behind the subject, and a background that competes with the subject. Check the view while standing at the equipment, not only in an open area.
- Repeat the real use case: Test every main filming position, mirror-adjacent position, and equipment-heavy position using the intended lighting-control scene. If the preview fails, update the fixture role or location on the sketch and test again.
This establishes visual fit only. It does not establish electrical, mounting, code, or installation suitability. Make the camera preview part of the map, especially when the setup is garage gym lighting for cameras or when one camera must cover several training zones.
Verify the marked plan and fixture before purchase
Before ordering or installing, compare the marked plan with the exact current product documentation and resolve space, visual, product, and installation questions. Use the documentation for the specific configuration when reviewing product details.
- Space fit: Confirm ceiling height, mounting surface, fixture dimensions and depth, the tallest equipment, clearance around moving equipment, maintenance access, beams, and other obstructions.
- Visual fit: Recheck shadow paths from real training positions, circulation visibility, mirror reflections, camera sightlines, background brightness, visible fixtures, and the intended fixture role.
- Product fit: Verify the exact configuration's voltage, wattage and total-load implications, control or dimming compatibility, mounting requirements, dimensions, and manufacturer instructions.
- Qualified handoff: Give the marked map and current product documentation to a qualified professional for electrical design or installation decisions where required.
Stop before purchase or installation if voltage, wattage or total-load implications, control compatibility, mounting clearance, or manufacturer instructions remain unconfirmed for the specific configuration. Resolve the documentation or obtain qualified review first. If you want a separate planning handoff, lighting design support can be a navigation option, while lighting help and FAQs may help locate general product questions.
Your next step is to update the five-zone sketch, run the camera preview, and carry the marked plan and current fixture documentation into the purchase or qualified-installation review.
Frequently asked questions
These questions cover choices that change when the room has mixed uses, moving viewpoints, or a fixture configuration that differs from the original plan.
What changes when a small gym has mixed training zones?
Give each zone its own role and fit question on the matrix. If one lighting arrangement must serve several zones, start with the zone that has the tightest clearance or most difficult sightline, then test the shared view from the other training and filming positions.
What if shadows appear only inside a rack or at one adjustment point?
Record the exact user position and the affected surface, then test the view as the user changes stance. If the shadow follows a localized task, compare a different lighting direction or a supplemental role; reject any option that creates glare, obstruction, or a clearance conflict.
Should I repeat the camera test when the camera or lighting scene changes?
Yes. A different camera height, subject direction, mirror view, or lighting-control scene creates a different visual check. Save a short preview for each main filming position and revise the map if a bright fixture, reflected source, face shadow, or backlighting appears.
When should I stop before buying gym lighting?
Pause the order when a required space, visual, product, or documentation detail is unresolved. That includes voltage, wattage or total-load implications, control compatibility, mounting clearance, and manufacturer instructions. Obtain the needed documentation or qualified review before purchase or installation.
