Start with the door-to-approach transition, not a fixture or lumen value. Mark the threshold, walking route, canopy edges, obstructions, and any shared vehicle path. Then classify the need as threshold-only, threshold-plus-approach, or a shared pedestrian and vehicle transition zone. That map will show whether to evaluate canopy lights, wall-mounted lighting, or a combined arrangement for your commercial entrance lighting plan.
Map the Door-to-Approach Transition Zone First

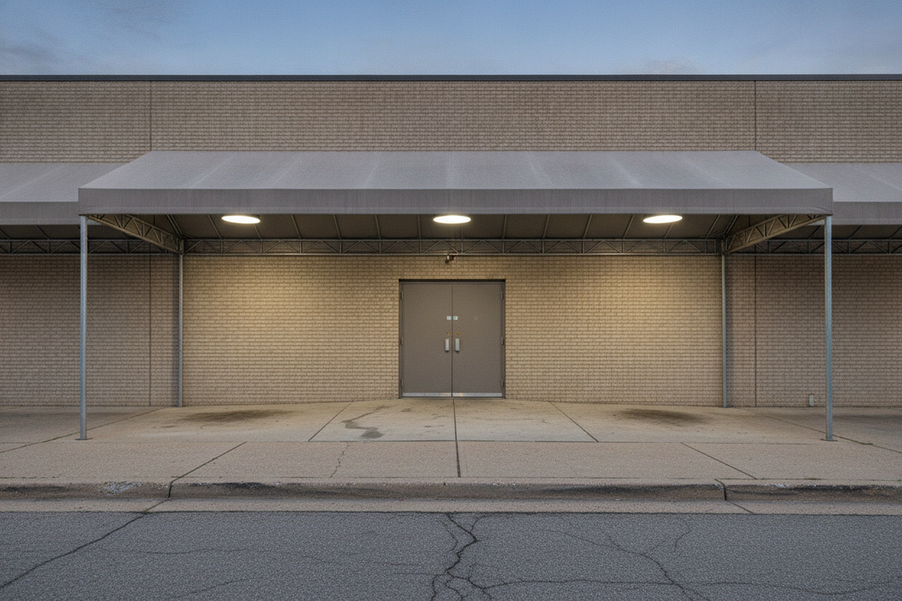

The first task is to identify every surface and path that should remain visually connected from outside the canopy to the doorway. A public front entry, side service door, and loading approach may need different coverage even when their canopies look similar.
- Mark the threshold and approach. Draw the door, threshold, door swing, normal pedestrian approach, canopy edges, and any vehicle route. Include carts, deliveries, and loading movement at a service door. Note existing junction boxes and other electrical points.
- Record the canopy geometry. Write down the canopy depth, ceiling height, door position, and whether the door is centered, offset, recessed, or side-facing. Mark columns, fascia, beams, signs, overhangs, and facade recesses that could block or redirect light.
- Trace the transition surfaces. Identify the area outside the canopy, the threshold, the far canopy edge, the facade beside the door, and the path leading inward. Mark each location that currently feels disconnected, shadowed, or difficult to read.
- Label the coverage result. Choose one planning description: threshold-only when movement is concentrated directly below the canopy; threshold-plus-approach when the walking route extends beyond it; or shared transition zone when pedestrians and vehicles use overlapping space.
This is a planning method, not a calculation of required light levels or code compliance. Visibility depends on the quality and distribution of light across the route, not simply on placing a fixture at the canopy center. A local lighting appendix from the City of Issaquah offers that principle as planning context, not as a nationwide requirement.
Choose Canopy Lights: Canopy-Mounted, Wall-Mounted, or Combined Lighting
Choose the arrangement that closes the mapped coverage gap. A canopy-mounted fixture generally addresses downward coverage below the canopy, a wall-mounted fixture can add lateral or facade-directed coverage, and a combined arrangement can connect a covered threshold to an approach or recess that one mounting position misses.
| Mapped entrance condition | Arrangement to evaluate | Limitation to verify |
|---|---|---|
| Centered, shallow canopy with a short, direct approach | Canopy-mounted lighting | Confirm that the position reaches both the threshold and the visible approach without exposing pedestrians to a bright emitter. |
| Deep or taller canopy where the threshold and far edge feel separated | Canopy-mounted or combined lighting | Review distribution at the far edge and threshold. Canopy dimensions alone do not establish spacing or fixture count. |
| Offset, recessed, or side-facing door | Wall-mounted or combined lighting | Confirm lateral coverage around the door and approach instead of relying on a centered ceiling position. |
| Facade shadow, column, beam, or sign blocks the approach | Wall-mounted or combined lighting | Identify the shadow source and review whether the selected distribution can address it without creating a new glare view. |
| Pedestrian route overlaps a driveway or loading path | Combined lighting may be worth evaluating | Review direct views from both pedestrians and drivers, plus mounting, shielding, orientation, and local project requirements. |
Use the table to define a category to evaluate, not to approve a fixture automatically. Compare the mapped coverage role, mounting position, distribution, optical control, electrical compatibility, and installation conditions. A lumen value by itself cannot show whether the threshold, approach, and far edge remain visually connected.
Translate Canopy Depth, Height, and Shadows Into Placement
Canopy depth and ceiling height are important inputs, but they do not independently establish spacing, uniformity, or a safe light level. For background, FHWA identifies height, fixture type, and placement as lighting variables, but its roadway context does not establish spacing or performance requirements for a small commercial canopy.
Shallow, Centered Canopies
A shallow, centered canopy may allow one mounting position to address the threshold and the visible approach, but symmetry alone does not prove coverage. Compare the fixture position with the door centerline and the normal approach. If the approach falls outside the useful distribution or a fascia creates a dark edge, assign that area a separate coverage role instead of trying to solve it with more output.
For a retrofit, record whether the existing junction box forces a position that misses the door or approach. For a new installation, reserve mounting positions around the coverage roles first, then resolve symmetry and finish details.
Deep, Tall, or Offset Canopies
A deeper or taller canopy can separate the far edge from the threshold, while an offset or recessed door can move the visual target away from the canopy center. Mark the far edge, door centerline, approach direction, mounting height, and every obstruction. Note the specific dark pocket each proposed position is intended to address.
This placement brief gives a contractor or lighting reviewer the information needed to compare distribution and uniformity. It does not provide a universal spacing distance or fixture count. For a service door, include cart and delivery paths because the practical approach may be lateral rather than straight on.
Control Glare, Dark Pockets, and Vehicle Conflict
When an entrance feels harsh or confusing, inspect the sightline and coverage defect before increasing output. Use these four checks:
- Pedestrian approach sightline: View the fixture from the normal walking path and from the threshold. A direct view of a bright emitter can compete with the doorway even when the area below the canopy appears bright.
- Driver sightline: If a driveway, loading area, or parking lane is nearby, view the fixture from the vehicle approach as well. Oakland's outdoor-lighting standards provide a local example that addresses glare to both pedestrians and drivers and identifies shielding as a possible control. That example is not a nationwide rule. The pedestrian and driver glare check belongs in the project review where those paths overlap.
- Two-way threshold contrast: Inspect the transition going in and out. Look for a bright canopy beside a dark exterior approach, or a bright exterior beside a dark vestibule. The goal is a readable transition, not simply a brighter threshold.
- Obstruction shadows: Look behind door swings, beside columns, under fascia, along recessed walls, and at the approach edge. Correct the actual shadow or distribution gap before treating more output as the answer.
Optical cutoff is one comparison point. The FHWA handbook says full-cutoff optics typically reduce spill light and glare, but that tendency does not guarantee comfortable results, compliance, or suitability for a particular entrance. Review the selected fixture's current documentation for cutoff, shielding, orientation, and distribution. If a direct glare view or dark pocket remains, request a documented optical or photometric review. For additional background, see this cutoff guidance and glare-control guidance.
Write the Layout Brief Before You Shop or Request a Quote
A useful layout brief turns the entrance map into a clear product search or contractor conversation. Send the following information in one package:
- Attach the geometry map. Include canopy depth, ceiling height, door position and swing, approach direction, far edge, columns, fascia, signs, recessed walls, junction boxes, and retrofit or new-build status.
- Name the coverage roles. State whether the project needs threshold-only, threshold-plus-approach, transition-surface, service movement, or shared pedestrian-and-vehicle coverage. Identify the current dark pockets and direct-glare views.
- List the conflicts and constraints. Note pedestrian routes, carts, deliveries, driveways, mounting restrictions, existing controls, electrical points, and any location where the fixture could be visible to drivers or visitors.
- Request documented fixture review. Ask for the relevant distribution, mounting method, optical cutoff or shielding information, controls, electrical compatibility, and photometric documentation for the exact configuration being considered.
- Separate shopping from approval. Use the brief to compare canopy-mounted, wall-mounted, and combined categories. A category page can narrow the search, but it cannot replace photometric review, electrical design, permitting, or local project checks. This photometric layout guidance explains why a rough lumens estimate may be insufficient when geometry and obstructions control the result.
The strongest next step is a marked-up plan that states what must be lit, where the approach breaks down, and which sightlines could create glare. Give that brief to the contractor, lighting designer, or qualified electrical reviewer before selecting the final configuration.
FAQs
These questions address common choices that arise after the entrance map is complete.
How do you light a covered commercial entrance without leaving a dark approach?
Trace the pedestrian route beyond the canopy edge and mark where visual continuity breaks. If the canopy position cannot address that route, evaluate a separate wall-mounted or combined lighting role instead of inferring a fixture count from canopy depth.
Should a service-door canopy use a wall light or a canopy light?
Use a canopy light when the main gap is downward coverage beneath the canopy. Evaluate wall-mounted or combined lighting when the door is offset, the working approach is lateral, or deliveries and vehicles create a separate sightline problem.
How much lighting does a service-door canopy need?
There is no defensible universal number based on canopy dimensions alone. Provide the door position, approach, mounting height, obstructions, and required coverage to a qualified reviewer for a project-specific layout and applicable local requirements.
How can I reduce glare at a commercial entry threshold?
Inspect the fixture from normal pedestrian and driver viewpoints, then compare cutoff, shielding, distribution, orientation, and the canopy-to-interior contrast using the selected fixture's current documentation. Treat a remaining dark pocket or direct emitter view as a layout issue, not an automatic reason to add more output.
