A lumens-per-square-foot estimate is useful for an early budget or quantity discussion, especially in a simple, open space with fairly uniform ambient lighting needs. It is not enough to finalize fixture placement when mounting height, task requirements, obstructions, mixed-use zones, irregular boundaries, or edge coverage can change where light needs to go. In those cases, treat the estimate as provisional and move to a point-by-point lighting design review before committing to fixture quantities or spacing.
Use a Lumens Estimate for Early Planning, Not Final Placement
A rough lumen estimate answers an early question: approximately how much light might the project require? It does not show how a selected fixture distributes light across the actual floor, work plane, corners, aisles, or vertical surfaces. That distinction matters when a team is moving from a budget range to a purchase or installation decision.
Use the estimate provisionally when the space is relatively open, the mounting conditions are understood, the lighting need is broadly uniform, and the current decision is limited to an early planning range. Once you need to support fixture count, spacing, uniformity, task-area coverage, or edge performance, the estimate needs to be backed by actual geometry, project criteria, and fixture photometry.
For example, two spaces with the same floor area may need different layouts if one has a clear ceiling and the other has racks, varied mounting heights, or work surfaces at different elevations. A fixture quantity and uniformity review can help frame that distinction, but it does not replace project-specific modeling.
Test the Site Conditions That Change the Layout
A rough estimate becomes less reliable when a site condition can change fixture distribution, spacing, the task plane being evaluated, or the boundary that must be covered. No single height, area, or fixture-count threshold decides the issue; the stronger signal is a combination of conditions that affect light distribution.
Mounting Height and Light Distribution
Mounting height can change the area covered by each fixture and the light reaching the intended task plane. Do not carry a fixture count or spacing pattern from a low-bay area into a high-bay area—or the reverse—without checking how the fixture's distribution interacts with the new height.
Low-bay and high-bay zones may have similar floor areas but different layout needs. Multiple mounting heights in one building are therefore a reason to separate the zones in the review, not average them into one square-foot calculation. The question is whether the proposed fixture and spacing still deliver light where the work occurs.
Racks, Equipment, and Other Obstructions

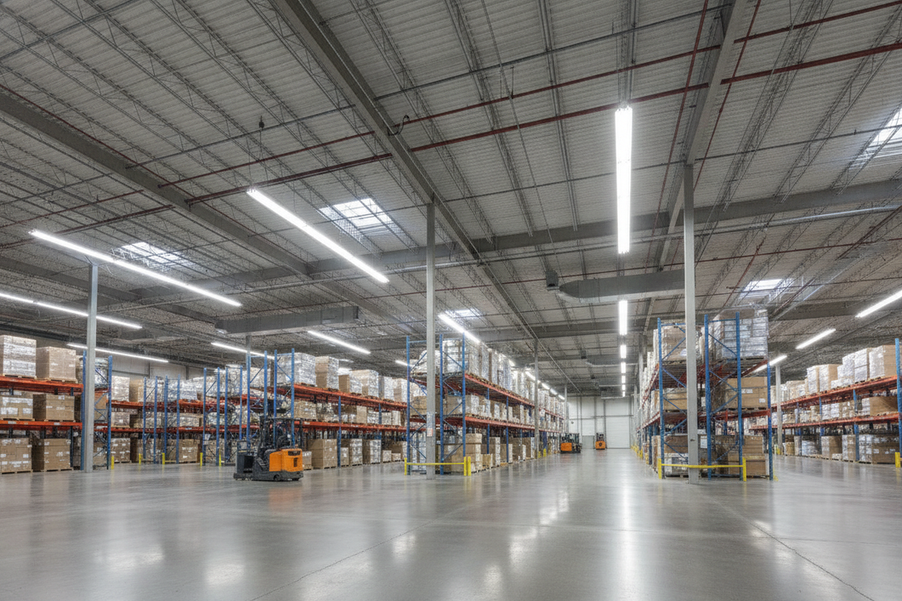

Racking, machinery, mezzanines, ductwork, and stored materials can block or redirect light. Industrial lighting guidance treats factors such as task geometry, shadows, glare, and horizontal and vertical planes as part of the review—not simply as details to address after fixture quantity is chosen. See the industrial lighting factors such as task geometry, shadows, and vertical planes when deciding how much of the site must be modeled.
For each major obstruction, check:
- Its height and footprint.
- Its location relative to fixtures, aisles, and work surfaces.
- Whether it blocks a direct light path or creates a shadowed area.
- Whether the intended coverage is on the floor, a vertical surface, a rack face, or a work plane.
A floor-area calculation assumes too much when the occupied geometry differs significantly from an unobstructed rectangle. A warehouse layout safety resource may be useful for follow-up planning, but the final review still needs the actual site conditions.
Tasks, Edges, and Irregular Areas
Task-specific work, perimeter zones, corners, aisles, and irregular boundaries can shift the design priority from average ambient light to targeted coverage. The IES Illuminance Selector identifies application-specific horizontal and vertical criteria, uniformity considerations, notes, and possible variances, so establish the applicable task and measurement plane before applying one average estimate across mixed areas. Application-specific horizontal and vertical lighting criteria are a better starting point for that distinction than a single building-wide average.
| Project variable | What changes | Layout consequence | Information to verify |
|---|---|---|---|
| Mounting height | Light distribution and coverage area | Recheck fixture type, spacing, and modeled task plane | Height by zone, elevation changes, mounting surface |
| Racks or obstructions | Light paths, shadows, and visibility | Model aisles, faces, work areas, and blocked zones separately | Rack height, footprint, equipment, mezzanines |
| Task areas | Required measurement plane and design priority | Separate work-surface, vertical, aisle, or ambient needs | Task, work plane, operating pattern, glare concerns |
| Irregular or edge zones | Perimeter, corner, and boundary coverage | Avoid assuming the interior spacing rule works at edges | Room outline, doors, excluded areas, priority boundaries |
When several of these variables appear together, request a point-by-point review. The goal is not to meet an invented universal threshold; it is to verify the distribution decision against how the space will actually be used.
Decide When to Request a Photometric Lighting Layout
Choose the next step based on what the estimate will inform and how likely the site conditions are to change light distribution. A photometric lighting layout is most useful before final quantity or placement decisions when important geometry, task, or retrofit variables are already known to matter.
| Project state | Appropriate next step | Why it matters |
|---|---|---|
| Simple early budget conversation | Keep the lumen estimate provisional | It can support a planning range while the project, fixture data, and criteria are still being defined. |
| Inputs are missing or uncertain | Pause and gather measurements and project criteria | A review cannot reliably model what the plan, heights, tasks, or existing conditions do not show. |
| Distribution-sensitive conditions are documented | Request a photometric layout before committing | Multiple heights, obstructions, mixed tasks, irregular boundaries, or retrofit constraints can change quantity, spacing, or coverage. |
Proceed provisionally when the current decision is only a budget conversation and the space is simple enough that the key distribution variables are unlikely to change the result. Gather inputs first when a layout is appropriate but the reviewer would immediately need basic dimensions, heights, task information, or existing-condition details.
Request the layout before finalizing a commercial lighting purchase when several site conditions can change where light must be delivered. This is a planning and risk-control decision, not a claim that every commercial project is legally required to have a photometric layout. A high-bay aisle optics framework can help organize the questions, but the review should remain tied to the actual project.
Send the Inputs a Lighting Designer Needs
A useful commercial lighting design request needs enough information to distinguish measured conditions from assumptions. Send these four groups before asking for a review:
- Geometry: dimensions, mounting heights, elevations, aisles, boundaries, and obstructions.
- Tasks and priorities: work planes, vertical surfaces, operating patterns, glare concerns, and high-priority zones.
- Existing conditions: fixture locations, mounting methods, controls, circuit or voltage information, and retrofit limits.
- Fixture and project data: available specifications or IES files, project goal, budget stage, timing, and decision owner.
Site Plan and Geometry
Start with a scaled plan or a dimensioned sketch. Include:
- Overall footprint, room dimensions, ceiling or mounting heights, and changes in elevation.
- Racks, equipment, mezzanines, ductwork, doors, aisles, and excluded areas.
- Mounting surfaces and any locations where fixtures cannot be installed.
- Perimeter areas, corners, and boundaries that require specific coverage.
- Photos or marked-up drawings for conditions a top-down plan cannot show.
Mark estimated dimensions clearly. A rough sketch is still useful for starting the conversation, but treat it as limited-confidence input until the critical measurements are confirmed.
Tasks and Coverage Priorities
Explain what happens in each zone and what the review needs to evaluate. Mark:
- General ambient areas versus task-specific work areas.
- Work planes, aisle locations, rack faces, and vertical surfaces that matter.
- Operating patterns, high-priority edges, corners, or loading areas.
- Glare-sensitive activities or areas where shadows would disrupt the work.
- Zones with different uses instead of assigning one average requirement to the entire building.
The project goal matters as much as the floor area. State whether the review is for an early quantity range, a retrofit comparison, final placement, a bid package, or a documented purchase decision.
Existing Fixtures and Retrofit Constraints
For a retrofit, document the existing fixture count, locations, mounting method, controls, circuit or voltage information, and anything that must remain. Also provide the proposed replacement fixture's available specifications or photometric file when one has been selected.
An existing count is a starting reference, not proof that the same number and placement remain appropriate. U.S. Department of Energy retrofit guidance notes that redesign may change fixture number, type, and placement; apply that logic as a planning principle, not as an automatic rule for ordinary commercial projects.
Before sending the request, include the project timing, budget stage, decision owner, and any available fixture specifications or IES files. Ask the reviewer to identify assumptions, modeled areas, fixture data used, and unresolved limitations in the response. Complete inputs improve the usefulness of the conversation, but they do not guarantee a compliant or purchase-ready result.
Turn the Review Result Into a Defensible Purchase Step
Treat the review as a documented basis for the next decision, not as automatic approval. Verify that its assumptions match the site, that the modeled areas represent the actual work, and that the fixture data corresponds to the specific configuration under consideration.
A defensible next step follows this order: keep the estimate provisional if the project is still simple and early; resolve missing measurements when the review cannot yet distinguish known conditions from assumptions; or request the photometric layout before committing when distribution-sensitive conditions are documented. Ask that the returned review state the design basis, mounting conditions, fixture data, modeled areas, and unresolved limitations.
Only then compare fixture options against the established criteria and site constraints. Selectable wattage or CCT may be useful purchasing features, but they do not substitute for correct placement, task coverage, or a verified distribution basis. Once the criteria are clear, you can use warehouse lighting options as a category path and check the current specifications for any fixture under consideration. We can also help route a design-support request when you provide the documented site inputs, rather than recommending a fixture before application fit is established.
FAQs
Use these questions to resolve exceptions before deciding whether to estimate, gather inputs, or request a review.
Can I Use a Lumens-Per-Square-Foot Estimate for an Early Lighting Budget?
Yes, if the project is still at the budget stage and you label the result as a provisional range. Recheck it after the plan, mounting conditions, task priorities, and fixture photometry are available.
Does Ceiling Height Alone Mean I Need a Photometric Layout?
No. Height is not an automatic trigger. Check whether it changes fixture distribution, mounting, fixture type, or task-plane coverage, and compare those conditions by zone.
What If I Do Not Have a Scaled Floor Plan Yet?
Gather dimensions, heights, obstructions, aisles, task zones, and photos first. A rough sketch can start the conversation, but label estimates and confirm what the reviewer still needs.
Can a Previous Fixture Count Be Reused for a Retrofit?
Use it only as a reference. Compare the old mounting pattern and controls with the replacement fixture's photometry, current space use, changed obstructions, and available mounting locations before reusing the count.
