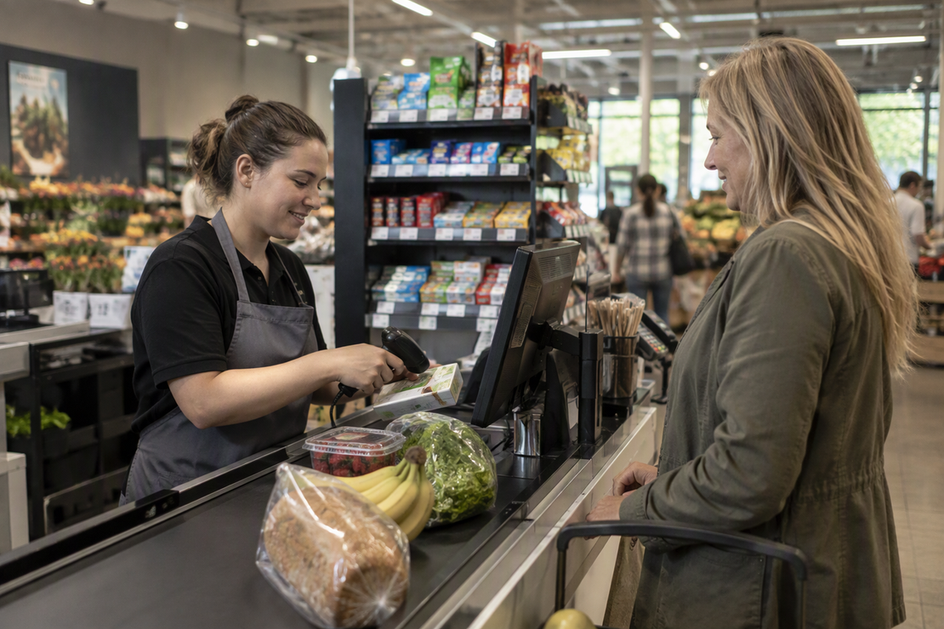

Good retail checkout lighting has two separate jobs: lighting the counter and lighting the display behind it. The counter is a flat work surface where staff scan items, take payment, and bag purchases. The wall or shelving behind it is an upright face that customers look at to find products.
So check each surface under your store's current lighting before you decide that general overhead light covers both. This is a quick visual review, not a measured lighting test. It shows you which surface, if either, needs a closer look.
Assess the Checkout Counter and Display Separately
Look at the counter and the display as two different tasks, under the same lighting you use during business hours. A surface that looks fine at a glance can still hide a problem when you look at it from the spot where someone actually works or shops.
The split between the two surfaces matches how retail designers describe lighting layers. A retail lighting design guide from a lighting-design firm lists checkout counters among the places that need task lighting. It treats product-focused accent lighting as a separate layer. It also suggests visual inspections to find dark spots or glare. That guidance supports keeping the checks apart. It does not give you a step-by-step inspection method or a pass mark, so treat what you see as a cue to follow up, not a final verdict.
Why not judge the whole area at once? Overhead light lands on a flat counter differently than it lands on a wall of shelves. A room can feel bright while one working surface or one rack face stays dim. That gap between overall brightness and the surface people actually use is what a task-plane check is meant to catch.
Viewing position matters too. Stand where the cashier stands for the counter check. Then step to where a customer waits to pay and look at the display from there. These two spots are practical starting points for your own store, not a required set of sightlines. If your layout has a second register or a queue that wraps around, add those spots.
| Surface | What to observe | Note or action |
|---|---|---|
| Checkout counter (horizontal) | From the cashier's spot: shadows on items, receipts, or the payment area; glare on screens | Write down any dark spot or glare and mark it "counter" |
| Display behind the counter (vertical) | From the customer's spot: dim shelves, unreadable labels, glare on packaging or glass | Write down any dark spot or glare and mark it "display" |
Keep each note short and specific. Record what you saw, where it was, and when you looked. "Top shelf hard to read from the line" or "glare on the card reader screen" is far more useful later than "lighting seems off." If daylight from front windows reaches the checkout, note the time of day, because the same spot can look different in the morning and late afternoon.
Two people can make this review sharper. Ask a staff member to run a normal transaction while you watch for shadows they cast on their own work. Then trade places and ask them what they can and cannot read on the back wall from the customer side. You end with one plain note per surface, which sets up the decision in the next section.
Decide Whether General Lighting Is Enough
Use your two notes to reach a separate result for each surface. A clean result means general lighting appears to serve the current arrangement. It does not prove that the space meets a lighting target.
- Both surfaces look usable. General lighting appears to serve the counter and the display as they are set up today. Keep your notes as a baseline for the next change.
- Only the counter has a concern. Flag the counter for further lighting review. Don't assume the display needs the same treatment.
- Only the display has a concern. Flag the display for further review and leave the counter result as it stands.
- Both surfaces have concerns. Flag each one with its own note. A counter shadow problem and a dim top shelf are different issues and may need different answers.
Carry the surface name and the observed issue forward. "Glare on the register screen" points a reviewer in a different direction than "bottom shelves look dark from the line." That detail keeps a follow-up focused on the actual problem instead of the whole ceiling.
Your result applies only to the arrangement you checked. If you're planning a fit-out, moving the register, adding taller shelving, or resetting the merchandise behind the counter, review the new layout instead of relying on the old notes. A display change can create a dark shelf even when the lights overhead stay the same.
When a surface is flagged, the next step depends on how much detail you need. Our guide to lighting project planning walks through defining the problem and gathering site details before you compare options. If you want to sketch the space, our online lighting layout tool is one place to start, and our lighting design resource covers layout-based design help. For a criteria-based follow-up, the IES Illuminance Selector guide explains how to reach IES illuminance recommendations through Account Resources; access requires a Lighting Library subscription.
FAQs
Can one set of overhead lights serve both the counter and the display?
It can. If your separate review shows the counter and the display both look usable from the cashier and customer spots, general lighting appears to be doing both jobs in your current layout. There's no single rule that says it always will or never will, which is why each surface gets its own result.
Should the counter and the display get the same lighting fix?
Not necessarily. Retail lighting guidance treats checkout task lighting and product-focused accent lighting as different layers, so a fix aimed at one surface may do little for the other. Start from the specific note you wrote for each surface and let a reviewer address that issue directly.
Does a clean visual check mean my store meets a lighting standard?
No. A walk-through can show that nothing looks obviously wrong, but it doesn't measure light levels or confirm any code or standard. If you need a documented answer for a lease, inspection, or design sign-off, you'll need a measured or criteria-based review.
Can I add or move fixtures myself after a surface is flagged?
Keep the review separate from the wiring work. Any new fixture, circuit change, or relocation should go to a licensed electrician. Code questions belong with your local authority, since requirements vary by location.
How often should retail checkout lighting be rechecked?
Recheck whenever something at the checkout changes: a new register, a different shelving height, a merchandise reset, or new fixtures nearby. It also helps to repeat the walk-through if staff or customers start mentioning glare or trouble reading labels.
