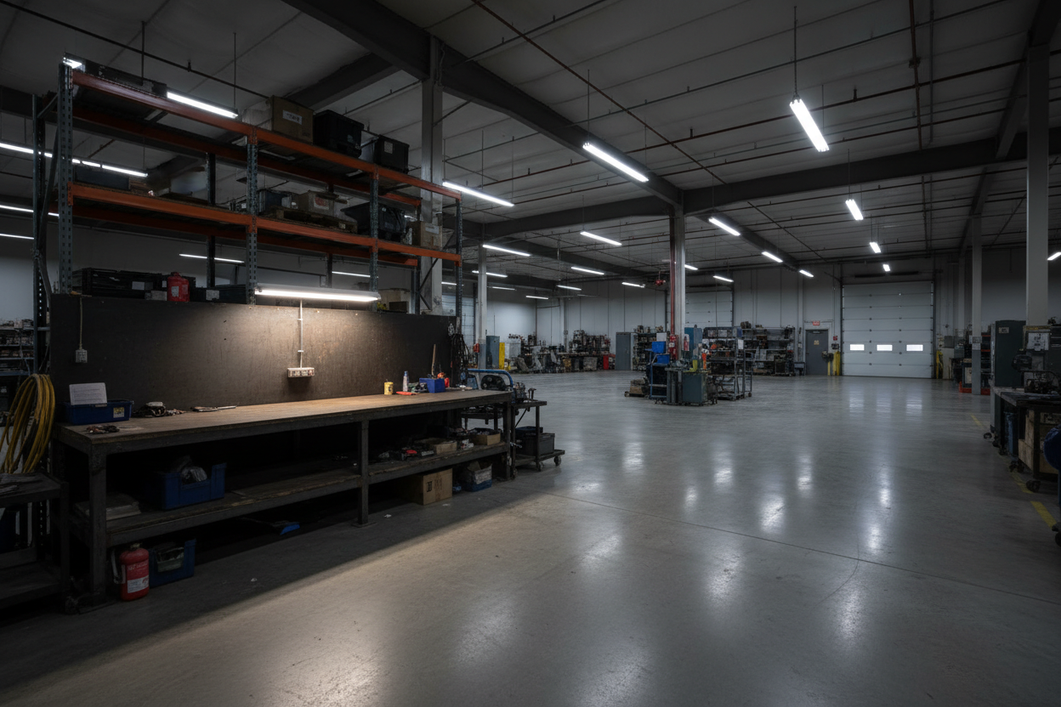

A commercial lighting layout can show an acceptable floor result while benches, rack labels, or inspection faces remain dim because the calculation plane and the task surface are different. Start by identifying the surface workers actually use, then document it separately from the floor before changing fixtures, output, spacing, or aiming. This task-plane check turns a vague complaint into evidence a lighting designer can compare with the approved layout.
Start With the Surface in Commercial Lighting
The task plane is the surface that determines whether people can read, handle, inspect, assemble, or pack the work. A floor reading provides useful context, but it cannot show whether a different work surface is adequately represented.
For warehouse and workroom troubleshooting, select the plane that matches the task:
- Horizontal: Use the bench, packing top, assembly table, or other surface where the work rests.
- Vertical: Use the rack face, label, panel, sign, or inspection surface people need to see. This is the relevant context for measuring the surface where the task is performed, since the measurement plane can be horizontal or vertical.
- Angled or changing: Use the surface and orientation that control an inspection or directional task. If the viewing direction changes, record the positions that matter instead of substituting a floor reading.
Record the surface location, approximate height, orientation, finish, and viewing direction. Vertical illuminance in commercial lighting is a distinct surface measurement: it measures light falling on a vertical face rather than light measured across the floor. That distinction matters when the complaint involves rack labels, panels, or signs.
A lighting layout with a bright floor but a dark work surface is therefore incomplete as a diagnosis until the real target plane appears in the model or field record. The first revision request should name that plane, not simply ask for more light.
Check the Task Plane in the Field
A useful field check compares the same complaint locations across the task surface, floor, installed fixtures, and approved layout. Use one consistent method under documented operating conditions, and keep task-plane and floor evidence in separate entries.
- Mark the complaint locations. Identify each aisle position, rack face, label zone, bench, packing area, or inspection point. Classify the target as horizontal, vertical, or angled.
- Describe the target surface. Record its location, height, orientation, finish, and the direction from which workers view it. For a vertical target, define the height and points being recorded. A published measurement protocol illustrates why teams should document the measurement height and points for vertical surfaces, while its example height should not be treated as a universal warehouse requirement.
- Capture surface-specific evidence. Record observations or readings at the actual task surface using a repeatable, appropriate method. Note the exact point or area instead of describing the result simply as "dark."
- Record the floor separately. Keep floor observations or readings in their own field so they provide comparison context rather than replacing the task-plane result.
- Document installed conditions. Note fixture mounting height, row spacing, orientation, aiming, controls, daylight, dirt, failed fixtures, shelving, beams, equipment, deep loads, and temporary obstructions. These conditions may differ from the approved layout.
- Compare before assigning a cause. Put the field record beside the approved plan, calculation plane, photometric assumptions, and installed geometry. Look for repeated patterns across locations. A consistent pattern is more useful than a single impression, but it narrows the review path rather than proving the final cause.
For photometric installation preparation, an IES file installation guide can be a useful follow-up when the review involves photometric files and aisle optics. It does not replace the site-specific task-plane record.
Match the Dark Pattern to the Layout Problem
Repeated darkness helps separate a geometry issue from a direction, obstruction, mounting, or target-plane issue. Treat each pattern below as a conditional hypothesis to compare with the installed layout and photometry, not as a guaranteed diagnosis.
Coverage, Spacing, and Mounting
Use the repeated location of the dark area to decide which layout assumption deserves the next review.
| Repeated field pattern | What to compare | Fix direction to evaluate |
|---|---|---|
| Between-row gaps | Row placement, spacing, distribution, and the task-plane calculation | Review spacing or distribution before considering more output |
| Bright and dim zones that alternate | Fixture distribution, row alignment, controls, and installed spacing | Evaluate uniformity assumptions and fixture placement |
| Falloff near an aisle end | End conditions, row termination, nearby obstructions, and modeled boundaries | Review the end-of-aisle layout and boundary assumptions |
| Uneven bench coverage | Bench position, fixture relationship, mounting height, controls, and distribution | Revisit work-plane placement and distribution |
| Pattern changes after a mounting-height change | Actual mounting height versus the modeled height and distribution | Recalculate or revise the layout assumptions for the installed height |
A mounting-height change can alter where the distribution reaches the task surface. Record the actual height before treating higher output or fixture replacement as the answer.
Aiming, Obstructions, and Vertical Faces
A floor-bright, rack-dark pattern points the review toward fixture orientation, aiming, aisle direction, optic distribution, and the modeled vertical target. If the darkness follows a rack face or viewing direction instead of the floor, the issue may be directional or target-plane related rather than a low floor average.
Look for shelving, beams, equipment, and deep rack loads that interrupt the path to the face. Compare those obstructions with fixture positions and the vertical surface represented in the photometric model. In a warehouse, the rack label may be the task surface even when the floor between the rows is bright. In a workroom, the same logic applies to a panel or angled inspection face.
The practical decision is to review the narrowest plausible condition first. Spacing and mounting deserve attention when the pattern follows row geometry. Aiming, orientation, and obstructions deserve attention when the pattern follows a face or viewing direction. A fresh task-plane model deserves attention when the original calculation never represented the surface workers inspect.
Send a Revision Brief That Produces a Usable Layout
Request revised photometry or a layout review when the task plane is missing from the original model, installed geometry differs from the plan, repeated darkness remains after basic operating-condition checks, or the proposed correction changes spacing, distribution, mounting, aiming, orientation, or fixture placement. Ask for returned views that show the actual target surface, not only a floor average.
Build the handoff around four groups:
- Failed surface and locations: Name the bench, packing top, rack face, label, panel, or angled surface. Mark the aisle, bay, workstation, and specific complaint points.
- Field evidence: Include surface-specific observations or readings, separate floor evidence, surface height and orientation, viewing direction, operating conditions, and repeated dark patterns. The record should show where and how each observation was made.
- Installed and modeled conditions: Provide fixture locations, mounting heights, spacing, orientation, aiming, controls, obstructions, daylight conditions, failed or dirty fixtures, the approved plan, the calculation plane, and relevant photometric files.
- Revision decision: State what the returned review must compare, such as the existing layout against an alternative spacing, mounting, aiming, orientation, or target-plane assumption. Ask the designer to identify the assumptions used for each returned view.
A photometric request is more useful when it distinguishes horizontal work-plane and vertical-surface assumptions and states the relevant height and primary viewing direction. An office lighting methodology example shows how those views can be separated, but its dimensions should not be transferred to warehouse tasks. The returned review should use the actual project surface and applicable project requirements.
If the evidence shows a recurring installation problem rather than a missing task-plane model, this repair-or-redesign lighting resource can help frame the next project discussion. We can also support a task-plane-aware lighting-design review when you have the marked locations, field record, and existing layout ready. Safety- or compliance-sensitive decisions still belong to the responsible lighting professional and applicable local requirements.
A bright floor is not the final answer when workers use a bench, rack face, label, or angled inspection surface. Name that surface, document it separately, compare the repeated pattern with the installed geometry, and request revised photometry when the original model cannot explain the complaint.
FAQs
These questions cover how to identify the task plane, document it, and decide when a layout review is warranted.
Why can a floor look bright while a work surface stays dark?
The floor result may represent a different calculation or measurement plane from the bench, rack face, label, or angled surface that controls the task. Name the work surface first and compare it separately with the floor instead of treating the floor average as the task result.
Which surface should be checked in a warehouse or workroom?
Use the bench or packing top for horizontal work, the rack face or label for vertical inspection, and the relevant angled face for directional tasks. Keep the floor as a separate reference so it does not replace the surface workers actually use.
What should be recorded during a task-plane lighting check?
Record the target surface, orientation, height, location, viewing direction, fixture relationship, mounting height, spacing, aiming, operating conditions, obstructions, and separate surface and floor evidence. This gives the designer enough context to compare the complaint with the installed and modeled layout.
When should a lighting layout receive revised photometry?
Request a review when the task plane was not modeled, installed geometry differs, repeated darkness remains after basic checks, or the proposed correction changes distribution, spacing, mounting, aiming, orientation, or placement. Ask the returned calculation to show the actual target surface and its assumptions.
