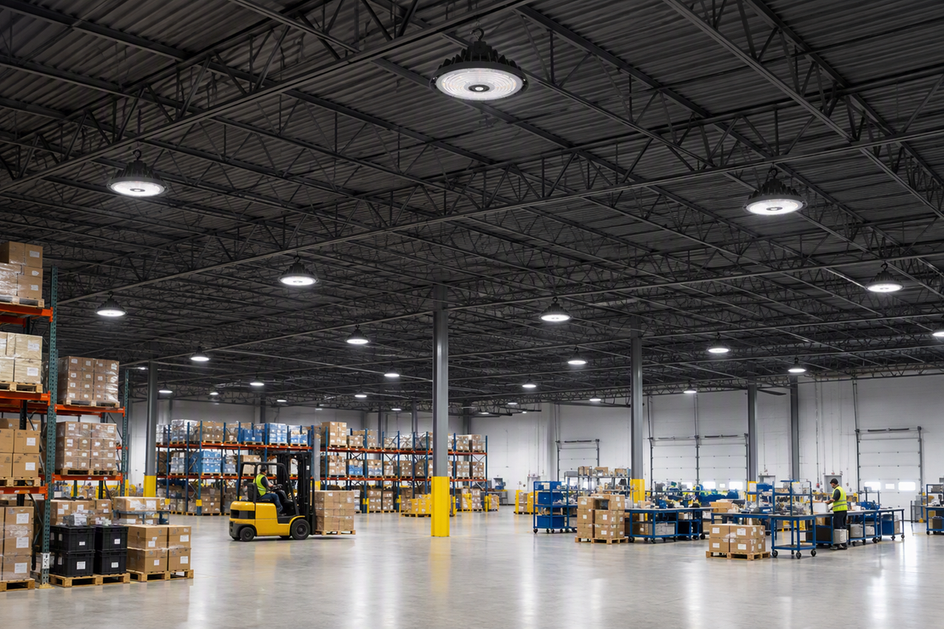

When evaluating how to eliminate cavern effect warehouse ceiling lighting issues, facility managers often find that brighter floor lamps do not help. If your warehouse floor looks well-lit but the ceiling above your high bays fades into shadow, more downlight rarely fixes it. That visible gap is a contrast problem, not automatically a sign of insufficient floor light.
To reduce the cavern effect in warehouse ceiling lighting, evaluate a fixture with controlled uplight or indirect distribution alongside adequate downlight. Then confirm the choice against your ceiling's reflectance, mounting height, spacing, and a current photometric layout.
Key Takeaways
- The cavern effect is a contrast problem between bright fixtures or floor areas and a dark ceiling above them, not automatic proof of inadequate floor lighting.
- Controlled uplight or indirect distribution is the strongest candidate for reducing ceiling contrast, but only when the ceiling can actually reflect light.
- Ceiling reflectance, obstructions, mounting height, and fixture spacing all change whether added uplight will be visually useful.
- Distribution labels like narrow, medium, or wide describe floor coverage, not upward output — request the current photometric file before buying.
- A qualified professional should verify voltage, load, controls, and mounting before you order or modify any fixture.
Reduce the Cavern Effect by Addressing Ceiling Contrast
Reducing the cavern effect starts with treating ceiling contrast as its own variable, separate from floor brightness. If your work plane already has enough light for the task, adding more downward output mostly increases floor brightness and glare without touching the dark zone above the fixtures, because a predominantly downward-firing fixture sends almost nothing back up toward the ceiling.
Controlled uplight or indirect distribution is the more direct path when the ceiling itself can reflect that light back into the space. This depends on the ceiling surface, its color, and any obstructions such as ductwork, racking, or mezzanines that intercept light before it reaches a reflective surface. Treat the result as conditional until a project-specific photometric layout confirms it for your ceiling height, spacing, and reflectance, rather than assuming it as an automatic outcome of switching fixture types.
Diagnose the Contrast Before Changing the Fixture
The cavern effect shows up as a bright floor next to a visually dark ceiling directly above the fixtures, which is a contrast problem rather than necessarily an underlit work plane. If floor-level task lighting is already adequate, a dark ceiling by itself does not prove you need more total lumens. Industry discussion of high-ceiling lighting describes this dark-ceiling pattern as the cavern effect, distinct from a genuine floor-illumination shortfall.
Several site variables widen or narrow that contrast. Predominantly downward-firing optics concentrate light on the floor and leave the upper ceiling dark by design. Fixture spacing and mounting height affect how evenly light spreads across the floor, but they do not change how much light reaches the ceiling. Ceiling reflectance and any obstructions above the fixtures, such as beams, ducts, or racking, determine whether added uplight would actually bounce back into view.
Beam angle and lumen output describe how light spreads across the floor, not whether a fixture sends any light upward. Our beam angle guidance can help you match floor coverage to mounting height, but it will not tell you whether a fixture addresses ceiling contrast. That answer requires checking the fixture's documented upward and downward distribution separately.
Choose the Optical Direction for the Warehouse Scenario
The right optical direction depends on your ceiling condition, not on a universal fixture type. Compare your warehouse against the scenarios below before assuming uplight or more downlight is the fix.
| Symptom or ceiling condition | Likely cause or constraint | Optical direction to evaluate | Buying implication or next check |
|---|---|---|---|
| Bright floor, dark ceiling above fixtures | Predominantly downward optics with no upward component | Controlled uplight or indirect distribution | Request current photometry showing documented upward output |
| Reflective, open ceiling with moderate spacing | Ceiling can return light, but the current fixture sends none up | Uplight-capable or dual-source distribution | Model ceiling reflectance and spacing in a project layout first |
| Dark, obstructed, or irregular ceiling | Racking, ducts, or mezzanines block the optical path | Downward-focused output with targeted task lighting | Get a site-specific layout review before adding uplight |
Each row points to a different next step, not a single winning product. A reflective, open ceiling makes uplight worth modeling; a dark or obstructed one makes it a lower-probability fix until a layout says otherwise.
Use One Safe Check to Map the Symptom to the Cause
The safest first check is a visual comparison: confirm whether the floor task area is actually usable while the ceiling above it looks dark. If the floor already reads well for the work being done there, you are looking at a contrast issue, not a floor-illumination deficiency, and more downward light is unlikely to change what you see above the fixtures.
Once you've made that distinction, record the inputs that a lighting designer will need: mounting height, fixture spacing, ceiling surface and color, any obstructions, the fixture's documented distribution, and where hotspots or glare currently appear. These are the same variables covered in our guide to reading photometric layout reports, which shows how foot-candle, max/min, and average values reveal whether a layout is actually uneven.
Use those recorded inputs to request a project-specific photometric layout before changing fixture count, optics, or output. A layout that models both the floor plane and the proposed ceiling approach gives you a real answer instead of a guess based on fixture category alone.
Verify the Fixture and Project Data Before Buying
Before buying, ask for the current IES or LDT photometric file and distribution diagram for the exact configuration you're considering, including any documented upward output relevant to your ceiling goal. Match that file against your actual mounting height, fixture spacing, ceiling reflectance, obstructions, floor work plane, controls, and selected wattage. A fixture's category name or lumen rating alone does not answer whether it will change what you see on the ceiling.
As an example of what documentation can and cannot tell you, the available specifications for our HBG Series list selectable narrow, medium, and wide distributions, adjustable wattage options, a 0-10V sensor port, optional Bluetooth controls, and multiple mounting configurations. None of those listed fields document uplight output, so they should not be read as evidence that the fixture reduces ceiling contrast. Similarly, the available specifications for our HPLH02 Series describe a layered linear design, adjustable wattage settings, roughly 18,500 lumens, and 1-10V dimming for warehouse use, but the layered construction is not documented as an uplight component and does not establish a cavern-effect result on its own.
In both cases, treat the listed specifications as verification points, not purchase justification. If ceiling illumination is part of your goal, ask for the current photometric file for the exact SKU and configuration before you order.
Keep Installation and Professional Review Within Safe Boundaries
Before ordering or modifying any fixture, have a qualified lighting professional or electrician verify the exact SKU's voltage, selected wattage, total connected load, inrush current, controls, sensor rating, mounting method, and current manufacturer instructions. Product documentation can vary across configurations of the same series, so the exact label and current spec sheet, not a general series listing, should govern the decision.
This guidance does not cover live wiring, circuit design, breaker selection, conductor sizing, or code compliance; those determinations belong to your electrician, lighting designer, or local authority.
When you are ready to make a buying decision, do not purchase replacement high bays based on general category claims alone. If your project involves unusual ceiling reflectance, obstructions, retrofit constraints, bulk quantities, or documentation gaps for a specific model, submit your dimensional sketches to our lighting design support to verify a project-specific layout before ordering.
FAQs
Can a reflective ceiling make uplight more useful?
A ceiling that can reflect light is a reasonable candidate for a controlled-uplight approach, because the added light has a surface to bounce off of. A dark, textured, or heavily obstructed ceiling limits how much visible benefit that same uplight produces, so the result is site-specific rather than guaranteed. Request a project-specific photometric layout that accounts for your actual ceiling surface before assuming uplight will solve the contrast.
Does a narrow, medium, or wide high-bay distribution prove that a fixture provides uplight?
No. Those labels describe how a fixture spreads light across the floor plane, not whether it sends any light upward toward the ceiling. Prismatic, layered, or adjustable-wattage descriptions carry the same limitation. Ask for the current IES or LDT photometric file and the exact model documentation to confirm upward output before treating a fixture as a cavern-effect solution.
What should I provide for a warehouse photometric review?
A useful review needs room dimensions, clear mounting height, fixture locations and spacing, ceiling surface and any obstructions, the target floor work plane, the exact SKU under consideration, and current photometric files for that fixture. Providing these inputs lets a layout model both floor performance and any proposed ceiling-illumination approach instead of estimating from fixture category alone.
