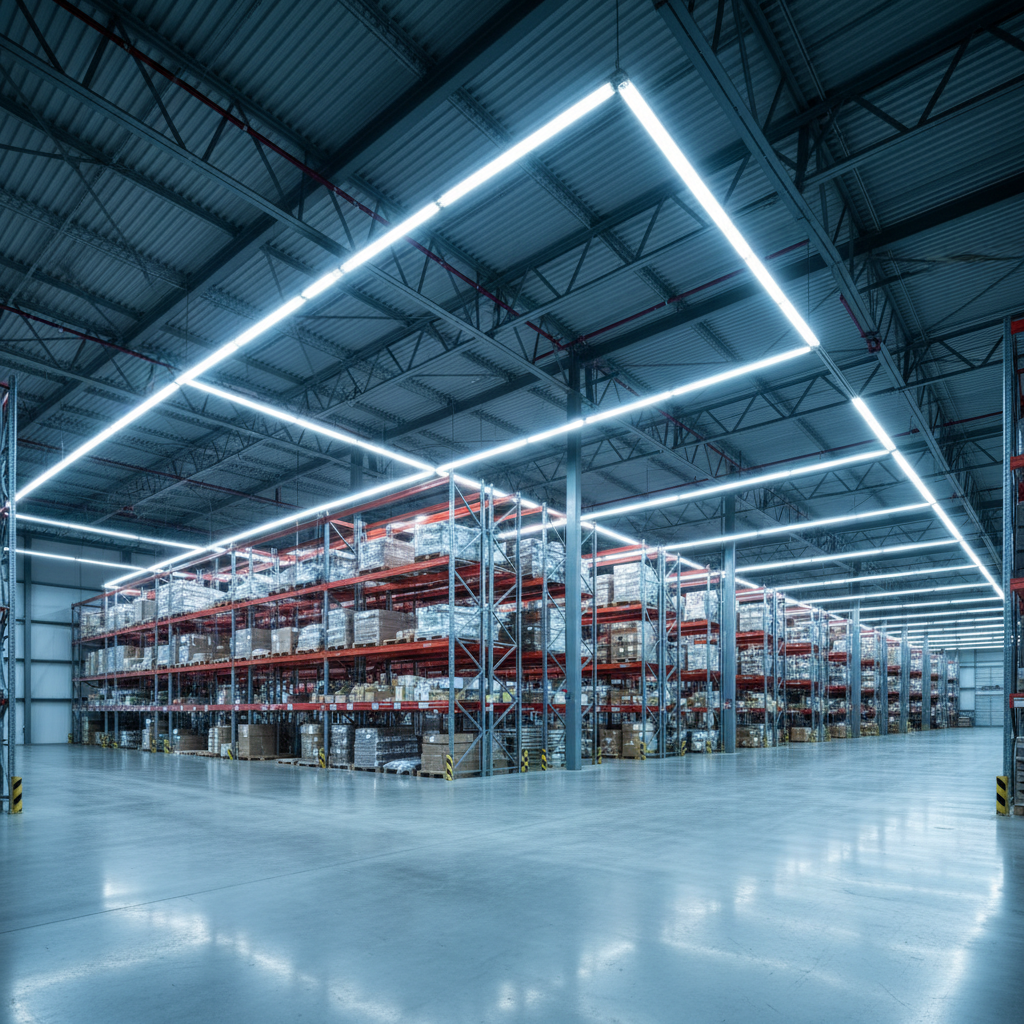

Scheduling Linear High Bays for Small Business Security
Note: This guide is prepared by the Hyperlite technical team. All modeling and performance data are based on the HPLH01 Series specifications and typical commercial installation patterns.
For small business owners operating shops, garages, or warehouses, lighting is often viewed through the narrow lens of utility—a necessary expense to see the work at hand. However, data from commercial security research suggests a more strategic perspective. According to common industry findings aligned with Crime Prevention Through Environmental Design (CPTED) principles, a significant majority of commercial burglaries occur during non-business hours. Implementing a properly timed lighting schedule has been observed to reduce burglary attempts by approximately 39% in various urban commercial settings by eliminating the cover of darkness.
Automating your lighting isn't just about convenience; it is a cost-effective first-line defense that simultaneously reduces operational costs. By integrating high-performance fixtures like the Linear High Bay LED Lights - HPLH01 Series, businesses can bridge the gap between high-output illumination and intelligent automation. This guide provides a technical roadmap for scheduling linear high bays to maximize both security presence and energy efficiency.
The Business Case: ROI and Security Synergy
A common misconception among small business operators is that leaving lights on for security is prohibitively expensive. While this was true for legacy systems like Metal Halide (MH) or High-Pressure Sodium (HPS), modern LED technology significantly alters the financial equation. An LED high bay achieves roughly 80% of its energy savings from the technology itself; scheduling adds an incremental but significant layer of cost avoidance.
To illustrate the impact, we modeled a typical urban auto repair shop scenario.
Modeling Note: The Urban Auto Shop Scenario
Methodology: This deterministic model compares a legacy 400W MH system against a 150W LED system. Core Formula:
Annual Energy Cost = (Fixture Wattage / 1000) × Annual Hours × Electricity Rate × Fixture Count
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Fixture Count | 12 | Qty | Typical for a 3,000 sq. ft., 6-bay shop |
| Annual Runtime | 4,500 | Hours | Security schedule: 6 AM – 10 PM |
| Electricity Rate | $0.16 | $/kWh | Average urban commercial rate |
| LED System Watts | 150 | W | HPLH01 Series 21,000lm equivalent |
| Legacy System Watts | 458 | W | 400W MH including ballast losses |
Analysis Results (Estimated):
- Annual Total Savings: ~$3,347 (Energy: $2,661 + Maintenance: $594 + HVAC Credit: $91).
-
Simple Payback Period: ~0.61 years (approx. 7.3 months) after a $600 utility rebate.
- Calculation: (Total Equipment Cost - Rebates) / Annual Savings
- Energy Reduction: ~67% reduction from the MH baseline.
For the shop owner, a payback period of under eight months means the system pays for itself within a single tax cycle. This immediate cash flow improvement is coupled with the elimination of the "maintenance headache"—the process of renting lifts to replace failing MH lamps every 2,000 to 3,000 hours.
Technical Compliance: Standards for Small Business
When selecting linear high bays, a professional approach requires looking beyond the price tag to verifiable performance benchmarks.
DLC 5.1 Premium and Utility Rebates
The DesignLights Consortium (DLC) Qualified Products List (QPL) is the industry-standard database for high-performance LED products. Fixtures that achieve DLC 5.1 Premium status, such as the HPLH01 series, meet stringent efficacy (lumens per watt) and glare control requirements. This certification is often a mandatory prerequisite for claiming utility rebates, which we estimated at $50 per fixture in our model.
Safety and EMI Standards
- UL 1598: This is the core safety standard for fixed luminaires. A "UL Listed" mark is widely accepted evidence of safety compliance, which is critical during electrical inspections or insurance audits to verify the equipment meets rigorous fire and shock safety protocols.
- FCC Part 15: This regulation limits electromagnetic interference (EMI). In a shop environment with sensitive vehicle diagnostic computers, low-quality LED drivers can cause signal noise. Ensuring your high bays are FCC-compliant helps prevent these operational glitches.
Implementing Effective Scheduling Strategies
The most effective security lighting is predictable enough to deter but smart enough to adapt. We recommend a layered approach.
The "30-Minute Buffer" Heuristic
A practical rule of thumb for small businesses is to set the lighting schedule to turn on 30 minutes before the first employee arrives and off 30 minutes after the last leaves. This "buffer" ensures a safe entry/exit environment and maintains a security presence without significant energy waste.
0-10V Dimming and Nighttime "Glow"
Instead of a binary ON/OFF schedule, utilize the 0-10V dimming capabilities of the HPLH01 series. 0-10V is a standard commercial protocol where a low-voltage signal controls the light output (10V = 100%, 1V = 10%).
- The Strategy: Set the fixtures to 100% during business hours and dim them to 10–20% during closed hours.
- The Benefit: Based on internal lighting layout simulations, this maintains constant perimeter visibility—potentially reducing unlit "blind spots" by up to 70% compared to a complete blackout—while consuming only a fraction of the power.
Integrating Motion Sensors
While schedules provide the baseline, motion sensors add a layer of unpredictability. High-quality sensors used in industrial settings are typically rated for a Mean Time Between Failures (MTBF) of up to 100,000 hours under standard operating conditions.
- Expert Tip: When layering schedules with sensors, set the sensor's "hold time" shorter than the schedule's "off" window. This prevents the lights from staying on indefinitely if a manual override is triggered.
Installation and Maintenance "Gotchas"
Based on patterns from customer support and warranty handling, we have identified two critical friction points for automated systems.
1. The 6-Inch Separation Rule (Anti-Flicker)
For 0-10V dimming circuits, a frequent installer mistake is running the low-voltage control wires (purple and gray/pink) in the same conduit as the high-voltage AC wires. This can induce electromagnetic noise into the dimming signal, leading to visible flickering.
- The Heuristic: Maintain at least 6 inches of separation between Class 1 (line voltage) and Class 2 (low voltage) wiring unless using specialized shielded cable.
2. Quarterly Photocell Maintenance
In dusty environments like woodshops, the lenses on photocells (dusk-to-dawn sensors) can accumulate debris. This causes the sensor to "think" it is darker than it actually is, triggering the lights during the day.
- The Fix: Include "photocell lens cleaning" in your quarterly facility maintenance checklist. A simple wipe with a microfiber cloth can prevent a 10–15% creep in annual energy costs caused by false triggering.
Advanced Automation: Smart Ecosystem Integration
According to the 2026 Commercial & Industrial LED Lighting Outlook, the trend is moving toward "sensor-ready" fixtures that allow for plug-and-play upgrades. By using smart relays or 0-10V controllers compatible with platforms like Alexa or Google Home, you can enable voice-controlled "Work Modes" or remote security monitoring from a smartphone.
For those managing low-clearance spaces, our Dimensional Guide: Fitting Linear High Bays in Low-Clearance Shops provides specific mounting strategies to ensure sensors and fixtures don't interfere with overhead doors.
Layout and Performance Verification
- IES LM-79 Reports: This verifies the total lumens, efficacy, and color rendering of the fixture.
- IES Files (.ies): These are data files used in professional software to simulate light distribution. Downloading the IES files for the HPLH01 series allows you to see the "foot-candle" levels on the floor before installation.
For California-based businesses, see our guide on Title 24 Controls for Warehouse High Bay Lighting.
Logic Summary: Environmental Impact
Analysis: Transitioning to scheduled LED high bays has a measurable environmental impact.
- CO2 Reduction: ~10.8 metric tons annually for our 12-fixture model.
- Gasoline Equivalent: ~1,222 gallons of gasoline not burned per year.
- Tree Planting Equivalent: ~900 seedlings grown for 10 years.
- Note: Calculations are based on EPA Greenhouse Gas Equivalencies factors (approx. 0.00065 metric tons CO2 per kWh saved).
Frequently Asked Questions
Q: Can I use a standard home dimmer for these high bays? A: No. Commercial high bays typically use 0-10V dimming. Standard "triac" dimmers used in homes are not compatible and may damage the LED driver.
Q: Will the motion sensor work if my ceiling is 25 feet high? A: Yes, provided you select a sensor rated for "high-mount" applications. The HPLH01 series offers optional sensors designed specifically for heights up to 40 feet.
Q: Does frequent switching shorten the life of the LED? A: Unlike Metal Halide lamps, LEDs are solid-state and are not significantly affected by frequent switching, making them ideal for motion-sensor schedules.
Summary of Best Practices for Shop Security
- Prioritize DLC 5.1 Premium: Ensure eligibility for rebates to accelerate ROI.
- Use the 30-Minute Buffer: Automate the "presence" of your business during transitions.
- Separate Control Wires: Keep 0-10V lines 6 inches away from AC lines to prevent signal noise.
- Clean Sensors Quarterly: Prevent dust from inflating your energy bill.
- Verify with IES Data: Use photometric files to eliminate dark spots where intruders could hide.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical, legal, or security advice. All electrical installations should be performed by a licensed professional in accordance with the National Electrical Code (NEC) and local building codes. Energy savings and ROI figures are estimates based on the specific modeling scenarios described; actual results may vary based on utility rates, usage patterns, and regional rebate availability.
