Before you replace anything, walk the row and write down three things for each fixture: its position, what it is doing (dark, dim, flickering, or cycling on and off), and when that started. This map shows whether the problem is row-wide, isolated to one fixture, or partial, and that result changes who should look next and how wide their review should be.
The map is where good lighting row troubleshooting starts, but it does not name the cause. Treat it as the scope for follow-up, not as proof that the fixtures have failed.
Map Each Fixture Before You Replace Anything
Whether you are checking a run of linear high bay lights or other fixtures, a useful map records what you can see from the floor, in a fixed order, with times attached. It describes the pattern and leaves the cause for later. Work through the row like this:
- Number the positions in row order. Start from a fixed reference point, such as the entry door or the wall nearest the panel room, and count 1, 2, 3 down the row. Use the same starting point every time you update the map so positions stay comparable.
- Mark each fixture's visible state. Use only observable words: on, dark, dim, flickering, or intermittent. Write "dark," not "bad driver." A presumed fault on the page can steer the next person toward the wrong check.
- Note when the symptom began or came back. Record the date and time you first saw it, and each time it changed. If someone else reported it, write down who and when.
- Add shared changes you already know about. Include a known switch, schedule, or control serving the area, plus any recent schedule change or work in the space. Do not open panels or equipment to find this information.
- Label the overall pattern. Row-wide means every fixture in the row shows the same symptom. Isolated means one fixture is affected while its neighbors work. Partial means some positions are affected and some are not. Intermittent means the symptom comes and goes.

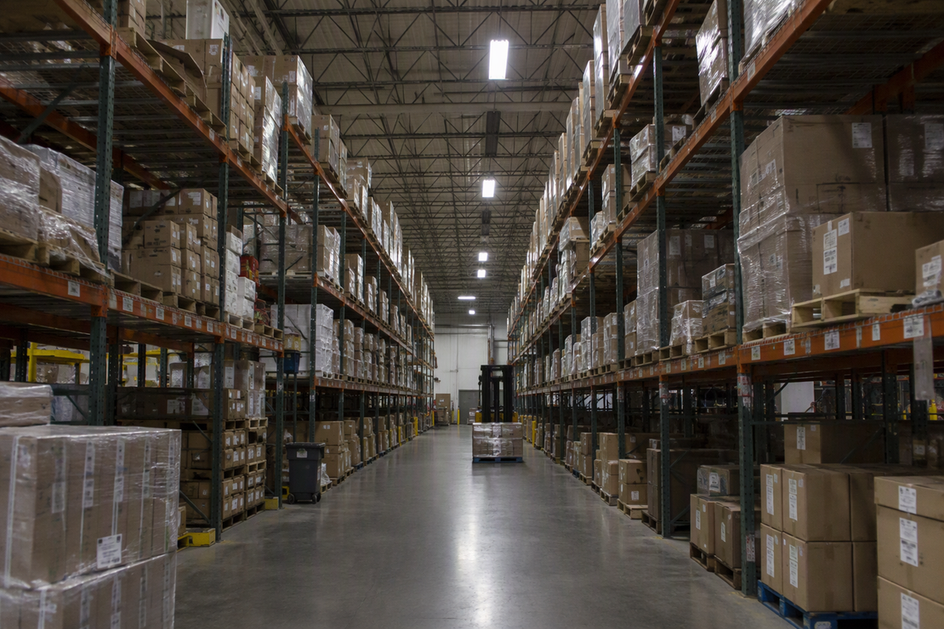

Here's an illustrative example (not a real test). In an eight-fixture warehouse lighting row counted from the dock door, positions 1 through 5 are on, position 6 is dim, and positions 7 and 8 have been dark since Monday at 7 a.m. That map reads as partial. It gives the next reviewer exact positions and a start time instead of "some lights are out."
Use the Pattern to Choose a Safe Next Check
The pattern narrows the next question. It does not answer it. No position pattern on its own confirms a circuit, control, driver, ballast, or fixture fault. So each next check below stays at observation or hands the question to qualified review.
| Observed pattern | What the map supports | Non-invasive next check |
|---|---|---|
| Whole row dark | Follow-up should cover the whole row | Note any known shared control or schedule; share the map |
| One fixture dark | Follow-up can focus on one position | Confirm neighbors stay steady over time |
| Some fixtures affected | Scope is mixed; cause is open | Keep every position listed, affected or not |
| Dim, flickering, or intermittent | Timing matters as much as position | Log when it appears and clears |
One check has direct support when a known control serves the area. If you already know an automatic time-switch controls the affected lights, record the schedule and the time and date shown on its display. A Georgia-focused commercial lighting controls handbook includes confirming weekday, weekend, and holiday schedules and verifying the switch's time and date in its time-switch checklist. A wrong display setting is worth reporting. It still does not prove the switch caused the outage, and the handbook is not a nationwide rule.
For a newer installation, the timing column can point to a narrower branch. If a recently installed fixture flickers only when other equipment is running, our guide to LED fixture flicker under load covers what to check in that specific case.
Where Observation Ends and Electrical Work Begins
Looking, counting, and writing things down are yours to do. Opening a fixture, reaching wiring, or testing a circuit is electrical work, and it belongs to qualified personnel.
- On your side of the line: fixture positions, visible states, symptom timing, known controls or schedules, and photos taken from the floor.
- On the qualified side: removing covers or lenses to reach wiring, testing any circuit, and any repair or rewiring.
- The workplace rule behind the line: under OSHA's federal workplace standard, work on energized circuit parts is limited to qualified persons. Parts that have been deenergized but not locked out or tagged are treated as energized. A dark row is not proof that nothing is live.
- Licensing is a separate question: the OSHA rule covers workplace practice. It does not set the licensing rules in every state or city.
- The stop point: if your next step would mean opening a fixture or testing a circuit, stop there. Give your map to the qualified person handling the electrical investigation.
Decide Whether to Investigate One Fixture or the Shared System
Use the map to decide how wide the investigation should be, not whether to buy. Each pattern leads to a different next step:
- Isolated pattern: put that one fixture on the evaluation list. The map shows where to look. It does not show that the fixture needs replacing, so let the qualified evaluation decide.
- Row-wide pattern: ask for a qualified review of the broader context before anyone prices a full row. Every fixture going dark together does not by itself prove a shared-system fault, and it does not prove every fixture is bad either.
- Partial or intermittent pattern: keep the replacement decision open. Keep adding times and positions to the map until follow-up shows more. Choosing between one fixture and a whole row at this stage is a guess.
Replacement becomes a real project only after review confirms it. At that point, a commercial replacement survey helps you set scope and phasing while the building stays in use. Before a wider order, a pilot test zone with baseline records gives you a way to compare conditions before and after.
FAQs
How should I mark a fixture when I can't tell whether it's on?
Write "unknown" for that position and add the reason, such as bright daylight, a blocked view, or a fixture that is hard to see from the floor. Don't guess or leave the spot blank. A blank reads like "working," and a guess can make a partial pattern look row-wide or isolated.
What if the lights come back before anyone reviews them?
Keep the record anyway. Note when the symptom started, when it cleared, and which positions were involved. A problem that clears on its own is still an intermittent pattern, and those times are often the only evidence the reviewer will have.
What can I share with the electrician or facilities team without opening anything?
Share the numbered map, the start and change times, the area name, and any switch, schedule, or control you already know serves the row. Add recent work or schedule changes you're aware of, plus photos taken from the floor. All of this is visible information that helps them plan their own checks.
Should I update the map after a repair?
Yes. Walk the row again from the same starting point and mark each position's state. If the same positions act up again later, a dated before-and-after record shows the next reviewer whether the pattern moved, spread, or came back unchanged.
