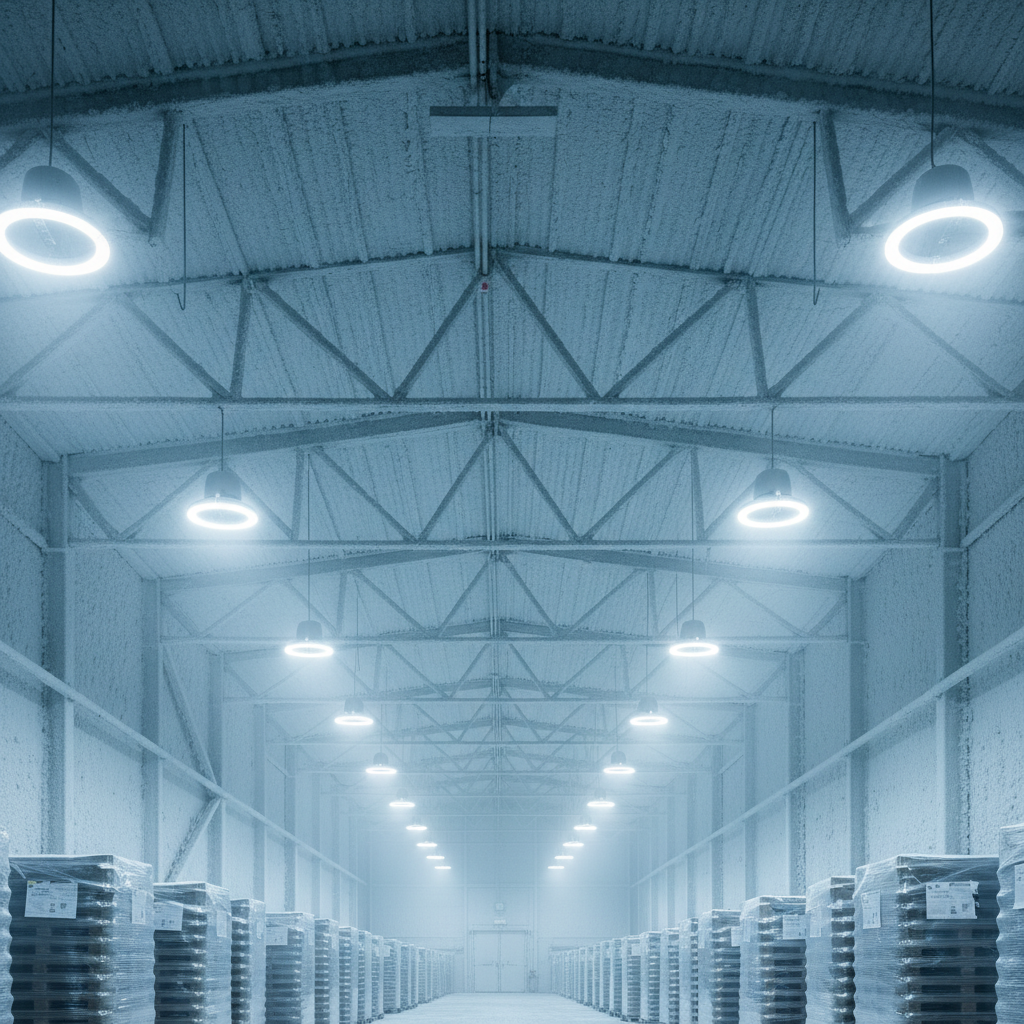

The Cold Storage Paradox: Why Lower Temperatures Demand Higher Standards
Industrial cold storage and refrigerated warehouse facilities present one of the most demanding environments for electrical infrastructure. While it is a well-established principle in solid-state lighting (SSL) that cooler operating temperatures generally extend the lifespan of Light Emitting Diode (LED) chips, the reality for facility managers and specifiers is far more complex. The "cold benefit" is not a universal guarantee of longevity; rather, it is a variable that depends on driver engineering, material science, and rigorous compliance with industry standards.
As noted in the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the transition to high-efficiency LED systems in cold storage is no longer just about energy savings—it is about managing the total cost of ownership (TCO) in an environment where maintenance access often requires specialized lifts and safety protocols.
This article examines the mechanisms of lumen maintenance in sub-zero environments, the critical failure points that often go overlooked, and the technical specifications required to ensure a lighting system survives the rigors of industrial refrigeration.
The Physics of Lumen Maintenance: LM-80 and TM-21 in the Freezer
In standard ambient conditions (25°C/77°F), LEDs degrade primarily due to heat-induced stress on the semiconductor junction and the phosphor layer. In cold storage (typically -20°C to -40°C), this thermal degradation is significantly slowed. According to the IES LM-80-21 Standard (Lumen Maintenance Testing), manufacturers test LED packages at specific case temperatures ($T_c$)—usually 55°C, 85°C, and 105°C.
When these data points are applied to the IES TM-21-21 Standard (Lifetime Projection), the mathematical extrapolation for a fixture operating in a freezer often results in an $L_{70}$ (the time at which the light output reaches 70% of its initial value) that exceeds 100,000 hours.
The 6x Extrapolation Rule
It is critical for specifiers to recognize the limitations of these projections. The Illuminating Engineering Society (IES) explicitly prohibits projecting lifetimes beyond six times the actual test duration. If an LED was tested for 10,000 hours, a claim of 100,000 hours is mathematically invalid under TM-21 guidelines, regardless of how cold the environment is.
Modeling Note (Thermal Baseline): Our analysis of lumen maintenance in cold storage assumes a stable thermal state. While individual results vary, we use the following deterministic parameters for scenario modeling:
Parameter Value / Range Unit Rationale / Source Category Ambient Operating Temp -20 to -40 °C Standard industrial freezer range Junction Temp ($T_j$) 45–60 °C Estimated based on high-performance heat sinks TM-21 Limit 6x Multiplier IES TM-21-21 statistical constraint Phosphor Degradation ~50% reduction Rate Arrhenius kinetics at -20°C vs 25°C Forward Voltage ($V_f$) +5–10% Increase Typical LED behavior in extreme cold Boundary Conditions: This model does not account for rapid thermal cycling or improper mounting that causes thermal bridging.
The Weakest Link: Why Drivers Fail While LEDs Thrive
While the LED chips themselves may see an extended life in the cold, the driver electronics—specifically the electrolytic capacitors—become the primary point of failure. Based on common patterns from customer support and warranty handling (not a controlled lab study), driver failure accounts for a significant majority of service calls in refrigerated spaces.
Capacitor Embrittlement and Cold-Start Ratings
Standard LED drivers are often rated for a minimum start temperature of -20°C. In deep-freeze applications reaching -40°C, a standard driver may fail to "strike" or provide stable current, leading to flickering or catastrophic failure. Electrolytic capacitors can experience a dramatic reduction in effective capacitance as the electrolyte thickens in extreme cold.
When selecting fixtures, ensure they meet UL 8750 – LED Equipment for Use in Lighting Products, which outlines safety and performance requirements for LED drivers. For cold storage, a driver must be explicitly rated for "Cold Start" at the facility's minimum possible temperature.
Thermal Cycling and Solder Fatigue
A common mistake is assuming that "constant cold" is the only stressor. In reality, defrost cycles and the opening of high-traffic freezer doors create rapid thermal fluctuations. This cycling causes materials with different coefficients of thermal expansion (CTE) to expand and contract at different rates. Over time, this can lead to solder joint fatigue and micro-cracking, particularly in fixtures that do not utilize high-quality, cold-forged aluminum housings.
Designing for Condensation and Moisture Management
Cold storage facilities are not just cold; they are prone to extreme moisture challenges. When warm, moist air enters a refrigerated space, it condenses on any surface that is below the dew point.
The IP65 Minimum Requirement
For any industrial cold storage application, an Ingress Protection (IP) rating of IP65 is the absolute minimum requirement. As defined by IEC 60529 (IP Ratings), an IP65 rating ensures the fixture is dust-tight and protected against water jets. However, in food processing environments where high-pressure washdowns occur, IP66 or even IP69K may be necessary.
Practical Heuristic: The 25% Lumen Buffer
Experienced installers often apply a "Cold Storage Buffer" to their lighting designs. We recommend adding a 20-30% buffer to the calculated lumens needed for a space. This is because light output from many fixtures can be perceptibly lower in extreme cold before the LEDs and housing reach a stable thermal state. Furthermore, frost buildup on the lens—while minimized by proper airflow—can slightly reduce effective light delivery.
Verification Step: To verify if your layout meets the ANSI/IES RP-7 – Lighting Industrial Facilities recommendations, perform a photometric study using .ies files. Ensure the "Initial Lumens" used in the software are adjusted for the specific operating temperature of your freezer.
Compliance, Controls, and Energy Standards
B2B projects must adhere to strict energy codes, even in specialized niche applications like cold storage.
ASHRAE 90.1 and IECC 2024
The ASHRAE Standard 90.1-2022 and the IECC 2024 (International Energy Conservation Code) set maximum Lighting Power Density (LPD) limits. Because cold storage requires high-output lighting to penetrate potential mist or frost, using high-efficacy fixtures (measured in lumens per watt, or lm/W) is the only way to meet these codes without compromising safety.
Lighting Controls in the Cold
Implementing occupancy sensors in cold storage is one of the most effective ways to improve UFO High Bay Efficacy and ROI. However, standard sensors often fail in sub-zero temperatures.
- Sensor Selection: Use sensors rated for -40°C.
- Mounting: Avoid mounting sensors directly to cold metal beams where thermal bridging can cause internal condensation.
- Dimming: Utilize 0-10V dimming drivers to allow for "high/low" states rather than "on/off," which reduces the thermal shock on the components.
ROI and Utility Rebates: The DLC Premium Advantage
For facility managers, the decision to upgrade is often driven by the DesignLights Consortium (DLC) Qualified Products List (QPL). Products that meet "DLC Premium" status offer higher efficacy and better lumen maintenance requirements, which are often the prerequisite for the most lucrative utility rebates.
By referencing the DSIRE Database of State Incentives, contractors can calculate the exact payback period for a cold storage retrofit. In many cases, the combination of energy savings (LEDs emit less heat, reducing the load on the refrigeration system) and utility rebates results in a payback period of less than 18 months.
ROI Calculation Logic (Illustrative Example)
If a 400W Metal Halide fixture is replaced by a 150W high-performance LED high bay:
- Direct Energy Savings: ~250W per fixture.
- HVAC Savings: For every 3 watts of lighting energy reduced, approximately 1 watt of refrigeration energy is saved because the cooling system doesn't have to work as hard to remove the heat generated by the lights.
- Maintenance Savings: Eliminating the need for specialized lifts in -30°C environments every 2 years.
Summary of Technical Requirements for Cold Storage
To ensure a "Solid" and "Bright" installation that meets professional standards, use the following checklist:
- Certification: UL 1598 listed for the fixture and UL 8750 for the driver.
- Protection: IP65 minimum; IP66 preferred for washdown areas.
- Driver Rating: Cold-start capability down to -40°C.
- Documentation: Verified IES LM-79 reports for performance and IES LM-80/TM-21 for lifetime claims.
- Housing: Cold-forged aluminum for superior thermal management (see our guide on Heatsink Durability and Warranties).
- Optical Consistency: ANSI C78.377 compliant CCT to ensure visual uniformity across the facility.
While the physics of cold storage suggests that LEDs should last longer, the reality is that only a system engineered for the specific rigors of refrigeration will deliver on that promise. Prioritize verified performance data and robust mechanical design over generic "rated life" claims to protect your investment in these harsh environments.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or legal advice. Always consult with a licensed electrical contractor and review local building codes before beginning a lighting project in industrial or cold storage facilities.
