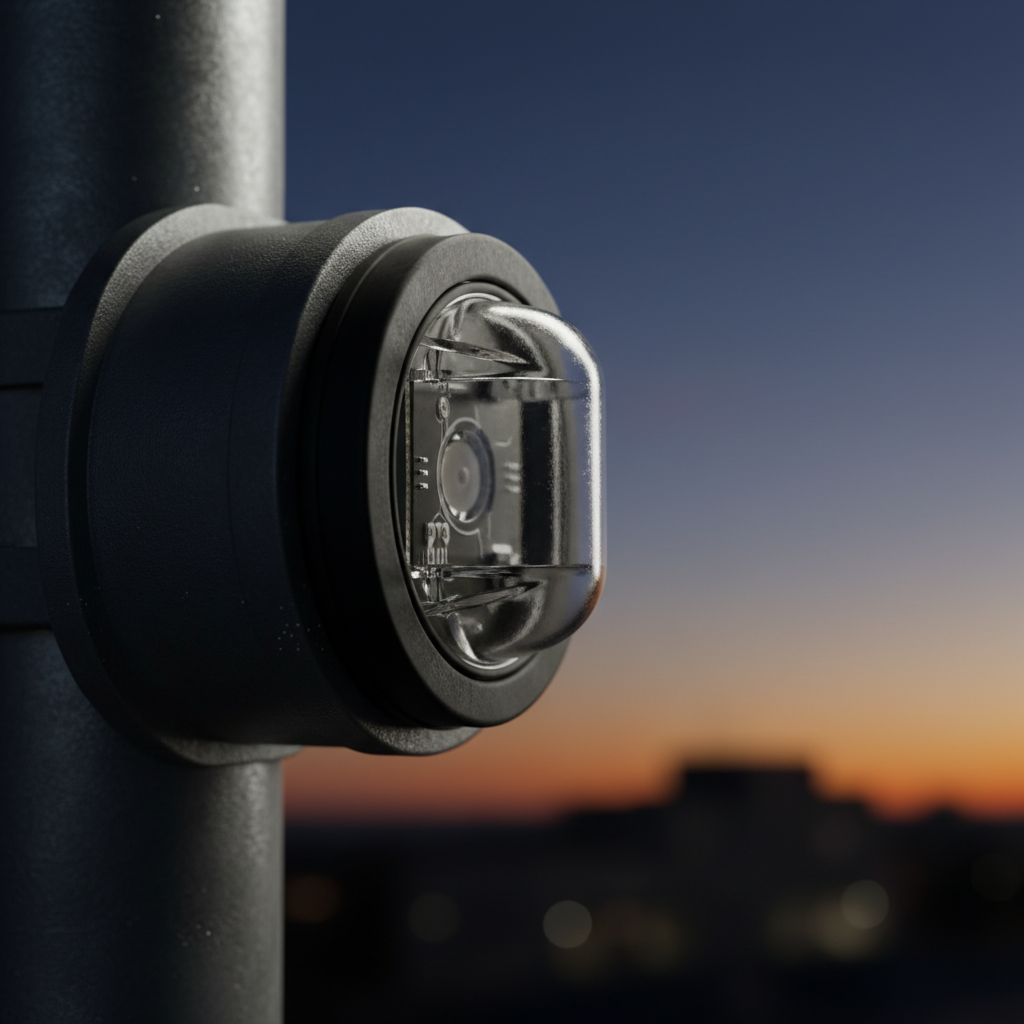

The Critical Vulnerability of Dusk-to-Dawn Automation
For facility managers and rural property owners, the most frequent cause of "nuisance tripping" or total failure in outdoor lighting isn't a component defect—it is biological. In humid, agricultural, and coastal environments, photocell sensor apertures are primary targets for mud dauber wasps (Sceliphron caementarium), spiders, and other insects seeking sheltered nesting sites.
A blocked photocell lens tricks the fixture into a permanent "night" state, leading to daylight operation, wasted energy, and accelerated thermal degradation of the LED driver. Conversely, web-building spiders can create a "shutter effect" where moving debris causes the light to cycle on and off rapidly, a phenomenon known as light cycling.
To maintain operational reliability, the solution is not reactive cleaning, but a combination of high Ingress Protection (IP) rated hardware and specific physical barriers. The most effective preventative measure is specifying IP66 or IP67 rated fixtures and installing a purpose-designed, fine-mesh insect screen (1–2mm grid) over the sensor aperture.
The Biology of Failure: Why Insects Target Sensors
Insects are attracted to photocell housings for three specific reasons:
- Heat Signatures: Even high-efficiency LED drivers generate a localized heat signature. In cooler rural nights, this attracts nesting queens.
- Structural Crevices: Many standard photocell housings feature recessed lenses or "eyebrows" to prevent light trespass. These provide the perfect 90-degree corner for mud daubers to anchor their nests.
- Light Attraction: While the photocell itself doesn't emit light, the fixture it controls does. Spiders utilize the sensor's protrusion as an ideal anchor point for webs designed to catch insects drawn to the light.
The Impact on Photocell Sensitivity
Photocells are calibrated for specific spectral sensitivity based on the factory lens material. According to research on photocell theory and practice, any obstruction—even a thin layer of spider silk—can alter the light transmission properties.
- Mud Nests: Completely opaque; forces the light to stay on 24/7.
- Spider Webs: Translucent but "sticky"; they collect dust and pollen, gradually reducing the foot-candle threshold required to trigger the "off" state.
- Wasp Debris: Can penetrate low IP-rated housings, leading to internal short circuits or corrosion of the sensor's copper traces.
Mechanical Prevention: IP Ratings and Mesh Barriers
The first line of defense is the fixture's Ingress Protection rating. Most standard outdoor lights are rated IP65. While IP65 defines protection against dust and water jets, it does not necessarily account for the persistent "boring" or nesting behavior of insects.
IP65 vs. IP67: The Seal Integrity Rule
Based on common patterns from customer support and warranty handling, we have observed that fixtures with an IP67 rating perform significantly better in high-insect environments.
- IP65: Relies on compressed gaskets. If an insect manages to wedge debris into the gasket seat, the seal is compromised.
- IP67: Features more robust, often liquid-injected seals that leave zero "crevice depth" for an insect to start a nest.
Expert Heuristic: If your facility is within 500 yards of standing water or livestock feeding areas, the incremental cost of an IP67 sensor (typically less than 15% more than IP65) is recovered within the first year through avoided service calls.
Implementing Insect Screens
For existing installations, a fine-mesh stainless steel screen is the professional standard.
- Mesh Size: Use an 18x16 mesh (standard insect screen).
- Light Loss: Be aware that a standard mesh blocks approximately 20–30% of ambient light. This will cause your lights to turn on slightly earlier in the evening and off later in the morning.
- The 15% Rule: Our practical baseline suggests that the screen must not reduce the photocell's light sensitivity by more than 10–15% for optimal automation. If the mesh is too dense, the sensor may never reach its "off" threshold during overcast days.
Maintenance Protocol: Cleaning without Compromise
A common field mistake is using standard silicone sealant around the sensor housing to "block" insects. This is a critical error; silicone can trap moisture inside the housing, accelerating the corrosion of internal components.
The "No-Blow" Rule for Nests
Conventional wisdom promotes the use of compressed air to clean sensors. However, for insects nesting in crevices, a blast of compressed air can force debris and eggs deeper into the fixture. According to guidelines on properly cleaning sensitive optical components, manual removal is preferred.
The Professional Maintenance Checklist:
- Manual Removal: Use a soft, non-conductive tool (like a plastic spatula or soft-bristled brush) to gently scrape away mud nests.
- Solvent Caution: Never use petroleum-based cleaners on photocell lenses. These can cloud the polycarbonate, permanently altering the sensor's accuracy. Use a 50/50 mix of isopropyl alcohol and distilled water.
- Coating Application: For areas near barns, applying a thin layer of food-grade mineral oil to the surrounding housing (not the lens) can deter insects. Insects struggle to anchor nests to the slick surface.
Economic Analysis: The ROI of Insect-Resistant Lighting
To demonstrate the financial impact of upgrading to high-durability, insect-resistant LED systems, we modeled a scenario for a large-scale agricultural facility.
Scenario: 100-Fixture Barn Retrofit
In this model, we compare legacy 400W Metal Halide (MH) fixtures—which are prone to thermal failure when insect debris blocks their ventilation—against modern LED fixtures like the Hyperlite LED Parking Lot Light - Zeus Series.
| Parameter | Legacy MH System | Modern LED (Zeus Series) |
|---|---|---|
| System Wattage | 458W (incl. ballast) | 150W |
| Annual Runtime | 4,380 hours | 4,380 hours |
| Maintenance Frequency | Every 1.8 years (clogged) | 10+ years (sealed) |
| Annual Energy Cost | ~$36,000 | ~$11,700 |
| Annual Maintenance Savings | $0 | ~$9,992 |
Modeling Note (Reproducible Parameters)
Our analysis assumes a rural electricity rate of $0.18/kWh and an electrician labor rate of $110/hour. The legacy system assumes a 20% reduction in lamp life (from 10,000 to 8,000 hours) due to thermal stress from insect-blocked ventilation, a common pattern observed in unsealed high-bay fixtures.
Logic Summary: The switch to an insect-resistant LED system yields $35,189 in total annual savings. This includes $24,283 in energy reduction and $9,992 in avoided maintenance labor and lamp costs. With an initial project cost of $20,000 and available rebates, the payback period is approximately 5 months.
Advanced Integration: Redundancy via Occupancy Sensors
In high-pressure insect environments, relying solely on a photocell is a single point of failure. Modern facilities are increasingly adopting "Motion Intelligence" as a secondary layer.
By adding wireless occupancy sensors to a system like the Hyperlite Led Parking Lot Lights - Hope Series, you create a fail-safe. If an insect blocks the photocell and the light stays "on" during the day, the occupancy sensor can still dim or turn off the fixture if no activity is detected in the barn or yard.
According to the DOE FEMP Wireless Occupancy Sensor Guide, adding these controls in inactive storage areas can provide an additional $7,391 in annual savings for a 100-fixture facility, with a payback of just 1.1 years.
Regulatory Compliance and Standards
When selecting fixtures for rural or industrial use, look for specific certifications that validate environmental durability.
- UL 1598: This is the core safety standard for luminaires. A "UL Listed" mark on a Wall Pack Light with Photocell - Moon series ensures the entire assembly, including the sensor housing, has been tested for electrical safety in wet locations.
- DLC 5.1 Premium: The DesignLights Consortium (DLC) sets the benchmark for energy efficiency. Products on the DLC Qualified Products List (QPL) are often required to qualify for the utility rebates mentioned in our ROI analysis.
- FCC Part 15: Ensures that the LED driver does not produce electromagnetic interference (EMI) that could disrupt other agricultural automation equipment or radio communications.
For more technical insights into selecting the right hardware for your environment, refer to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.
Practical Selection Guide for Rural Environments
When choosing between different series for insect-prone areas, consider the housing design.
- Zeus Series: Features a 0–180° adjustable slip-fitter mount. This allows for precise positioning to minimize the "shelter" effect for nesting insects.
- Hope Series: Achieves 150 lm/W efficiency and includes a 10kV lightning protection device, making it suitable for extreme outdoor environments where both insects and weather are factors.
- Oval Series Wall Packs: Specifically utilizes a glass lens. Unlike PC (polycarbonate) lenses, glass is resistant to the acidic secretions sometimes found in insect nests and will not yellow or degrade over time. The Wall Pack Light with Photocell - Oval series is ideal for mounting on barn exteriors where mud daubers are prevalent.
Summary of Environmental Hardening
To ensure your dusk-to-dawn automation remains functional for its 50,000-hour rated life, follow these three pillars of insect-proofing:
- Specify High IP Ratings: Move to IP66 or IP67 for sensors whenever possible to eliminate entry points.
- Physical Barriers: Install 18x16 stainless steel mesh over apertures, ensuring a secure fit with UV-resistant ties.
- Strategic Maintenance: Perform annual visual checks. Use manual removal for nests and avoid aggressive compressed air that can damage internal seals.
By addressing the biological reality of outdoor lighting, facility managers can protect their investment, ensure compliance with energy codes like ASHRAE 90.1, and achieve the "Reliable, Bright, Solid" performance required for professional operations.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical or engineering advice. Always consult a licensed electrician for installations and ensure all modifications comply with the National Electrical Code (NEC) and local building regulations.
References
- IEC 60529: Degrees of protection provided by enclosures (IP Code)
- IES LM-79-19: Optical and Electrical Measurements of Solid-State Lighting Products
- UL Solutions Product iQ Database
- DOE Greenhouse Gas Equivalencies Calculator
Frequently Asked Questions
Can I use insect repellent spray on my photocell? We do not recommend chemical deterrents. Most commercial repellents contain solvents that can degrade the polycarbonate lens of the photocell, leading to clouding and inaccurate light sensing.
How do I know if my photocell is blocked or just broken? Cover the sensor completely with black electrical tape. If the light turns on, the sensor is functional but may be improperly calibrated or partially obscured. If it stays off, the sensor or driver may have failed.
Does the mesh screen affect the warranty? Adding an external mesh screen usually does not void the warranty, provided you do not drill into the fixture's housing or break the factory seals. Always check Hyperlite's official FAQ and policy hub for specific terms.
What is the best color temperature for outdoor security? 5000K (Daylight) is the industry standard for security and parking lots as it provides the highest visual contrast for cameras and human eyes. All Hyperlite Zeus and Hope series fixtures are optimized at 5000K for this purpose.
