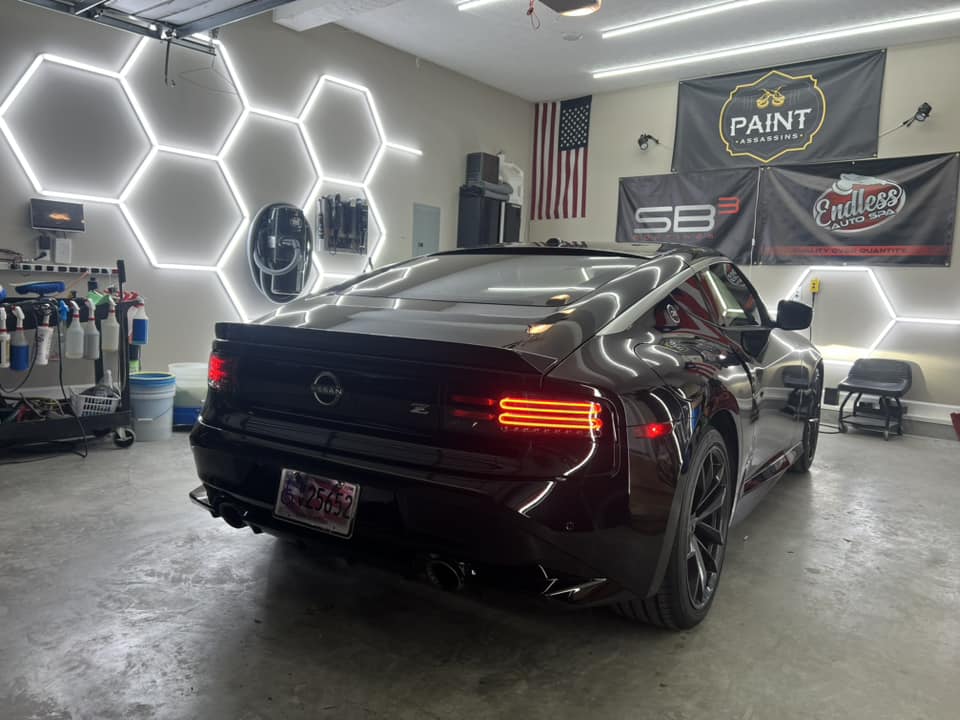

Managing Eye-Level Glare with Wall-Mounted Hexagon Panels
Effective glare management for wall-mounted hexagon panels requires mounting heights of 7-8 feet, a slight upward tilt of 10-15 degrees, and the integration of 0-10V dimming controls. While these fixtures are often celebrated for their aesthetic "wow factor," placing high-lumen LED sources at eye level introduces significant risks for retinal discomfort and reduced task visibility. By adhering to specific geometric heuristics and technical standards, installers can transform a wall into a functional feature without compromising visual ergonomics.
Mounting lighting systems on a vertical surface brings the light source closer to the user’s direct line of sight compared to traditional ceiling installations. This proximity necessitates a rigorous approach to placement, focusing on the Unified Glare Rating (UGR) and the user's cone of vision.
The Physics of Glare in Vertical Installations
In professional lighting design, glare is quantified through the Unified Glare Rating (UGR), a standardized method developed by the International Commission on Illumination (CIE) to evaluate discomfort glare in interior spaces. For most industrial and workshop environments, a UGR of 22 or lower is targeted to prevent eye strain. However, wall-mounted panels often exceed these thresholds because they occupy the "off-axis" peripheral vision where the human eye is highly sensitive to high-contrast luminance.
The primary mechanism of discomfort in these setups is direct glare, which occurs when a light source of high luminance enters the field of view at an angle that creates a significant contrast with the surrounding surfaces. According to the IES RP-7-21 Recommended Practice for Lighting Industrial Facilities, maintaining uniform vertical illuminance is critical, yet excessive brightness at eye level can lead to "disability glare," where the ability to see detail is physically impaired.
Methodology Note: Our analysis of glare perception assumes a standard "matte" wall finish (reflectance ~0.5) and a user eye level of 42 inches for seated tasks or 64-70 inches for standing tasks, based on common ergonomic heuristics.
Geometric Placement and the 30-Degree Rule
A common installation error involves mounting hexagon grids at "artwork height"—typically 57 to 60 inches from the floor. For a seated user, whose average eye level is approximately 42 inches from the ground, this placement puts the light source directly in the primary line of sight.
To mitigate this, professional installers utilize the 30-Degree Cone Heuristic:
- The Rule: Any high-luminance source within a 30-degree vertical cone above the user's horizontal line of sight will likely cause discomfort glare.
- The Solution: Mount the lowest edge of the hexagon grid at 7 to 8 feet (approx. 84-96 inches). This height places the majority of the light emission outside the sensitive central field of vision.
Furthermore, angling the panels 10 to 15 degrees upward (using custom brackets or standoffs) redirects the primary beam toward the ceiling. This technique utilizes the ceiling as a secondary reflector, creating "bounce light" or indirect illumination. This approach significantly reduces the perceived luminance of the panel itself while maintaining high ambient light levels in the room.
Placement Checklist for Task Areas
- Perpendicular Orientation: For workbenches or detailing stations, mount panels on side walls perpendicular to the line of sight rather than directly in front of the user.
- Mounting Height: Ensure the bottom of the grid is at least 24 inches above the standing eye level of the tallest frequent user.
- Surface Diffusion: Prioritize panels with micro-prism diffusion or matte polycarbonate covers. According to technical benchmarks, matte surfaces diffuse light through tiny surface bumps, which reduces sharp glare even if it slightly softens the visual edge of the hexagon shape.
Technical Controls and Optical Mitigation
Visual comfort is not solely a product of geometry; it is also a function of intensity. Dimmability is a critical glare management tool rather than just a luxury feature. Most high-performance hexagon kits utilize the 0-10V Dimming Protocol, which uses a low-voltage analog signal to adjust brightness from minimum to 100% Source: Boqi LED.
The 70-80% Output Heuristic: In many workshop and gym scenarios, setting panels to 70-80% of their maximum output provides sufficient task lighting while reducing the "veiling luminance" that causes eye fatigue. This is particularly effective when working with high-reflectivity surfaces like white walls or polished automotive clear coats.
Color Consistency and Visual Comfort
Glare perception is exacerbated by inconsistent color temperatures (CCT). If a wall-mounted panel is 6500K (Cool Daylight) and an adjacent task light is 4000K (Neutral White), the visual system must constantly adapt to different spectral power distributions, increasing fatigue. Installers should verify that all fixtures comply with ANSI C78.377-2017, which defines the standard quadrangles for solid-state lighting to ensure chromaticity consistency within a single space.
Modeling Visual Comfort: The Tall User Scenario
To demonstrate the practical application of these heuristics, we modeled a "Tall Fitness Enthusiast" scenario. In this model, we evaluated the electrical and visual requirements for a 6'4" user in a 180 sq ft garage gym conversion.
Modeling Note (Reproducible Parameters)
This scenario represents a deterministic parameterized model used to validate mounting heights and electrical safety. It is a scenario model, not a controlled lab study.
| Parameter | Value | Unit | Rationale / Source |
|---|---|---|---|
| User Eye Level (Standing) | 70 | inches | 6'4" user average standing height |
| Mounting Height (Bottom) | 84 | inches | Recommended 7-foot minimum |
| Panel Upward Tilt | 15 | degrees | Heuristic for bounce light |
| Tube Count (Estimate) | 58 | count | Based on balanced hex tiling for 180 sq ft |
| Total Power Draw | 406 | W | 7W per tube segment (Hyperlite Spec) |
| Circuit Voltage | 120 | V | Standard US residential |
| NEC Continuous Load Limit | 1920 | W | 80% of a 20A circuit |
Analysis of Findings: For a user at this height, mounting the panels at the standard "artwork height" of 60 inches would place the center of the grid 10 inches below eye level, creating severe direct glare. By elevating the grid to 84 inches and angling it 15 degrees upward, the primary light emission is directed away from the eyes.
Economic Logic Summary: Our Total Cost of Ownership (TCO) analysis indicates that a 58-tube hexagon system (406W) consumes more power than a traditional 300W fluorescent setup, resulting in a marginal annual energy cost increase of ~$24.76 (at $0.16/kWh). However, maintenance savings from avoiding fluorescent tube replacements (~$37.41/year) result in a net annual savings of $11.25. While the payback period is long, the primary ROI for this user is the psychological motivation and visual comfort provided by a professional-grade atmosphere.
Compliance, Safety, and Electrical Integrity
When installing wall-mounted LED systems, especially in high-density configurations like hexagons, electrical safety and electromagnetic interference (EMI) must be addressed.
UL and ETL Certification
Every fixture should bear the mark of a Nationally Recognized Testing Laboratory (NRTL) such as UL Solutions or Intertek (ETL). These certifications, specifically UL 1598 for luminaires and UL 8750 for LED drivers, ensure the product has been tested for thermal safety and electrical shock prevention. This is non-negotiable for B2B applications and highly recommended for DIY garage enthusiasts to maintain insurance compliance.
FCC Part 15 Compliance
Cheap LED drivers are notorious sources of electromagnetic interference. According to FCC Part 15 regulations, electronic devices must not emit harmful radio frequency interference. In a workshop or home office, non-compliant lights can interfere with Wi-Fi signals, radio reception, or sensitive diagnostic equipment. Professional-grade panels include shielded drivers that mitigate this risk.
NEC Continuous Load Limits
The National Electrical Code (NEC) mandates that lighting circuits be treated as continuous loads (operating for 3 hours or more). This requires that the total load not exceed 80% of the circuit breaker's rating. For the 406W system modeled above, the draw is only 3.38A, which is well within the 16A limit of a standard 20A circuit. However, installers must respect the manufacturer's "daisy chain" limits—typically 440W per power injection point—to prevent overheating the internal wiring of the hexagon tubes.
For a broader perspective on the future of professional lighting, refer to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.
Summary and Practical Checklist
Managing glare from wall-mounted hexagon panels is a balance of geometric precision and technical control. By moving the light source out of the 30-degree cone of vision and utilizing dimming controls, users can enjoy the high-impact aesthetics of modular lighting without the physiological cost of eye strain.
Final Installation Checklist:
- Height: Minimum 7 feet from the floor to the bottom edge of the grid.
- Angle: 10-15 degree upward tilt for indirect bounce light.
- Controls: Install a 0-10V compatible dimmer; set to 75% for standard tasks.
- Compliance: Verify UL/ETL marks on both the panels and the power supply.
- Wiring: Ensure the total wattage per injection point does not exceed 440W.
- Consistency: Match CCT across all fixtures to prevent visual adaptation fatigue.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical, engineering, or medical advice. Improper installation of electrical fixtures can lead to fire, injury, or death. Always consult a licensed electrician and adhere to local building codes (NEC/CEC) before beginning any lighting project.
