The Electrical Blueprint for High-Performance Garage Lighting
Choosing between round high bays, linear strips, or hexagon grids isn't just an aesthetic decision—it is a complex electrical engineering task. For a professional contractor or a serious DIYer, the primary constraint isn't how many lumens you want, but how much power your existing infrastructure can safely deliver.
In our experience auditing residential workshops and commercial garages, the most common failure point isn't the LED chip itself; it is the failure to account for voltage drop, circuit capacity, and thermal management. Before you drill a single hole, you must understand that a 200W industrial fixture and a 200W hexagon kit have vastly different wiring requirements.
This guide provides the technical framework to evaluate these systems against the National Electrical Code (NEC), regional energy standards like California Title 24, and real-world performance data.
1. Electrical Infrastructure: The Voltage and Circuit Reality
The "power need" of your garage is defined by your breaker panel. Most residential garages operate on 120V circuits, typically 15A or 20A. Commercial spaces often utilize 277V. This distinction is critical because it dictates your maximum fixture count per circuit.
Circuit Capacity and the 80% Rule
Per NEC guidelines for continuous loads (lighting that stays on for 3+ hours), you should never exceed 80% of a circuit's rated capacity.
- 15A Circuit (120V): 1,800W total capacity → 1,440W usable.
- 20A Circuit (120V): 2,400W total capacity → 1,920W usable.
If you are planning a high-output workshop with multiple 200W+ fixtures, you may quickly hit these limits, especially if the same circuit powers your table saw or air compressor.
| Fixture Type | Typical Wattage | Voltage Range | Wiring Method |
|---|---|---|---|
| UFO High Bay | 100W – 240W | 120-277V | Hardwired / US Plug |
| Linear High Bay | 130W – 400W | 120-277V | Hardwired / Chain Mount |
| Hexagon Kit | 5W – 8W (per tube) | 100-240V | Multi-Point Injection |
The 277V "Gotcha"
We often see DIYers purchase commercial-grade fixtures only to realize they require 277V. While many modern LED drivers are "universal" (120-277V), always verify the spec sheet. Running a 277V-only fixture on 120V will result in a failure to strike or extreme dimming, while the inverse can cause immediate driver failure and fire hazards.
2. UFO High Bays: High-Output Efficiency and the "Cave Effect"
UFO (Round) high bays are the industry standard for high-ceiling applications (12ft to 25ft). They are prized for their high efficacy—often reaching 140+ lumens per watt (lm/W), which aligns with DesignLights Consortium (DLC) Premium requirements.
The Photometric Challenge
The biggest mistake in small-to-medium garages is using UFO lights at low mounting heights (under 10ft). Because UFOs typically have a concentrated beam angle (90° to 120°), they create a "Cave Effect": intense hotspots directly beneath the fixture and deep, hazardous shadows in the corners and under workbenches.
ROI and TCO Modeling
For facility managers, the transition from 400W Metal Halide (MH) to 180W LED UFOs is the most effective way to reduce operating costs.
Modeling Note (ROI Analysis): We modeled a 720 sq ft workshop (30x24 ft) upgrading from six 400W MH fixtures to six 180W UFO LEDs.
- Annual Energy Savings: ~$800 (based on 3,000 hours/year at $0.16/kWh).
- Maintenance Savings: ~$366 (avoided lamp/ballast replacements).
- Payback Period: ~1.1 years (assuming $600 in utility rebates).
- Boundary Condition: This assumes heavy usage. For occasional DIY use (500 hours/year), the payback extends to ~4-5 years.
3. Linear High Bays: The Uniformity Specialists

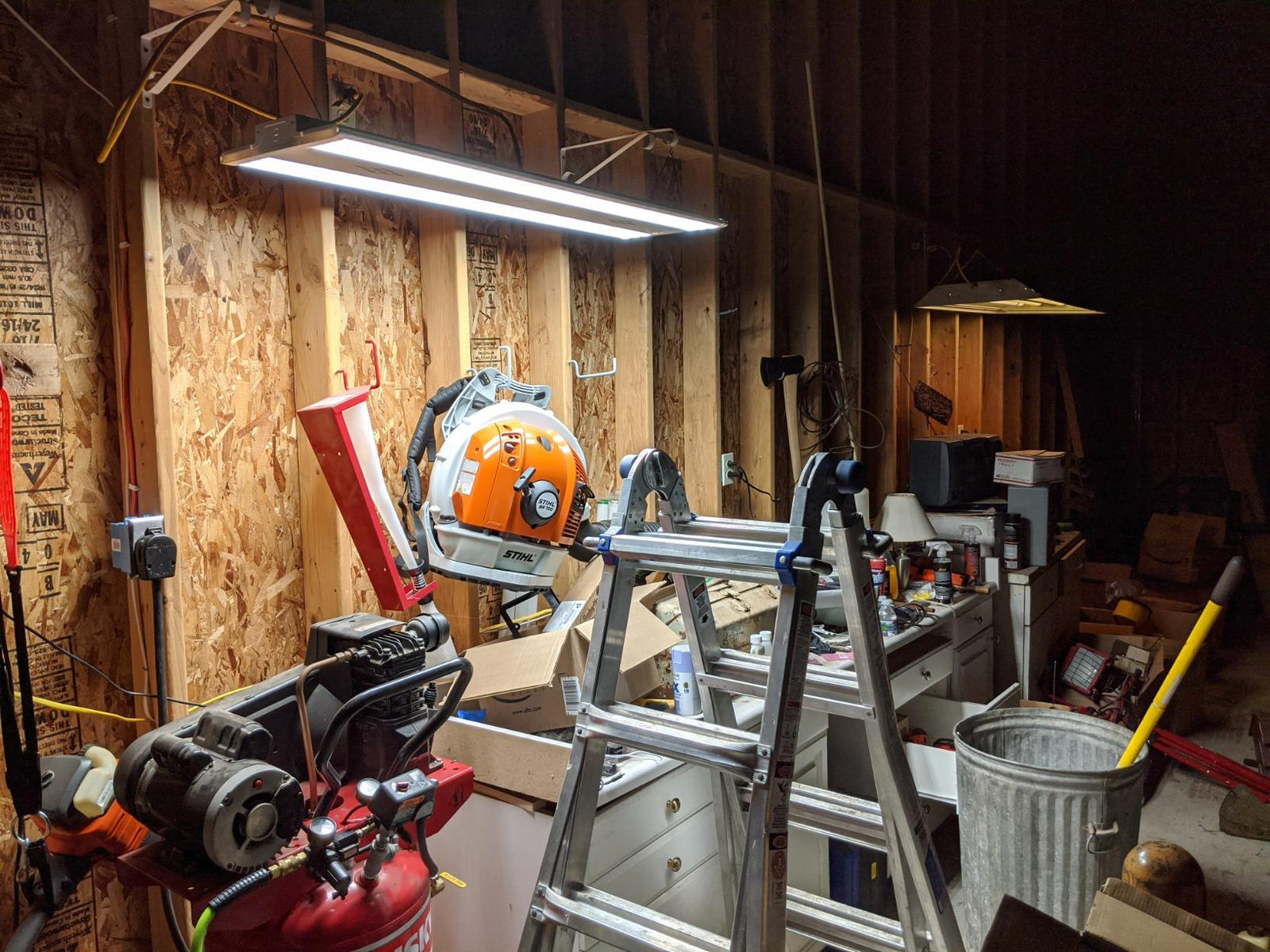

If your garage has a ceiling height between 8ft and 15ft, linear high bays are generally the superior choice. Their elongated shape and wider beam distribution (often 110°) provide much better uniformity than round fixtures.
Spacing and Uniformity
To achieve a professional-grade uniformity ratio (0.7 or higher), linear fixtures must be spaced correctly. A common heuristic is to space fixtures no more than 1.2 to 1.5 times their mounting height. For example, if your lights are mounted at 10ft, they should be no more than 15ft apart. Exceeding this creates "stripes" of light and dark that cause eye fatigue during detailed tasks like woodworking or automotive wrapping.
The Daisy-Chain Advantage
Unlike UFO lights, which typically require individual home-run wiring, many linear fixtures are designed for daisy-chaining. This reduces the number of junction boxes and can cut installation labor by 30-50%. However, you must monitor the total amperage of the chain to ensure the internal wiring of the first fixture isn't overloaded.
4. Hexagon Grids: Aesthetic vs. Electrical Complexity
Hexagon lighting systems have surged in popularity due to their "showroom" aesthetic and high Color Rendering Index (CRI). However, they represent the highest electrical complexity for a DIY installer.
The Voltage Drop Problem
A large hexagon grid for a two-car garage can consist of over 200 individual LED tubes. If you attempt to power this entire grid from a single injection point, you will experience voltage drop.
- Symptom: The tubes furthest from the power source will be noticeably dimmer.
- Risk: The driver at the start of the line will experience increased thermal stress.
Practitioner Tip: For any hexagon run exceeding 50 feet of total tube length, we recommend using at least two power injection points. For a full 30x24 ft workshop grid, our modeling suggests four injection points to maintain uniform brightness and driver longevity.
IP Ratings and Dust
Many consumer-grade hex lights are only IP20 rated. In a garage workshop where sawdust or automotive spray is present, dust ingress will quickly degrade the LEDs. We recommend fixtures with at least an IP54 rating, as defined by IEC 60529, to ensure the system reaches its rated LM-80 lifespan.
5. Advanced Controls: 0-10V Dimming and Sensors
To meet modern energy codes like ASHRAE 90.1 or IECC 2024, most commercial garage projects now require dimming or occupancy sensors.
0-10V Dimming: The Class 2 Rule
0-10V dimming is the professional standard for flicker-free control. However, it requires two additional low-voltage wires.
- The Mistake: DIYers often run these low-voltage wires in the same conduit as the 120V line voltage.
- The Consequence: Electrical interference (EMI) can cause the lights to flicker or ghost (glow when off).
- The Fix: NEC requires Class 2 dimming wires to be physically separated from line voltage unless the dimming wires have an insulation rating equal to the line voltage wires.
Occupancy Sensors
In large storage garages, occupancy sensors can save significant energy. According to the U.S. Department of Energy (DOE), wireless occupancy sensors in active warehouse spaces typically yield a 15% energy savings. For a small garage, the ROI is marginal, but for a 10,000 sq ft facility, the payback is often under 3 years.
6. Thermal Management and Safety
High-output LED fixtures generate significant heat. While the "cold-forged aluminum" housings of premium UFO lights are excellent at dissipating heat, they rely on airflow.
- Insulation Clearance: If you are mounting fixtures to a ceiling with an insulated attic above, maintain a minimum 6-inch clearance from the insulation.
- Junction Box Temperature: Ensure your junction boxes are rated for at least 90°C. Ambient heat buildup in an unventilated garage attic can exceed the thermal limits of standard residential wire nuts and tape, leading to arcing.
- UL/ETL Verification: Always verify that your fixtures carry a UL Listed or ETL Listed mark. This ensures the product has been tested to meet UL 1598 safety standards for luminaires.
7. Comparative Selection Framework
| Selection Factor | UFO High Bay | Linear High Bay | Hexagon Grid |
|---|---|---|---|
| Best Ceiling Height | >15 Feet | 8 – 15 Feet | 8 – 12 Feet |
| Installation Difficulty | Low (Plug & Play) | Moderate (Chain/Hardwire) | High (Multi-Tube Assembly) |
| Light Uniformity | Moderate (Hotspots) | High (Even) | Very High (Shadowless) |
| Electrical Load | High (Single Point) | Distributed (Daisy-Chain) | Complex (Multi-Point) |
| Professional Use | Warehousing / Heavy Mfg | Woodworking / Detailing | Car Showrooms / Gyms |
For a deeper dive into the latest trends and specifications for the coming year, consult the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.
Appendix: Methodology & Modeling Note
The data points referenced in this article are derived from a deterministic scenario model of a 720 sq ft conditioned workshop.
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Legacy System | 458 | Watts | 400W MH + Ballast Factor |
| LED System | 180 | Watts | Commercial UFO Spec |
| Usage | 3,000 | Hours/Year | Heavy Workshop Use |
| Rate | 0.16 | $/kWh | US Residential/Comm Avg |
| Rebates | 600 | Total $ | Utility Program Estimate |
Boundary Conditions: These calculations assume a conditioned space (HVAC interactive effects included). In unconditioned spaces, the cooling credit (~$41/year) would be zero. The hexagon load calculation (231 tubes) is based on a "balanced" tiling mode for a 30x24ft area; actual tube counts may vary by ±10% based on specific perimeter offsets.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or financial advice. Always consult a licensed electrician and adhere to your local building codes (NEC/NFPA 70) before performing electrical work. Improper installation can lead to fire, injury, or voiding of property insurance.
References
- DesignLights Consortium (DLC) Qualified Products List
- IES LM-79-19 Standard (Optical/Electrical Measurement)
- UL Solutions Product iQ Database
- DOE Wireless Occupancy Sensors Guide
- 2026 Commercial & Industrial LED Lighting Outlook
