For good garage door light placement, put fixtures only in ceiling zones that stay clear of your door panel, tracks, and opener. Check each zone with the door closed, fully open, and moving. A clear spot also has to light the area you care about most, such as the parking bay or a workbench.
If no ceiling spot passes both tests, compare a wall, side, or task-light position before you buy. No single clearance number fits every garage. Door size, track style, and opener mounting all vary, so build the layout from your own garage.
Where Should Garage Lights Go When the Door Moves?
A good fixture zone passes two separate tests: clearance and usefulness. Clearance means the door panel, tracks, and opener never touch the zone, block it, or sit right under it in any door position. Usefulness means light from that zone actually lands on your priority area.
Each test can fail without the other. Here's an illustrative case. A spot above the hood of a parked car looks wide open when the door is shut. Then the door rolls up and the panel parks right under it, so the light falls on the back of the door instead of the car. Another spot might stay clear in every position but sit in a corner far from the workbench. Neither spot is a real candidate.
So treat the empty-ceiling plan as a rough draft. A zone makes your shortlist only after it clears the door's full path and still serves the job. Any zone that fails either test gets moved, dropped, or replaced with a position off the ceiling.
Map the Door's Full Path Before Marking Fixtures
Mark your candidate ceiling zones first. Then check each one against the door in three states. The open position and the travel path often block different parts of the ceiling than the closed door does, so one look with the door down is not enough.

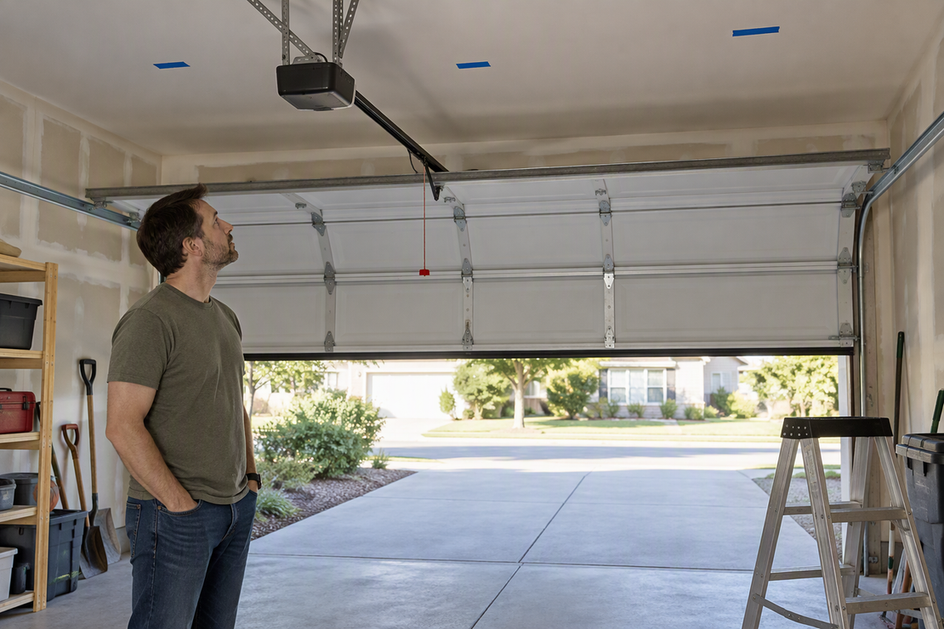

Painter's tape or chalk on the ceiling works well. Paper also works, or you can try our online lighting layout tool. Watch from beside the door's path, not under it, while someone runs the door slowly.
| Door state | What to observe | Effect on candidate zones |
|---|---|---|
| Closed | Opener power head, rail, and fixed track sections | Drop zones on or touching fixed hardware |
| Open | Where the panel rests under the ceiling | Drop or shift zones the panel covers or shades |
| Travel | Panel along the track curve; trolley along the rail | Keep only zones clear for the full motion |
Check the tracks and opener as their own items, not just as part of the panel. The panel moves, but the rail, power head, and track hangers stay fixed. They can rule out a zone even when the panel never reaches it.
Opener documentation can show where that hardware has to go. For example, the Genie opener manual for models 2022/2024/2042 tells owners to check the ceiling where the power head will mount. It also notes that ceiling joists may not sit where the opener needs them. That manual covers opener mounting, not light placement, but it shows that the opener's spot can be set before you ever pick a light. Whatever zones survive all three rows make up your working map.
Match Clear Fixture Zones to the Job
An overhead-only layout works when at least one clear zone also serves your priority task. If every clear zone misses that task, compare another position rather than forcing the ceiling plan.
Start by naming the job. For general coverage of a parking or storage bay, several clear zones spread across the ceiling may be enough. If you need help spreading fixtures across one or two bays, you can plan a hexagon layout around the zones you kept. A workbench is a tighter target. The light has to land on the bench surface, and a clear zone across the garage may not do that.
Next, compare your surviving zones with the task area:
- A clear zone sits over or near the task. Keep the ceiling-only plan and move on to checking fixture size.
- Clear zones exist but miss the task. Use them for general light, then compare a wall, side, or task-light position for the bench alone.
- No useful clear zone exists. Look at positions off the ceiling for both general and task light.
Do you work with the door open? Then also think about where the light goes outside. This Old House notes that flood-style high bay lights can throw light well past the garage. It suggests flush-mount or recessed options when the workspace faces neighboring homes. Once you know which form fits, you can browse garage lighting or our hexagon light options with your zone sizes in hand.
Verify the Fixture's Installed Envelope Before Committing
A marked zone becomes a real choice only after the actual fixture fits inside it. The installed envelope is the full space a fixture takes up once mounted, including brackets, hangers, and any drop below the ceiling. It is not just the glowing face.
- Get the fixture's full dimensions. From its product information, note the length, width, and depth. Also note how it mounts: flush, on brackets, or hung on chains or cables. Mount style changes how far the fixture hangs down. For hanging fixtures, our guide to high bay mounts and glare control explains the mounting choices that change that drop.
- Lay that envelope over your marked path. Compare it with the panel, tracks, and opener in the closed, open, and travel positions you already taped off. Look at both side-to-side position and how low the fixture hangs. Our article on lateral spacing and vertical drop uses the same two checks for another overhead obstruction. If you have a Genie opener, the Genie support page lists owner's manuals and installation posters for confirming your hardware's position.
- Decide. Keep the candidate only if the full envelope clears the path in every state and still lights the selected task. If it fails, move the zone, choose a fixture with a smaller or flatter envelope, or switch to the alternate position you compared earlier.
Wiring, circuit work, and local code questions stay with a licensed electrician. This check only confirms that the fixture fits the space.
FAQs
What fixture dimensions should I compare against the door path?
Compare the installed size, not the size of the light panel alone. Include the mounting bracket or canopy, any chains or cables, and the total depth below the ceiling. A fixture that looks narrow enough can still hang low enough to meet the open door.
Do tracks and opener hardware need their own check?
Yes. The panel moves, but the opener rail, power head, and track hangers stay put and take up ceiling space in every door state. A zone the panel never reaches can still be blocked by fixed hardware, so mark that hardware first.
What if my workbench has no clear ceiling spot?
Light the rest of the garage from the clear zones. Then compare a wall-mounted, side, or bench-level task light just for the workbench. Choose the option that lights the bench surface without crossing the door's path.
If I mostly park with the door closed, can I skip the open-door check?
No. The door still passes through its open and travel positions every time you pull in or out. A fixture placed only for the closed door can be hit or shaded during those moments.
