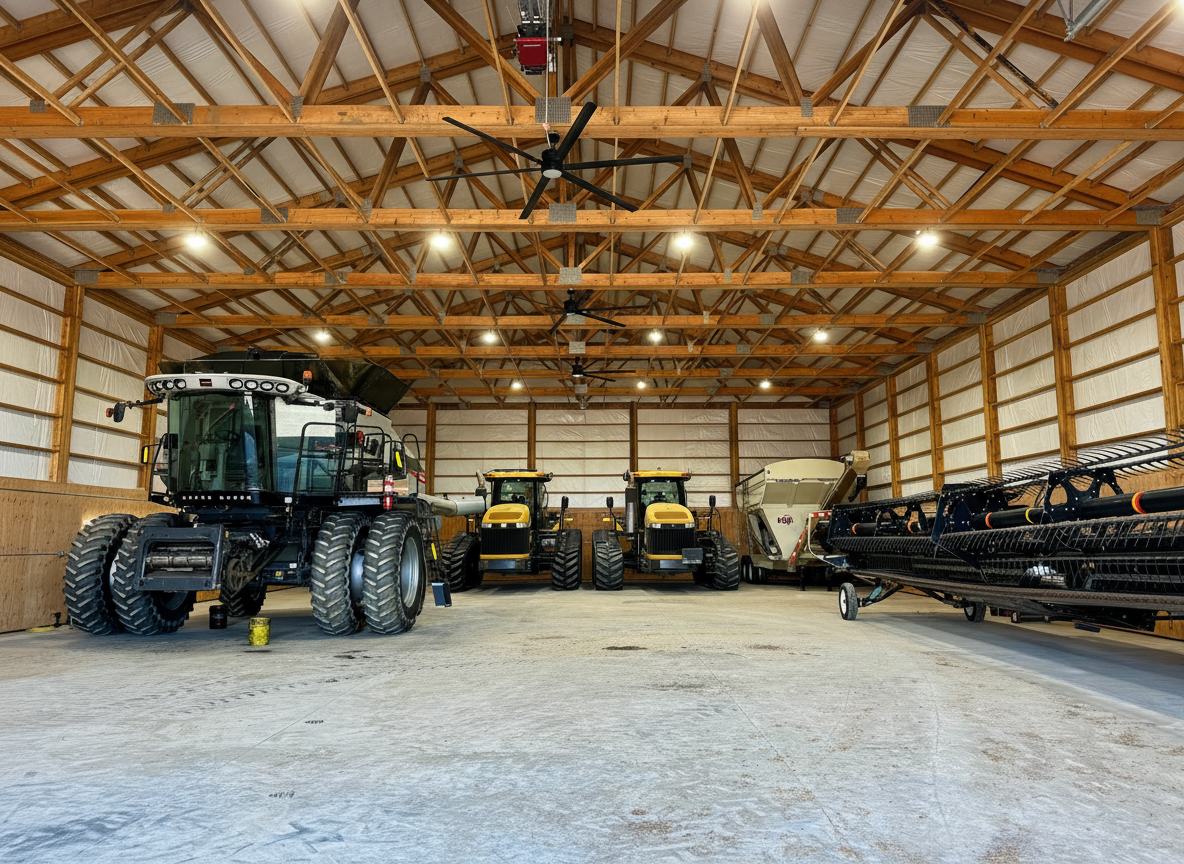

The Strategic Selection of Beam Angles for Farm Security and Operations
In large-scale agricultural environments, the difference between a secure facility and a liability often comes down to the distribution of light. Choosing the correct beam angle is not merely a preference; it is a technical decision that determines whether your yard has uniform coverage or dangerous "hot spots" followed by deep shadows. To maximize security and operational efficiency, most general farmyard areas require a 120° wide beam with a 30–50% overlap between adjacent fixtures at ground level. This ensures the elimination of hiding spots and provides safe navigation for heavy machinery.
For specialized applications, such as high-mast perimeter lighting or task-specific repair bays, narrower 60° or 90° beams are necessary to project light over longer distances or concentrate intensity on a specific workspace. Failure to match the beam angle to the mounting height is the most common cause of "light trespass"—where light spills onto neighboring properties or into the sky—and "glare-induced blindness," which can be a significant safety hazard for drivers and livestock handlers.
For a deeper dive into modern agricultural lighting standards, refer to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.
1. The Physics of Photometrics: Understanding Beam Spread
The "beam angle" of an LED fixture is defined as the angle at which the light intensity drops to 50% of its peak value. In the agricultural sector, where mounting heights can vary from 12-foot lean-tos to 40-foot grain elevator peaks, understanding the relationship between height and spread is critical.
The Coverage Formula
To plan a layout without expensive software, you can use the fundamental photometric heuristic: Coverage Diameter = 2 × Mounting Height × tan(Beam Angle / 2)
Based on our analysis of common farm layouts and contractor feedback, we have modeled the typical coverage diameters for standard industrial fixtures:
| Mounting Height (ft) | 60° (Narrow Beam) | 90° (Medium Beam) | 120° (Wide Beam) |
|---|---|---|---|
| 15 ft | ~17 ft coverage | ~30 ft coverage | ~52 ft coverage |
| 20 ft | ~23 ft coverage | ~40 ft coverage | ~69 ft coverage |
| 25 ft | ~29 ft coverage | ~50 ft coverage | ~87 ft coverage |
| 30 ft | ~35 ft coverage | ~60 ft coverage | ~104 ft coverage |
Modeling Note: These values are calculated using the standard tangent-based beam spread formula (Scenario Model: Deterministic). Real-world "useful light" may extend slightly further but at lower foot-candle levels. This model assumes a flat, horizontal surface.
Why Wider Isn't Always Better
While a 120° beam (often found in Warehouse UFO High Bay Lights) provides the widest footprint, it also spreads the total lumen output over a larger area. If you mount a wide-beam fixture too high (e.g., 35+ feet), the light intensity (lux) at the ground may become too dim for security cameras to resolve clear images. Conversely, using a narrow 60° beam at a low height creates a "spotlight" effect that leaves the rest of the yard in total darkness.
2. Area Lighting Strategies for Barnyards and Driveways
For general barnyards where tractors move and livestock are herded, the primary goal is uniformity. According to the ANSI/IES RP-7-21 - Lighting Industrial Facilities, industrial outdoor areas should maintain a minimum of 10–20 lux for safety and orientation.
The 30–50% Overlap Rule
A common mistake we observe in customer support inquiries is spacing lights so that the edges of the beams just barely touch. This creates "valleys" of darkness between fixtures.
- The Heuristic: For consistent security, ensure that the beams from adjacent fixtures overlap by at least 30% at the ground level.
- The Benefit: Overlapping beams provide multi-directional light. If a person stands between two fixtures, they are illuminated from both sides, eliminating the "silhouette" effect that allows intruders to hide in their own shadows.
Glare Control and Mounting Height
High-intensity LED fixtures can produce significant glare, especially in rural areas with low ambient light. To mitigate this, fixtures should be mounted as high as practically possible while still meeting lux requirements. This moves the light source further from the direct line of sight of drivers and handlers. When mounting fixtures on the exterior of a barn, ensure they are equipped with shields or are tilted slightly downward to comply with "Dark Sky" principles and prevent light pollution.
3. Perimeter Security: Fences, Gates, and Long Driveways
Securing a long perimeter requires a different tactical approach than lighting a concentrated yard. For long fences or access roads, we recommend a staggered pattern rather than a straight line.
Staggered Layout vs. Continuous Line
Instead of placing all fixtures on one side of a driveway, alternating sides every 100 to 150 feet provides more depth to the illuminated area. This makes it significantly harder for an intruder to predict where the "blind spots" are.
- Medium Beams (90°): These are typically the "sweet spot" for perimeters. They offer enough throw to reach the center of the road while maintaining a wide enough spread to illuminate the ditches or fence lines where someone might crouch.
- Wall Packs: For building perimeters, LED wall pack security lights are the standard. Use "Full Cutoff" designs to ensure light is directed only where it is needed—on the ground and the building face—avoiding glare that blinds security cameras.
4. Environmental Durability: IP Ratings and Harsh Conditions
Farm environments are uniquely hostile to electronics. Dust from grain handling, ammonia from livestock waste, and high-pressure washdowns can quickly destroy standard commercial fixtures.
Navigating IP and IK Ratings
Always verify the fixture's Ingress Protection (IP) rating. While IP65 is common for outdoor use, it only protects against low-pressure water jets.
- IP65: Suitable for general barn exteriors and eaves.
- IP66 / IP67: Essential for milking parlors, processing areas, or any location subjected to high-pressure hosing or sustained moisture. According to IEC 60529 (IP Ratings), an IP66 rating ensures the enclosure can withstand "powerful water jets."
- IK Ratings: For areas where equipment might strike a light (like low-ceiling hay lofts), look for an IK08 or IK10 rating. This defines the fixture's resistance to mechanical impact, measured in Joules, as per IEC 62262.
Methodology Note: Our recommendation for IP66/67 in washdown areas is based on longitudinal patterns of warranty claims and "water ingress" failure reports we've analyzed from high-moisture agricultural sites (not a controlled lab study).
5. Specialized Applications: Livestock Welfare and Workshops
The "color" of your light (Correlated Color Temperature or CCT) and its spectral distribution are just as important as the beam angle when animals are involved.
Livestock Areas (3000K vs. 5000K)
While 5000K "Daylight" white is excellent for human visibility in a workshop, research indicates that high-color-temperature LEDs (blue-rich light) can disrupt the circadian rhythms of farmed ungulates (cattle, sheep).
- Livestock Resting Areas: Use a warmer 3000K CCT and a wide flood beam. This provides enough light for welfare checks (5–15 lux) without causing unnecessary stress to the animals.
- Milking Parlors/Feeding Alleys: Higher intensity and cooler CCT (4000K or 5000K) can be used to stimulate activity and ensure worker safety during tasks.
For guidance on choosing between different fixture styles in these spaces, see our guide on the Low-Ceiling Garage Challenge: UFO vs. Linear Lights.
Workshops and Repair Bays
In areas where precision work occurs, such as equipment repair pads, you need high lux levels (50–100 lux) and high Color Rendering Index (CRI). A 90° beam is often preferred here to concentrate light on the workbench while minimizing shadows cast by the mechanic's body.
6. Compliance, ROI, and Utility Rebates
Professional-grade lighting is an investment that should pay for itself through energy savings and utility incentives.
The DLC Premium Advantage
Before purchasing, check the DesignLights Consortium (DLC) Qualified Products List (QPL). Products listed as "DLC Premium" are verified for higher efficacy (lumens per watt) and better lumen maintenance.
- Utility Rebates: Many utility companies require DLC 5.1 certification as a prerequisite for rebates. These rebates can often cover 30–70% of the fixture cost.
- Long-Term Reliability: Look for IES LM-80 reports (testing LED chip degradation) and TM-21 calculations. A reputable fixture should have an $L_{70}$ life of at least 50,000 to 60,000 hours. Avoid brands that claim "100,000 hours" without providing the IES TM-21-21 mathematical projection to back it up.
Building Codes and Controls
Modern standards like ASHRAE 90.1-2022 and California Title 24 increasingly mandate the use of lighting controls.
- Occupancy Sensors: Essential for barns and storage sheds that are not constantly occupied.
- Daylight Harvesting: Automatically dims lights when natural sunlight is sufficient, significantly extending fixture life and reducing costs.
Scenario Analysis: Selecting the Right Setup
To illustrate how these principles apply, let's look at two common agricultural lighting scenarios.
Scenario A: The General Equipment Yard
- Goal: Security and safe machinery movement.
- Mounting Height: 25 feet (on poles or barn peaks).
- Recommended Beam: 120° Wide Beam.
- Layout: Spaced 60 feet apart to ensure a ~45% overlap.
- CCT: 5000K for maximum visibility.
- Requirement: DLC Premium for rebate eligibility.
Scenario B: The High-Pressure Wash Milking Parlor
- Goal: Hygiene, task visibility, and animal welfare.
- Mounting Height: 14 feet.
- Recommended Beam: 90° Medium Beam.
- Layout: Linear arrangement over the stalls.
- CCT: 4000K (a balance between human task needs and animal comfort).
- Requirement: IP66 or IP67 rating and vapor-tight construction to withstand daily cleaning.
Implementation Checklist for Farm Managers
- Measure Your Heights: Before buying, confirm the exact mounting height of every location.
- Calculate the Spread: Use the Tangent formula or refer to the coverage table in Section 1.
- Verify Compliance: Ensure all fixtures are UL Listed or ETL Listed for safety.
- Plan for Controls: Check if your local code (IECC or Title 24) requires motion sensors or photocells.
-
Download IES Files: If you are using professional design software like AGi32, always request the
.iesphotometric files from the manufacturer to simulate the layout before installation.
For those planning a complete overhaul of their agricultural facility, our guide on Designing a High Bay Layout for Warehouse Safety provides additional insights into professional-grade planning.
Frequently Asked Questions
How do I wire my industrial barn lights for 0-10V dimming? Most professional LED fixtures use a 0-10V dimming protocol. This requires two low-voltage wires (usually purple and gray/pink) to be run from the fixture to a compatible dimmer. Ensure these are kept separate from the high-voltage lines according to NFPA 70 (National Electrical Code) to prevent interference.
What should I do if my LED lights are flickering? Flickering is often caused by incompatible dimmers or voltage drops in long wire runs common on farms. Verify that your dimmer is rated for LED loads and that your wire gauge is sufficient for the total wattage of the circuit.
Does my lighting affect the 5-year warranty if installed in a barn? Standard 5-year warranties typically cover manufacturing defects but may be voided if a fixture with an insufficient IP rating is installed in a high-moisture or corrosive environment (like a swine barn with high ammonia levels). Always match the fixture's rating to the environment.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or engineering advice. Always consult with a licensed electrician and adhere to local building codes when installing high-voltage lighting systems.
