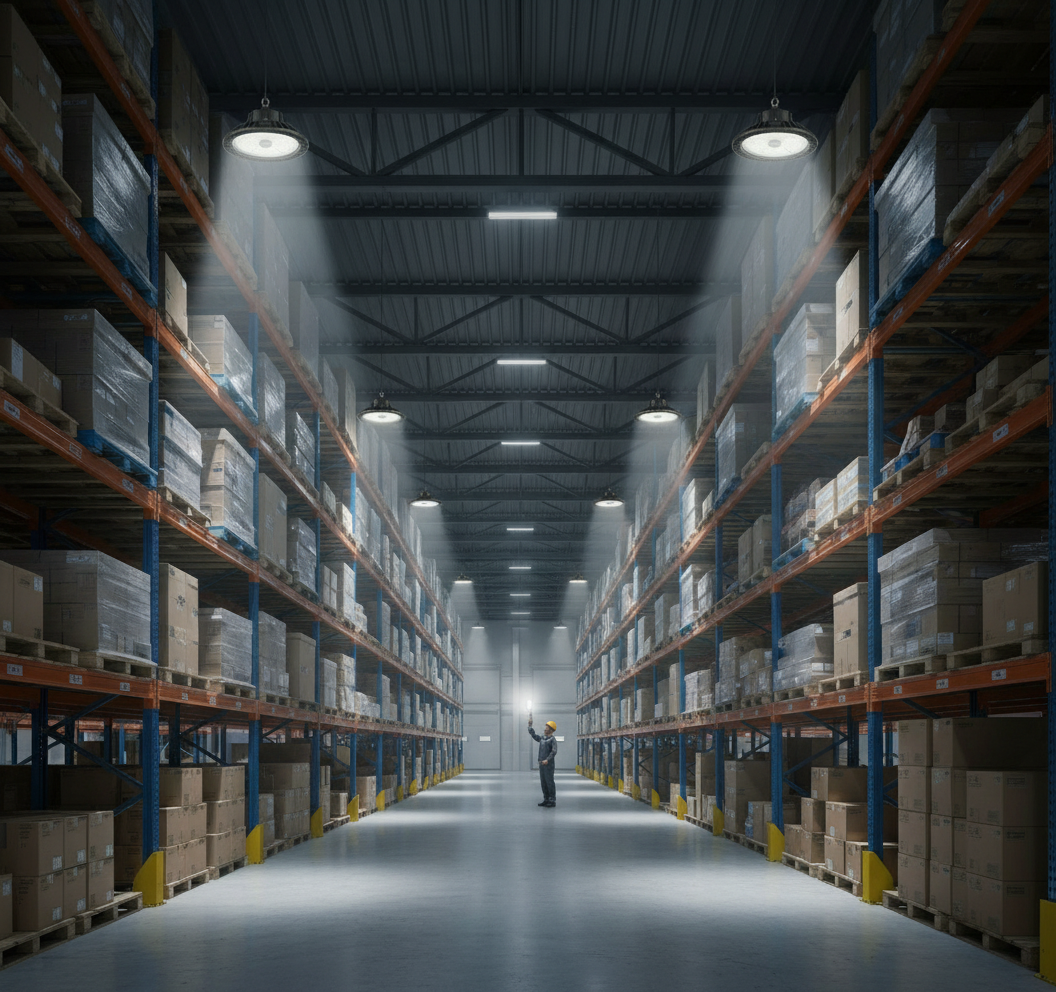

The Critical Intersection of Vertical Illuminance and Life Safety
In high-density warehousing, the path of egress is rarely a wide-open floor. It is a narrow canyon of steel racking and palletized inventory. For facility managers and electrical contractors, planning emergency lighting in these environments requires moving beyond horizontal footcandle (fc) averages. The primary objective is to ensure that in a power failure, the 1 footcandle (10.8 lux) minimum egress illumination required by NFPA 101 (Life Safety Code) is met not just on the floor, but in a way that allows personnel to navigate past rack obstructions safely.
The technical challenge lies in the geometry. Standard symmetrical LED high bays often "waste" lumens on the top of racks or create hot spots on the floor while leaving the vertical faces—where labels and safety signage reside—in shadow. To solve this, project-ready designs now favor aisle-optic distributions. These specialized lenses shape the light into a long, narrow rectangle (typically a 30° x 70° or 40° x 100° beam), concentrating intensity where it is needed most.
According to the authoritative industry white paper 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the transition toward application-specific optics is the hallmark of a "Value-Pro" strategy, balancing high-performance safety with reduced fixture counts.
1. Compliance Framework: NFPA 101 and NEC Requirements
Emergency lighting isn't a recommendation; it is a legal mandate enforced by the Authority Having Jurisdiction (AHJ). For narrow aisle racking, two primary standards dictate the design: NFPA 101 and NFPA 70 (National Electrical Code - NEC).
Minimum Illumination and Duration
Under emergency power loss conditions, the system must automatically activate and provide:
- Initial Average Illumination: 1 footcandle (10.8 lux) along the path of egress at the floor level.
- Minimum at Any Point: 0.1 footcandle (1.1 lux).
- Duration: At least 90 minutes of continuous operation.
- Uniformity Ratio: A maximum-to-minimum ratio of 40:1 to prevent dark spots that cause "visual adaptation lag" for exiting personnel.
Automatic Activation and Reliability
The NFPA 101 requires that emergency lighting for the path of egress automatically turn on in response to normal power loss. This is typically achieved through one of three methods:
- Individual Battery Backups (BBU): Integrated drivers within the LED high bay that switch to a DC battery source.
- Central Inverters: A large-scale UPS system that provides AC power to designated "emergency" fixtures.
- Emergency Generators: Coupled with an Automatic Transfer Switch (ATS) that must engage within 10 seconds of power failure.
Methodology Note: These requirements are derived from NFPA 101, Section 7.9. Our design logic assumes a standard warehouse ceiling height of 25–40 feet, where light attenuation is a significant factor in meeting the 1 fc floor requirement.
2. Engineering Vertical Illuminance in Narrow Aisles
While codes focus on the floor, operational safety and efficient egress depend on vertical illuminance. This is defined as the amount of light landing on a vertical surface, such as a rack face or a pallet.
Why Aisle Optics Outperform Symmetrical Beams
In a narrow aisle (typically 8 to 10 feet wide), a standard round beam (symmetrical) will strike the top shelves at an acute angle, creating high-glare "hot spots" at the top and deep shadows at the bottom. This is inefficient and can lead to "rack shadows" that hide egress obstacles.
Aisle-optic fixtures utilize a specialized lens—often made of high-transmittance polycarbonate—to stretch the light pattern. This results in:
- Increased Vertical Footcandles: Targeting 10–20 fc at a 5-foot height on the rack face.
- Glare Reduction: By directing light downward rather than outward, these fixtures often achieve a Unified Glare Rating (UGR) as low as 10, significantly improving visibility for forklift operators and personnel in emergency scenarios.
- Higher Efficiency: More lumens reach the work plane (the floor and rack faces) rather than the tops of the racking.
| Metric | Symmetrical High Bay (Standard) | Aisle-Optic High Bay (Project-Ready) |
|---|---|---|
| Beam Shape | Circular (120°) | Rectangular (e.g., 40° x 100°) |
| Lumen Waste | High (hits rack tops) | Low (concentrated in aisle) |
| Vertical fc (at 5ft) | 5–8 fc | 12–20 fc |
| Max Spacing (1.2x Height) | 36 ft (at 30ft MH) | 45 ft (at 30ft MH) |
| Compliance Proof | LM-79 / DLC Standard | LM-79 / DLC Premium |
Logic Summary: Our analysis of vertical illuminance assumes a "Narrow Aisle" configuration with a width-to-height ratio of less than 0.5. We use IES LM-63-19 photometric data to model these distributions in AGi32 software.
3. Planning the Emergency Path: Layout and Spacing
When designing the egress path through racking, the "emergency" fixtures must be strategically placed to maintain the 1 fc floor minimum while accounting for the "blocking" effect of the racks.
The Spacing Heuristic
A reliable rule of thumb for aisle-optic fixtures is to space them at a distance equal to 1.2 to 1.5 times the mounting height.
- Example: If fixtures are mounted at 30 feet, they should be spaced 36 to 45 feet apart along the center of the aisle.
However, for emergency circuits, every second or third fixture is typically designated as an emergency unit. If your standard spacing is 40 feet, but your emergency driver only produces 10% of the fixture's total lumens (a common limitation of integrated BBUs), you may need to designate every fixture in the aisle as an emergency unit to meet the 1 fc minimum.
Integration with Control Systems
Modern warehouse lighting often utilizes occupancy sensors to meet IECC 2024 or California Title 24 energy codes. It is critical that the emergency bypass works correctly with these sensors. According to research on emergency control integration, the emergency circuit must bypass local dimming or occupancy commands to force the fixture to 100% output (or its rated emergency output) during a power failure.
4. Verifying Performance: LM-79, LM-80, and .ies Files
Authoritative data is the only way to guarantee code compliance before the first fixture is hung. For professional-grade projects, facility managers must demand "unrebuttable evidence" of performance.
The LM-79 "Performance Report"
The IES LM-79-19 report is the performance report card for a fixture. It measures total luminous flux, electrical power, and efficacy. When planning emergency paths, the LM-79 data for the emergency mode of the fixture is vital. If a 20,000-lumen fixture drops to 2,000 lumens on battery power, your lighting layout must be calculated based on that 2,000-lumen figure.
Photometric Modeling (.ies files)
Without an IES LM-63-19 file, a lighting designer cannot accurately predict if the egress path will pass inspection. These files are imported into software like AGi32 to create a point-by-point calculation of the floor and vertical surfaces.
- Pro Tip: Always request the "Emergency IES file" specifically. Using the standard 100% output file and simply "scaling" it in software often leads to inaccuracies because LED drivers may distribute power differently in emergency DC mode.
DLC Premium and Utility Rebates
Utilizing the DesignLights Consortium (DLC) QPL is the most effective way to verify that a fixture meets high-performance standards for efficacy and color consistency (ANSI C78.377). High-efficacy fixtures (measured in lumens per watt) are easier to power via central inverters, as they draw less current for the same light output, potentially reducing the required size and cost of the inverter system.
5. Practical Installation and Field Verification
Even the best software simulation can fail a final AHJ inspection if real-world variables aren't managed. Based on common patterns from customer support and electrical contractor feedback, the following "gotchas" often occur:
Wiring and Dimming Circuits
Most professional high bays use 0-10V dimming. Under NEC (NFPA 70), dimming wires must be treated with care. Mixing Class 1 and Class 2 circuits in the same conduit without proper separation is a common code violation that can lead to interference or safety hazards. Ensure your emergency fixtures use UL 924 listed bypass relays to ensure they illuminate regardless of the dimmer's state.
Handheld Meter Verification
Post-installation, we highly recommend verifying light levels with a calibrated handheld light meter.
- Floor Level: Measure at 10-foot intervals along the center of the aisle.
- Rack Face: Measure vertical illuminance at the 5-foot "eye level" mark.
- The "Shadow Test": Stand between the fixture and the rack to ensure the "aisle-optic" distribution is effectively wrapping light around the rack edges.
Maintenance and Dirt Depreciation
Warehouses are dusty environments. The Light Loss Factor (LLF) used in your initial planning should account for dirt accumulation on the lenses. For IP65-rated fixtures (protected against dust and water per IEC 60529), maintenance is simpler as they can be hosed down, but a 10–15% depreciation factor is still a safe pragmatic baseline for long-term compliance.
6. ROI and Safety: The Business Case for Aisle-Optics
Investing in aisle-optic fixtures for emergency paths is not just a safety requirement; it is a financial optimization. By using fixtures that are "project-ready" with the correct beam spread, you can often:
- Reduce Fixture Count: Better light distribution means fewer fixtures are needed to meet the 1 fc minimum.
- Lower Installation Costs: Fewer fixtures mean less conduit, less wire, and fewer man-hours on a scissor lift.
- Maximize Rebates: High-performance aisle-optic fixtures are frequently listed as DLC Premium, qualifying for the highest tier of utility rebates via the DSIRE database.
ROI Calculation Example: If an aisle-optic fixture allows for 20% wider spacing than a symmetrical fixture (e.g., 48ft vs 40ft), a 500,000 sq. ft. warehouse could eliminate dozens of fixtures. At an estimated $300 per installed point (fixture + labor), the savings scale rapidly into the thousands of dollars.
Summary Checklist for Facility Managers
To ensure your narrow aisle racking emergency lighting path is code-compliant and optimized for performance, follow this checklist:
- [ ] Verify Optics: Ensure fixtures have a dedicated aisle-optic lens (not a standard 120° wash).
- [ ] Confirm Duration: Check that the BBU or Inverter provides at least 90 minutes of power.
- [ ] Check UL/ETL Listing: Ensure the entire assembly (fixture + emergency driver) is UL 1598 listed.
- [ ] Run Photometrics: Use AGi32 with .ies files to prove 1 fc on the floor and 10-20 fc on rack faces.
- [ ] Validate Rebates: Use the DLC QPL to ensure the model qualifies for local utility incentives.
- [ ] Plan for Maintenance: Select IP65-rated fixtures to combat dust-driven light loss.
Planning for the worst-case scenario requires the best-case data. By focusing on vertical illuminance and leveraging aisle-optic technology, you create a warehouse environment that is not only productive during the day but safe and navigable during an emergency.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional engineering, legal, or fire safety advice. Emergency lighting requirements vary by local jurisdiction and specific building use. Always consult with a licensed electrical engineer and your local Fire Marshal to ensure compliance with NFPA, NEC, and local building codes.
