Reducing tool shadow and coolant vapor problems when lighting a CNC bay with coolant mist exposure is really two separate decisions. First, aim layered light from more than one direction at the milling bed, tool holder, and touch-off probe. Second, verify that the fixture's lens and enclosure carry documented compatibility with your actual coolant or oil, since no lighting layout eliminates shadows completely and no ingress rating alone proves resistance to a specific fluid.
Get the geometry and the material verification right as independent steps, and the bay becomes easier to inspect and less likely to lose a fixture early to chemical exposure.
Key Takeaways
- Plan light from multiple directions aimed at the milling bed, tool holder, spindle, and touch-off probe to reduce self-shadowing; no layout removes every shadow.
- Metalworking fluids vary by formulation, so identify your exact coolant or oil before assuming any lens material will hold up.
- Neither acrylic nor polycarbonate is automatically coolant-resistant; require compatibility documentation for the actual fluid, concentration, and cleaning process used at your bay.
- An ingress rating like IP65 answers a sealing question, not a chemical-compatibility question; treat them as two separate checks.
- Confirm voltage, load, controls, and installation instructions before buying, and never let a lighting retrofit alter machine guarding or safe access.
Start with the visibility problem, not a lumen number
The right starting point isn't overall brightness. It's tracing where the operator's view of the work gets blocked, then matching light direction to that shadow path while treating fluid exposure as a separate check.
Milling bed and tool-holder visibility

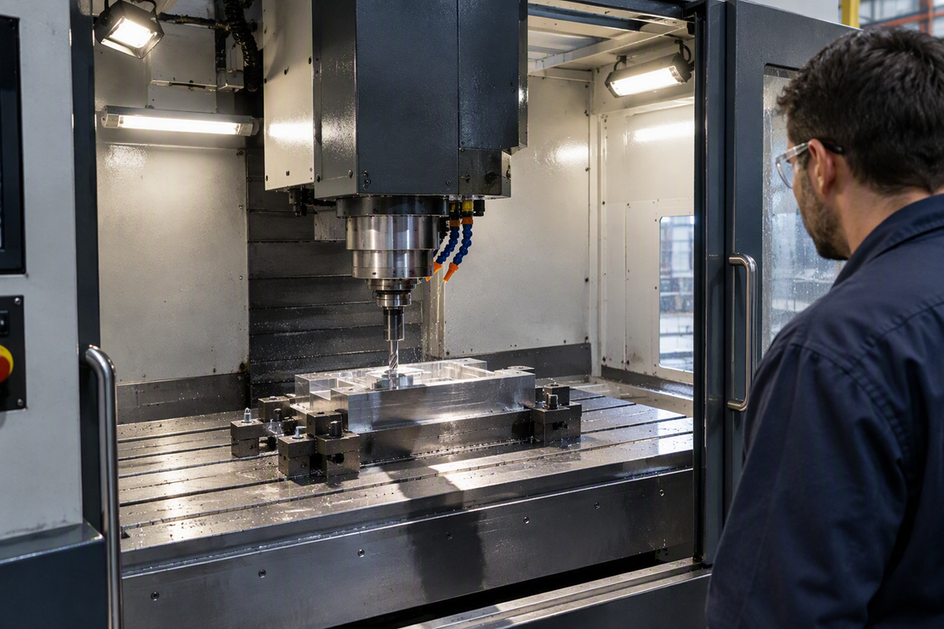

A tool holder, spindle housing, or chuck can block the operator's direct line of sight to the cutting zone even when the bay looks well lit overall. The fix isn't more lumens overhead; it's placing at least one light path that reaches the bed from an angle the obstruction doesn't cover. Think in terms of improving visibility and reducing self-shadowing rather than promising to eliminate shadows, since a single obstruction can still cast a partial shadow from any one direction.
Touch-off and probing visibility
A touch-off point or probe tip is a smaller, more precise target than the general work area, and it often sits closer to the tool holder that creates the shadow in the first place. The light direction that works for viewing the overall bed may not be the one that lets you see the probe clearly during setup. Treat this as its own task zone and check the view from the actual operator position, not from the aisle.
Metalworking fluids aren't one uniform substance: they range from straight oils to water-based, semisynthetic, and synthetic formulations, and machining can generate aerosols from any of them. That variability is exactly why identifying your metalworking fluid formulation comes before choosing a lens material, rather than assuming all coolant vapor or oil mist behaves the same way.
Choose lens material from the actual coolant or oil
Neither acrylic nor polycarbonate wins this comparison by name alone. The material that fits depends on the exact fluid, its concentration, temperature, and how the lens gets cleaned.
Acrylic: do not clear it by name alone
Acrylic (PMMA) is a common lens choice, but the compatibility evidence available for this guide does not establish that acrylic is suitable for oil mist or coolant vapor exposure generally. Before selecting it for a CNC bay, ask the fixture manufacturer for a compatibility statement or test result tied to your specific fluid rather than relying on acrylic's general reputation in other settings.
Polycarbonate: conditional, not automatically coolant-proof
Polycarbonate is often marketed as tougher and more chemical-resistant than acrylic, but that reputation is conditional, not automatic. Compatibility depends on the specific chemical, its concentration, operating temperature, mechanical stress on the lens, how long the exposure lasts, and what cleaning chemicals get used on it afterward. A PC label on a spec sheet does not by itself confirm the lens will hold up in your bay; you still need documentation for your fluid and cleaning routine. Our polycarbonate vs. acrylic comparison walks through how these variables change the outcome for chemical-exposed lighting.
What to document before choosing either lens
Before locking in a lens material, record the actual coolant or oil name (or its safety data sheet), the concentration and temperature it runs at, and any degreaser or cleaner used on the fixture. Then ask for compatibility evidence covering the complete lens, seal, and enclosure assembly, not just the raw sheet material. An ingress rating tells you whether liquid or dust can get past the housing; it doesn't tell you whether the lens will craze, yellow, or crack when that liquid is coolant instead of plain water. Our IP and chemical ratings guide explains how to read ingress and impact ratings alongside chemical-exposure questions instead of treating one as proof of the other.
Aim light from more than one useful direction
Fixture placement should follow the operator's actual viewing task at each machine, not a single overhead layout applied everywhere. Sketch the shadow path first, then add a second light direction only where it improves that specific view.
Enclosed mills with coolant vapor
- Mark where the operator normally looks into the machine during setup and inspection.
- Mark the shadow the tool holder or spindle casts across that view.
- Sketch a second useful light direction that reaches the bed from outside the obstruction, mounted only at surfaces the fixture and machine documentation permit.
- Check that the added light doesn't block enclosure doors, guards, cleaning access, or coolant flow.
Aiming light at the bed from a second angle does not mean the fixture contains or removes coolant vapor; that remains a separate ventilation and enclosure question.
Open milling workstations
- Mark the main positions where the operator stands to inspect or load the machine.
- Identify which direction the dominant shadow falls from at each position.
- Add or reposition a light path to cover the blocked view, using a side or opposing angle rather than only adding more overhead output.
- Recheck for new glare off machined or coolant-wet surfaces from each inspection position.
Open stations change more than enclosed ones because the operator moves around the machine, so a layout that works from one side may create glare from another.
Tool touch-off and probing points
Treat the probe tip or touch-off surface as its own visual target, separate from the general bed lighting. Validate the view by standing at the actual setup position and checking whether the probe is visible without squinting or repositioning, rather than judging the bay's lighting from the aisle. Our guide on reducing workshop shadowing around a vehicle lift uses the same layered-direction principle for a different obstruction, if you want to see the method applied to another task area.
Use symptoms to choose the next safe check
A visible symptom points to a likely cause and a next check, not a confirmed diagnosis. Match what you're seeing to the table below before assuming a brighter fixture will fix it.
| Symptom | Likely cause | Safe next check |
|---|---|---|
| Persistent tool-holder shadow | Single light direction blocked by the holder or spindle | Re-trace the operator's view and add a second light path from an open angle |
| Glare off machined or wet surfaces | Light angle reflecting directly into the operator's line of sight | Recheck the viewing angle from the actual work position and reposition or reangle the fixture |
| Lens haze, crazing, or cracking | Fluid, cleaner, heat, or stress incompatible with the lens material | Compare the lens material against your fluid's SDS and request compatibility documentation |
| Recurring mist deposit on fixtures | Vapor not being captured near the source | Review enclosure and ventilation controls rather than assuming a different light will help |
Persistent shadow and glare issues are usually geometry problems you can address with placement. Lens degradation and recurring mist deposits point toward material compatibility and containment, which are handled in the next section rather than by changing fixtures.
Verify the fixture and installation boundary before purchase
Before buying or retrofitting, work through the fluid, the lens, and the fixture's electrical and installation requirements in that order. Skipping ahead to a purchase decision without this sequence is the most common way a compatible-looking fixture turns out not to fit.
Verification order before purchase
- Record the actual coolant or oil and cleaning chemicals used at the bay, including the SDS if available.
- Obtain lens, seal, enclosure, and coating compatibility documentation for that specific fluid, not a generic material claim.
- Confirm the exact fixture's voltage, wattage, total load, control type, and installation instructions against your electrical setup.
- Compare the proposed mounting location against machine guards, service access, and cleaning clearance.
The enclosure and ventilation controls outlined in OSHA's metalworking fluids guidance address containment and aerosol exposure directly; lighting placement supports visibility but does not replace those controls.
What current product facts can and cannot prove
As one example of what a spec sheet does and doesn't establish, the current listing for our White Hero Series high bay light shows IP65, UL certification, AC 120-277V input, and selectable color temperature, and our HBG lens replacement page lists PC and glass lens options for the HBG/HBD Series. Those facts confirm ingress protection, electrical listing, and lens material for that specific configuration. They do not confirm chemical compatibility with your coolant or oil, and they do not establish that a fixture is approved for use inside or near a CNC enclosure. If you're evaluating lens options for an existing high bay, check the current HBG lens options page for the compatible series and material listed before assuming fit.
When to stop and get project-specific review
Stop the retrofit and get qualified, project-specific review if the proposed fixture location would change machine guarding or safe access, or if the project raises hazardous-location or code-compliance questions the available documents don't resolve. Lighting improvements do not substitute for machine guarding requirements, and a lighting-focused article can't determine site classification or wiring design for you.
FAQs
Can a portable task light replace fixed lighting at a CNC touch-off station?
A portable task light can serve as a temporary inspection aid during setup, but it requires its own environmental check for oil mist exposure and must never obstruct safety interlocks or operator clearance. It functions as a flexible supplement rather than a permanent substitute for balanced overhead lighting.
When should a CNC lighting retrofit get a professional layout or installation review?
Bring in a qualified installer or lighting planner when the retrofit would affect machine guarding or service access, when control or voltage requirements aren't clear from the fixture documentation, or when the layout spans a complex multi-machine bay. These triggers apply beyond the standard fluid-and-lens verification steps already covered above.
How does daily wipe-down cleaning affect CNC bay fixture lens longevity?
Using shop degreasers, harsh solvents, or abrasive shop towels to wipe mist accumulation off plastic lenses can accelerate surface micro-crazing, haze, and chemical breakdown. Always verify that cleaning solutions match the manufacturer's approved maintenance procedures and lens material specifications.
