The ROI of Optical Maintenance: Why Cleaning is Not Optional
In industrial lighting, the single most effective way to protect your return on investment (ROI) is not found in a software update, but in a microfiber cloth. Based on our scenario modeling for high-dust environments, failing to clean your high-bay fixtures can result in a 15–25% measurable light loss within just 6 to 12 months. For a facility manager, this is the equivalent of paying for a 200W fixture but only receiving the light output of a 150W unit due to surface fouling.
While most professionals focus on IES LM-80-21 (Lumen Maintenance Testing) to understand how an LED chip degrades over 50,000 hours, they often overlook "External Lumen Depreciation." In environments like woodshops, foundries, or grain silos, the accumulation of airborne particulates on the lens and reflector typically outpaces the internal degradation of the LED itself.
According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, maintaining optical clarity is a core pillar of professional-grade facility management. This guide details how to restore the photometric performance of your round industrial high bays without causing permanent chemical or mechanical damage to sensitive optical components.
The Physics of Fouling: How Dust Destroys Photometry
To understand why cleaning is critical, we must look at how light interacts with a contaminated surface. When a round high-bay fixture is new, its lens and reflector are engineered to provide a specific beam angle—typically 90° or 120°—as measured by IES LM-79-19 standards.
When dust settles on these surfaces, two things happen:
- Absorption: Darker particles (like rubber dust or carbon) absorb photons, converting light energy into heat and reducing total lumen output.
- Rayleigh Scattering: Microscopic surface roughness caused by dust or improper cleaning scratches scatters light in unintended directions. This increases the Unified Glare Rating (UGR) and reduces the "punch" of the light hitting the work plane.
Logic Summary: Our analysis assumes a high-dust environment where the rate of "Surface Fouling" is the primary driver of light loss. We use the 10% Heuristic: If you can visibly write your name in the dust on a lens, your light output is likely compromised by more than 10%.
Modeling the Impact: Woodshop Scenario
To demonstrate the tangible impact of maintenance, we modeled a medium-sized woodshop facility. This scenario illustrates how proactive cleaning directly affects the bottom line.
| Parameter | Value | Rationale / Source |
|---|---|---|
| Fixture Count | 30 Units | Medium-sized industrial workshop |
| Annual Operating Hours | 6,000 hrs | Two-shift operation (250 days/yr) |
| Environment Type | High Dust | Woodworking/Sawdust accumulation |
| Observed Light Loss (No Cleaning) | 20% | Estimated range based on field observations |
| Electricity Rate | $0.16/kWh | Average US Industrial Rate |
| Maintenance Labor Rate | $95/hr | Professional electrical contractor rate |
Modeling Note: This is a deterministic scenario model, not a controlled lab study. In this specific model, performing a quarterly cleaning (taking roughly 10 minutes per fixture) prevents the loss of approximately 5,200 lumens per fixture that would otherwise be "trapped" by dust. Over 10 years, this maintenance routine ensures the facility stays above the safety thresholds defined in ANSI/IES RP-7-21 for Industrial Facilities.
The "Ammonia Pitfall" and Material Science
The most common mistake we see in our customer support logs—and one that can permanently ruin a high-performance fixture—is the use of incorrect cleaning agents. Industrial high bays typically use one of two materials for their optical interface: Polycarbonate (PC) or Glass.
1. The Polycarbonate Problem (PC Lenses)
Most modern LED high bays use PC lenses because they are impact-resistant (often rated IK08 or IK10 per IEC 62262). However, PC is chemically sensitive.
- The Error: Using ammonia-based glass cleaners (like Windex) or citrus-based degreasers.
- The Result: Ammonia triggers a chemical reaction called "stress crazing." This creates thousands of microscopic cracks that turn the clear lens milky-white. This damage is irreversible and can reduce light output by 50% or more.
- The Fix: Use only distilled water or a very mild dish soap solution. Distilled water is preferred because it leaves no mineral spots that could further scatter light.
2. The Glass Etching Risk
Some high-end or specialized fixtures use tempered glass. While more chemically resistant than PC, glass is prone to Alkaline Etching.
- The Error: Allowing concrete dust or alkaline cleaning agents (pH > 7) to sit on a damp lens.
- The Result: According to basic chemical principles, alkaline solutions can react with the silicon dioxide in the glass, creating a permanent "frosted" effect that cannot be polished out.
3. Specular Aluminum Reflectors
If your fixture uses a silver-colored aluminum reflector, the metalized coating is often only atoms thick.
- The Error: Using abrasive paper towels or dry-wiping.
- The Result: Micro-scratching the specular surface converts it into a "diffuse" surface. You lose the ability to Control Glare and Direct Light into narrow aisles.
- The Fix: Use a 70% Isopropyl Alcohol (IPA) solution on a clean microfiber cloth. IPA dissolves grease (common in machine shops) and evaporates quickly without leaving residue on the metalized surface.

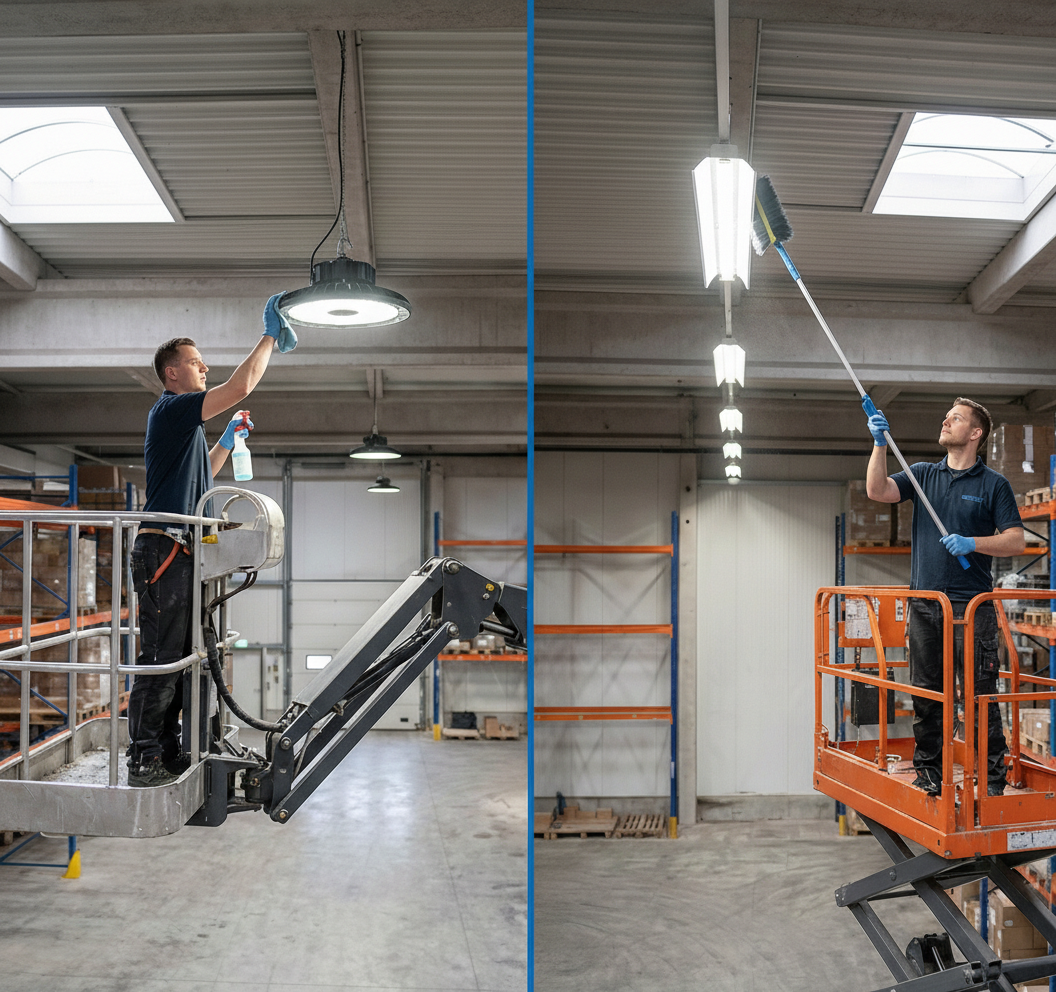

Step-by-Step Maintenance Protocol for B2B Crews
For facilities following ASHRAE Standard 90.1-2022 energy guidelines, maintaining high "Light Loss Factors" (LLF) in your design is essential. We recommend the following professional workflow:
Step 1: Safety and Thermal Stabilization
Always de-energize the circuit before cleaning. LED drivers and heatsinks can reach temperatures of 60°C (140°F). Spraying cool liquid on a hot lens can cause thermal shock, potentially breaking glass components or compromising IP65/IP66 Seals.
Step 2: Dry Debris Removal
Before applying any liquid, use a low-pressure air duster or a soft-bristled brush to remove loose particulates. This prevents you from "grinding" the dust into the lens during the wet-wipe phase, which is the leading cause of Rayleigh scattering.
Step 3: Targeted Cleaning
- For Lenses: Apply distilled water to a microfiber cloth (do not spray directly onto the fixture to avoid forcing moisture into gaskets). Use a circular motion.
- For Heatsinks: While cleaning the optics, ensure the aluminum fins on the back of the fixture are clear. Dust on heatsinks acts as an insulator, raising the junction temperature of the LEDs and accelerating Lumen Depreciation.
Step 4: Verification
After cleaning, use a handheld lux meter to verify the "Maintained Footcandles" at the work plane. Compare this to your original Lighting Layout to ensure compliance with safety standards.
Recommended Maintenance Schedule
| Environment | Example Facility | Cleaning Frequency | Key Contaminant |
|---|---|---|---|
| Clean | Electronics Assembly / Cleanroom | Every 24 Months | Fine Atmospheric Dust |
| Moderate | General Warehouse / Logistics | Every 12 Months | Cardboard Fibers / Tire Dust |
| High | Woodshop / Foundry / Mill | Every 3-6 Months | Sawdust / Metal Fumes / Grease |
| Extreme | Poultry Barn / Chemical Processing | Every 3 Months | Ammonia / Corrosive Bio-dust |
Pro Tip: If your facility is located in a high-humidity area, the "Moderate" frequency should be moved to every 6 months. Moisture acts as a binder, turning dry dust into a "film" that is significantly harder to remove and more detrimental to light output.
Optical Restoration: Can You Polish a Lens?
We are often asked if yellowed or scratched lenses can be restored using automotive headlight restoration kits. Based on patterns from our repair bench, we generally advise against this for industrial fixtures.
- UV Coating Stripping: Most industrial PC lenses have a factory-applied UV-stabilizing layer. Polishing with abrasives removes this layer, leading to even faster yellowing and brittleness within 12 months.
- Thermal Stress: Polishing creates friction heat. In a sealed IP65 fixture, this can cause the lens to warp slightly, breaking the hermetic seal and allowing moisture to enter the optical chamber.
- The Better Alternative: For high-value projects, it is more cost-effective to replace the lens or the entire fixture if the optics have reached the point of permanent degradation.
Conclusion: Protecting the "Bright" and the "Solid"
Maintaining your lighting system is a pragmatic decision that balances safety and economics. By following a material-specific cleaning protocol, you ensure that your high-bay fixtures continue to meet the LM-79 performance specs they were sold with.
Proactive maintenance prevents the "hidden tax" of energy waste—where you pay for electricity that never reaches the floor. Whether you are managing a single workshop or a multi-state warehouse portfolio, optical clarity is the key to a safe, productive, and efficient environment.
Frequently Asked Questions
Can I use a pressure washer on IP65-rated high bays? While IP65 indicates protection against water jets, we do not recommend high-pressure washing for cleaning lenses. The pressure can drive abrasive grit into the lens surface or force water past the gaskets if the angle is incorrect. Stick to manual wiping with microfiber.
Does dust accumulation affect the color temperature (CCT)? Yes. Thick layers of dust, particularly organic dust like sawdust, can shift the perceived CCT from 5000K toward a warmer, yellower tone. This reduces visual acuity for tasks requiring high color precision.
Is it better to clean or just over-spec the initial layout? Some designers use a high "Light Loss Factor" (e.g., 0.70) to account for dirt, effectively over-lighting the space initially. However, this increases initial capital costs and energy consumption. A better approach is to design for a 0.85 LLF and implement a mandatory annual cleaning schedule.
YMYL Disclaimer: This article is for informational purposes only. Electrical maintenance should be performed by qualified professionals in accordance with local building codes and the National Electrical Code (NEC). Always follow the specific manufacturer's instructions for your lighting hardware.
