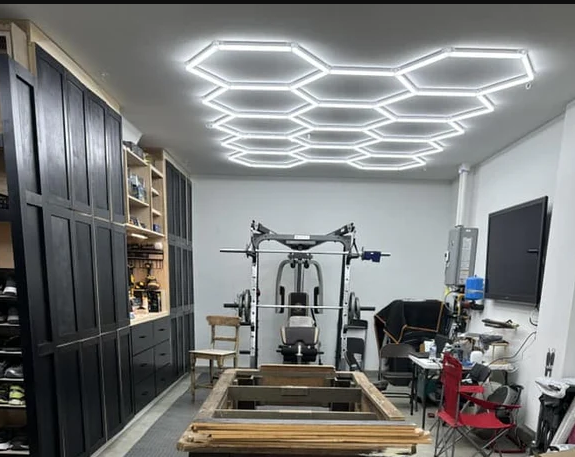

Designing a home gym or a professional fitness studio requires more than just high-performance flooring and heavy-duty racks; it requires a critical assessment of the vertical envelope. When installing modular hexagon lighting, the primary safety objective is to maintain a "movement-safe" clearance that prevents collision between the athlete and the fixture. A standard overhead light might suffice for a storage area, but high-intensity interval training (HIIT), CrossFit, and explosive movements like burpees or thrusters transform the ceiling into a high-risk impact zone.
The core decision-making factor for fixture height is the Dynamic Clearance Requirement (DCR). To ensure safety, the bottom of any ceiling-mounted fixture must remain above the user's maximum vertical reach during an explosive jump, plus a necessary safety buffer to account for instability and arm extension.
The Vertical Clearance Formula: Calculating Your Safe Zone
To determine the minimum mounting height for modular hexagon lights in a fitness environment, you cannot rely on "standard" ceiling heights. Instead, you must apply a biomechanical calculation based on the tallest or most athletic user in the space.
The Safe Clearance Formula:
Minimum Ceiling Height = (Standing Reach) + (Max Vertical Jump) + (Safety Buffer) + (Fixture Depth)
- Standing Reach: The height of the user's fingertips with both arms fully extended overhead while standing flat-footed.
- Max Vertical Jump: The additional height gained during an explosive movement. According to data from Biology Insights, an average untrained male jumps between 16 to 20 inches, while athletic populations often exceed 28 inches.
- Safety Buffer: A mandatory 6 to 12-inch margin. This accounts for the "instability factor"—the tendency for arms to flail or the body to drift during a maximal effort burpee or box jump.
- Fixture Depth: The physical thickness of the hexagon light bars and connectors, typically 2 to 3 inches for professional-grade modular systems.
Theoretical Calculation: The "Glass Box" Scenario
In a scenario involving a 6'4" athlete with a 28-inch vertical jump in a gym with a 9-foot (108-inch) ceiling, the math reveals a critical safety deficit:
| Variable | Measurement (Inches) |
|---|---|
| Standing Reach (6'4" User) | 98" |
| Max Vertical Jump (Athlete) | 28" |
| Safety Buffer (High Instability) | 12" |
| Fixture Depth (Standard Hex) | 2.5" |
| Total Required Height | 140.5" (11' 8.5") |
| Available Ceiling Height | 108" (9' 0") |
| Safety Deficit | -32.5" |
In this "Glass Box" logic, the athlete would strike the light fixture long before reaching the peak of their jump. This demonstrates that for athletic users in standard residential garages (typically 8 to 9 feet), overhead modular lighting must be repositioned or the movement must be modified to prevent fixture destruction and potential electrical hazards.
The Athlete’s Margin: Why Averages Fail
Relying on "average" jump heights is a common pitfall in gym design. According to the Sportstek Vertical Jump Norms, jump capacity varies significantly by age, gender, and training status. A design that is safe for a 5'5" user with a 12-inch jump will be hazardous for a 6'0" user with a 24-inch jump.
Furthermore, movements like the "kipping pull-up" or "muscle-up" require even greater clearance. For a full-range pull-up, the StrongFirst community suggests a bar height of 12.5 to 13 feet to ensure a tall individual has both foot clearance at the bottom and head clearance at the top. If your hexagon lights are mounted directly above a pull-up station, they must be situated well above the highest point of the user's head at the apex of the movement.
Structural Resilience: Managing Dynamic Vibration
Fixture failure in fitness environments is rarely caused by a single impact. Instead, it is often the result of cumulative fatigue from vibration. High-impact exercises like box jumps, heavy medicine ball slams, or kettlebell swings send rhythmic shocks through the ceiling joists.
Mounting Strategy for Vibration Resistance
If you are mounting to a drywall ceiling, standard plastic anchors are insufficient for the dynamic environment of a gym.
- Stud Location: Use a high-quality stud finder to locate the center of the ceiling joists. Mounting directly into timber provides the highest resistance to vibration-induced loosening.
- Heavy-Duty Toggle Bolts: If a joist is not available at the exact mounting point, utilize 3/16-inch toggle bolts. According to DoItYourself.com, these can support up to 90 pounds, providing a significant safety margin for lightweight LED bars.
- The "Quarter-Turn" Rule: When assembling modular hexagon kits, over-tightening the set screws on the connectors can cause the Polycarbonate (PC) material to crack under stress. A firm, snug fit followed by a quarter-turn back allows the material to expand and contract slightly during temperature changes and absorb vibrations without fracturing.
Technical Compliance: Safety and Performance Standards
When selecting lighting for a movement-heavy space, aesthetics must be backed by technical certifications. A gym environment is a "high-use" area where lighting is often left on for extended periods and subjected to electrical noise from other equipment.
Electrical Integrity and Interference
Ensure your lighting follows FCC Part 15 regulations. High-intensity LED drivers can sometimes produce electromagnetic interference (EMI) that disrupts heart rate monitors, wireless speakers, or smart fitness equipment. Compliance with FCC standards ensures that the driver's switching frequency does not interfere with your gym's tech ecosystem.
Safety Listings: UL vs. ETL
In the United States, lighting should ideally be UL Listed or ETL Listed. These marks indicate that the product has been tested by a Nationally Recognized Testing Laboratory (NRTL) to meet UL 1598 safety standards for luminaires. This is particularly critical in fitness studios where insurance providers may require proof of certified equipment to maintain coverage.
Hyperlite Hexagon Garage Lights Gen 2 - 11 Grid (10.0 x 7.3 ft) catalog image showing modular LED tubes and connectors
The Role of Photometrics: LM-79 and LM-80
For a gym to be motivating, the light must be consistent. The IES LM-79-19 standard defines the measurement of total luminous flux and efficacy. In a gym, you need high-uniformity lighting to avoid "dead spots" where shadows might hide a tripping hazard.
Furthermore, the IES LM-80 standard measures lumen maintenance—how the light output degrades over time. In a high-impact environment where heat can build up near the ceiling, a fixture with poor thermal management will dim prematurely. Look for products that provide verified LM-80 data to ensure your gym remains as bright in year five as it was on day one.
Low-Ceiling Strategies: When the Math Doesn't Add Up
If your clearance calculation shows a safety deficit (like our 32.5-inch deficit in the Glass Box scenario), you must pivot your installation strategy. Forcing an overhead installation in a low-ceiling basement is a liability.
Alternative Mounting Options
- Perimeter Lighting: Instead of a central hexagon grid, move the fixtures to the perimeter of the room. This provides high-quality ambient light while keeping the "jump zone" clear of obstructions.
- Wall Mounting: Modular hexagon lights are increasingly used as architectural wall features. Mounting the grid on a wall behind your squat rack or cardio area provides excellent task lighting for form checks in mirrors without compromising vertical space.
- Recessed High Bays: If the ceiling height allows for a retrofit, consider recessed linear or circular high bay fixtures that sit flush with the ceiling plane. While this requires more intensive DIY work, it eliminates the "collision depth" of the fixture.
Movement Modification
If the lighting cannot be moved, the movements must be. For example, performing "no-jump" burpees or "strict" pull-ups (avoiding the kipping swing) reduces the vertical and horizontal instability that often leads to fixture contact.
Maintenance and Long-Term Safety Checklist
A "set it and forget it" mentality is dangerous in a gym. Regular inspections are necessary to ensure the structural integrity of your lighting system remains intact.
Monthly Safety Audit:
- Check Connector Tension: Ensure no connectors have vibrated loose. If a bar is sagging, it indicates a failed set screw or mounting clip.
- Dust Accumulation: Gyms generate significant dust from chalk and shoe friction. Dust on LED bars acts as an insulator, trapping heat and reducing the lifespan of the chips. Wipe fixtures with a dry microfiber cloth.
- Wiring Inspection: Ensure power cables are securely fastened and not hanging in a way that could be snagged by a jump rope or a raised barbell. According to the National Electrical Code (NEC), all wiring must be protected from physical damage.
Frequently Asked Questions
Can I use a standard 110V outlet for my hexagon lights? Most modular hexagon kits are designed for standard 110V-120V US outlets. However, pay close attention to the maximum number of tubes per power cable. Exceeding the manufacturer's limit (often 60-62 tubes) can overload the internal wiring and cause a fire hazard.
What color temperature is best for a home gym? For high-intensity environments, 5000K (Daylight White) is the industry standard. It mimics natural sunlight, which can help increase alertness and motivation. For more architectural or "mood-focused" studios, 4000K (Neutral White) offers a softer look while maintaining high visibility.
How do I handle flickering in my gym lighting? Flickering is often caused by a mismatch between the LED driver and a dimmer switch. Ensure your lights are "dimmable" before connecting them to a dimmer. If the flickering persists, it may be due to EMI from other gym equipment; ensure your lighting is on a dedicated circuit if possible.
YMYL Disclaimer: This article is for informational purposes only and does not constitute professional engineering, electrical, or fitness safety advice. Improper installation of ceiling fixtures can lead to serious injury or property damage. Always consult with a licensed electrician and follow local building codes. If you have pre-existing physical conditions, consult a fitness professional before performing high-intensity overhead movements.
