The Strategic Advantage of Aisle-Optic Distribution

In industrial warehouse environments, the primary metric for lighting success is not total lumen output, but "delivered lumens"—the amount of light that actually reaches the task plane (the floor and rack faces). Specifying general-purpose UFO (round) high bays for narrow, tall aisles typically results in a 40% to 60% loss of light due to symmetrical beam distribution. This "spill light" illuminates the tops of racks and adjacent aisles rather than the intended work area, forcing facility managers to over-design systems with 20% to 30% more fixtures than necessary to meet safety standards.

For professional specifiers, the transition from symmetrical UFO high bays to focused aisle-optic linear fixtures represents a significant opportunity for capital redeployment. By aligning the beam pattern with the narrow geometry of a racked aisle, a facility can achieve higher foot-candle (fc) levels with lower total wattage. This article quantifies the financial and technical impact of proper fixture selection, grounded in IES LM-79-19 performance data and ASHRAE 90.1-2022 energy standards.

LED High Bay lights in a high‑ceiling warehouse with tablet displaying lighting layout and beam patterns

Photometric Reality: Symmetrical vs. Asymmetrical Distribution

The fundamental difference between a general-purpose UFO high bay and an aisle-optic fixture lies in the photometric distribution. Most standard UFOs utilize a symmetrical 120° beam angle. While effective for open-area manufacturing or gymnasiums, this circular pattern is mathematically incompatible with a 12-foot wide aisle flanked by 30-foot racks.

The Problem with "Spill Light"

In a typical 30-foot ceiling application, a 120° beam spreads significantly wider than the aisle width before reaching the floor. According to industry observations and photometric modeling, a standard UFO high bay can waste nearly half of its total lumen output illuminating the vertical faces of the top-tier racks or bleeding into the next aisle. This creates two distinct problems:

Glare at High Elevations: Forklift operators looking upward to retrieve pallets are met with excessive glare from wasted light hitting the rack headers.
Dim Task Planes: To achieve the recommended 20-30 foot-candles on the aisle floor, contractors often increase the wattage or density of UFO fixtures, leading to higher Lighting Power Density (LPD) and increased energy bills.

The Aisle-Optic Solution

Focused linear fixtures utilize specialized lenses to create an elongated, rectangular beam (typically 30° x 70° or 60° x 90°). This asymmetrical distribution concentrates light directly into the aisle.

Expert Insight: Practitioners find that providing downloadable IES LM-63-19 files is non-negotiable for professional projects. Without these files, engineers cannot perform the necessary calculations in software like AGi32 to verify that the proposed layout meets ANSI/IES RP-7-21 industrial lighting standards.

Quantifying the ROI: A 25,000 Sq. Ft. Case Study

To understand the financial impact, we modeled a scenario for a medium-sized distribution center section. This scenario compares a legacy 400W metal halide (MH) system against a modern 150W LED aisle-optic retrofit.

Modeling Parameters & Assumptions

The following data is derived from our deterministic scenario model for a facility operating 6,000 hours annually (24/5) at a utility rate of $0.14/kWh.

Parameter	Value	Rationale / Source
Legacy System	458W (400W MH + Ballast)	Industry standard for HID UFOs
LED System	150W Aisle-Optic	High-efficiency focused fixture
Fixture Count	50 Units	Standard layout for 25,000 sq. ft.
Annual Operation	6,000 Hours	Typical 24/5 industrial schedule
Utility Rate	$0.14 per kWh	US National Average (Commercial)
Maintenance Labor	$95 per hour	National average electrician rate

Financial Impact Analysis

Based on the parameters above, the transition to focused optics yields the following estimated returns:

Annual Energy Savings: ~$12,936. This is calculated by the reduction of 308W per fixture across 50 units.
Annual Maintenance Savings: ~$3,488. This accounts for the elimination of 10,000-hour MH lamp replacements and the associated lift rental/labor costs.
HVAC Interactive Credit: ~$556. Because LED fixtures run cooler, the facility reduces its cooling load. We applied a 0.33 interactive factor based on DOE FEMP guidelines for climate zone 4.
Total Annual Savings: ~$16,980.

With an estimated installed cost of $180 per fixture and a typical DLC Premium rebate of $45 per unit, the simple payback period for this project is approximately 5 months.

Logic Summary: The payback period is calculated as: (Total Project Cost - Total Rebates) / Total Annual Savings. In this model: (($9,000 - $2,250) / $16,980) = 0.4 years.

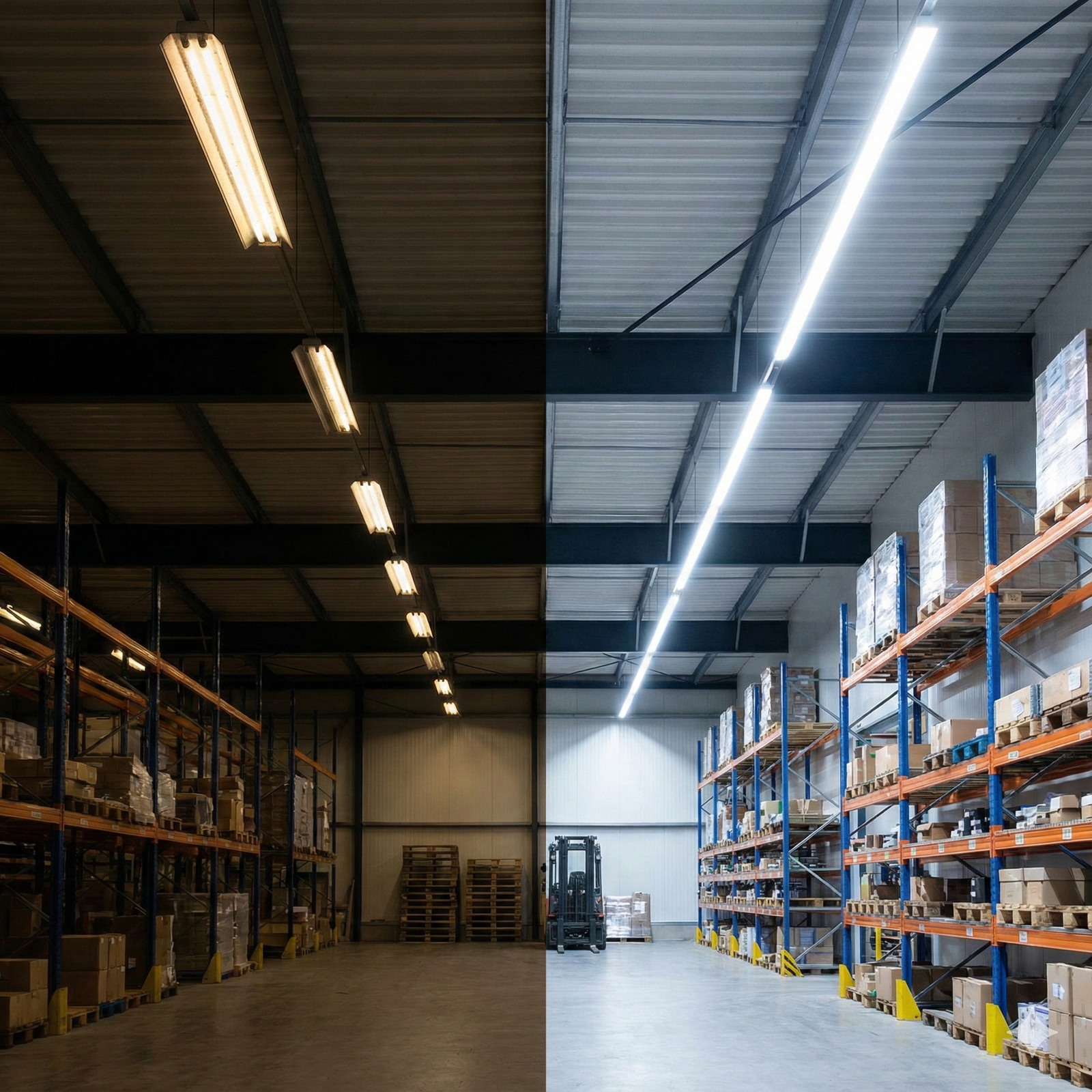

LED High Bay warehouse lighting retrofit: left old fluorescent fixtures vs right bright cool-white LED High Bay over pallet racks

Compliance and Regulatory Baselines

Specifying for B2B industrial projects requires strict adherence to safety and energy codes. Failure to verify certifications can lead to failed inspections or the forfeiture of utility rebates.

DLC Premium and Utility Rebates

The DesignLights Consortium (DLC) Qualified Products List (QPL) is the primary gatekeeper for utility rebates. "DLC Premium" status is particularly valuable as it requires higher efficacy (lumens per watt) and superior glare control. Asymmetric aisle-optic fixtures often secure higher rebate values (up to 50% more) because they deliver more light to the task area per watt consumed, aligning with the goals of utility energy efficiency programs.

Safety Certifications: UL vs. ETL

Every fixture must carry a mark from a Nationally Recognized Testing Laboratory (NRTL). Whether a product is UL Listed or ETL Listed, it must meet the same North American safety standards, such as UL 1598 for fixed luminaires. For facilities involving sensitive electronics or laboratories, verifying compliance with FCC Part 15 is also critical to ensure the LED drivers do not produce electromagnetic interference (EMI) that could disrupt equipment.

Energy Standards: ASHRAE 90.1 and IECC 2024

Modern building codes, including IECC 2024, have significantly lowered the allowable Lighting Power Density for warehouses. Achieving these targets while maintaining safe light levels (typically 20-30 fc) is nearly impossible with inefficient symmetrical distribution. Aisle-optic fixtures allow designers to meet these stringent LPD limits without compromising safety.

Technical Considerations for Installation

While the ROI is compelling, professional contractors must account for the specific electrical requirements of high-efficiency LED systems.

NEC Continuous Load Compliance

According to the National Electrical Code (NEC), lighting circuits are considered continuous loads and must not exceed 80% of the breaker's rating. For a standard 20A, 120V circuit, the maximum continuous load is 1,920W.

In our 50-fixture model (150W each), the total load is 7,500W. This requires at least four dedicated 20A circuits. Contractors should be aware that aisle-optic systems sometimes require more complex circuit runs than UFO layouts to ensure balanced voltage drop across long warehouse rows.

Dimming and Control Logic

Standard 0-10V dimming is now a baseline requirement for most B2B specifications. However, the 2026 Commercial & Industrial LED Lighting Outlook highlights that "sensor-ready" ports are becoming the industry standard.

By integrating plug-in microwave occupancy sensors or daylight harvesters, facilities can capture an additional 30-60% in energy savings. In storage-inactive areas, sensors ensure that lights are only at full power when a forklift enters the aisle. This not only saves energy but also extends the L70 lifespan of the LED components by reducing total "on-time."

High-lumen LED High Bay lights illuminating a frosted cold-storage warehouse with palletized inventory

Future-Proofing with Verified Performance Data

The "Value-Pro" strategy in industrial lighting relies on verifiable data. Before finalizing a specification, facility managers should demand three specific reports:

LM-79 Report: The "performance report card" that verifies total lumens, efficacy, and color rendering.
LM-80/TM-21 Data: These documents prove the long-term reliability of the LED chips. IES TM-21-21 calculations provide the mathematical projection for how many hours the fixture will maintain 70% of its initial light output.
IP and IK Ratings: For warehouses with dust or moisture, an IP65 rating ensures the housing is dust-tight and protected against water. For facilities with low ceilings or high mechanical activity, an IK08 or IK10 rating (impact protection) is necessary to prevent physical damage to the fixture.

Decision Framework for High Bay Selection

Choosing between a UFO and an aisle-optic fixture depends entirely on the facility's geometry.

Select UFO High Bays for open-concept spaces like assembly floors, aircraft hangars, or indoor riding arenas where uniform, 360-degree illumination is required. Linear vs. UFO High Bays for Uniformity provides further detail on open-area layouts.
Select Aisle-Optic Linear High Bays for any space with racking systems, narrow corridors, or high-density storage. The reduction in fixture count and the increase in delivered lumens provide a superior ROI that general-purpose fixtures cannot match.

By focusing on beam control rather than just raw lumen output, facility managers can significantly reduce their total cost of ownership while creating a safer, more productive environment for their workforce.

Methodology & Modeling Note

The financial data and ROI projections presented in this article are based on a deterministic scenario model using industry-standard parameters for a medium-sized warehouse retrofit.

Model Type: Sensitivity analysis based on fixed-input parameters.
Boundary Conditions: Calculations assume a balanced electrical load and standard mounting heights (25-35 ft). Payback periods may extend if utility rates are below $0.10/kWh or if installation labor exceeds $120/hr.
Disclaimer: This article is for informational purposes only. Lighting layouts should be verified by a certified lighting designer or electrical engineer using site-specific photometric data. All electrical work must comply with local and national codes (NEC).

Frequently Asked Questions

Can I use UFO high bays in aisles if I add reflectors? While aluminum or acrylic reflectors can narrow the beam of a UFO fixture (e.g., from 120° to 90° or 60°), they still produce a symmetrical circular pattern. This is still less efficient than the rectangular footprint of a dedicated aisle-optic fixture, which is designed specifically for the length-to-width ratio of a warehouse aisle.

How do I find out if a fixture qualifies for local rebates? The most reliable method is to search the DLC QPL database using the manufacturer's model number. Most major utilities in the US and Canada require the product to be listed as "DLC Premium" or "DLC Standard" to be eligible for financial incentives.

What is the difference between 4000K and 5000K in a warehouse? This refers to the Correlated Color Temperature (CCT). According to ANSI C78.377, 5000K (Daylight) is often preferred in warehouses as it can improve alertness and visual contrast for reading labels. 4000K (Neutral White) is sometimes chosen for retail-style warehouses to provide a slightly "warmer" feel for customers.

Is 0-10V dimming the same as a motion sensor? No. 0-10V dimming is the capability of the driver to reduce light output. A motion sensor is the control device that tells the driver when to dim. For maximum ROI, you should specify fixtures that are "sensor-ready," allowing you to easily add occupancy or daylight sensors without complex rewiring.
