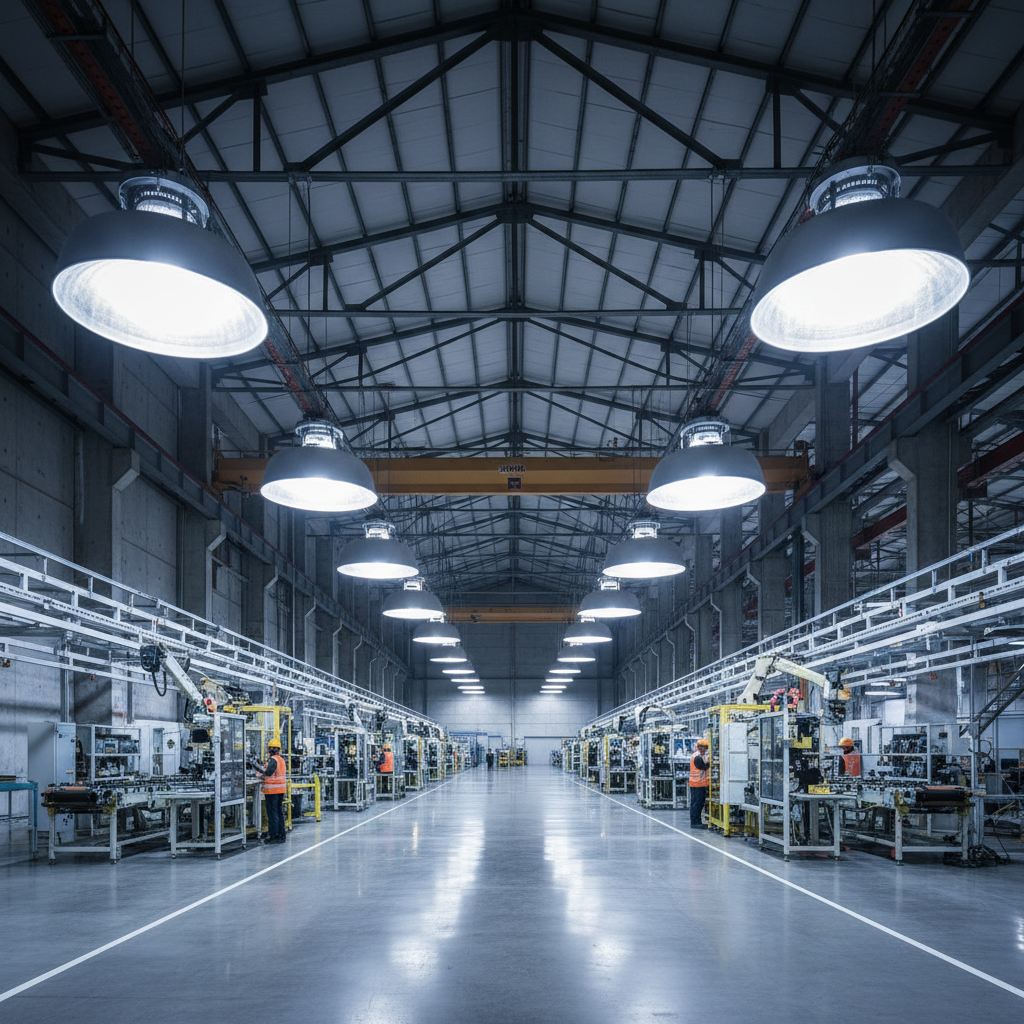

Why Your 480V High Bay Lights Are Failing Prematurely

Why Your 480V High Bay Lights Are Failing Prematurely

In industrial lighting, the transition from legacy 400W metal halide (MH) to 480V LED high bays is often driven by a single objective: drastic reduction in total cost of ownership (TCO). However, facility managers frequently encounter a frustrating "infant mortality" phase where high-voltage LED drivers fail within the first 12 to 18 months—long before the promised 50,000-hour lifespan.

The core conclusion is that 480V systems are not merely high-voltage versions of 120V systems; they are subject to unique electrical stresses, including utility line transients, harmonic distortion from Variable Frequency Drives (VFDs), and thermal derating requirements that standard 120-277V drivers do not face. Protecting your investment requires moving beyond basic lumen-per-watt (lm/W) metrics and auditing the fixture's internal components against UL 8750 and DLC 5.1 Premium standards.

The 480V Driver: Headroom and the "Utility Spike" Reality

A common, costly oversight in 347-480V retrofits is assuming all "high-voltage" drivers are equivalent. In practice, drivers rated for 480V input must handle a significantly wider voltage tolerance than their 120-277V counterparts.

Based on pattern recognition from industrial maintenance logs (not a controlled lab study), we have identified that utility spikes are the leading cause of premature driver failure. While a system might be nominally rated at 480V, utility fluctuations can regularly push line voltage to 504V or higher. If a driver’s absolute maximum input voltage is capped at exactly 480V, it lacks the necessary headroom to absorb these transients. This leads to cumulative degradation of the Metal Oxide Varistors (MOVs) and eventual catastrophic failure of the driver's front-end circuitry.

Logic Summary: For 480V applications, we recommend verifying that the driver specification includes a "Maximum Input Voltage" of at least 520V to provide a safety buffer against standard utility swells.

The Silent Killer: Harmonics and Neutral Overload

In older three-phase Wye systems, the introduction of non-linear LED loads can trigger unexpected failures that standard circuit breakers fail to detect. Legacy HID fixtures were relatively simple inductive loads. Modern LED drivers, however, use high-frequency switching power supplies that can generate Total Harmonic Distortion (THD).

Field experience from the Mike Holt's Forum community highlights a critical "gotcha": premature failure often traces back to undersized neutral conductors. When multiple LED high bays are added to a circuit, harmonic currents (specifically the 3rd harmonic) do not cancel out in the neutral; they add up. This can lead to a neutral overload, causing voltage imbalances that stress the drivers. Furthermore, thermal management becomes more critical at higher voltages; a driver that runs cool at 277V may overheat at 480V in the same fixture due to increased switching losses.

Compliance as a Reliability Shield: Decoding LM-80 and TM-21

To distinguish between a "Value-Pro" fixture and a low-end alternative, you must look at the data artifacts. Reliability is not a marketing claim; it is a mathematical projection based on IES LM-80-21 testing.

• LM-80: This measures the lumen maintenance of the LED chips themselves over at least 6,000 hours.
• TM-21: This is the mathematical method used to project the $L_{70}$ life (the point at which the light output drops to 70% of its original value).

Be cautious of brands claiming "100,000-hour life" without supporting documentation. According to the IES TM-21-21 standard, projections are strictly prohibited from exceeding six times the actual test duration. If a fixture was tested for 6,000 hours, any claim beyond 36,000 hours is a heuristic estimate, not a verified spec.

Scenario Modeling: ROI of Premium 480V Retrofits

To demonstrate the tangible impact of choosing project-ready fixtures over "consumer-grade" alternatives, we modeled a typical manufacturing environment. This analysis helps facility managers justify the higher upfront cost of robust 480V drivers.

Methodology & Assumptions (Scenario Model)

• Modeling Type: Deterministic parameterized TCO model (Scenario-based, not a lab study).
• Facility Type: High-vibration manufacturing (2-shift operation).
• Baseline: 50 units of 400W Metal Halide (458W total draw).
• Upgrade: 50 units of 150W 480V LED High Bay.

Modeling Results:

• Annual Energy Savings: ~$14,784 (Calculated: 308W saved per fixture × 50 fixtures × 6,000 hrs).
• Annual Maintenance Savings: ~$7,875 (Includes avoided lamp costs and labor).
• Carbon Reduction: ~15.4 metric tons CO₂ annually (Based on EPA Greenhouse Gas Equivalencies).
• Payback Period: ~8 months (After accounting for $2,500 in utility rebates).

Analysis Note: This model assumes the use of high-quality drivers. If a low-end driver fails at year one, the entire ROI is erased by the $165 labor cost per replacement. Reliability is the primary driver of ROI, not just energy efficiency.

Thermal Management and Mechanical Protection

In heavy industry, the environment is often as hostile as the electrical grid. For foundries or unconditioned warehouses, the IEC 60529 (IP Ratings) and IEC 62262 (IK Ratings) are non-negotiable.

1. IP65 Rating: Essential for dust-tight operation and protection against moisture. In our experience with support tickets, "dimming" or "flickering" in warehouses often results from dust accumulation on the driver's heat sink, leading to thermal throttling.
2. IK08/IK10 Rating: Protects the fixture against mechanical impact. For facilities using forklifts or overhead cranes, a high IK rating prevents housing deformation that can compromise the seal or the internal driver mounting.

Technical Troubleshooting Checklist for 480V Systems

If you are experiencing premature failures, follow this pragmatic diagnostic path before blaming the fixture:

• Check Line-to-Ground Voltage: In a 480V system, ensure you aren't seeing excessive voltage on the ground leg, which can indicate a "floating neutral" or a grounding fault elsewhere in the facility.
• Audit Surge Protection Devices (SPD): While quality drivers have internal protection, they are "sacrificial." For industrial panels, a dedicated SPD connected as close as possible to the phase bus is required to handle large external surges.
• Verify Dimming Wire Isolation: A common error is running 0-10V dimming wires in the same conduit as 480V power leads without proper Class 1 vs. Class 2 separation. This can induce noise into the dimming circuit, causing flickering that looks like a driver failure.
• Thermal Check: Use an infrared thermometer to check the driver case temperature ($T_c$). If it exceeds the manufacturer's rated max (typically 85°C–90°C), you may need to increase the mounting distance from the ceiling or choose a fixture with a larger integrated heat sink.

For a deeper dive into selecting the right equipment for these environments, consult the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.

Conclusion: Prioritizing "Project-Ready" Specs

The shift to 480V LED high bays offers a massive financial upside, but it requires a "Pro-Grade" mindset. Avoid the trap of selecting fixtures based solely on the lowest price. Instead, prioritize units with:

• DLC 5.1 Premium certification for verified efficacy and rebate eligibility.
• Drivers with a minimum 520V peak input tolerance.
• Documented LM-79 and LM-80 reports to verify long-term performance.

By addressing the root causes of failure—transients, harmonics, and heat—you ensure that your lighting system remains a "Solid" asset rather than a recurring maintenance headache.

YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical or financial advice. High-voltage electrical work should only be performed by a qualified, licensed electrician. Always consult local building codes and the National Electrical Code (NEC) before beginning any installation or retrofit project.
