The Integration Frontier: Why Smart Industrial Lighting Matters

For the modern shop enthusiast and small business owner, the line between "industrial-grade performance" and "consumer-grade convenience" is blurring. Traditionally, high-output fixtures like linear high bays were "dumb" devices—switched on and off via a heavy-duty breaker or a simple wall switch. However, the rise of smart home ecosystems like Matter, Zigbee, and HomeKit has created a new expectation: the ability to dim, schedule, and automate 20,000-lumen fixtures from a smartphone.

The challenge lies in the communication protocol. Most consumer smart bulbs use internal PWM (Pulse Width Modulation) dimming controlled via Wi-Fi. Professional fixtures, such as the Linear High Bay LED Lights -HPLH01 Series, 18200lumens, Adjustable Wattage & CCT, 120-277V, utilize 0-10V analog dimming. This guide provides the technical roadmap to bridge these two worlds, ensuring your workshop lighting is as intelligent as it is powerful.

According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the integration of smart controls is no longer a luxury but a prerequisite for meeting modern energy codes and maximizing operational ROI.

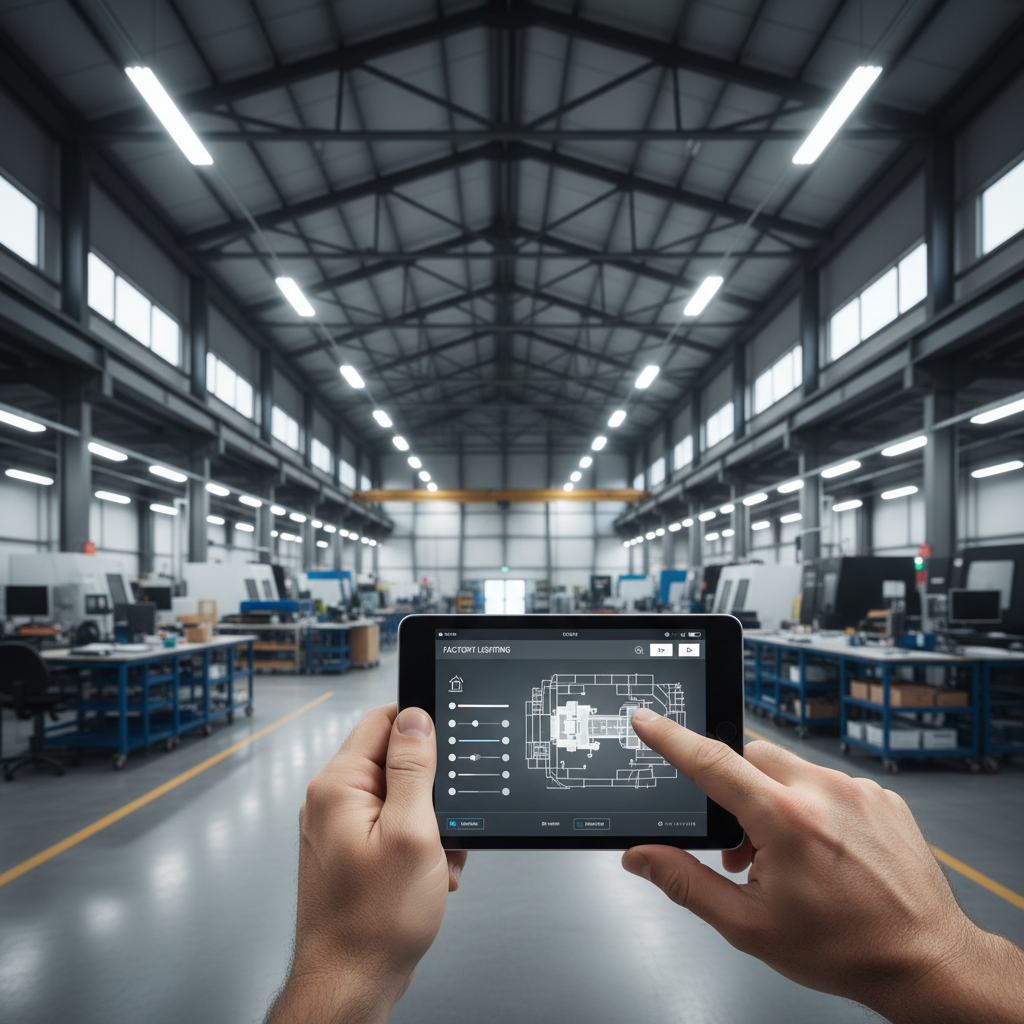

Professional photography of a modern, high-ceiling industrial workshop with linear LED high bay fixtures installed on a steel truss ceiling. The lighting is crisp, cool-white, and uniform. A digital tablet is visible in the foreground showing a smart home lighting control interface. Cinematic lighting, architectural photography style.

Understanding the 0-10V Dimming Protocol

Before selecting hardware, it is critical to understand how 0-10V dimming functions. Unlike residential dimmers that "chop" the AC sine wave (Phase-cut dimming), 0-10V is a DC-based control system.

The Signal: The LED driver provides a low-voltage DC signal (usually 10V) on two dedicated wires (typically purple and gray/pink).
The Mechanism: When the controller provides 10V, the light is at 100% brightness. As the voltage is reduced toward 1V, the driver dims the LEDs.
The Cutoff: Many drivers, including those compliant with the IES LM-79-19 Standard, are designed to dim down to 10%. Dropping below 1V usually results in the fixture turning off or remaining at its lowest stable "dim-to-off" state.

Expert Insight: A common pitfall in DIY setups is assuming all 0-10V drivers are compatible with any smart relay. In practice, the driver’s control input impedance (typically 100kΩ) must be matched. Using a relay with an incompatible impedance can cause the fixture to flicker or fail to reach full brightness.

Hardware Bridges: Selecting the Right Controller

To connect a Linear High Bay LED Lights -HPLH01 Series to a smart hub, you need a device that can translate digital commands (from Alexa, Google Home, or Matter) into an analog 0-10V DC signal.

1. Zigbee/Z-Wave 0-10V Ballast Controllers

These are the most reliable options for users already invested in hubs like Home Assistant or Hubitat. These controllers wire directly into the 0-10V leads of the fixture.

Pros: Local control, no cloud dependency, mesh networking for large garages.
Cons: Requires a compatible hub.

2. Wi-Fi Smart Relays (e.g., Shelly Plus 0-10V)

Newer modules, such as the Shelly Plus 0-10V DC Dimmer, have emerged as a "prosumer" favorite. These allow for direct Wi-Fi integration without a central hub.

Pros: Direct smartphone control, supports scripting for advanced automation.
Cons: Can congest 2.4GHz Wi-Fi networks if dozens of fixtures are individually controlled.

3. Smart Switches with 0-10V Outputs

For those who prefer a physical interface, certain smart wall switches are designed specifically for 0-10V commercial circuits. These replace the standard wall switch and provide both manual and app-based control.

High-ceiling brick workshop lit by suspended LED High Bay shop lights over workstations

Step-by-Step Installation: Wiring for Compliance

When integrating smart controls, you must adhere to the National Electrical Code (NEC). Specifically, you must distinguish between Class 1 and Class 2 wiring.

Primary Power (Class 1): The 120-277V AC lines powering the fixture must be handled by a licensed professional or a highly skilled DIYer following local codes.
Control Wiring (Class 2): The 0-10V wires are low-voltage. However, if they run inside the same conduit as the high-voltage lines, they must have insulation rated for the highest voltage present (typically 600V).

The "Daisy Chain" Method

For a multi-fixture setup, such as a 2,000 sq ft workshop, you do not need a separate controller for every light. You can "daisy chain" the control wires.

The Limit: Do not exceed 300 feet of total control wire length. Exceeding this can lead to a significant voltage drop, causing the fixtures at the end of the run to be dimmer than those at the start.
Wiring: Connect all purple wires (+) together and all gray/pink wires (-) together, then terminate them at the smart controller's output.

Scenario Modeling: ROI of Smart Woodshop Lighting

To demonstrate the value of this integration, we modeled a typical small business scenario: a 2,000 sq ft woodworking shop upgrading from legacy 400W metal halide fixtures to smart-controlled LED high bays.

Modeling Methodology & Assumptions

Our analysis uses a deterministic parameterized model to calculate the Total Cost of Ownership (TCO) over a 10-year horizon.

Scenario: 8 fixtures operating 2,920 hours annually (8 hours/day, 5 days/week).
Electricity Rate: $0.16/kWh (US National Average).
Rebates: Based on DesignLights Consortium (DLC) Qualified Products List (QPL) Premium status, which typically qualifies for a $150/fixture utility rebate.

Parameter	Value	Unit	Rationale
Legacy System Draw	458	W	400W MH + Ballast Inefficiency
LED System Draw	300	W	Hyperlite LED High Bay Light - Black Hero Series
Annual Energy Savings	590.54	USD	Direct electricity reduction
Maintenance Savings	354.29	USD	Eliminated bulb/ballast replacements
Total Annual Savings	971.53	USD	Energy + Maintenance + HVAC Credit
Payback Period	1.65	Years	Including $1,200 total rebates

Logic Summary: This model assumes a 33% interactive factor for HVAC cooling credits, meaning for every watt of lighting heat removed, the cooling system saves an additional 0.33 watts of energy.

Environmental and Operational Impact

Beyond the financial ROI, bridging your high bays to a smart hub reduces your facility's carbon footprint. For the 8-fixture woodshop modeled above, the transition results in a reduction of 2.41 metric tons of CO2 annually.

Over a 10-year period, this is equivalent to planting approximately 400 tree seedlings. For businesses looking to align with ASHRAE Standard 90.1-2022 or California Title 24, these smart controls are essential for meeting mandatory "Automatic Shutoff" and "Daylight Harvesting" requirements.

Troubleshooting Smart 0-10V Systems

Based on common patterns from customer support and warranty handling, we have identified three primary "friction points" during integration.

1. The "10% Jump"

If you find your lights "snap" from 10% to 0% (off) instead of a smooth fade, your smart controller likely has a 2V cutoff. High-quality smart modules should be able to output a stable analog signal down to at least 1V to maintain a smooth dimming curve.

2. Ghosting or Glowing

If your fixtures glow slightly when turned "off" via the smart dimming command, it is because the 0-10V signal never reached absolute zero. To solve this, ensure your smart hub is programmed to trigger the line-voltage relay (cutting the AC power) when the dimming level hits 0%.

3. Sensor Interference

When integrating motion sensors alongside smart relays, avoid placing the smart relay’s power supply within 3 feet of the sensor’s detection head. Electromagnetic Interference (EMI) from switching power supplies can cause false triggers, leading to "ghost" activations in the shop.

For high-end aesthetic projects, users often combine Dimmable Hyperlite Hexagon Garage Lights Gen 2 - 5 Grid (7.3 x 5.1 ft) for task areas with linear high bays for general illumination. Ensure these different fixtures are zoned separately in your smart hub to avoid mismatched dimming levels.

LED hexagon lights ceiling kit in a two-car garage showroom with smart tablet controls

Verification Checklist for Pro-Grade Results

To ensure your installation meets the standards required by building inspectors and insurance providers, verify the following:

Certification Search: Use the UL Solutions Product iQ Database to verify the UL/cUL listing of your fixtures. This is the first verification point for electrical inspections.
FCC Compliance: Ensure your smart controller and LED drivers are compliant with FCC Part 15. This prevents the lights from interfering with Wi-Fi routers or sensitive shop equipment like CNC machines.
Photometric Planning: Before installing, download the .ies files for your fixtures (such as the Hyperlite LED High Bay Light - BP Series) and run a simulation in software like AGi32. This ensures your smart dimming zones are placed correctly for uniform light distribution.

Strategic Conclusion

Bridging 0-10V linear high bays to a smart home hub transforms a simple utility into a responsive, energy-efficient system. By following the Class 2 wiring standards and selecting controllers with appropriate impedance matching, you can achieve professional-grade automation without the complexity of a full-scale Building Automation System (BAS). Whether you are managing a commercial warehouse or a high-end home workshop, the data is clear: the integration of smart controls pays for itself in less than two years while providing a level of convenience and safety that traditional switching simply cannot match.

YMYL Disclaimer: This article is for informational purposes only and does not constitute professional electrical or financial advice. Electrical work involves significant risks of fire and shock. Always consult a licensed electrician and adhere to the National Electrical Code (NEC) and local building regulations before modifying your lighting system.
