Yoke mounts, often referred to as trunnion mounts, represent the standard for high-output directional lighting in industrial and commercial environments. Their primary advantage lies in their 180-degree adjustability, allowing contractors to aim light precisely where it is needed—whether illuminating a vertical building facade or a horizontal loading dock. However, the versatility of a yoke mount is only as reliable as the substrate it is anchored to.

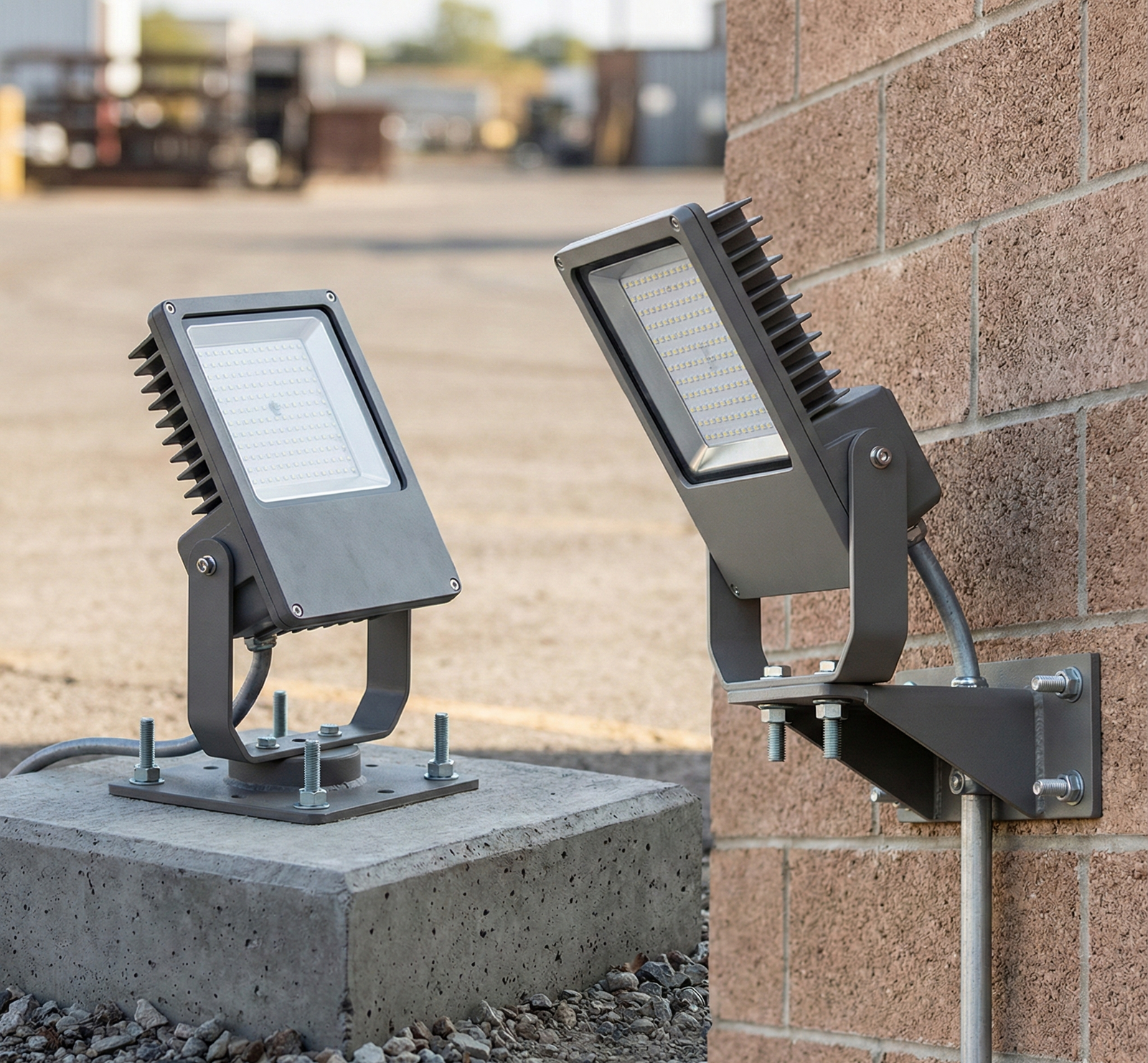

For professional installers, "Project-Ready" means more than just having the fixture on-site; it means ensuring that the mounting system can withstand decades of environmental stress, from high-velocity wind loads to the constant vibration of nearby heavy machinery. This guide provides a technical deep dive into the engineering requirements and step-by-step procedures for securing yoke-mounted LED floodlights to ground-level concrete pads and vertical masonry walls.
The Physics of Mounting: Wind Loads, Vibration, and Safety Factors
Before a single hole is drilled, a professional installer must account for the mechanical forces that will act upon the fixture. Unlike indoor high bays, outdoor floodlights are subject to dynamic loads that can lead to progressive loosening of hardware if not properly addressed.
Effective Projected Area (EPA) and Wind Loading
The most significant force acting on an outdoor yoke-mounted fixture is wind. This is measured by the Effective Projected Area (EPA), which represents the surface area of the fixture as seen by the wind, multiplied by a drag coefficient. According to specifications for high-performance exterior luminaires, such as those found in the Acuity Brands DSXF2 technical data, a typical large floodlight might have an EPA of 0.8 ft². In high-mount applications like stadium lighting, maintaining a low EPA (often around 1.35 ft² for 400W-equivalent LEDs) is critical to minimizing the stress on the mounting bracket and the underlying structure.
Vibration Ratings
Industrial environments, particularly those near loading docks or manufacturing lines, subject lighting to constant harmonic vibration. Professionals should look for fixtures rated according to ANSI C136.31, which tests the luminaire’s ability to withstand 1.5G or even 3G vibrations. A yoke mount provides a wider base of support than a single-bolt knuckle mount, making it inherently more stable in high-vibration zones, provided the hardware is torqued to spec.
Structural Safety Factors
When designing mounting systems, federal guidelines such as the Unified Facilities Guide Specifications (UFGS) 23 64 26 recommend a safety factor of not less than 5 for concrete inserts and masonry anchors. This means the anchor must be capable of holding five times the actual weight of the fixture to account for environmental variables and material degradation over time.
Ground Installation: Securing to Concrete Pads
Ground-level installation is common for perimeter security, signage, and architectural up-lighting. The key challenge here is moisture management and the integrity of the concrete.
Substrate Preparation and Design
For new installations, the concrete pad must be properly cured (typically 28 days for full strength) before mechanical anchors are loaded. According to the International Building Code (IBC) Chapter 19, concrete strength and anchor design should follow standards like EN 1992-4 to prevent "concrete cone failure"—a scenario where the anchor stays intact but pulls a cone-shaped chunk of concrete out of the pad.
Anchor Selection: Mechanical vs. Chemical
- Mechanical Stud Anchors: Ideal for standard concrete pads. High-performance stud anchors, like the Hilti HST4 generation, provide enhanced resistance in cracked concrete.
- Chemical/Adhesive Anchors: Preferred for older or "non-perfect" concrete. These anchors fill the irregularities of the hole, creating a waterproof seal that prevents the freeze-thaw cycle from cracking the pad around the mounting point.
Expert Insight: For concrete pads, using a sleeve anchor that is one size larger than the bolt diameter (e.g., a 1/2" bolt in a 5/8" hole) often provides a better grip in aged or porous concrete where a standard wedge anchor might slip.
Wall Installation: Navigating Masonry Challenges
Mounting a yoke bracket to a vertical wall—particularly Concrete Masonry Unit (CMU) or brick—requires a different tactical approach due to the varying density of the material.
The Hollow Core Pitfall
The hollow core of a CMU block is a frequent failure point for friction-based anchors. If an anchor is expanded inside a hollow cavity, it has almost zero pull-out resistance.
- The Through-Bolt Method: The "Gold Standard" for wall mounting. This involves drilling completely through the wall and using a backplate on the interior side to distribute the load.
- Heavy-Duty Toggle Anchors: If the interior wall is inaccessible, use toggle anchors that engage the back of the CMU face shell.
- Expansion Anchors: These should only be used if you can guarantee the anchor is set into a "grouted cell" (a block core filled with concrete and rebar).
Moisture and Corrosion Protection
Wall-mounted fixtures are prone to "streaking" on the building facade. Ensure the yoke bracket is made of die-cast aluminum with a commercial-grade powder coat to prevent oxidation. Use stainless steel hardware (Grade 304 or 316) to avoid galvanic corrosion between the bracket and the fasteners.
Technical Workflow: The "Pro-Grade" Installation Steps
Precision in execution separates a professional installation from a DIY attempt. Follow this sequence to ensure maximum stability.
1. Precision Drilling and Cleaning
Use a rotary hammer with a carbide-tipped bit. Do not use a standard drill; it will create an irregular hole that reduces anchor tension.
- Critical Step: Experienced installers always "proof" a drilled hole by blowing out dust with compressed air or a bellows. According to industry testing, residual dust in a hole can reduce anchor holding power by up to 50%.
2. Hardware Alignment and Leveling
Place the yoke bracket over the holes. Use a spirit level to ensure the horizontal axis is perfect. Even a slight 2-degree tilt at the base will be magnified into a significant visual misalignment once the light is aimed.
3. Torquing Sequence
Torque specifications are not suggestions; they are engineering requirements.
- The Star Pattern: When securing multiple bolts on a large yoke, snug all bolts first. Then, perform final torque in a star pattern. This ensures even pressure on the mounting plate and prevents the bracket from distorting, which could compromise the IP65 weather seal of the fixture.
- Torque Values: Refer to the manufacturer's spec sheet. Over-torquing can snap the bolt or strip the concrete threads, while under-torquing leads to vibration-induced loosening.
4. Aiming and Final Lockdown
Adjust the yoke to the desired angle. Most professional floodlights feature a "teeth" or "knurled" locking mechanism on the yoke pivot. Ensure these teeth are fully engaged before tightening the pivot bolts to prevent the fixture from "drooping" over time.
Financial Logic: The ROI of Proper Installation
A failed mounting system is more than a safety hazard; it is a financial disaster. The cost of a truck roll to repair a single loose fixture can exceed $250 in labor and equipment rental.
Rebate Compliance
To maximize the Return on Investment (ROI), contractors should select fixtures listed on the DesignLights Consortium (DLC) Qualified Products List. DLC-certified fixtures not only guarantee performance (LM-79 data) but are often a prerequisite for utility rebates.
| Project Metric | Traditional (Metal Halide) | LED Retrofit (DLC Premium) |
|---|---|---|
| Annual Energy Cost | $12,450 | $4,145 |
| Maintenance Cost (Labor/Lift) | $5,256 | $0 (5-Year Warranty) |
| Potential Rebate (per DSIRE) | $0 | $9,250 - $21,250 |
| Payback Period | N/A | ~6.5 Months |
| Values estimated based on a 50-fixture industrial warehouse simulation. |
By utilizing databases like DSIRE (Database of State Incentives for Renewables & Efficiency), contractors can identify local incentives that often cover up to 50-70% of the hardware costs, making the "Project-Ready" approach highly profitable.
Scenario Analysis: Standard vs. Extreme Conditions
Scenario A: The Standard Commercial Loading Dock
- Substrate: 8" Solid-poured concrete wall.
- Hardware: 3/8" Stainless steel wedge anchors.
- Outcome: Standard anchors provide more than enough shear strength for 150W-200W fixtures. Focus is on speed of installation and clean wiring via liquid-tight conduit.
Scenario B: The Coastal Industrial Yard
- Substrate: CMU wall with high salt-spray exposure.
- Hardware: Through-bolts with oversized backing plates and nylon-insert lock nuts.
- Strategy: Standard friction anchors will fail due to high wind gusts and corrosive salt air. The through-bolt ensures the fixture remains attached even if the outer masonry face shell experiences surface spalling.
Safety and Compliance Disclaimer
This guide is intended for professional electrical contractors. All installations must comply with NFPA 70: National Electrical Code (NEC) and local building ordinances. Ensure all power is disconnected before installation. High-mount work requires appropriate Personal Protective Equipment (PPE) and fall protection.
Frequently Asked Questions
Can I mount a yoke bracket to wood siding? Yes, but you must anchor into the structural studs or headers, not just the decorative siding. Use heavy-duty lag bolts with a minimum 2.5-inch penetration into the wood member.
What is the difference between a yoke mount and a trunnion mount? In most commercial contexts, the terms are used interchangeably. Both refer to a U-shaped bracket that allows for vertical tilting. "Trunnion" is more common in heavy industrial specifications, while "Yoke" is standard for general floodlighting.
How often should mounting hardware be inspected? According to best practices for industrial bulkhead and flood lighting, mounting security should be verified during annual maintenance checks, especially in high-vibration or high-wind zones.
Why is my fixture flickering after installation? Flickering is rarely a mounting issue but often a wiring or compatibility problem. Ensure your 0-10V dimming wires are not shorted and that the input voltage matches the driver rating (typically 120-277V). Refer to NEMA LSD 64 for standard control terminology and troubleshooting.
