Plan warehouse task-zone lighting beside a high-bay aisle as two separate views: the work task and the aisle travel path. Then check the boundary where they meet, because a layout built around one view does not automatically serve the other. Treat one shared arrangement as supported only when project-specific evidence covers both views.
The steps below show what to map at the task, what to map along the aisle, and what to hand to whoever runs the photometric layout.
Start by Evaluating the Task and Aisle as Separate Views
Split the review into three views before you look at fixtures. Each view asks a different question, so a check that settles one leaves the others open.
| View | What to map | Planning check |
|---|---|---|
| Work task | Task point, work plane, worker positions | Is the plane where work happens covered? |
| Aisle travel | Travel paths, views along the aisle | Are routes and sightlines marked? |
| Shared boundary | Sightlines between zones, racks, goods | Does project evidence cover both views here? |

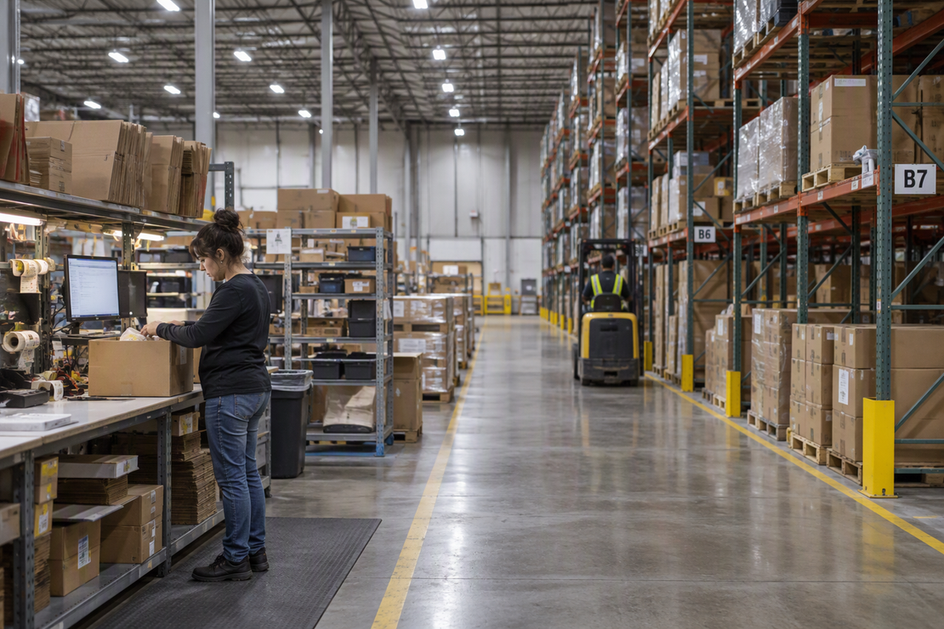

Here is an illustrative example. A packing bench sits at the end of a rack run. The packer looks down at cartons and up at labels on the nearest bay, while a forklift driver looks along the aisle past the bench. A layout review that models only the bench top says nothing about the driver's view, and the reverse is also true.
If your evidence covers only one view, the shared-layout question remains unresolved until the missing conditions are assessed.
Map the Work-Area Task View
Record where the work happens and which way the worker faces, checking both horizontal surfaces and any vertical planes on stacked goods. A warehouse lighting guide describes measuring task-plane illumination directly at the work point. For your site plan, that translates into four entries:
- Task location: Name the activity (packing, labeling, inspection) and mark its spot on the plan.
- Work plane: Note whether the task is on a flat surface, a vertical face, or both. A bench top and a rack face are different planes.
- Worker positions: Mark where people normally stand or sit. Also note any task position that shifts during operations.
- Vertical view at stacks: If workers read labels or pick from stacked goods, include that vertical face rather than checking only the horizontal surface.
The same guide names glare, shadows, contrast, direction, and distribution as lighting-quality considerations. Write down what you see for each one at the task, such as a shadow your own body casts on the bench or glare off shrink wrap. These notes help a designer understand the problem. They are observations, not target levels. Our guide to vertical rack lighting goes further into planning for the rack-face view when it is part of the task.
Check Aisle Travel and the Shared Boundary
Map the aisle as a travel route first, drawing forklift lanes, pedestrian paths, and crossing points near the work area. Then mark critical viewing angles, including the long view down the aisle and the line of sight toward the workstation.
Next, record what stands between those views at your site. Rack uprights, end-of-aisle stock, or tall pallet loads can block or shadow a sightline. Whether they do depends on your rack geometry and what is stored there today, so describe what you observe and note the date and configuration. If drivers report glare when looking down the aisle toward the work area, note where they were standing. Low-glare aisle optics are one approach a designer may weigh for that specific view.
Before you bring in any regulation, find out whether the path beside the work area is a designated exit route. If it is, OSHA's exit-route lighting rule at §1910.37(b)(1) requires the route to be adequately lighted so an employee with normal vision can see along it. That provision covers exit routes. It does not set a lighting level for every warehouse aisle, so keep it out of the review for aisles that are not exit routes.
Assemble Evidence for a Shared-Layout Decision
Gather one package that shows both views, then judge the shared layout from that package. Our lighting project brief guide and our high bay layout request checklist outline how to organize photos, site measurements, and layout inputs before review. The package for a work area beside an aisle should include:
- Layout and dimensions: Mark the work area, aisle, boundary, racks, and mounting heights.
- Task and travel positions: Show worker positions, work planes, travel paths, and viewing directions from the earlier sections.
- Rack and goods configuration: Note rack type, height, and what is stored near the boundary, plus whether it changes.
- Existing fixture information: Record fixture type, location, mounting height, and any label or spec sheet data you have.
- Photometric evidence: Use a project-specific layout or measurements that represent the task plane and the aisle views, not just one of them.
If you are weighing added or replacement fixtures, such as options in our warehouse lighting collection, ask for each candidate's photometric file so the layout reflects real optics. Our guide to a UFO high bay photometric layout explains the project inputs those files depend on.
Use the package to make the call. If the evidence represents the task view, the travel view, and the boundary, a lighting designer or engineer can judge whether one shared arrangement serves all three. If any of the three is missing, the shared approach is unresolved. Request a separate task-zone evaluation instead. Which federal OSHA, state-plan, state, or local requirements apply depends on the project location. A lighting designer, engineer, or the authority having jurisdiction makes that determination, along with any code-compliance or electrical decisions.
FAQs
What if the work position moves during a shift?
Map every position the task uses, not just the most frequent one. Light can be assessed at the task point and in the plane where the work is done, so a station that moves from a bench to a rack face adds a new point and possibly a new plane. Mark each one on the plan so the layout review covers them all.
Does rearranging racks or stored goods mean the review needs to be redone?
Reassess whenever a change affects the views you mapped. New rack heights, a different stocking pattern near the boundary, or relocated pallets can change sightlines between the aisle and the work area. Compare the current setup to the configuration recorded in your review package. If they differ at the boundary, update the plan and the photometric inputs.
Does OSHA set a lighting rule for every warehouse aisle?
No. The cited provision, §1910.37(b)(1), applies to exit routes. It requires an exit route to be adequately lighted so an employee with normal vision can see along it. Confirm with your facility's exit-route plan whether the aisle beside your work area is one.
Can one light-meter reading at the bench settle the question?
No. A single horizontal reading at the bench describes only that point and plane. It misses any vertical face the worker reads, the travel view along the aisle, and the boundary sightlines. Treat a single reading as one input to the package, not as the full review.
