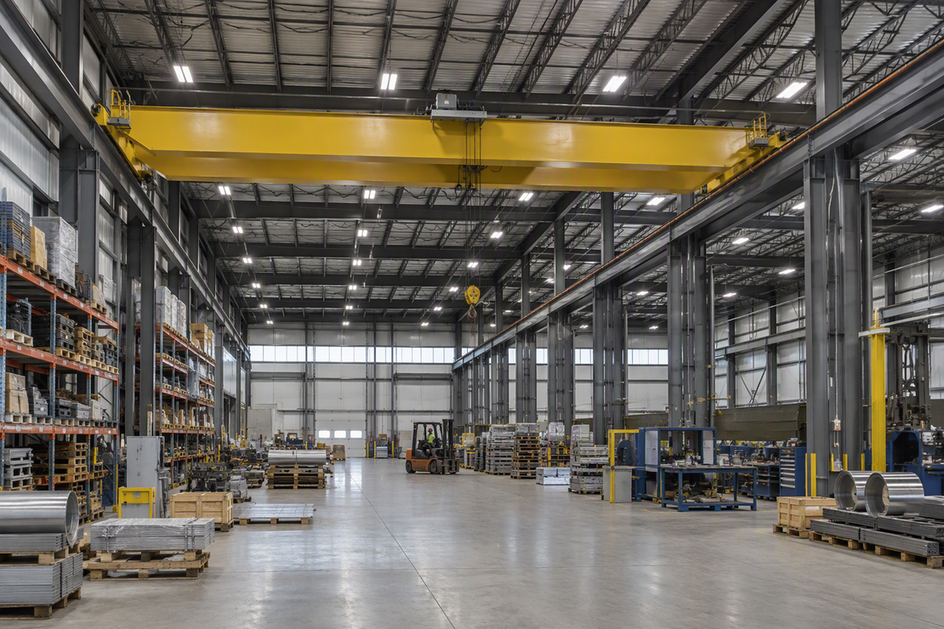

A useful warehouse crane lighting map puts four layers on one plan. It shows where people work and handle loads, how each crane moves according to your records, the building and overhead features around that movement, and where the current light fixtures sit. Each entry also gets a label that says whether it came from a record, a site check, an estimate, or nothing at all.
The map gets a reviewer ready to ask the right questions. It can't settle every question, so anything left unresolved becomes an open item for qualified project review before anyone makes layout or installation decisions.
Build the Map Around Work and Crane Movement
Start with the work, then add only the crane movement your records or site knowledge actually support. The checklist below sets up the core of the crane lighting map. Treat it as a prompt for preparing the map, not a formal crane survey.
| Map layer | Record on the plan |
|---|---|
| Work and task areas | Staging, assembly, inspection, or pick spots under or near the crane |
| Load-handling positions | Pickup, set-down, and hold points, if known |
| Runway | Location and length from crane records |
| Bridge travel | Direction and extent shown in records |
| Other crane motions | Hoist or trolley movement, only as documented |
| Each crane | Its own ID, color, or line style |
| Gaps | "Unknown" tag plus the missing record |
Where 29 CFR 1910.179 applies to your facility, the OSHA overhead crane standard gives you consistent labels. Under that standard, an overhead crane travels on a fixed overhead runway structure, and bridge travel means movement parallel to that runway. The same standard defines clearance as the distance from any part of the crane to the nearest obstruction. These terms help you label the map. They don't tell you how far your crane actually travels or how much clearance exists.
Crane records may list some of these dimensions outright. For example, one crane manufacturer's product description lists a 500 foot runway and a 75 foot bridge span for one of its cranes. Copy numbers like these only from your own crane's records, and name the record you used.
When two cranes share a runway or serve separate bays, label each one separately. Show where their ranges overlap only if records show it. If you merge them into one path, the reviewer can't tell which crane a later question is about.
The map prepares a review. It does not prove anything about safety or fit. An estimated crane position or an obstruction mark does not confirm clearance or approve fixture mounting. Send every unresolved clearance or mounting question to qualified project review before layout or installation decisions.
Add Building, Obstruction, and Existing-Light Layers
Keep the building and current lighting on layers separate from the crane data. That way, existing conditions stay distinct from any proposed layout.
Building geometry and overhead features
These features locate the review area and show what sits overhead near crane movement. The examples below are prompts, so add only what applies to your mapped area:
- Structural references: column grid lines, bay numbers, walls, and doors that pin down where each layer sits.
- Overhead features: roof structure, ducts, conveyors, fans, suspended equipment, or tall racks, marked by location with a short description.
- Dimensions and elevations: only values from drawings or site measurements. Mark the rest unknown.
Racks may be moving as part of the project. In that case, draw the current and planned rack lines as separate entries. Our guide to aligning fixtures with new racks covers the lighting side of that change.
Existing luminaires
Plot current fixtures where they are today, not where they might go. DOE describes workplace lighting studies that document existing conditions and review installed lighting systems, including in manufacturing facilities. This layer records the same kind of current-state information for your review area:
- Location of each fixture or row, tied to the column grid or bay numbers.
- An identifier or fixture record when one exists. Also note the fixture style when known, such as round or linear LED high bay lights.
- Unknown details, like wattage or mounting type, marked separately from a known location.
Label Each Map Entry by Evidence Status
Give each uncertain entry one of four status labels. A reviewer can then tell a record from a guess at a glance. This is a simple tracking system, and it works best when your team applies it the same way everywhere on the map:
- Documented: taken from an identified record, such as a crane drawing, facility plan, or fixture schedule. Name the record and its date.
- Field-verified: checked at the site. Note who checked it and when, if you know.
- Estimated: a working value with a stated basis, such as "paced off on site" or "scaled from a 2015 sketch."
- Unknown: no reliable basis yet. Note which record or confirmation is missing.
Proposed or modified conditions need one more marker. Tag a planned crane, crane modification, rack move, or new equipment as "proposed," and give it its own color or line style. Then no one will read it as an existing, verified condition.
Don't add tolerances or confidence percentages that no record supports. An estimated or unknown entry keeps its label until a record or site check upgrades it. Never redraw it as a firm boundary just because the map looks cleaner that way.
Prepare an Open-Item Handoff for Review
Turn every gap on the warehouse crane lighting map into a numbered open item. Each item points to a map location and asks one specific question.
Turn unknowns into review questions
Each open item needs four fields:
- Map reference: item number plus grid or bay location.
- Unresolved detail: what is uncertain, with its status label.
- Missing information: the record, measurement, or confirmation you don't have.
- Reviewer question: one question the reviewer can answer. Illustrative example: "Records show bridge travel only to column line 8. Does the crane travel beyond it?"
List crane movement, obstruction, mounting, and relocation items first, because any of them can change a layout decision. Write the question, not your own answer. If the crane has to keep running during the work, log that as an open item too. Our guide to retrofits in live warehouse spaces covers phasing questions. For mounting items, our article on high bay mount load capacity explains what goes into that part of the reviewer's check.
Send the supporting records
Send the package with whatever records exist. Don't hold it back for a document you don't have:
- The annotated map with its status legend.
- Facility plans or drawings that cover the review area.
- Crane documentation on hand, such as manufacturer records or runway drawings.
- Existing lighting records, like fixture schedules or past layouts.
- The open-item register, with estimates and unknowns flagged.
If a key record is missing, list it as an open item instead of filling the gap. For the next step after this map, our planning guide goes from site inputs to layout and fixture selection.
FAQs
Which crane movement should I show if the bridge and trolley move in different directions?
Show each motion as its own reference if your records or site knowledge identify it. Bridge travel runs parallel to the runway, so draw it along the runway line. Draw trolley or hoist movement only as far as your crane records show it. If a motion's extent isn't established, tag it unknown instead of sketching a likely path.
How should I label a proposed or undocumented crane?
Tag a planned or modified crane as proposed, and draw it in a separate color or line style. For an existing crane with no records, mark each movement estimated or unknown. Note the basis, the source and date if any, and the missing record. A partial route should never look like a verified existing condition.
Can the map confirm that a fixture has enough clearance from the crane?
No. The map shows where things are and which questions remain open. It does not measure clearance or approve fixture placement. Turn each specific clearance or mounting concern into an open item with its map location. Then send it to qualified project review before any layout or installation decision.
Should I leave out an obstruction if I don't know its height?
No. Mark its location and a short description, and label the height unknown. A reviewer needs to know the obstruction exists even without a dimension. Leaving it off can hide a condition that affects the layout. Add the missing elevation to the open-item register so someone can measure it or pull it from drawings.
