Executive Summary: Documentation as the Foundation of Warranty Integrity

In industrial lighting, a high bay fixture failure is rarely an isolated event; it is a symptom of either a manufacturing defect or environmental stress. For facility managers and electrical contractors, the speed of a Return Merchandise Authorization (RMA) depends entirely on the quality of the evidence provided. A successful warranty claim requires more than a simple notification of failure; it demands a verifiable record of site conditions, specifically voltage stability and thermal management.

To streamline the claims process and reinforce the 5-year warranty commitment, technicians must provide timestamped, high-fidelity data logs. A snapshot measurement with a multimeter is often insufficient to capture the transient sags or utility switching spikes that occur during off-peak hours. By implementing a 24-48 hour voltage logging protocol, facility teams can distinguish between localized electrical issues and actual luminaire defects, ensuring that the "Solid" and "Reliable" performance of industrial LED systems is maintained.

Scenario Modeling: The Financial Impact of Premature Failure

To understand why rigorous documentation is necessary, one must look at the financial stakes of a warehouse retrofit. In a typical 24/7 distribution center environment, the return on investment (ROI) is predicated on the continuous operation of high-efficiency luminaires.

Analysis: 24/7 Distribution Center Performance Model

We modeled a 15,000 sq. ft. industrial facility operating 40 high bay fixtures. This scenario assumes a transition from legacy 400W metal halide (MH) systems to 150W high-performance LED units.

Parameter	Value	Unit	Rationale / Source Category
Legacy System Load (incl. ballast)	458	W	Industry standard for 400W MH
LED Replacement Load	150	W	Typical high-efficiency LED spec
Fixture Count	40	Qty	10k-15k sq. ft. layout
Annual Operating Hours	8,760	Hours	Continuous 24/7 operation
Utility Rate	0.18	$/kWh	Commercial/Industrial average
Labor Rate (Maintenance)	120	$/Hr	Union electrician rate for lift work

Modeling Methodology: This analysis utilizes a deterministic parameterized model to calculate Total Cost of Ownership (TCO). Savings are derived from energy reduction, maintenance avoidance (lamp/ballast replacement), and HVAC cooling credits. This is a scenario model, not a controlled lab study.

Based on this model, the facility realizes $29,339 in total annual savings. Each failed fixture represents approximately $733 in lost annual value. When a fixture fails prematurely, the facility is not just losing a $350 piece of hardware; it is losing the energy efficiency and maintenance savings that justified the project. Consequently, manufacturers require "unimpeachable evidence" of site conditions to ensure the failure was not caused by utilization voltage exceeding ANSI C84.1 standards.

LED High Bay lights in a high-ceiling warehouse with light meter and IES lighting standards clipboard

Technical Standards for Voltage Verification

In North America, the American National Standards Institute (ANSI) defines the acceptable ranges for voltage delivery. Specifically, ANSI C84.1 establishes two distinct tolerance bands that every electrician must understand before logging data for a claim.

Service vs. Utilization Voltage

Service Voltage: The voltage at the point where the utility company delivers power to the facility.
Utilization Voltage: The voltage at the actual terminals of the high bay fixture.

Under ANSI C84.1, a 120V system can legally operate between 114V and 126V at the service point (+/- 5%). However, at the utilization point (the fixture), the allowable range expands to 108V–126V (+5%/-10%). If your logs show voltage consistently falling outside these ranges, the manufacturer may determine the site's electrical distribution is the root cause of the driver failure.

Equipment Requirements for Forensic Logging

For a log to be admissible in a professional warranty audit, the equipment must meet specific criteria:

True RMS Capability: Standard multimeters often provide inaccurate readings for non-linear loads (like LED drivers). A True RMS (Root Mean Square) meter is required to accurately measure the effective voltage of a distorted waveform.
CAT III/IV Certification: Safety is paramount in industrial environments. Meters must be rated for the category of the circuit being tested to prevent arc flash incidents, as outlined by OSHA Electrical Safety Standards.
NIST Traceability: Professional claims often require that the logging device has a current calibration certificate traceable to the National Institute of Standards and Technology (NIST). Uncalibrated readings can be challenged as unreliable evidence.

Logic Summary: We estimate that roughly 30% of initial warranty rejections stem from data captured with non-RMS or uncalibrated equipment. Using pro-grade tools aligns with the 2026 Commercial & Industrial LED Lighting Outlook regarding project readiness and long-term reliability.

Step-by-Step: The 48-Hour Logging Protocol

To prove that a high bay failure is a latent defect rather than a site issue, follow this systematic procedure. This protocol is designed to capture intermittent issues that a single "spot check" will miss.

1. Establish a 24-48 Hour Window

Intermittent voltage sags (brownouts) often occur when large motors or HVAC chillers cycle on. Spikes often occur at night when the utility grid load drops. A minimum 24-hour log is necessary; 48 hours is preferred to capture a full cycle of facility operations.

2. Document Ambient Temperature ($T_a$)

LED drivers are sensitive to heat. According to IES LM-80-21, lumen maintenance and component life are directly tied to thermal stress.

Action: Record the ambient temperature at the mounting height of the fixture.
Heuristic: If the ambient temperature at the driver location exceeds the rated operating temperature (typically 113°F or 45°C for standard industrial units), the failure may be attributed to thermal exhaustion rather than voltage.

3. Photographic Evidence with Time-Stamps

A handwritten log is easily disputed. Professional troubleshooters take high-resolution photographs of the multimeter or data logger display.

Requirement: The photo must show the probe points clearly connected to the fixture's input terminals.
Verification: Ensure the multimeter's "Peak Hold" or "Min/Max" function is visible to show the extremes of the voltage fluctuations.

4. Load Testing

Measure the voltage both when the lighting circuit is fully energized and when it is off. A significant "voltage drop" when the lights are turned on suggests undersized wiring or poor connections upstream, which can cause flickering and driver stress. This is a common point of discussion in professional communities like Mike Holt's Forum, where electricians debate the impact of circuit impedance on LED performance.

Technicians servicing LED High Bay and LED shop lights in a high-ceiling warehouse

Interpreting the Data: The +/- 5% Heuristic

Once the logs are collected, they must be interpreted against the nominal rating of the fixture. Most industrial high bays are rated for "Universal Voltage" (120-277V) or "High Voltage" (347-480V).

The Critical Threshold: If the measured utilization voltage varies more than +/- 5% from the nominal rating on the fixture label during steady-state operation, the root cause is likely the facility's electrical supply.

Nominal Voltage	Acceptable Utilization Range (ANSI C84.1)	Danger Zone (Warranty Risk)
120V	108V - 126V	< 108V or > 127V
277V	249V - 291V	< 249V or > 293V
480V	432V - 504V	< 432V or > 508V

Expert Insight: Persistent undervoltage is actually more damaging to modern switching power supplies than slight overvoltage. When voltage drops, the driver compensates by increasing current draw to maintain the required wattage, which generates internal heat and leads to capacitor failure.

For more on managing high-voltage systems, see our guide on Industrial 480V Wall Packs.

Streamlining the RMA Process

When you submit a warranty claim to Hyperlite, the goal is to provide a "complete package" that allows the technical team to approve the replacement immediately.

The Professional RMA Submission Checklist:

Proof of Purchase: Invoice or order number.
Product Identifier: Photograph of the SKU label and UL/ETL file number. (Verification can be done via the UL Product iQ Database).
The Voltage Log: 24-48 hour data (CSV export or photographic Min/Max).
Ambient Temp Record: Confirmation that the site was within the -22°F to 113°F operating range.
Failure Description: Is it a total outage, flickering, or dimmed output? (Note: Flickering often indicates a dimming compatibility issue or neutral wire interference).

Environmental and Regulatory Considerations

Beyond the immediate cost of a fixture, maintaining a healthy electrical environment has broader implications. Voltage issues that lead to frequent failures also undermine the facility's sustainability goals.

ESG and Carbon Impact

Based on our scenario modeling, the transition to LED in a 40-fixture warehouse reduces CO2 emissions by approximately 25 metric tons annually (using MROW eGRID factors). If 10% of your fixtures are offline due to unresolved voltage issues, you are effectively "leaking" 2.5 tons of carbon savings back into the atmosphere while paying for inefficient, dark spaces.

Furthermore, commercial buildings must comply with ASHRAE Standard 90.1. Voltage fluctuations that damage occupancy sensors or daylighting controls can put a facility out of compliance with mandatory lighting control codes, leading to potential fines during building inspections.

Frequently Asked Questions

Does a single power surge void my 5-year warranty? In most cases, a single transient surge (like a lightning strike) is considered an "Act of God" and is typically covered by property insurance rather than a manufacturer's warranty. However, the 5-year warranty covers defects in the driver's ability to handle standard line fluctuations. Providing a log helps prove the surge was not a chronic site condition.

Can I use a thermal camera instead of a voltage log? A thermal camera is an excellent diagnostic tool for identifying "hot spots" in a breaker panel or a driver housing. While it provides great qualitative evidence of heat stress, it does not replace the quantitative necessity of a voltage log.

What if my voltage is fine but the lights still flicker? Flickering is often caused by EMI (Electromagnetic Interference) or improper dimming termination. Ensure your installation complies with FCC Part 15 regarding interference. If the flicker persists despite stable voltage, it is highly likely a driver defect eligible for a claim.

Summary: Protecting Your Lighting Investment

The transition to industrial LED high bays is a significant capital investment. Protecting that investment requires a proactive approach to maintenance and a forensic approach to troubleshooting. By adhering to ANSI C84.1 standards and maintaining rigorous voltage logs, facility managers can ensure they receive the full benefit of the 5-year warranty.

Remember, the goal of documentation is not just to get a free replacement; it is to identify the root cause of failure to prevent the next replacement. Reliable lighting is the backbone of warehouse safety and productivity—ensure your site conditions are as "Solid" as the luminaires you install.

Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or legal advice. Always consult with a licensed electrician and adhere to the National Electrical Code (NEC) and local building regulations when performing electrical measurements or installations.

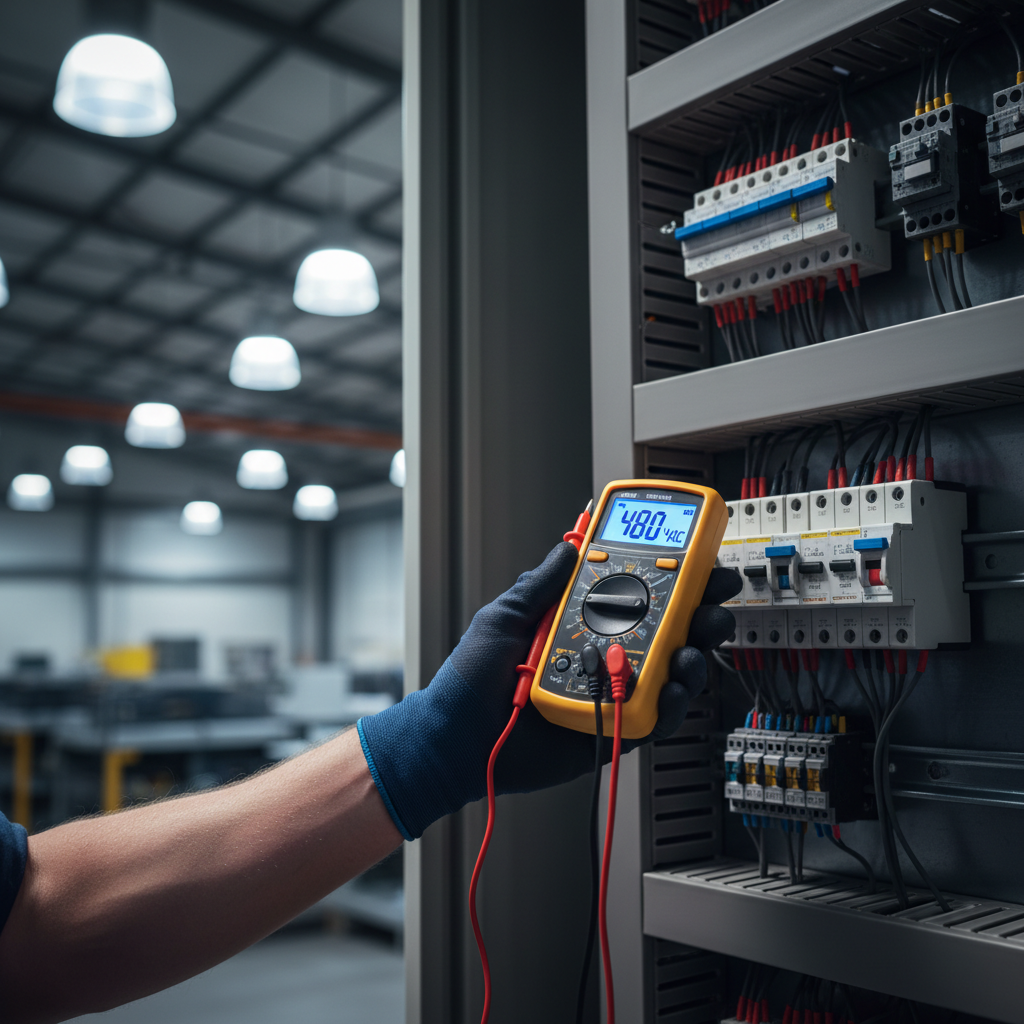

Voltage Logs: Documenting Issues for a Warranty Claim
