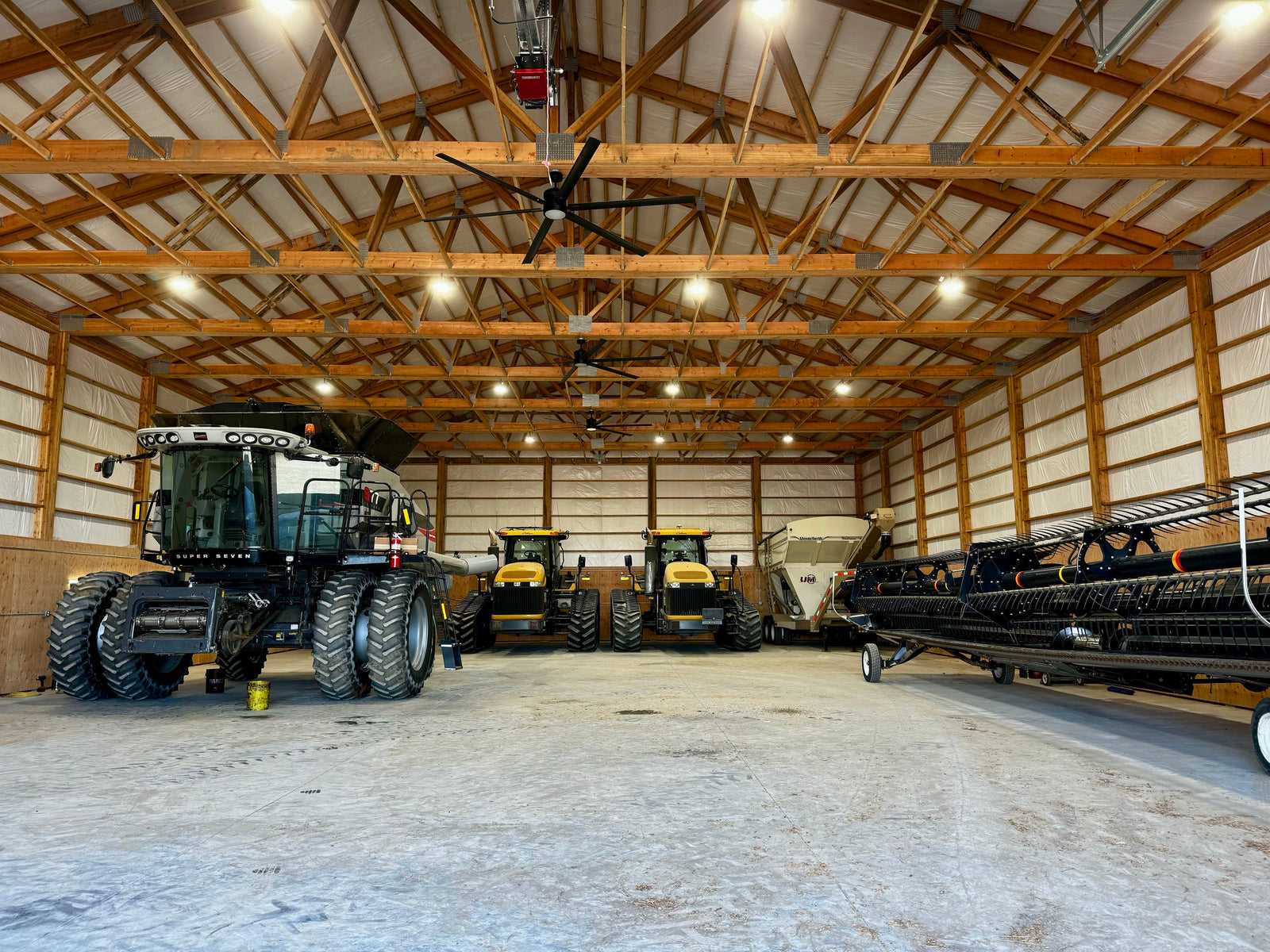

Verifying IP Ratings for Dust-Heavy Environments
In workshops, farms, or factories, dust is as damaging as water. While many focus on water resistance, the fine, abrasive particles of wood, grain, or metal present a persistent threat to lighting fixtures. An overlooked dust-related failure can lead to performance degradation, safety hazards, and costly downtime. Understanding how to correctly interpret and verify Ingress Protection (IP) ratings is the first line of defense. This guide focuses on the first digit of an IP rating—the one that governs solids protection—to ensure your fixtures are genuinely equipped for long-term reliability and safety in dusty conditions.
Decoding the First Digit: Solids Ingress Protection
The IP rating system, standardized by the International Electrotechnical Commission (IEC) in standard 60529, provides a clear classification of a product's sealing effectiveness. The first number relates to protection against solid objects, from large body parts down to microscopic dust.
For environments like agricultural barns, fabrication shops, or food processing facilities, the distinction between the upper levels—IP5X and IP6X—is critical.
| First Digit | Protection Against Solid Objects | Details & Application |
|---|---|---|
| IP0X | No protection | No special protection against ingress of objects. |
| IP1X | >50 mm | Protected against objects larger than 50 mm, such as a hand. |
| IP2X | >12.5 mm | Protected against objects larger than 12.5 mm, such as a finger. |
| IP3X | >2.5 mm | Protected against objects larger than 2.5 mm, such as tools and thick wires. |
| IP4X | >1 mm | Protected against objects larger than 1 mm, such as most wires and small screws. |
| IP5X | Dust Protected | Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment or impair safety. The test is typically conducted without a vacuum, making it a less stringent trial than the IP6X test. |
| IP6X | Dust Tight | No ingress of dust; complete protection against contact. The test involves placing the fixture in a dust chamber with fine talcum powder (e.g., particle size <75μm). A vacuum is applied to create under-pressure inside the enclosure to actively draw dust in. The test can last up to 8 hours. The key difference from IP5X is the outcome: zero dust ingress is permitted. |
While IP5X offers a degree of protection, it is not a guarantee against the finest particles. For operations involving fine powders like flour, sawdust, or agricultural dust, only an IP6X rating provides the necessary assurance of a completely sealed enclosure. For a deeper dive into how this applies to specific fixtures, see our guide on IP6X: Why Dust-Tight Lights Are Key for Shops & Barns.
Why IP6X is Strongly Recommended in High-Dust Zones
While IP5X offers sufficient protection for some environments, choosing a lower-rated fixture in a high-dust zone can be a costly mistake. For instance, in a general workshop with intermittent dust, IP5X might be adequate. However, in environments with fine, pervasive particulates like grain mills, flour processing plants, or continuous woodworking shops, the "dust-tight" assurance of IP6X becomes critical. The consequences of inadequate protection extend far beyond a flickering light.
- Overheating and Fire Risk: Dust is an excellent insulator. When it accumulates on the heat sink of an LED fixture, it traps heat, preventing proper thermal dissipation. This can drastically shorten the driver's lifespan and, in severe cases, increase the risk of fire. This is a critical safety consideration under the National Electrical Code (NEC).
- Reduced Light Output: A layer of dust on a lens or reflector can significantly reduce a fixture's lumen output, compromising visibility and safety. This requires more frequent cleaning and maintenance, adding to operational costs.
- Component Failure: The finest dust particles can work their way past inadequate seals. Once inside, this dust can coat sensitive electronics on the driver board, leading to short circuits and premature failure.
I’ve personally inspected fixtures in grain processing facilities that failed in under a year. The spec sheet claimed IP65, but the seals around the driver compartment were compromised by fine, airborne dust, leading to overheating and failure. This experience underscores that the rating itself is only the starting point.
Beyond the Label: A Checklist for Verifying Dust-Tight Integrity
A number on a spec sheet is not enough. True due diligence requires a deeper verification process, especially for large-scale or critical projects. A common misconception is that the IP rating for the luminaire body automatically applies to every part of the installed system. The reality is that connection points are the most common points of failure.
Here is a practical checklist for specifiers, contractors, and facility managers to ensure the fixtures you procure are genuinely dust-tight.
Verification Checklist:
-
Request the Full IP Test Report: Do not rely on the marketing spec sheet alone. Ask the manufacturer for the third-party laboratory test report that certifies the IP rating. This document provides proof of compliance with standards like IEC 60529. A legitimate report from an accredited lab will contain specific, verifiable data. Look for key parameters such as:
- Test Dust Type: Often fine-grade talcum powder with a specified particle size distribution (e.g., passing through a 75μm sieve).
- Test Duration: The length of the test, which can be up to 8 hours for IP6X.
- Vacuum Pressure: The negative pressure applied inside the enclosure to promote ingress.
- Outcome: A clear statement confirming that no dust was observed inside the enclosure after the test.
- Scrutinize the Test Configuration: Check the report to see how the fixture was tested. Did it include the specific cable glands, plugs, and connectors you will be using? I've seen fixtures pass testing with a sealed-off entry point, only to fail in the field because the contractor used an unrated cord grip.
- Demand a Statement of Configuration: For large orders, ask the manufacturer for a written statement confirming that the complete assembly as you are purchasing it—including any pre-installed cords or sensors—meets the advertised IP6X rating.
- Inspect Gaskets and Seals: Upon receiving the fixtures, visually inspect the gaskets around the driver compartment and lens. They should be uniform, properly seated, and free of defects. A poorly molded or misaligned gasket is an immediate red flag.
- Document Installation Details: Keep photographic evidence of the installed cable entry points and connectors. This documentation is invaluable for expediting warranty claims or insurance inquiries if a failure occurs.
Best Practices for Installation and Maintenance
Proper installation and a consistent maintenance schedule are essential to preserving a fixture's dust-tight integrity throughout its service life.
Installation Do's and Don'ts:
- DO use the correct torque when tightening cable glands and connectors. Use a torque wrench if specifications are available.
- DON'T overtighten connectors. This can deform or damage the gasket, creating a path for dust ingress.
- DO apply a small amount of O-ring lubricant (if specified by the manufacturer) to ensure a positive seal without damaging the gasket material.
- DO ensure all unused entry points are sealed with a correctly rated plug.
Sample Maintenance Schedule for High-Dust Environments
A proactive maintenance plan prevents unexpected failures. The frequency should be adjusted based on the severity of the dust exposure.
| Task | Frequency | Purpose |
|---|---|---|
| Visual Inspection | Every 6 months | Check for signs of dust entry, cracked lenses, or deteriorating gaskets. |
| Compressed Air Cleaning | Every 3-4 months | Use low-pressure compressed air to blow dust off heat sinks and lenses. |
| Gasket Condition Check | Annually | Check that seals remain pliable and are not compressed, cracked, or hardened. |
| Log Service Dates | Every service | Keep a detailed log of all maintenance activities to support any future warranty claims. |
Professional Safety Disclaimer
The information provided in this guide is for educational purposes only and does not constitute professional engineering or legal advice. Electrical installations and modifications can be hazardous. For any critical installations, especially in environments with combustible dust, we strongly recommend consulting a licensed electrical engineer or a certified electrician to ensure compliance with all local codes and safety standards.
Key Takeaways
For any application where dust is a factor, from a home workshop to a heavy industrial facility, focusing on the first digit of the IP rating is essential for ensuring safety and reliability. Simply looking for a generic "IP65" rating is not enough.
Remember these key principles:
- IP6X is the Standard: For environments with fine, suspended dust particles, specify fixtures rated as "dust-tight" (IP6X).
- Verify the Entire Assembly: The IP rating is only as strong as its weakest link. Scrutinize test reports and ensure that connectors, glands, and sensors meet the same standard as the fixture housing.
- Install and Maintain Correctly: Follow best practices for installation to ensure seals are not compromised, and implement a regular cleaning and inspection schedule to maintain performance and support warranty requirements.
By moving beyond the spec sheet and adopting a rigorous verification and maintenance process, you can ensure your lighting investment remains safe, efficient, and reliable for years to come.
Frequently Asked Questions (FAQ)
What is the difference between IP65 and IP66? The first digit, '6', in both ratings indicates they are dust-tight. The difference is in the second digit, which refers to liquid ingress protection. IP65 protects against water jets from any direction, while IP66 protects against powerful water jets. For dust protection, they are equivalent.
Can I install an IP65-rated light in a woodworking shop? Yes, an IP65-rated fixture is dust-tight and suitable for a woodworking shop where sawdust is prevalent. The '6' ensures no dust will enter the housing. Our guide to IP65 UFO High Bays offers more detail for these applications.
Does the 5-Year Warranty cover failures due to dust? If an IP6X-rated fixture fails due to dust ingress and has been installed and maintained correctly, it is typically covered under warranty. However, failures caused by improper installation (e.g., using unrated connectors) or lack of maintenance may not be covered. Always keep maintenance logs.
How does dust affect the lifespan of an LED driver? Dust acts as an insulator, trapping heat and causing the driver's internal components to run at higher temperatures. According to the U.S. Department of Energy, elevated temperatures are a primary cause of reduced lifespan and premature failure in LED electronics. A dust-tight (IP6X) housing is the best way to prevent this.
