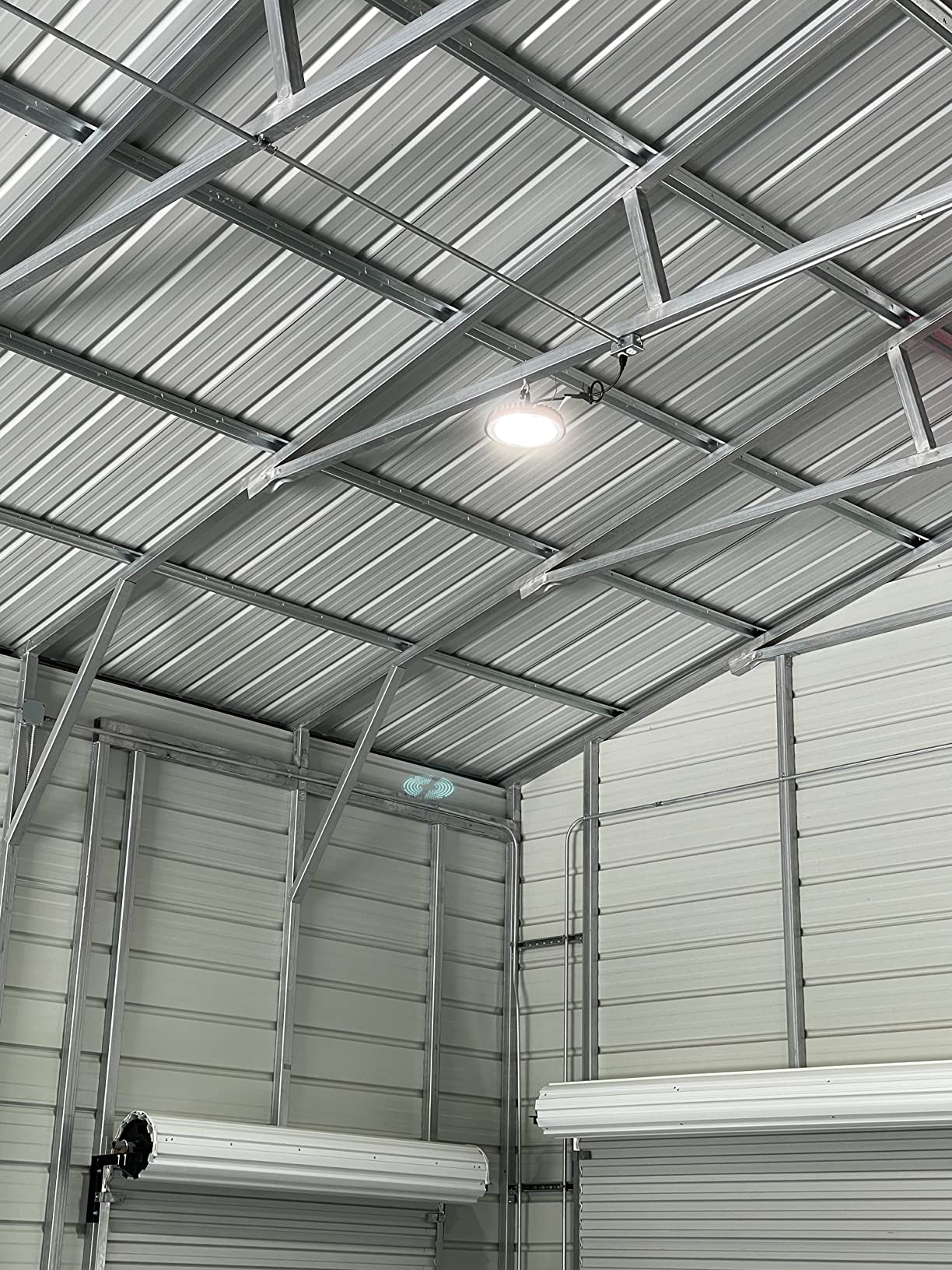

For industrial facilities utilizing steel-frame construction, the structural I-beam is the most reliable anchor point for high-output lighting. However, a "one-size-fits-all" approach to mounting often leads to catastrophic failure in environments subject to thermal cycling, seismic activity, or heavy machinery vibration. Securing a 35-lb industrial luminaire requires more than a standard hardware store clamp; it demands a system rated for at least 100 lbs to account for dynamic loads.
The most effective mounting strategy for industrial high bays involves using unidirectional beam clamp rollers or heavy-duty steel strut clamps with a minimum torque of 35–45 ft-lbs. This ensures that the fixture remains stationary despite the 50–60°C temperature swings common in non-climate-controlled warehouses, which can cause metal expansion and contraction that loosens standard fasteners over time.
The Engineering of I-Beam Mounting: Load and Vibration
Industrial I-beams (Wide Flange or S-sections) are designed to support massive static loads, but their flanges are susceptible to localized stress if clamps are applied incorrectly. When mounting circular LED luminaires, the primary challenge is not just the weight of the fixture, but the vibration patterns generated by HVAC systems, overhead cranes, and industrial fans.
According to the National Electrical Code (NEC) - NFPA 70, all luminaires must be securely supported. In high-vibration industrial settings, "securely supported" translates to hardware that prevents lateral movement and vertical decoupling. Standard C-clamps often rely on a single set-screw that can "walk" across a painted beam surface during thermal cycles.
Quantitative Mounting Specifications
The following data, derived from industrial installation simulations, compares standard commercial practices against high-performance industrial requirements:
| Parameter | Standard Commercial Practice | High-Performance Industrial Spec |
|---|---|---|
| Clamp Load Rating | 2x Fixture Weight | 3x to 5x Fixture Weight |
| Installation Torque | 15–25 ft-lbs | 35–45 ft-lbs (Seismic Rated) |
| Fastener Treatment | Standard Lock Washer | Anaerobic Thread-Locker (Blue) |
| Beam Surface Prep | None | Cleaned/Degreased + Spreader Plate |
| Safety Factor | 2:1 | 4:1 |
Note: Values based on average industrial safety audits for fixtures weighing 25–45 lbs.
Professional Hardware Selection: Clamps and Brackets
Selecting the correct clamp is a decision between speed and long-term reliability. For most industrial retrofits, three main types of hardware dominate the market:
- Strut Beam Clamps with U-Bolts: These are the gold standard for versatility. They allow for the attachment of 1-5/8" strut channels across the beam, providing a platform for multiple fixtures or conduit runs. High-quality versions, such as those found in the Wiseway Supply catalog, utilize electro-galvanized steel to prevent galvanic corrosion when in contact with different beam alloys.
- Window Clamps (C-Channel): These "wrap" around the flange. For industrial use, ensure the clamp features a hardened cup-point set screw and a secondary locking nut.
- Unidirectional Beam Clamp Rollers: Used in heavy-duty manufacturing, these can support up to 2,000 lbs and are designed to handle the mass distribution of large-scale luminaires without compromising the beam's structural integrity.
Step-by-Step Installation Protocol for Industrial Beams
Experienced installers follow a rigorous protocol to ensure that a 5-year warranty is never compromised by a mounting failure.
1. Surface Preparation and Leveling
Steel beams in warehouses are often painted or galvanized. A common "gotcha" is the unevenness of the top flange. If the beam is not perfectly level, the fixture will hang at an angle, creating uneven light distribution and putting unnecessary stress on the housing's neck.
- Expert Tip: Use a custom-fabricated saddle plate or a 1/4" steel spreader plate between the clamp and the beam. This protects the beam's finish and provides a flat surface for the clamp to bite into.
2. The Drilling Debate: Web vs. Flange
While many contractors prefer "no-drill" clamps to save time, some high-vibration environments require through-bolting.
- The Rule: Never drill into the edge of a flange; this is where the beam's tension and compression forces are highest. If through-bolting is required, drill through the center of the beam's web. Always use Grade 5 or higher bolts with fender washers on both sides.
3. Torque and Thread-Locking
Vibration is the silent killer of industrial lighting. Over a 12-month period, the constant hum of a facility can back out nuts even if lock washers are present.
- Action: Apply a medium-strength anaerobic thread-locking compound to all bolt threads after final torque. This creates a chemical bond that resists vibration but allows for removal with standard hand tools during future maintenance.
Compliance, Safety, and E-E-A-T Standards
In the B2B sector, compliance is the first point of verification. A fixture is only as safe as its weakest link, which is often the mounting hardware.
UL and Safety Certifications
Every component of the lighting system should be UL 1598 listed, which covers the safety of the luminaire itself. However, for the mounting system, the UL 8750 standard ensures that the LED equipment and its power supply are thermally and electrically safe.
According to ANSI/IES RP-7-21 - Lighting Industrial Facilities, industrial lighting design must account for "maintenance factors," which include the physical stability of the fixture. A loose mounting can lead to flickering—not from the driver, but from intermittent electrical contact in the junction box caused by physical swaying.
Scenario Analysis: Standard Warehouse vs. Heavy Vibration Plant
To choose the right mounting method, you must identify the primary stressor in your environment.
Scenario A: The Standard Distribution Center (30ft Ceilings)
- Primary Stress: Thermal cycling.
- Solution: High-quality C-clamps with locking nuts and safety cables.
- Mechanism: The safety cable acts as a secondary "fail-safe" required by many local building codes. Even if the clamp loosens due to expansion, the cable prevents the fixture from falling.
Scenario B: The Heavy Stamping Plant or Forging Facility
- Primary Stress: High-frequency vibration and impact.
- Solution: Strut-channel mounting with through-bolts in the beam web.
- Mechanism: By distributing the load across a strut channel that is anchored to the web, you isolate the fixture from the harmonic vibrations of the beam flanges.
Financial Impact: The ROI of Professional Installation
While professional mounting hardware and labor might increase initial costs, the long-term Return on Investment (ROI) is undeniable. Based on a simulation of a 50-fixture manufacturing bay operating 24/7:
- Maintenance Avoidance: By using vibration-resistant mounting and high-efficiency LED drivers, a facility can save approximately $8,486 annually in avoided relamping and lift-rental costs.
- Operational Resilience: Reducing the failure rate of mounts means less downtime. In a 24/7 environment, a single falling fixture can shut down a production line, costing thousands of dollars per hour.
- Total Payback: When accounting for utility rebates (often requiring DLC Premium certification), the entire retrofit project—including professional mounting—can see a payback period as short as 1.8 months.
Maintenance and Seasonal Audits
The job isn't finished once the lights are on. Industrial facilities should include lighting mounts in their semi-annual maintenance checklists.
- The 6-Month Check: Visually inspect all clamps for "walking" or signs of finish damage on the beam.
- The 12-Month Check: Perform a torque check on 10% of the fixtures. If more than one fixture shows a decrease in torque, a full-facility re-torque is necessary.
By adhering to these rigorous standards, facility managers can ensure that their lighting system is as "solid" as the steel beams supporting it.
YMYL Disclaimer: This article provides technical guidance for industrial lighting installation and is for informational purposes only. Electrical and structural work in industrial settings must be performed by licensed professionals in accordance with local building codes, OSHA regulations, and the National Electrical Code (NEC). Improper installation of heavy fixtures can lead to structural failure, fire, or severe injury.
