The Decision Framework for Warehouse Aisle Lighting
In the high-stakes environment of industrial warehouse management, the choice between a standard circular industrial fixture—commonly known as a UFO high bay—and a specialized aisle-optic linear fixture is rarely about aesthetics. It is a decision rooted in photometric efficiency, operational safety, and long-term Return on Investment (ROI). While conventional wisdom often defaults to linear fixtures for any racked space, pragmatic facility managers know that specific scenarios exist where the circular distribution of a high-performance round fixture is not only acceptable but strategically superior.
This article provides a technical deep dive into the application limits and performance thresholds of circular industrial lighting within aisle spaces. We will examine the data-backed trade-offs between symmetric and asymmetric light distribution, the critical role of the Spacing-to-Mounting-Height (S/MH) ratio, and how to maintain compliance with evolving energy codes like ASHRAE Standard 90.1-2022.
According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, selecting the right form factor is the first step in future-proofing an industrial facility against rising energy costs and stricter safety audits.
The Photometric Efficiency Gap: Symmetric vs. Asymmetric Distribution
The primary technical challenge in aisle lighting is the "wasted lumen" phenomenon. A standard circular industrial fixture typically features a Type V symmetric distribution, which throws light in a 360-degree pattern. In an open manufacturing floor, this is ideal for uniformity. However, in a narrow warehouse aisle, this symmetry becomes a liability.
The 40% Efficiency Loss Factor
Data from photometric modeling indicates that a symmetric circular distribution can waste between 40% and 60% of its total lumen output on non-task areas, such as the tops of racks or empty vertical space above the picking zone. In contrast, asymmetric linear aisle fixtures are engineered to direct 85% to 95% of their light specifically onto the vertical rack faces and the horizontal floor plane of the aisle.
Logic Summary: This efficiency gap is derived from scenario modeling comparing a standard 120° beam angle circular fixture against a 30°x70° aisle-optic linear fixture in a 10-foot wide aisle with 25-foot racks. The "waste" constitutes light hitting the top of the racking (above the highest pick level) or creating excessive glare for operators looking down the aisle.
| Distribution Type | Task-Plane Efficiency | Application | Best For |
|---|---|---|---|
| Symmetric (Circular) | 40% – 60% | Open Area | Staging, Shipping, Cross-Aisles |
| Asymmetric (Linear) | 85% – 95% | Racked Aisle | High-Density Storage, Narrow Aisles |
| Narrow Beam (Circular) | 65% – 75% | High Ceiling | 35ft+ Open Storage |

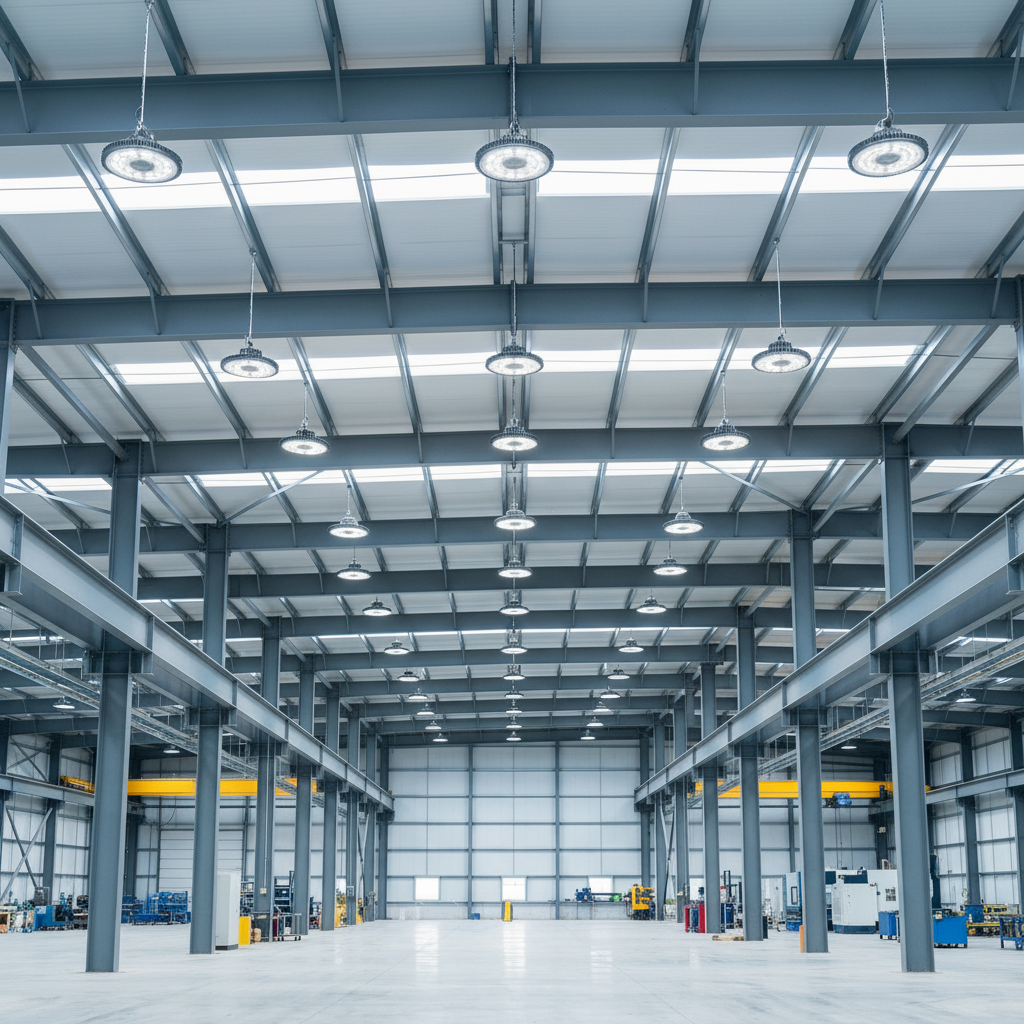

When to Use Circular Industrial Fixtures in Aisles
Despite the efficiency gap, there are four specific scenarios where a high-output circular fixture (UFO style) is the pragmatic choice for aisle-adjacent spaces:
1. Low-Ceiling General Storage (Under 18 Feet)
For aisles under 12 feet wide with mounting heights below 18 feet, the precision of an aisle-optic fixture often results in "hot spots" directly under the fixture and dark zones in between. In these lower-clearance environments, a well-spaced circular fixture provides a broader wash of light that improves overall visibility for general storage tasks where vertical picking precision is less critical.
2. Cross-Aisles and Staging Areas
In the intersections where main aisles meet (cross-aisles) or where goods are staged for shipping, the light must come from multiple directions to ensure safety for forklift operators. Linear aisle-optics create shadows in these "T" or "X" junctions. A circular fixture at the center of the intersection provides the necessary 360-degree coverage to eliminate blind spots.
3. Open-Plan Bulk Storage
In facilities where inventory is floor-stacked or stored in low-profile bins rather than tall racking, the vertical illumination requirements are minimal. Here, the goal is horizontal uniformity across the floor. Circular fixtures win on installation speed and cost-effectiveness in these open-plan layouts.
4. Retrofit Projects with Existing Center-Point Wiring
If a facility is upgrading from old HID (High-Intensity Discharge) lamps and the existing electrical boxes are centered in the aisles, installing linear fixtures may require expensive re-piping of conduit to align the optics with the rack rows. In such cases, a high-efficacy DLC Premium circular LED fixture can meet the required foot-candle targets without the added labor cost of moving electrical points.
The S/MH Ratio: A Technical Guardrail
To avoid the common pitfall of "zebra striping" (alternating bright and dark spots), contractors must adhere to the Spacing-to-Mounting-Height (S/MH) ratio. For a standard circular fixture with a wide beam angle, achieving uniform aisle lighting (defined as a uniformity ratio U0 > 0.6) typically requires an S/MH ratio of 1.0 or less.
- The Heuristic: If your mounting height is 20 feet, your fixtures should be spaced no more than 20 feet apart center-to-center within the aisle.
- The Trade-off: Linear fixtures designed for aisles can often handle S/MH ratios of 1.5, meaning you need fewer fixtures to cover the same distance. If you choose circular fixtures, you must account for the higher fixture count required to maintain safety-level uniformity.
Methodology Note: These S/MH values are based on standard industry heuristics for Type V optics and are intended for quick field estimation. For precise layouts, always use IES LM-63-19 photometric files in simulation software like AGi32.
Compliance, Controls, and ROI
Specifying a fixture for a B2B project requires more than just checking the lumen count. Compliance with safety and energy standards is the baseline for professional-grade installations.
Safety and Performance Documentation
Every fixture specified for a warehouse aisle must have a verifiable "performance report card."
- IES LM-79-19: This report verifies the actual optical and electrical measurements. Never rely on marketing claims; always verify the LM-79 data to ensure the fixture delivers the stated Lumens per Watt (lm/W).
- IES LM-80 & TM-21: These documents prove the long-term lumen maintenance. In high-bay environments where maintenance access is difficult, a fixture with a projected L70 life of >60,000 hours is essential to minimize downtime.
- UL 1598: This is the mandatory safety listing for fixed luminaires in North America. Insurance providers often require proof of UL or ETL listing for industrial facilities.
Energy Code Integration (ASHRAE & IECC)
Modern energy codes like IECC 2024 and California Title 24 mandate more than just high efficiency; they require lighting controls. For warehouse aisles, this means:
- Occupancy Sensing: Lights must dim or turn off when the aisle is vacant.
- 0-10V Dimming: Standard for integration with building management systems (BMS).
Circular fixtures with integrated sensor ports allow for "plug-and-play" control upgrades, which are often a prerequisite for securing utility rebates through the DSIRE Database.
Scenario Modeling: Circular Fixture Performance in a Standard Aisle
To demonstrate the practical application of these principles, we modeled a hypothetical warehouse scenario to determine the viability of circular fixtures versus linear alternatives.
Method & Assumptions
- Modeling Type: Deterministic parameterized scenario model (not a controlled lab study).
- Aisle Width: 10 feet.
- Rack Height: 25 feet.
- Mounting Height: 28 feet (pendant mounted).
- Target Illumination: 20–30 foot-candles (FC) average on the floor, per IES RP-7 recommendations.
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Fixture Wattage | 150 | W | Standard industrial mid-range |
| Luminous Efficacy | 140 | lm/W | DLC Standard baseline |
| Beam Angle | 120 | Degrees | Standard circular distribution |
| S/MH Ratio | 0.9 | Ratio | Optimized for uniformity |
| Reflection Factor | 20/50/20 | % | Floor/Ceiling/Walls standard |
Findings: Under these parameters, the circular fixtures achieved an average of 22 FC on the floor. However, vertical illumination on the rack faces dropped significantly below 10 FC at the mid-rack levels.
Boundary Conditions: This model assumes clean fixtures and a high-reflectance concrete floor. In a high-dust environment, light loss factors (LLF) would increase, potentially requiring a jump to a 200W fixture or a more focused 90-degree lens to maintain the same FC levels.
Maintenance and Operational Reality
A common mistake in warehouse lighting design is ignoring the "serviceability factor." While circular fixtures are often touted as easier to install due to their compact size, their maintenance in tight aisle spaces can be challenging.
Based on patterns observed from facility maintenance crews, linear fixtures with hinged access panels often allow for faster driver replacement in the field. However, high-quality circular fixtures with external drivers and IP65-rated housings—compliant with IEC 60529—offer superior protection against the dust and vibration common in industrial settings, often outlasting their linear counterparts in "dirty" environments like foundries or wood processing plants.
Practical Decision Checklist for Facility Managers
Before finalizing a specification for warehouse aisle lighting, use this checklist to determine if a circular industrial fixture is the right fit:
- Is the ceiling height under 20 feet? (Yes = Circular is viable; No = Consider Linear Aisle-Optics).
- Is the aisle wider than 12 feet? (Yes = Circular distribution provides better overlap; No = Linear is more efficient).
- Is the project a "one-for-one" HID retrofit? (Yes = Circular fixtures minimize electrical labor; No = Design for Linear).
- Are there significant cross-aisles or staging areas? (Yes = Use Circular fixtures at these junctions to ensure multi-directional safety lighting).
- Does the fixture have a direct DLC QPL link? (Mandatory for rebate eligibility).
By prioritizing technical data—such as photometric IES files and LM-79 reports—over marketing aesthetics, facility managers can ensure their lighting system provides the safety and efficiency required for a 24/7 industrial operation.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or financial advice. All electrical installations must comply with the National Electrical Code (NEC) and local building codes. Consult with a licensed electrical contractor before beginning any retrofit project.
