Forging and foundry operations represent the most punishing environments for industrial lighting. In these facilities, ambient temperatures frequently exceed 113°F (45°C), while localized radiant heat from furnaces and molten metal can push temperatures even higher. For facility managers and engineers, the challenge is not just "brightness," but thermal survival. Standard LED fixtures often fail prematurely in these zones due to driver overheating and lumen depreciation caused by inadequate thermal management.

To maintain operational safety and compliance, specifiers must prioritize fixtures engineered with advanced heat dissipation, verifiable performance data, and robust environmental seals. This guide analyzes the technical requirements for high-temperature industrial lighting, grounding every recommendation in verifiable standards and real-world engineering heuristics.

The Physics of High-Heat Illumination

In a forging bay, the relationship between heat and LED performance is non-linear. As the junction temperature ($T_j$) of the LED chip rises, the efficiency (lumens per watt) drops, and the rate of permanent lumen degradation accelerates.

Thermal Management: Cold Forging vs. Die-Casting

The primary differentiator in high-heat reliability is the material and manufacturing process of the heatsink.

Die-Cast Aluminum: Common in entry-level fixtures, die-casting involves melting aluminum and injecting it into a mold. This process often leaves internal air pockets (porosity), which act as thermal insulators, trapping heat within the fixture.
Cold Forged Aluminum: High-performance industrial fixtures utilize cold forging. According to industry engineering guides, cold forged aluminum (typically 1070 grade) has a thermal conductivity of approximately 226 W/m·K, which is nearly double that of standard die-cast aluminum (ADC12), which averages 96 W/m·K. This superior conductivity allows heat to move away from the LED chips and driver more rapidly.

The Lumen Derating Heuristic

Experienced practitioners apply a "derating" calculation when designing layouts for high-heat zones. While a fixture might be rated for 113°F, operating it consistently at its limit requires a safety margin.

The Rule of Thumb: Derate the effective lumen output by 3–5% for every 10°F (approx. 5.5°C) the ambient temperature exceeds the fixture’s rated maximum.
Calculation Logic: If a bay consistently reaches 130°F and the fixture is rated for 113°F, we assume a minimum 5–8% reduction in light output over time compared to standard test conditions.

LED High Bay lights and industrial high bay fixtures illuminating a high-ceiling warehouse with storage racks and a forklift

Compliance as a Reliability Baseline

In B2B procurement, certifications are not just "badges"; they are the performance report cards of the fixture. For high-heat environments, three standards are non-negotiable.

1. IES LM-79-19: The Performance Snapshot

The IES LM-79-19 Standard defines the method for measuring the electrical and photometric properties of the entire fixture. When reviewing an LM-79 report, engineers should look for the "Luminous Efficacy" (lm/W) and "Power Factor." In forging sites, where energy costs are high due to machinery, a power factor >0.9 is essential to avoid utility penalties.

2. IES LM-80 and TM-21: The Longevity Forecast

While LM-79 tells you how the light performs today, IES LM-80-21 and IES TM-21-21 tell you how it will perform in 10 years.

LM-80 measures the lumen maintenance of the LED chips over 6,000 to 10,000 hours at specific temperatures.
TM-21 uses that data to project the $L_{70}$ life (the point where the light output drops to 70% of its original value).
The 6x Rule: IES standards strictly prohibit projecting a lifespan beyond six times the actual test duration. If a manufacturer claims 100,000 hours based on a 6,000-hour test, they are violating TM-21 protocols.

3. UL 1598: Safety in Damp and Hot Locations

For industrial luminaires, UL 1598 is the core safety standard. In foundries, it is critical to verify that the UL listing specifically covers the intended "Ambient Temperature" and "Location" (Damp vs. Wet). A fixture rated for 40°C (104°F) in a standard warehouse will likely experience driver failure if installed in a 55°C (131°F) forging bay.

Environmental Engineering: Dust, Impact, and Seals

In addition to heat, forging and foundry sites are characterized by fine metallic dust and mechanical vibration.

Metric	Requirement	Why it Matters in Forging/Foundry
IP Rating	IP65 or IP66	Prevents metallic dust from bypassing seals and coating internal electronics, which would impede heat dissipation.
IK Rating	IK08 or Higher	Protects the fixture from mechanical impact during heavy equipment movement or maintenance.
Gasket Material	Silicone/Sealed	Standard rubber gaskets can become brittle and fail under chronic high-heat exposure.
Lens Material	Tempered Glass or Polycarbonate	Must resist yellowing and cracking under high UV and thermal stress.

The "Vertical Clearance" Rule

A common installation error is mounting fixtures directly above primary radiant heat sources like furnaces.

Minimum Clearance: We recommend a minimum vertical clearance of 15–20 feet from the primary radiant heat source.
Thermal Layering: Heat rises and pools at the ceiling. In facilities with high ceilings (>30 feet), the temperature at the fixture level can be 10–15°F higher than at the floor level. Always measure the temperature at the intended mounting height, not the floor.

Technician inspecting machined aluminum housings for an LED High Bay fixture on a factory bench

The Economic Case: ROI and Rebate Strategies

High-performance lighting in heavy industry is an investment in operational efficiency. According to the 2026 Commercial & Industrial LED Lighting Outlook, the shift toward "Project-Ready" fixtures is driven by the convergence of energy savings and utility incentives.

The Forging Bay Retrofit Experiment

We modeled a scenario involving the replacement of 40 legacy 400W metal halide high bays in a 12,000 sq ft forging facility.

Scenario Parameters:

Operation: 6,000 hours/year (Multi-shift production).
Fixture Choice: Premium, high-temp rated circular LED high bays (300W, 45,000 lumens).
Utility Rate: $0.16/kWh.

The Results (Estimated Ranges):

Direct Energy Savings: Each fixture reduces consumption by 158W (accounting for ballast draw), leading to approximately $6,000 in annual energy savings for the facility.
Maintenance Avoidance: Eliminating lamp and ballast replacements saves an estimated $3,400 annually in labor and material costs.
HVAC Credit: Because LED fixtures emit significantly less waste heat than metal halides, the facility sees a modest reduction in cooling load, estimated at $300 annually.
Rebate Potential: By selecting DesignLights Consortium (DLC) Premium products, the project qualifies for top-tier utility rebates. In many jurisdictions, these rebates range from $185 to $350 per fixture, potentially covering up to 40% of the initial capital expenditure.

Payback Period: Including the maximum rebate, the project can achieve a simple payback in under 1.7 years, with immediate positive cash flow in some utility zones.

Regulatory Navigation: Energy Codes and Controls

Modern building codes like ASHRAE Standard 90.1-2022 and the International Energy Conservation Code (IECC) 2024 have moved beyond simple wattage limits. They now mandate sophisticated lighting controls.

Mandatory Controls in Large Facilities

For facilities over 5,000–10,000 sq ft, the following are often mandatory:

Occupancy/Vacancy Sensing: Lights must automatically shut off or dim when the area is unoccupied. In high-ceiling forging bays, microwave sensors are preferred over PIR (Passive Infrared) because they are more effective at detecting motion from heights above 20 feet.
Daylight Harvesting: If the facility has skylights or clerestory windows, fixtures must dim in response to natural light levels.
0-10V Dimming: This is the industry standard for industrial control. It allows for smooth integration with sensors and Building Management Systems (BMS).

California Title 24 Compliance

For projects in California, Title 24, Part 6 imposes some of the strictest requirements in the nation. It requires specific multi-level lighting controls and rigorous commissioning to ensure the system operates as designed. Using fixtures that are already DLC Premium listed simplifies the Title 24 compliance process, as many of the efficacy and control requirements overlap.

Round industrial high bay suspended by chain from exposed wooden beams and metal conduit in a high‑ceiling garage or workshop

Implementation Checklist for Facility Managers

When specifying circular "UFO" high bays for high-heat industrial zones, use the following checklist to ensure long-term reliability:

Verify the Heatsink: Confirm the use of cold forged aluminum rather than die-cast.
Check the UL Ambient Rating: Ensure the UL certificate covers at least 113°F (45°C), or higher if the site is extreme.
Audit the DLC QPL: Search the DesignLights Consortium database to verify the specific model number is eligible for Premium-tier rebates.
Request .ies Files: For any professional layout, ensure the manufacturer provides IES photometric files for use in software like AGi32.
Assess the Driver: In forging environments, the driver is the most common point of failure. Look for drivers with 6kV or higher surge protection to guard against "dirty" industrial power.
Evaluate Sensors: If using occupancy sensors, ensure they are rated for the mounting height and environmental conditions of the bay.

By focusing on these technical pillars—thermal management, compliance documentation, and regulatory alignment—facility managers can transition from reactive maintenance to a proactive, energy-efficient lighting strategy that survives the unique rigors of the forging industry.

Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or financial advice. Always consult with a licensed electrician and local building authorities to ensure compliance with the National Electrical Code (NEC) and regional safety standards.

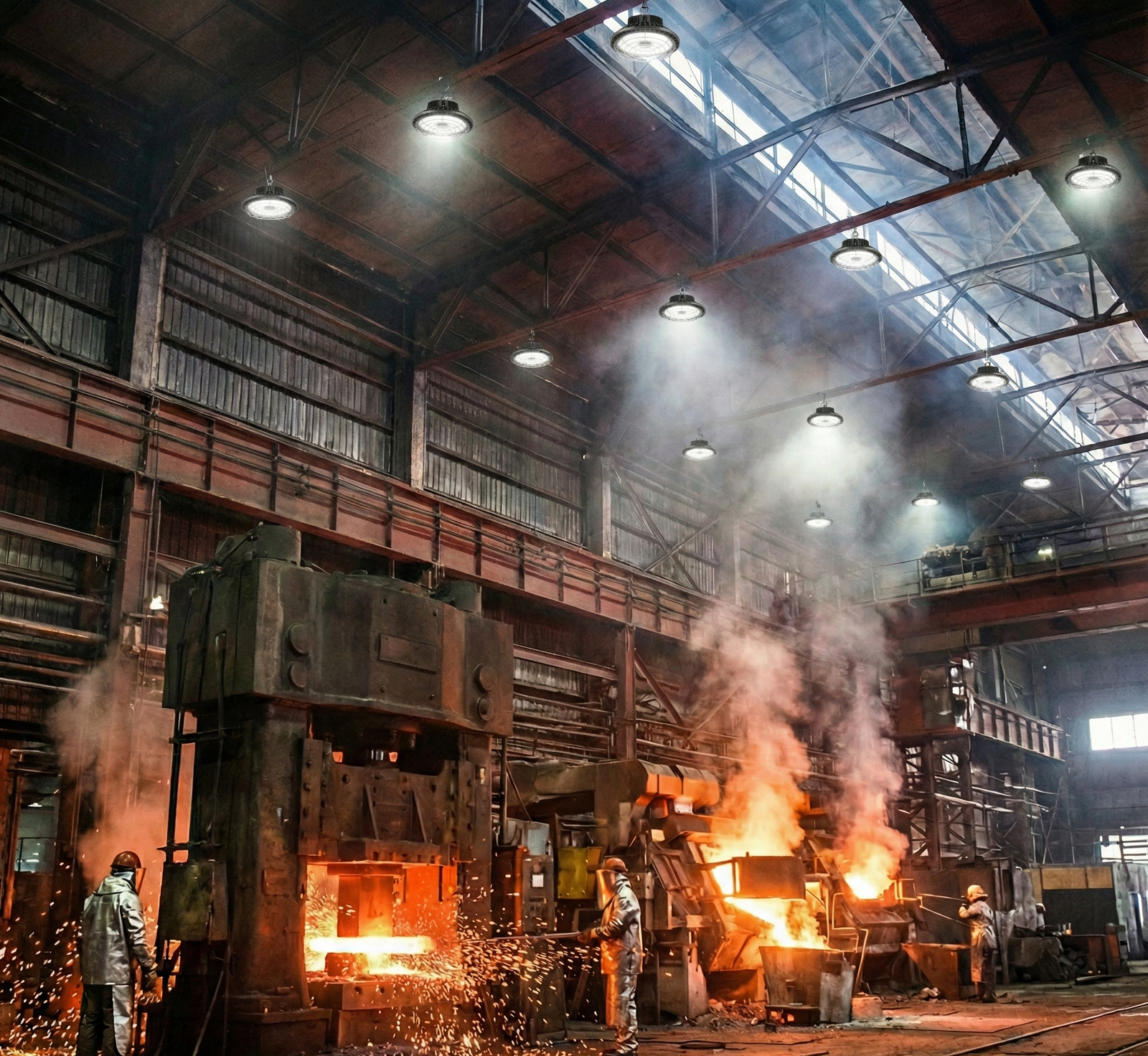

Surviving the Heat: UFO High Bays in Forging & Foundry Sites
