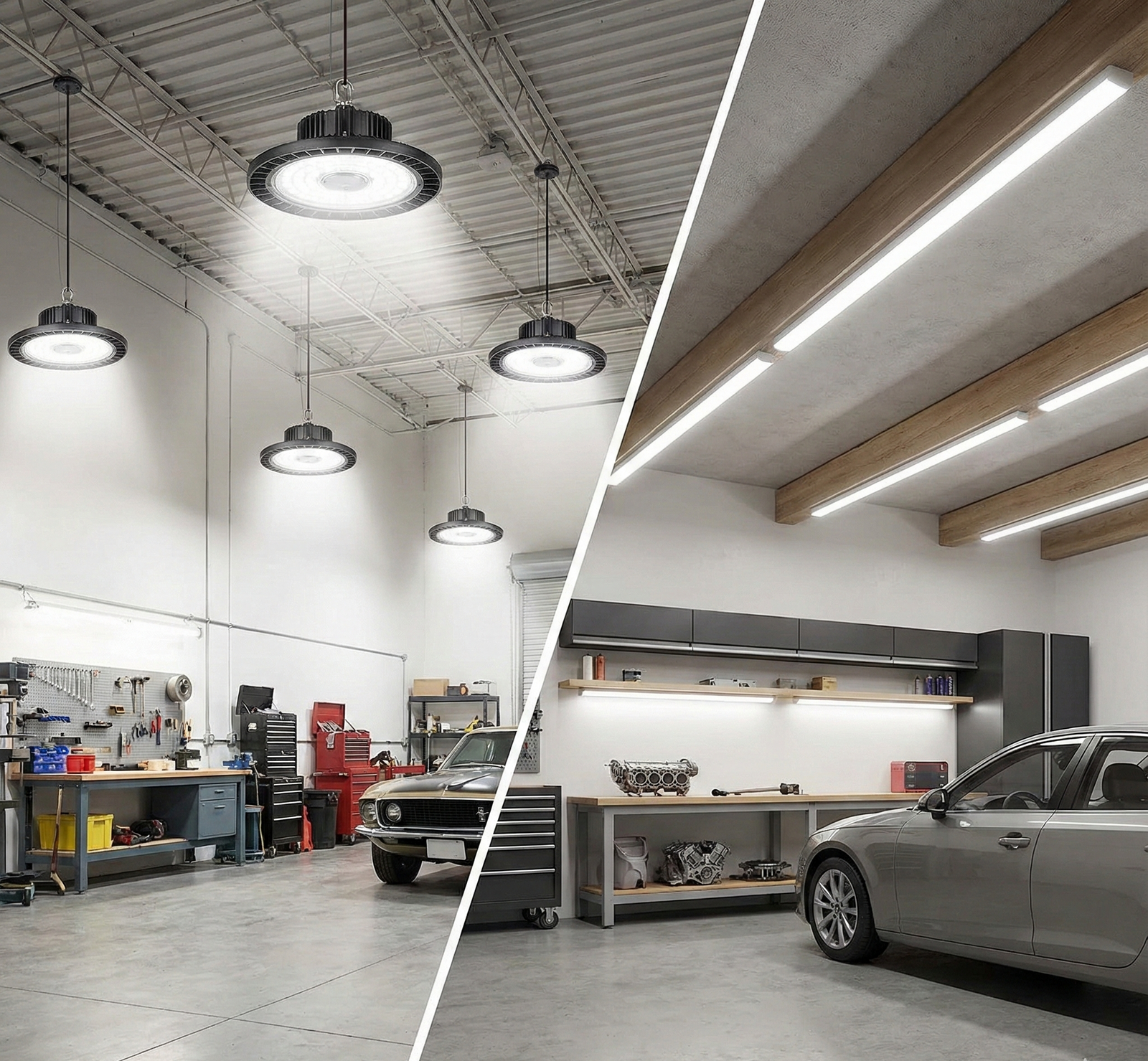

Choosing between a single industrial high-output fixture and a network of linear LED strips is the most common crossroad for prosumers upgrading a two-car garage. While the standard 24'x24' (576 square feet) footprint seems straightforward, the introduction of high ceilings—typically 12 to 20 feet in modern workshops—fundamentally changes the physics of light distribution.
The decision is not merely about brightness; it is about managing "hotspots" versus "dark zones," ensuring electrical compliance with the National Electrical Code (NEC), and maximizing return on investment (ROI) through utility rebates. This guide provides a technical breakdown of how to engineer the optimal lighting layout for your workspace.
The Physics of Lumens: Quantity vs. Uniformity
In a task-oriented environment like an automotive shop or woodshop, the industry standard for "adequate" light is measured in foot-candles (fc) or lux. According to the Illuminating Engineering Society (IES) RP-7-21, Lighting Industrial Facilities, general assembly areas require a minimum of 30 to 50 foot-candles.
For a 576 sq. ft. garage, achieving 50 foot-candles requires approximately 28,800 delivered lumens. However, for detailed tasks such as engine repair or fine finishing, practitioners recommend 70 to 100 lumens per square foot, pushing the requirement to nearly 58,000 lumens.
The "One-Light" Pitfall
A common mistake among DIYers is installing a single 200W industrial high bay (producing ~29,000 lumens) in the center of a two-car garage. While this meets the lower end of the lumen requirement, it creates a severe "hotspot" directly underneath the fixture. Because light follows the Inverse Square Law, the intensity drops significantly as you move toward the corners. In a workshop, this results in the "shadow trap"—where your own body or the vehicle you are working on blocks the central light source, leaving your workspace in the dark.
The Strip Light Alternative
Linear LED strip lights allow you to distribute those 58,000 lumens across multiple points. A typical 4-foot LED strip produces roughly 2,500 to 5,000 lumens. To match the output of two high-wattage industrial fixtures, you would need approximately 12 to 16 strip lights. This creates superior uniformity but introduces significant installation complexity.
Technical Deep Dive: Industrial High Bays (UFO Style)
Industrial high bays, often referred to as "UFO" lights due to their circular profile, are engineered for high-ceiling applications where durability and "punch" are required.
- Optical Control: Most high-quality high bays utilize a 120° beam angle. According to BBIER Lighting Research, this wide angle is critical for low-ceiling (12-15 ft) installations to ensure light overlap between fixtures.
- Thermal Management: These fixtures use cold-forged aluminum heatsinks. This is not just for aesthetics; it ensures the LED chips operate within the temperature ranges specified in their IES LM-80-21 reports, which directly impacts the $L_{70}$ lifespan (the point where the light drops to 70% of its original brightness).
- Durability (IP and IK Ratings): For shops with dust or moisture, an IP65 rating (Ingress Protection) is mandatory. Furthermore, in environments where tools might strike a fixture, an IK08 or IK10 rating (Impact Protection) ensures the housing can withstand mechanical shocks of 5 to 20 Joules.
Technical Deep Dive: Linear LED Strip Lights
Linear strips are the go-to for "shadowless" environments. They are particularly effective when mounted at heights below 12 feet.
- Diffusion: Unlike the intense point source of a high bay, strips use frosted polycarbonate covers to diffuse light, reducing glare when you look up—a common occurrence when working under a vehicle on a lift.
- CRI and Color Consistency: For painting or wood staining, a Color Rendering Index (CRI) of 80+ is the baseline, but 90+ is preferred. Professionals look for compliance with ANSI C78.377-2017, which ensures that "5000K" light from one manufacturer matches "5000K" from another.
- Electrical Constraints: Daisy-chaining is the primary advantage of strips, but it is also a risk. The NFPA 70 National Electrical Code (NEC) limits the continuous load on a circuit to 80% of its rating. If you chain twenty 40W strips, you are drawing 800W. On a 15A/120V circuit (1,440W usable), this is safe, but adding a table saw or compressor to the same circuit will trip the breaker.
The "Glass Box" Comparison: 2-Car Garage Simulation
We simulated a 24'x24' garage with a 14-foot ceiling to compare a high-output industrial setup against a high-density strip setup.
| Feature | 2x 200W Industrial High Bays | 16x 4-ft LED Strip Lights |
|---|---|---|
| Total Lumens | ~58,000 lm | ~64,000 lm |
| Power Consumption | 400W | 640W |
| Installation Time | 15–30 minutes (Plug & Play) | 4–6 hours (Mounting & Wiring) |
| Uniformity (Max:Min) | 3.5 : 1 (Moderate) | 1.2 : 1 (Excellent) |
| Maintenance | Single point of failure | Multiple failure points |
| Rebate Eligibility | High (DLC Premium) | Moderate (Energy Star) |
Note: Data based on average performance specs for commercial-grade LED fixtures. Actual results vary by manufacturer.
Compliance and ROI: The Professional Edge
For the prosumer, "value" is found at the intersection of performance and government incentives.
DLC Premium and Utility Rebates
The DesignLights Consortium (DLC) Qualified Products List (QPL) is the gatekeeper for utility rebates. High-efficiency industrial lights that meet DLC Premium standards (often requiring >135 lm/W) can qualify for rebates ranging from $50 to $150 per fixture. In many cases, the rebate covers 50-80% of the fixture cost. Before purchasing, check the DSIRE Database to find local incentives in your zip code.
Energy Standards (ASHRAE and Title 24)
If you are building a new detached workshop, you may be subject to ASHRAE Standard 90.1-2022 or California Title 24. These codes often require:
- Occupancy Sensors: Lights must automatically turn off when the space is vacant.
- 0-10V Dimming: Allows for "daylight harvesting" or manual brightness adjustment to save energy.
- Efficacy Thresholds: Fixtures must meet specific lumens-per-watt minimums to pass inspection.
Scenario Analysis: Which Setup Fits Your Work?
Scenario A: The General Utility Workshop
- User: Weekend DIYer, storage, basic car maintenance.
- Recommendation: 2x 150W Industrial High Bays.
- Why: This setup provides high brightness with minimal installation. Mounting two fixtures 12 feet apart along the center line provides sufficient overlap for most tasks. It is the most cost-effective path to professional-grade light.
Scenario B: The Precision Fabrication Shop
- User: Woodworking, engine rebuilding, detailing, or product photography.
- Recommendation: Hybrid Solution (High Bays + Strips).
- Why: Use 2x 100W High Bays for general ambient light (filling the volume of the room) and add 4-6 LED strips directly over workbenches or detailing bays. This eliminates shadows at the work surface while maintaining the "punch" needed to see into dark engine bays or cabinet interiors.
Critical Installation "Gotchas"
- The 80% Rule: Never load a circuit to 100%. If your garage has a single 15A circuit, your total lighting and tool load should not exceed 12A (1,440W). High-output LEDs are efficient, but multiple fixtures add up.
- Mounting Height vs. Glare: If your ceiling is below 12 feet, industrial high bays can be blinding. In these cases, look for fixtures with "frosted" lenses or consider adding a reflector to direct light downward and away from your eyes.
- EM Interference: Cheap LED drivers are notorious for producing electromagnetic interference (EMI). Ensure your fixtures are FCC Part 15 compliant to prevent your shop lights from killing your Wi-Fi signal or radio reception.
Frequently Asked Questions
Can I plug an industrial high bay into a standard 120V outlet? Yes, most commercial-grade LED high bays are "auto-sensing" and operate on voltages from 120V to 277V. Ensure the fixture comes with a standard US 3-prong plug for a "plug-and-play" installation.
What color temperature is best for a garage? 5000K (Daylight) is the industry favorite for workshops because it improves alertness and makes it easier to distinguish colors and find small parts. 4000K (Cool White) is a better choice if you want a slightly "softer" feel that is less clinical.
How do I know if a light is truly "commercial grade"? Look for a UL Listed or ETL Listed mark. These certifications prove the fixture has been tested for safety by a National Recognized Testing Laboratory (NRTL). Avoid "UL Recognized" components if you are a DIYer; you want the entire fixture to be "Listed."
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or construction advice. Always consult with a licensed electrician and check local building codes before performing electrical installations. Working with high-voltage electricity carries risks of fire and personal injury.
